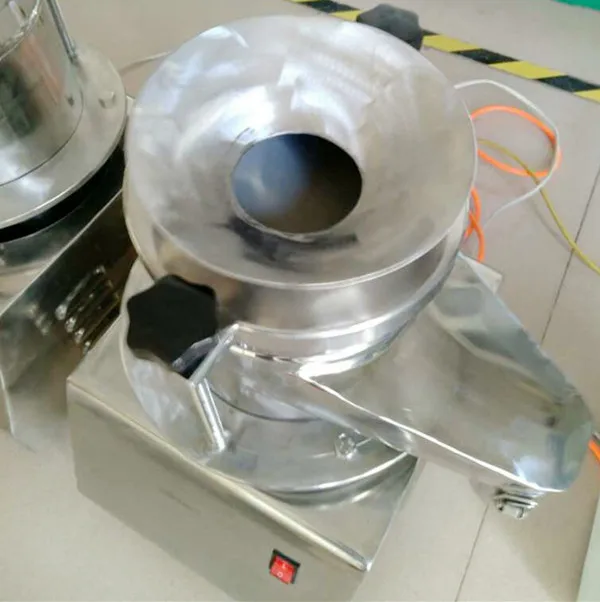

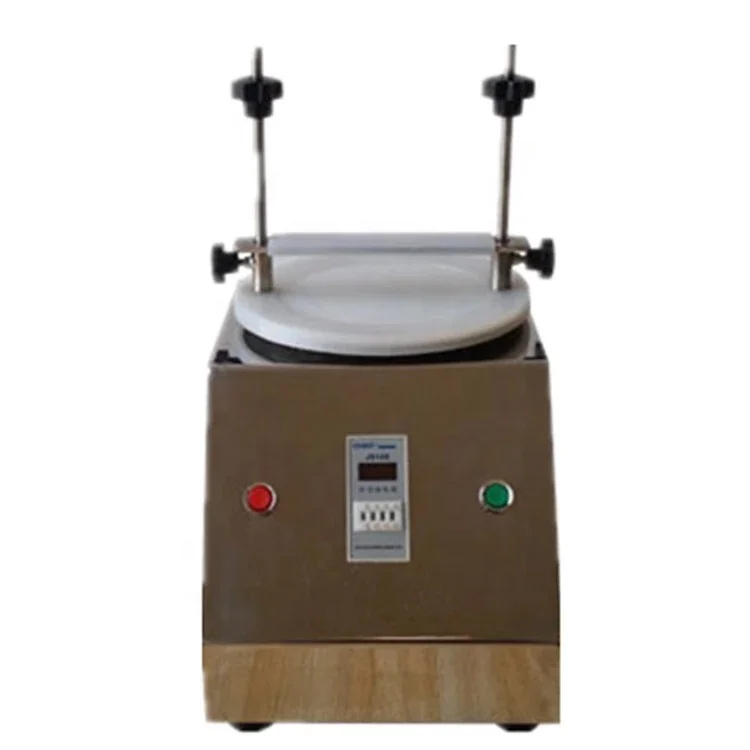

200mm Testing powder 80mesh size Electric vibrator lab vibration sieve shaker
- Category: >>>
- Supplier: Xinxiang Xin Ming De Machinery Co. Ltd.
Share on (1600741363673):
Product Overview
Description
Product Overview

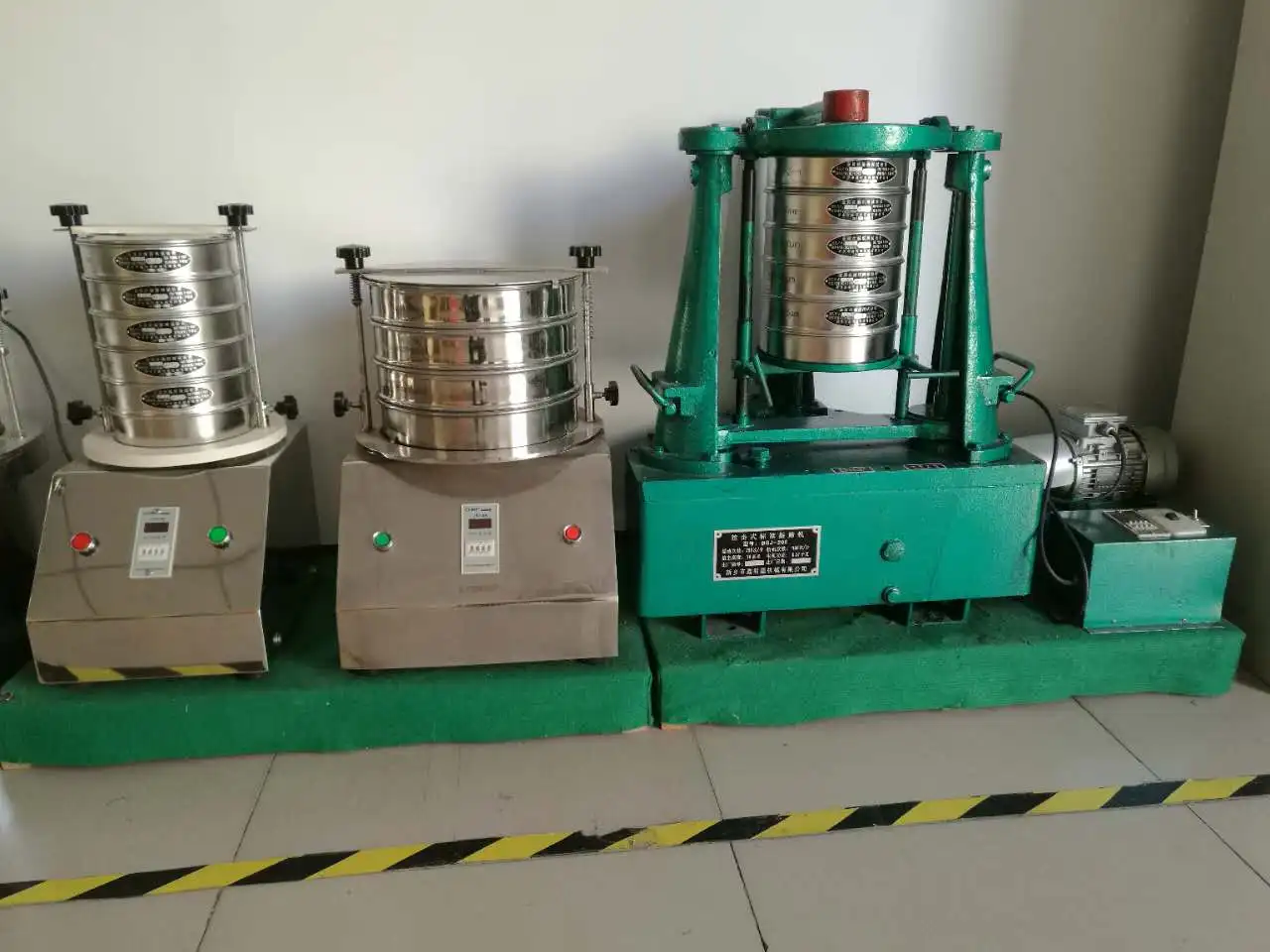

Lab test sieve is a high-tech fine powder grading equipment suitable for use in the laboratory.
It can be installed with 1 to 8 layers of sieve, and can decompose multiple samples for testing materials. With integrated circuit control, the amplitude, frequency and mode shape can be adjusted.
It can be installed with 1 to 8 layers of sieve, and can decompose multiple samples for testing materials. With integrated circuit control, the amplitude, frequency and mode shape can be adjusted.
Working Principle
All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface.

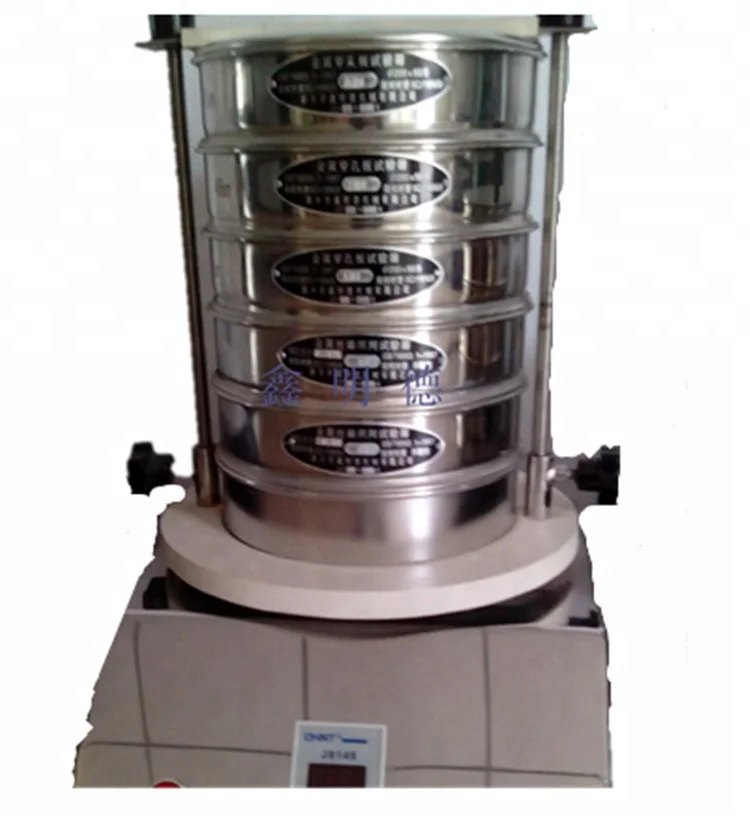

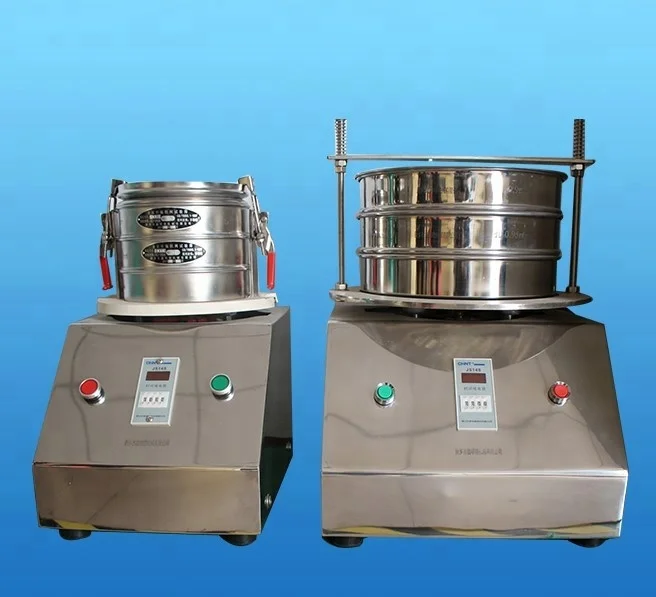

Multi-layer standard lab analysis test sieve with timer is a new and precision equipment for continuously selecting / sifting / testing the powder. It uses the new type vibrating motor as the source of vibration. It is usually equipped with Φ100mm, Φ200mm standard sieve, standard sieve and Φ300mm standard sieve. We can also produce the test sieve according to the customer’s requirements.
FEATURES AT A GLANCE
* Simple Operation—Control panel with start switch, timer
* Up to 9 grades—1 to 8 layers can be installed based on test needs
* Friendly Use—Low noise, platform operation, no need to fix.
* Adjustable—It can adjust the frequency, mode and amplitude of vibration at any time for different test purposes.
* Up to 9 grades—1 to 8 layers can be installed based on test needs
* Friendly Use—Low noise, platform operation, no need to fix.
* Adjustable—It can adjust the frequency, mode and amplitude of vibration at any time for different test purposes.
PRODUCT SPECIFICATIONS
Number | Name | Unit | Data |
1 | Layers | Layer | 1-8 |
2 | Diameter | mm | 200 |
3 | Granularity | mm | 0.038-3 |
4 | Noise | dB | 50 |
5 | Feeding Capacity(once) | G | 200 |
6 | Amplitude | mm | 5 |
7 | Voltage | v | 220 |
8 | Speed | R/min | 1420 |
9 | Power | Kw | 0.125 |
10 | Overall Dimension | mm | 360*300*736 |
11 | Weight | Kg | 45 |
Main Features
1. high efficiency, compact design and durability, any powder and mucus can be screening.
2. changer is easy, simple, easy to clean.
3. mesh is not blocked, the powder does not fly, can be screened to 600 mesh 0.018mm
4. unique grid design, screen used for a long time for network speed, screen up to 7 layers.
5. impurities, coarse material discharged automatically, you can continuous work.
6. low energy consumption, maintenance is simple, without foundation installation.
2. changer is easy, simple, easy to clean.
3. mesh is not blocked, the powder does not fly, can be screened to 600 mesh 0.018mm
4. unique grid design, screen used for a long time for network speed, screen up to 7 layers.
5. impurities, coarse material discharged automatically, you can continuous work.
6. low energy consumption, maintenance is simple, without foundation installation.
Product Application:
Vibrating screen widely used in food ,medicine, chemical, abrasive, pigment, mine, metallurgy, geology,ceramic,national defense industry such as scientific research units laboratories testing room such as inspection of production control and analysis.
Recommend Products

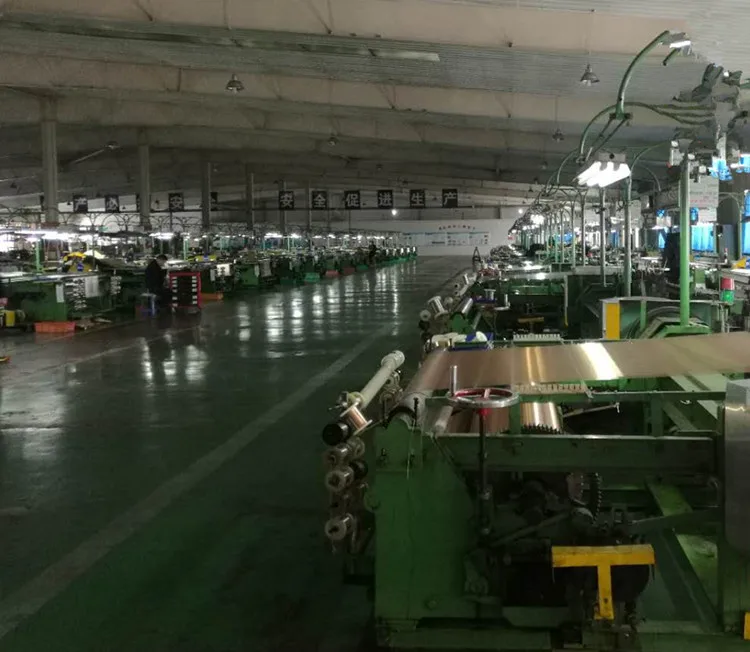

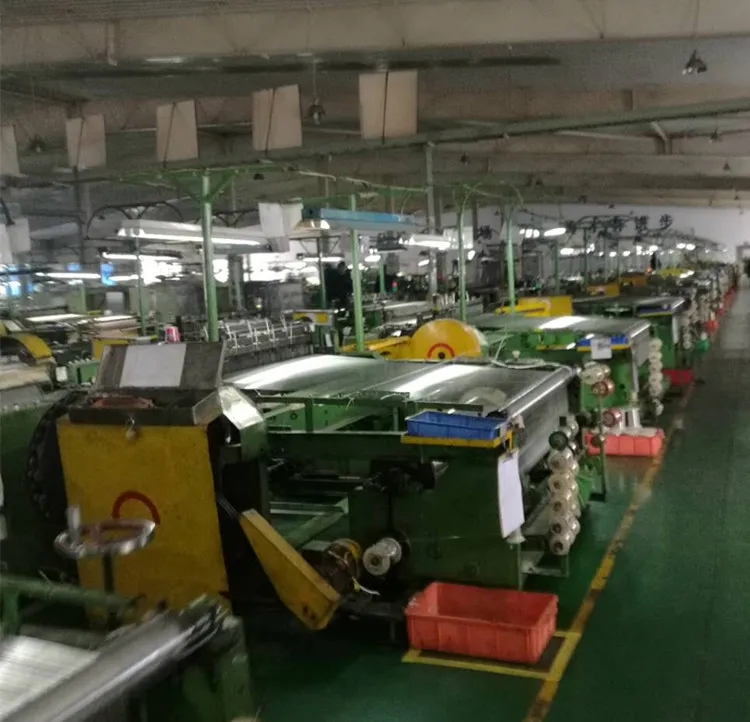

Company Profile

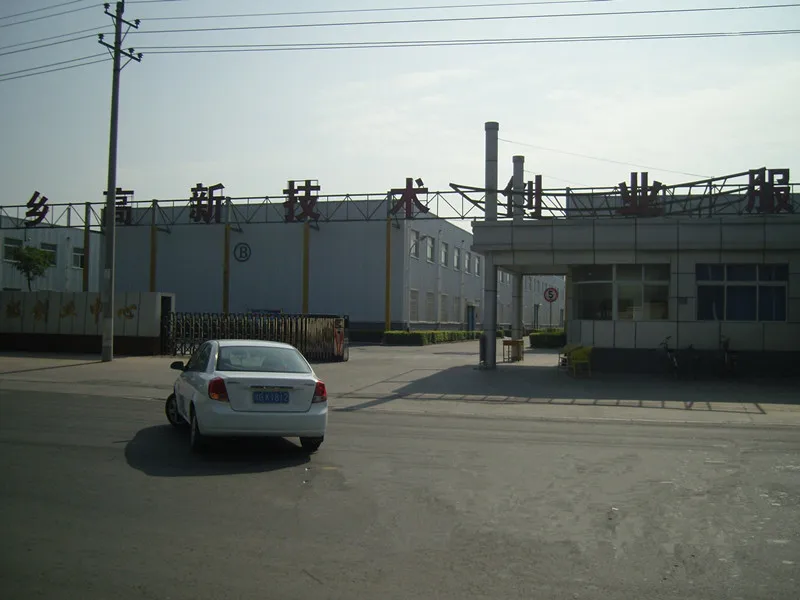

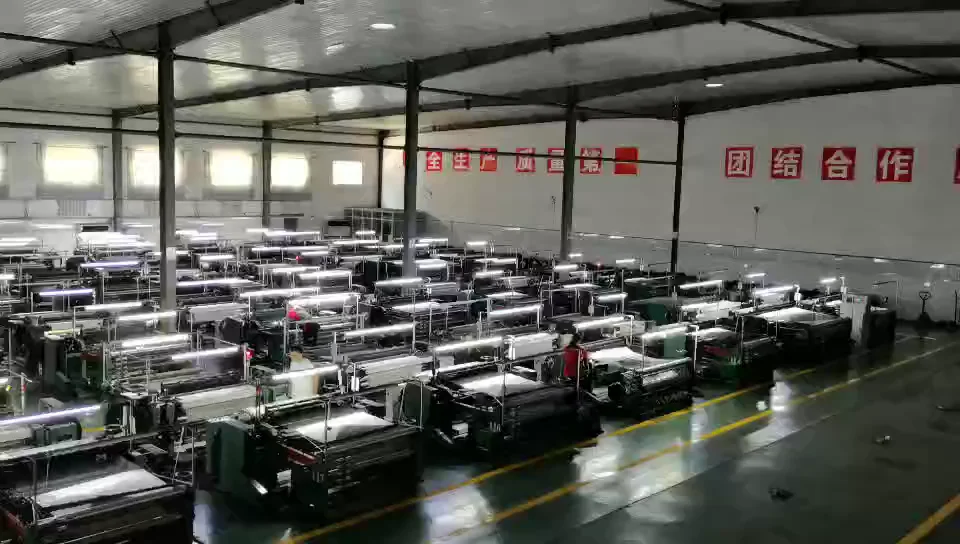

Xinxiang XinMingDe machinery co., LTD., located in Xinxiang of Henan province high and new technology development zone 2 pioneer park, is a production and sales all kinds of "precision screen (1-800 mesh), filter, filter wire mesh, steel wire spiral sets,fixture, vibration sieving equipment" consisting mainly of high-tech enterprises.
Its products are widely used in aviation, aerospace, petroleum, chemical engineering, metallurgy, abrasive grinding tools,
medicine and other industries. Mesh material Stainless steel ,brass ,nickel wire mesh ,titanium wire mesh ,monel wire mesh,molybdenum wire mesh ,tungsten wire mesh ,tantalum wire mesh ,inconel wire mesh etc
Its products are widely used in aviation, aerospace, petroleum, chemical engineering, metallurgy, abrasive grinding tools,
medicine and other industries. Mesh material Stainless steel ,brass ,nickel wire mesh ,titanium wire mesh ,monel wire mesh,molybdenum wire mesh ,tungsten wire mesh ,tantalum wire mesh ,inconel wire mesh etc
Scope of business:
A , screening A hierarchical sorting series: all kinds of metal precision screen 1-635 mesh (mesh size 25-0.02 mm), abrasive industry standard grading sieve (8 # - 500 #), 200 test sieve Φ, check screen, electric screen, slapping type standard sieve machine, linear vibrating screen machine, vibration sieve machine, elevator, feeder, vibration screening equipment, etc.
B, filtration separation series: all kinds of high precision filter 1-3500 mesh material specifications (filtration precision 16
mm - 3 um), filter assembly, oil field sand control screen, metal fiber sintered filter felt, multi-layer stainless steel nets
sintering filter, powder sintering filter, etc.
C, Thread insert, wire screw, etc.
B, filtration separation series: all kinds of high precision filter 1-3500 mesh material specifications (filtration precision 16
mm - 3 um), filter assembly, oil field sand control screen, metal fiber sintered filter felt, multi-layer stainless steel nets
sintering filter, powder sintering filter, etc.
C, Thread insert, wire screw, etc.
Certifications

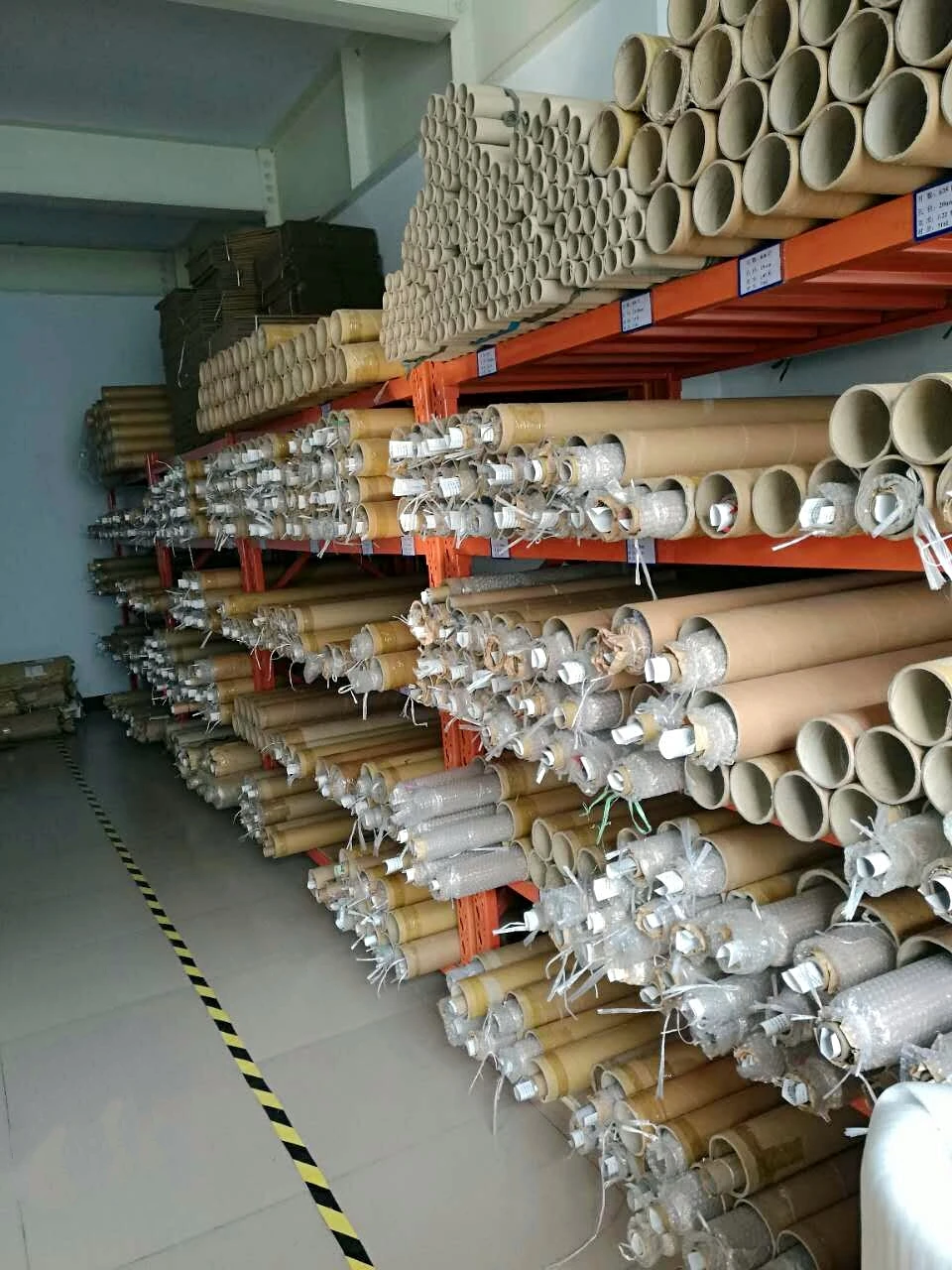

Product packaging
Shipping port: | Qingdao port,Shanghai port,Shenzhen port,Guangzhou port |
Delivery time: | 3-5 working days |
Shipment: | By sea to your nearest port By air to your nearest airport By express (DHL, UPS, FEDEX, TNT, EMS) to your door. |
Packing Details : | 1. paper packing or plastic packing 2. carton packing 3. wooden packing |
FAQ
Q: Are you trading company or manufacturer ?
A: We are direct manufacturer who owns production lines and works .Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: My order quantity is small,can you provide?
A: Yes.We will serve every customer with good quality products and services no matter how much your order is.
A: We are direct manufacturer who owns production lines and works .Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: My order quantity is small,can you provide?
A: Yes.We will serve every customer with good quality products and services no matter how much your order is.
