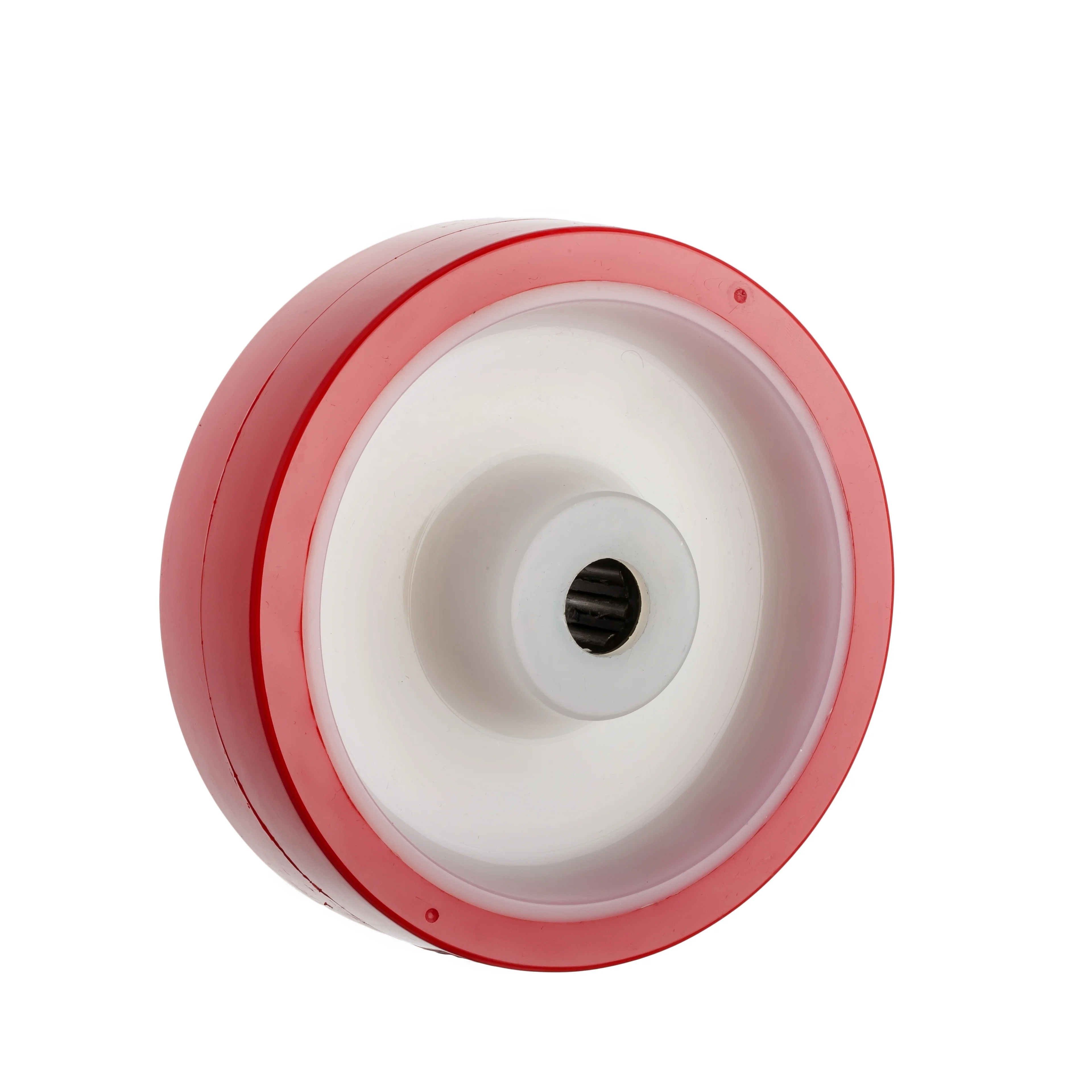

5inch Top hole PU industrial caster with red PU wheel 150kgs medium heavy duty industry machine caster POLYURETHANE wheels
- Category: >>>
- Supplier: Hubei Space Double Rhombus Logisitics Technology Co. Ltd.
Share on (1600741444705):
Product Overview
Description
Products Descriptipon

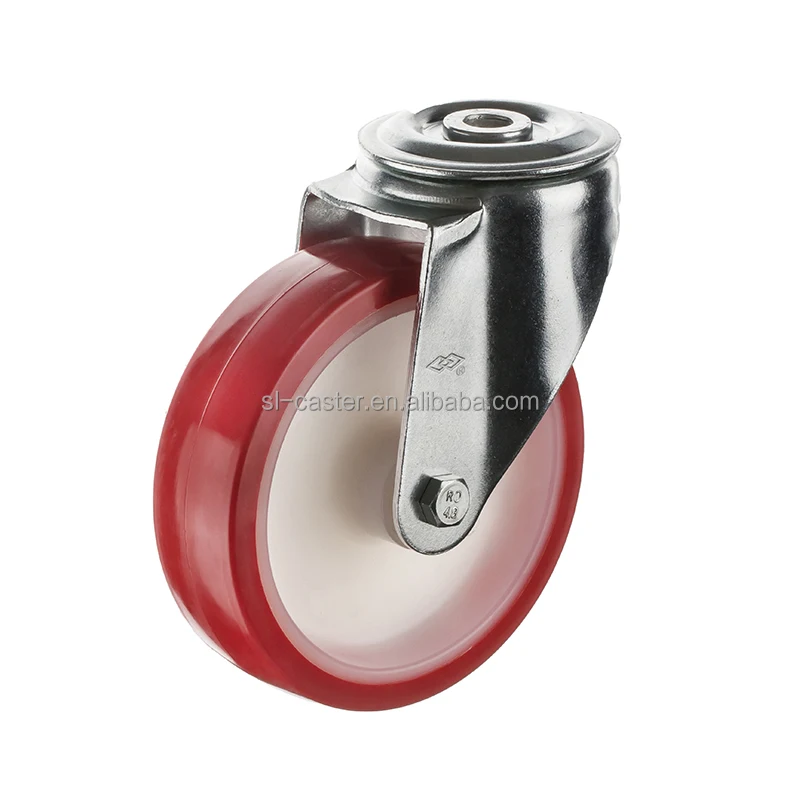

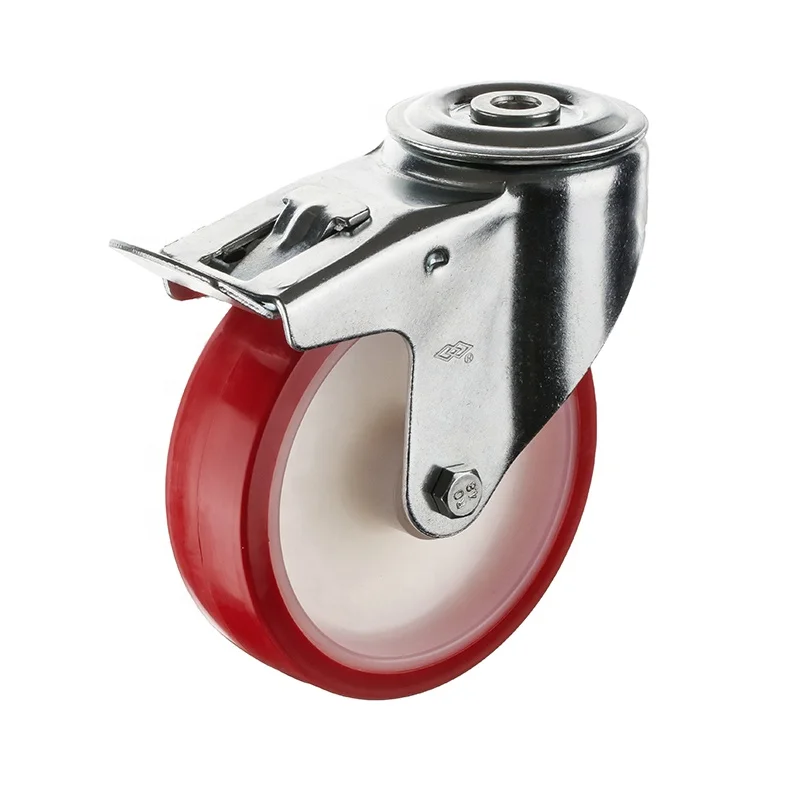

5 inch heavy duty industrial equipment caster wheels top hole swive PU wheel ruedas industriales 125mm red POLYURETHANE castor
We can supply 3D drawings, Please contact our sales manager to obtain it
Brand | Double Rhombus | Series | Industrial Caster |
Model No. | G102-36D125x35 | Load Capacity(kgs) | 150kgs |
Wheel diameter(mm) | 125mm | Width of Tread(mm) | 35mm |
Offset(mm) | 39.5mm | Hole size(mm) | 12.2mm |
Overall height(mm) | 153mm | Bearing | roller bearing |

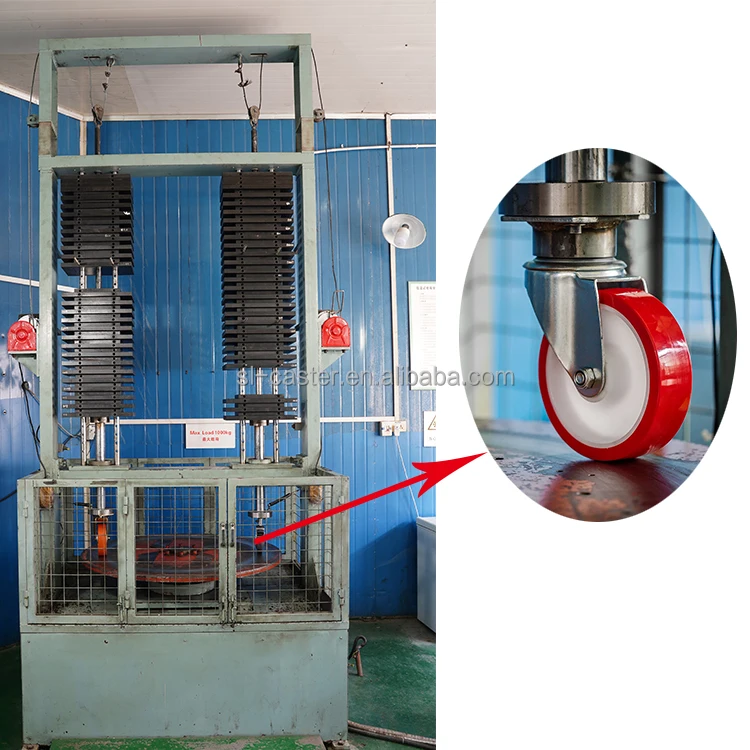

Walking Performance Test
Test standard according to EN12532, the rubber industrial caster sample with 150kg load, 3.125mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,go over the barriers for 500 times, then remove the barriers, continue to walking 5.14km, the PU wheel need to walk total 5.89kms,
after testing, sample no abrasive wear, the wheel is qualified.
after testing, sample no abrasive wear, the wheel is qualified.

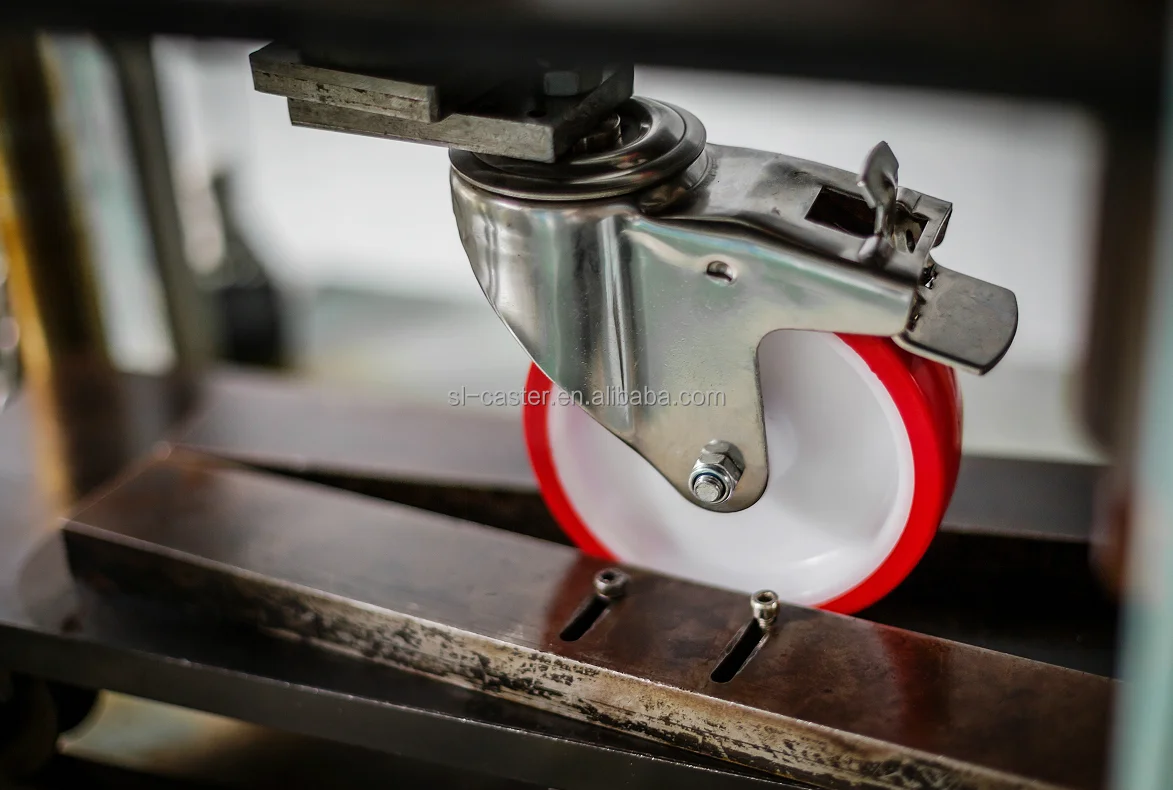

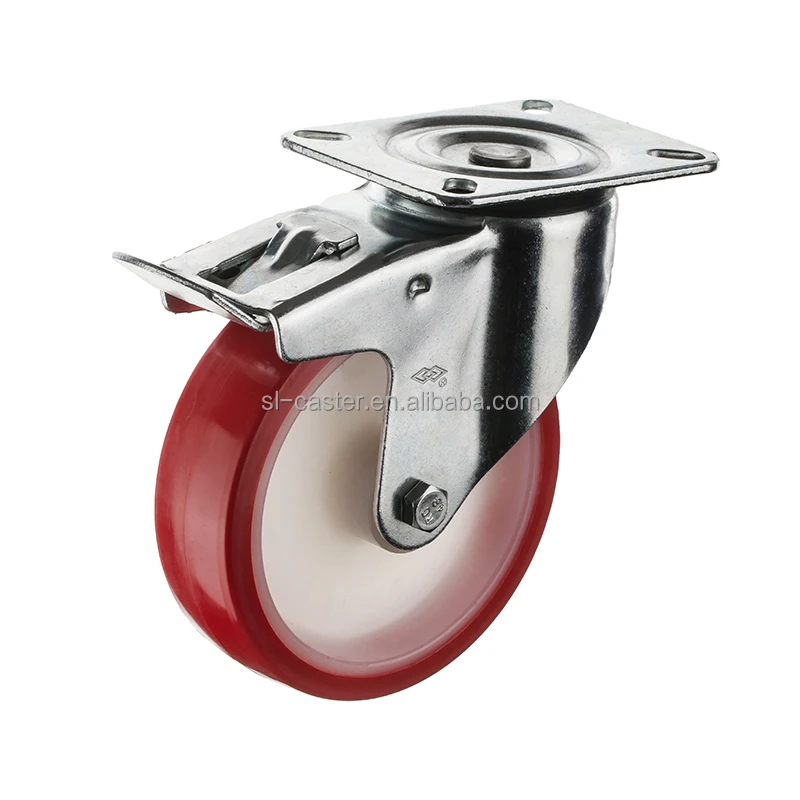

Supply brake verison,and 5000 times Brake Fatigue Test
Long service life period
Test standard according to EN12532, the rubber industrial castor Pass 5000 times Fatigue Test for Locking Device.
Up to 5000 brake applications
High cost performance
Thickened presed steel fork Caster wheel, 80-200mm size,90-250kgs load range

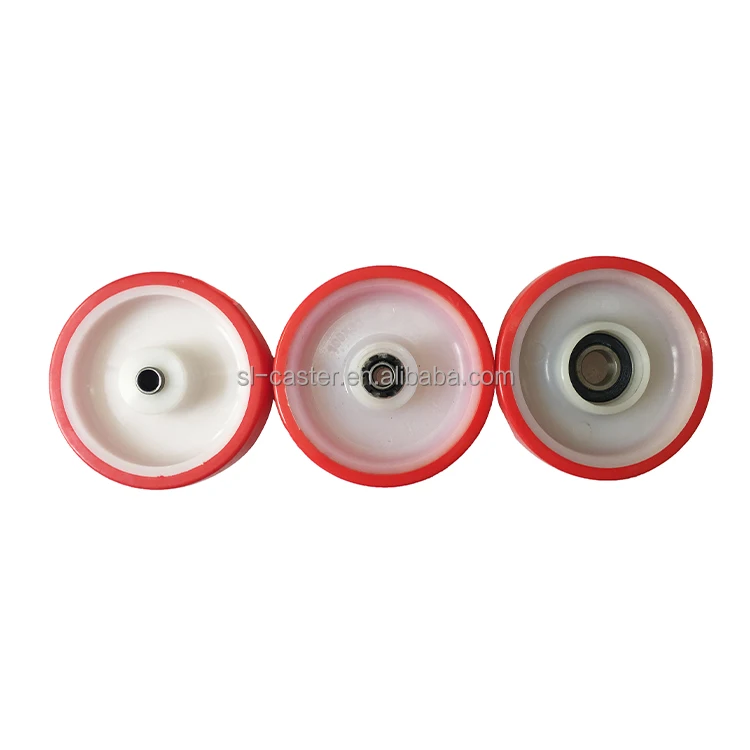

Various wheel styles available, 3 different bearing modes for choose
High quality PU caster , Multiple configurations are optional

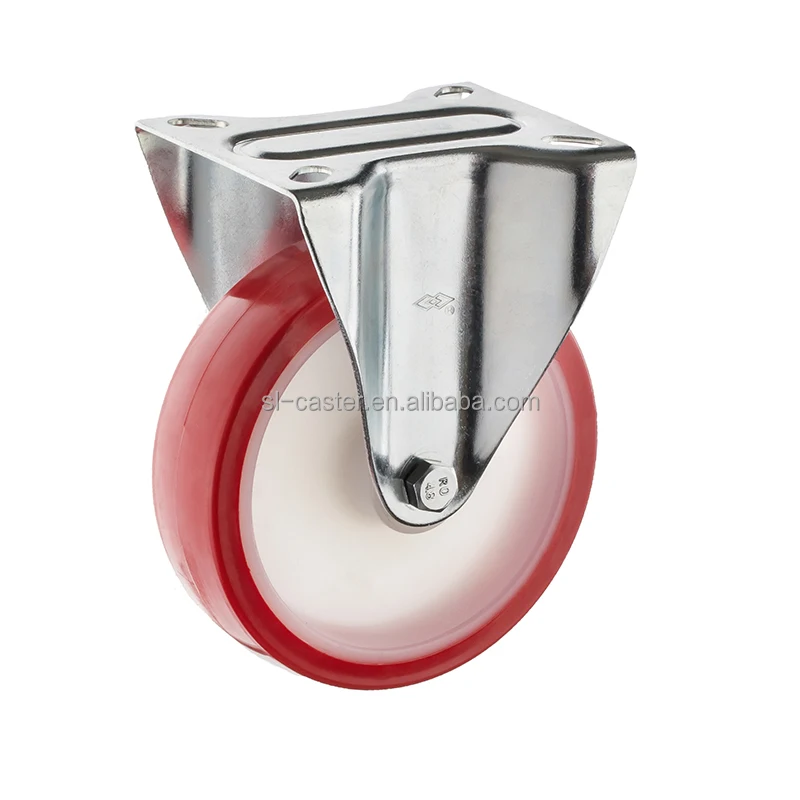

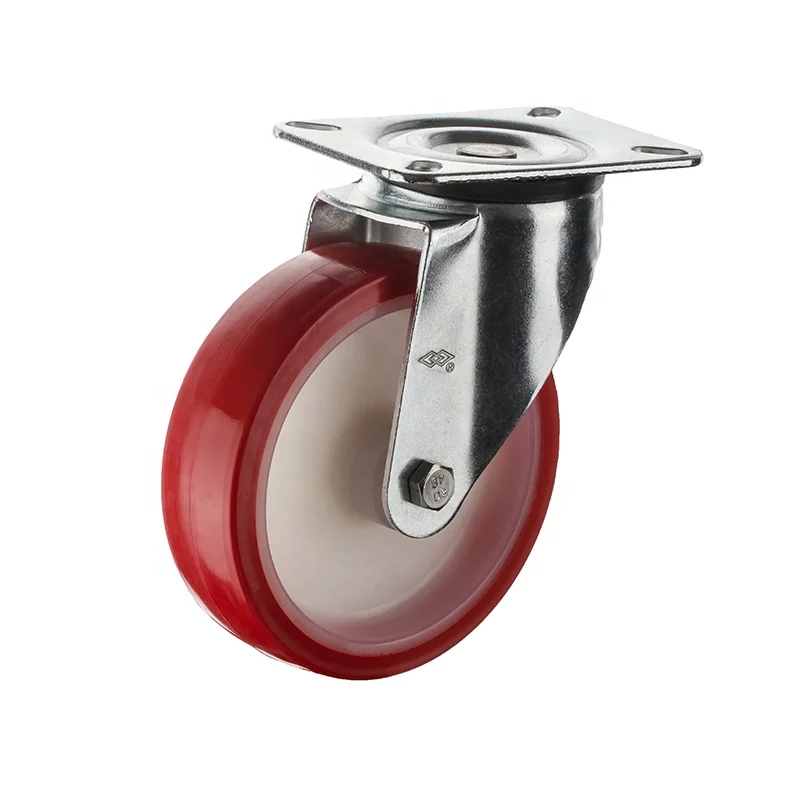

Fork optional: Rigid, swivel, brake, top plate, top bolt hole type, 2/2.5/3/mm fork thickness for different size, wheel material can choose Rubber, Nylon/PP, PU,TPR wheel
Widely use 80-200mm Red PU wheel polyurethane industrial caster castor
Hot sales & Recommend Products
Company Profile
Hubei Space Double Rhombus Logistics Technology Co., LTD. is a large-scale professional manufacturer of casters, hand trucks, furniture transporters, airport trolley, airport chair, queue barriers and series of logistics products,The company was founded since 1978, has experienced 40 years.Our company has I S O 9 0 0 1 certification, also has BSCI, GS, VPA, SGS, REACH, ROHS, PAHS certificate. In 1993, the national Standard Bureau entrusted the corporation to compile the National Standard (GB/T1 4 6 8 7-2 0 11) which is the standard for caster production in China today.
