JCW CS15N автоматический многожильный кабель Резка зачистки провода оборудование для изготовления фигурок животных зачистки машины
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600741516833):
Product Overview
Description
Model | JCW-CS15N Multicore Cable Cutting and Stripping Machine |

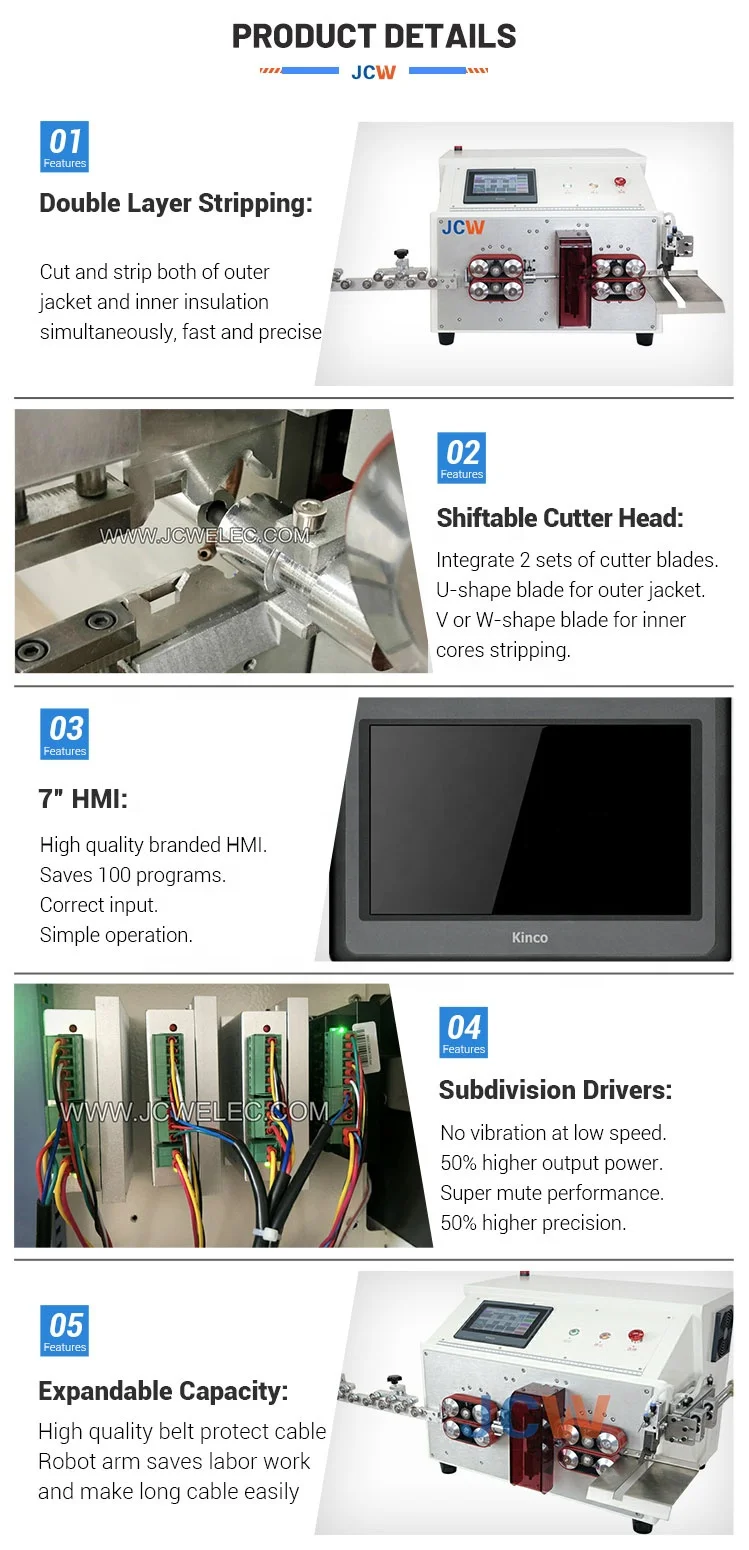

Function | Multi-core cable, outer & inner stripping |
Capacity | 1-30 mm² [ bigger cable on request ] |
Cutting length ( L ) | 1mm - 99999.99mm |
Cutting accuracy | 0.002*L |
Stripping length | Front：Outer 10 - 120mm, Inner 1-120mm |
Rear：Outer 10 - 120mm, Inner 1-80mm | |
Guide tube | Max Φ16 mm |
Blade | HSS |
Display | 7” Color screen, English / Chinese / Customizable |
Data library | 100 programs |
Product rate | Single wire: 2300 pcs/h（see cutting length） Multicore cable: 800 pcs/h (see cutting length） |
Feed system | Belt feeding, 16 rollers |
Dimensions | L 450mm x W 490 x H 930 mm ( includes straightener ) |
Weight | 83 KG |

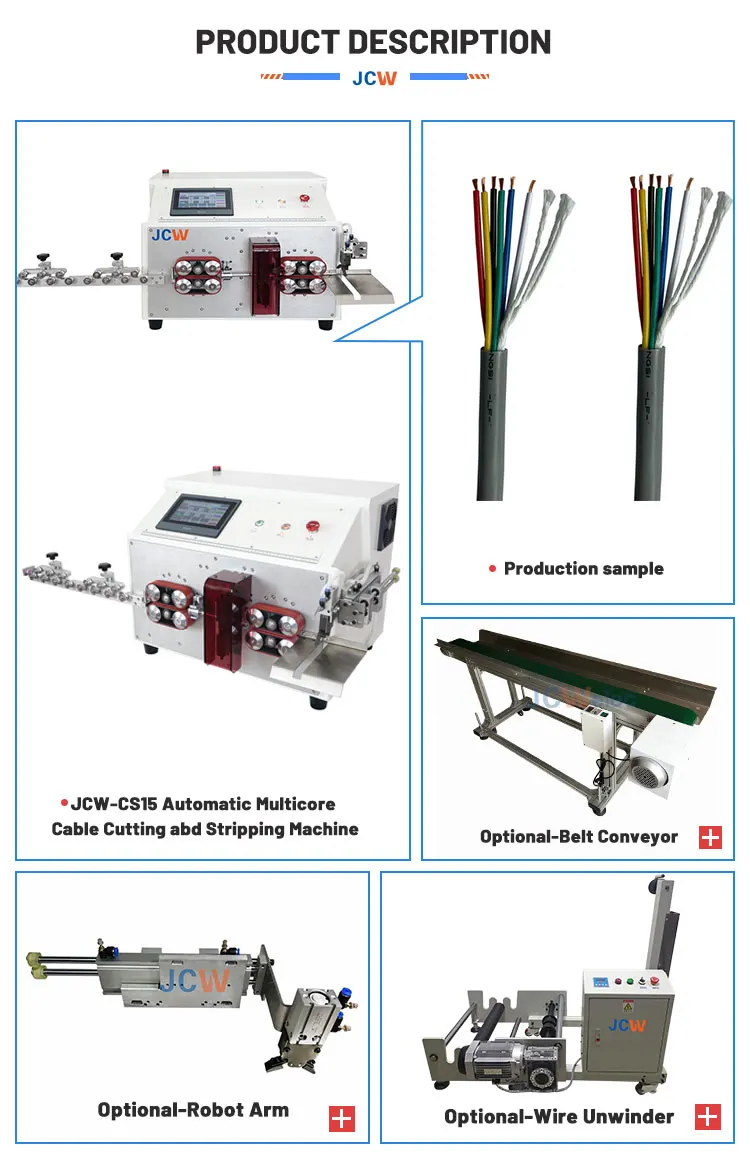

Compatible peripherals | Cable prefeeder & dereeler, robot arm, conveyor belt |
Power supply | AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ] |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | Machine: L 630 x W 570 x H 540 mm |
Wire straightener: 350mm | |
Weight | 78 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
