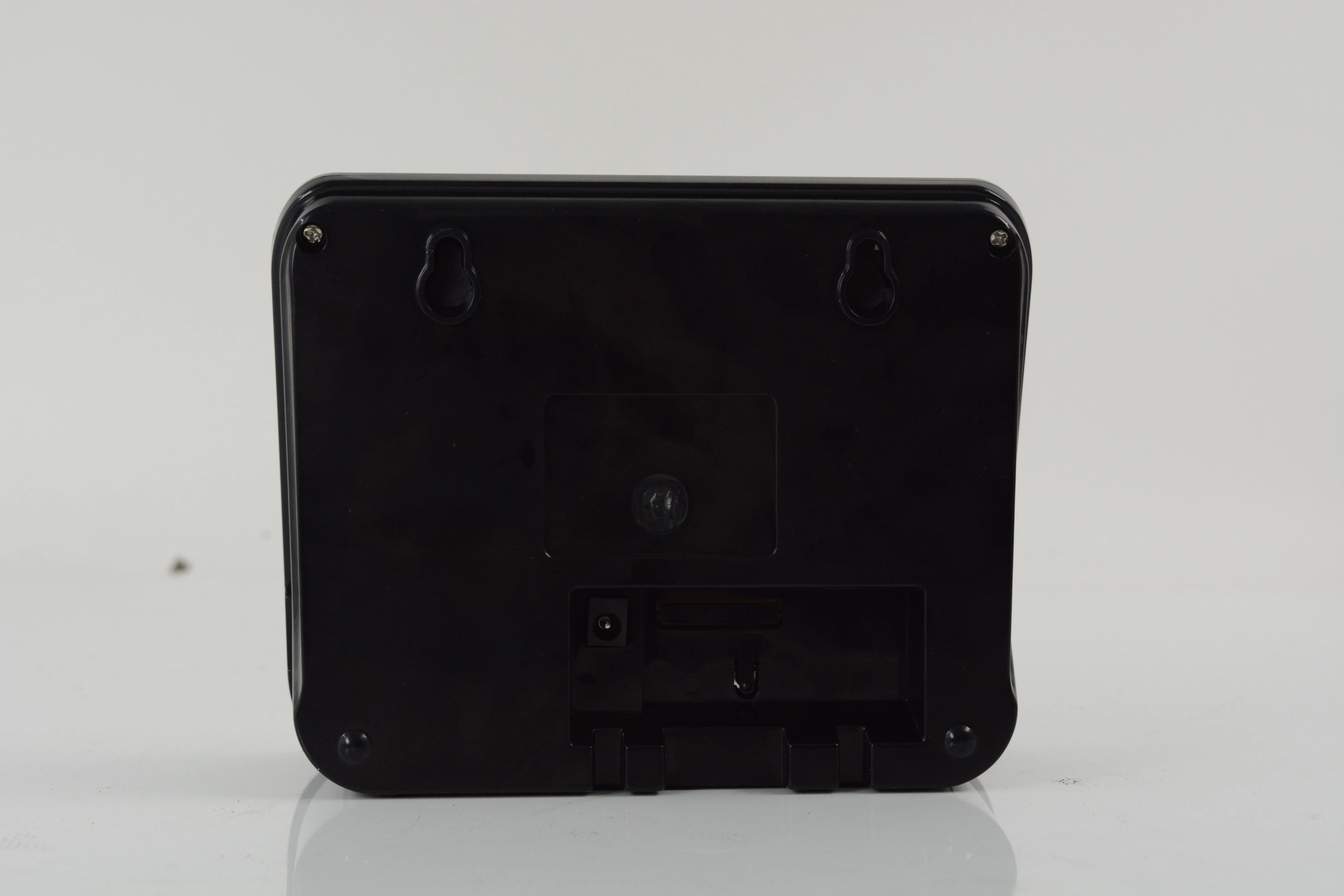

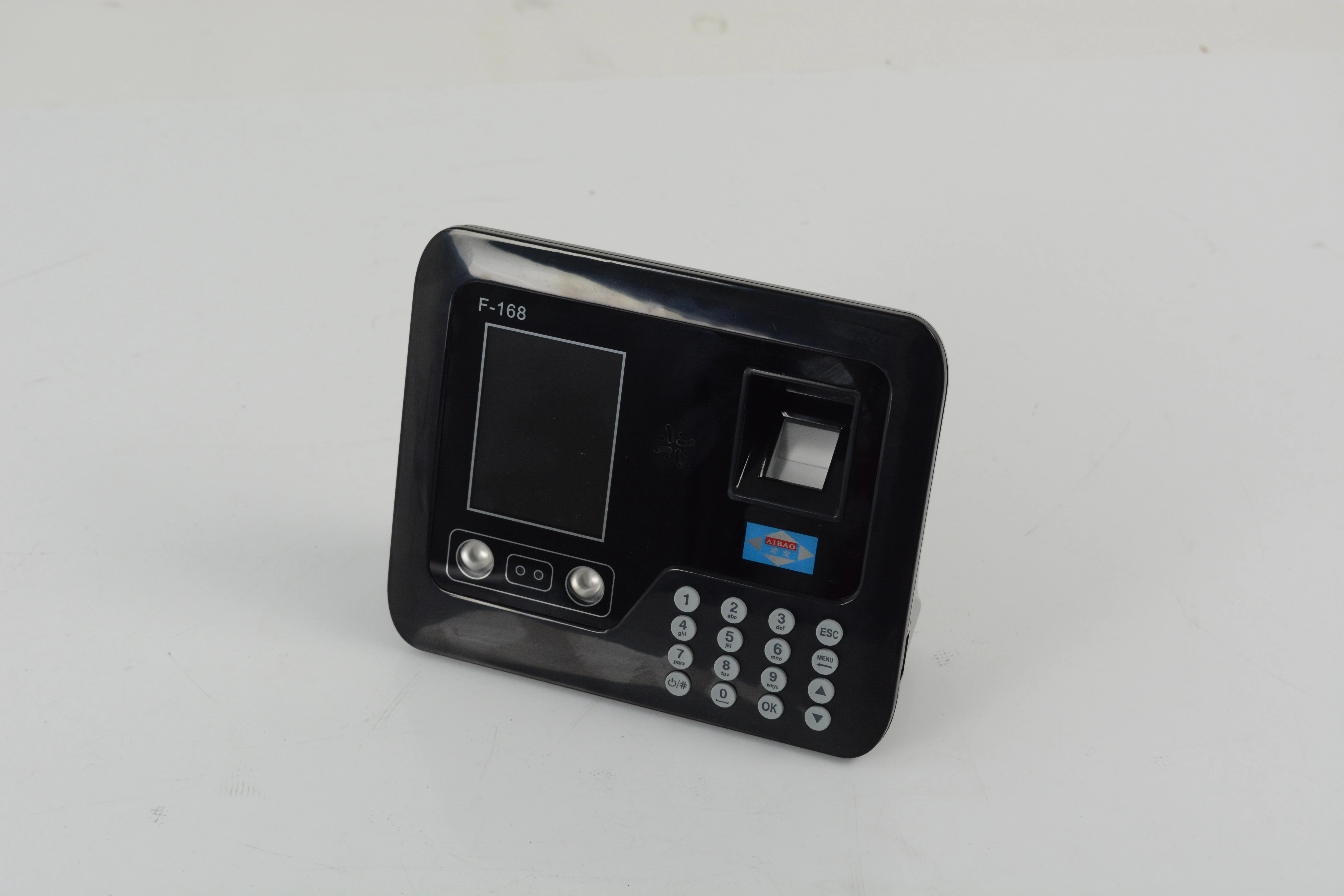

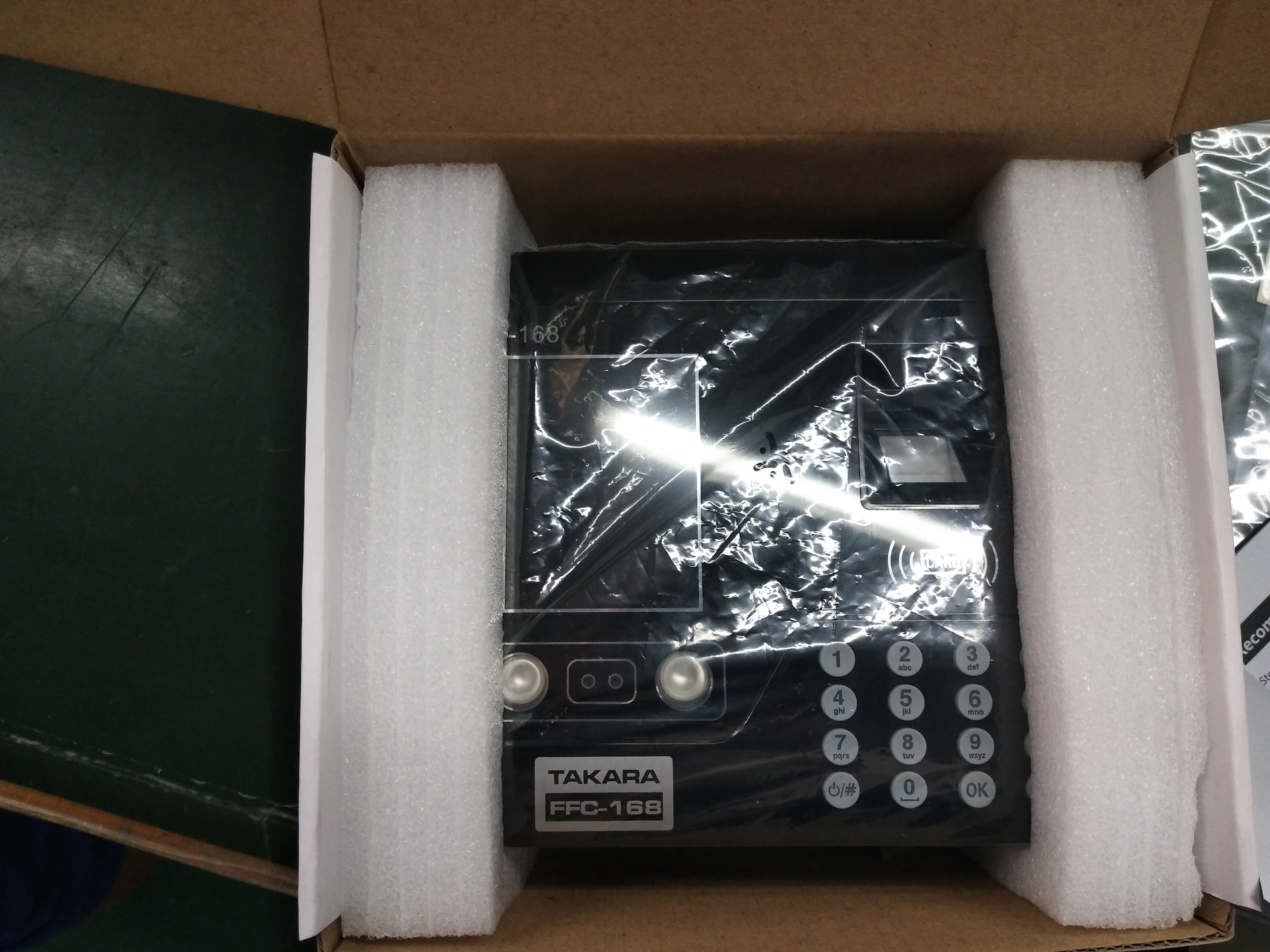

Time Attendance System USB Access Control Office Employee Fingerprint Attendance Machine

Category

Function

Description

Hardware function

CPU

AK3760C/AK3780C

Fingerprint collector

Optical fingerprint head(DEG931 20pin)

ID Card

YES

Display

2.8 ” TFT LCD

Keyboard

16 physical buttons

Communication mode

TCP/IP (WIFI, P2P, 4G, web optional) (4G, web/AK3780C)

USB HOST

YES

Clock RTC

YES

Voice output

YES

Access control function (optional)

Professional access control (door opening relay, ringing relay, door magnetic switch, door opening button, anti-tamper button, Wiegand input and output)

Clear administrator key

YES

Backup battery interface

YES

Working voltage

DC 9~12V

Working temperature

-10℃~ +60℃

Working humidity (RH)

20% ~ 80%

software function

User registration capacity

3000(16M Flash)

User records / management records

100000/3000

Verification mode

fingerprint, card, password and a combination of all three

Language

Multi-language

Fingerprint algorithm

Algorithm version

GreenFinger V3.0

FAR/ FRR

0.00001/ 0.1(%)

Matching speed

≥1 times / second (when registering 3000 fingerprints)

Contrast angle

360 degree free rotation

Smart update function

YES

Fingerprint recognition mode

1:1, 1:N
