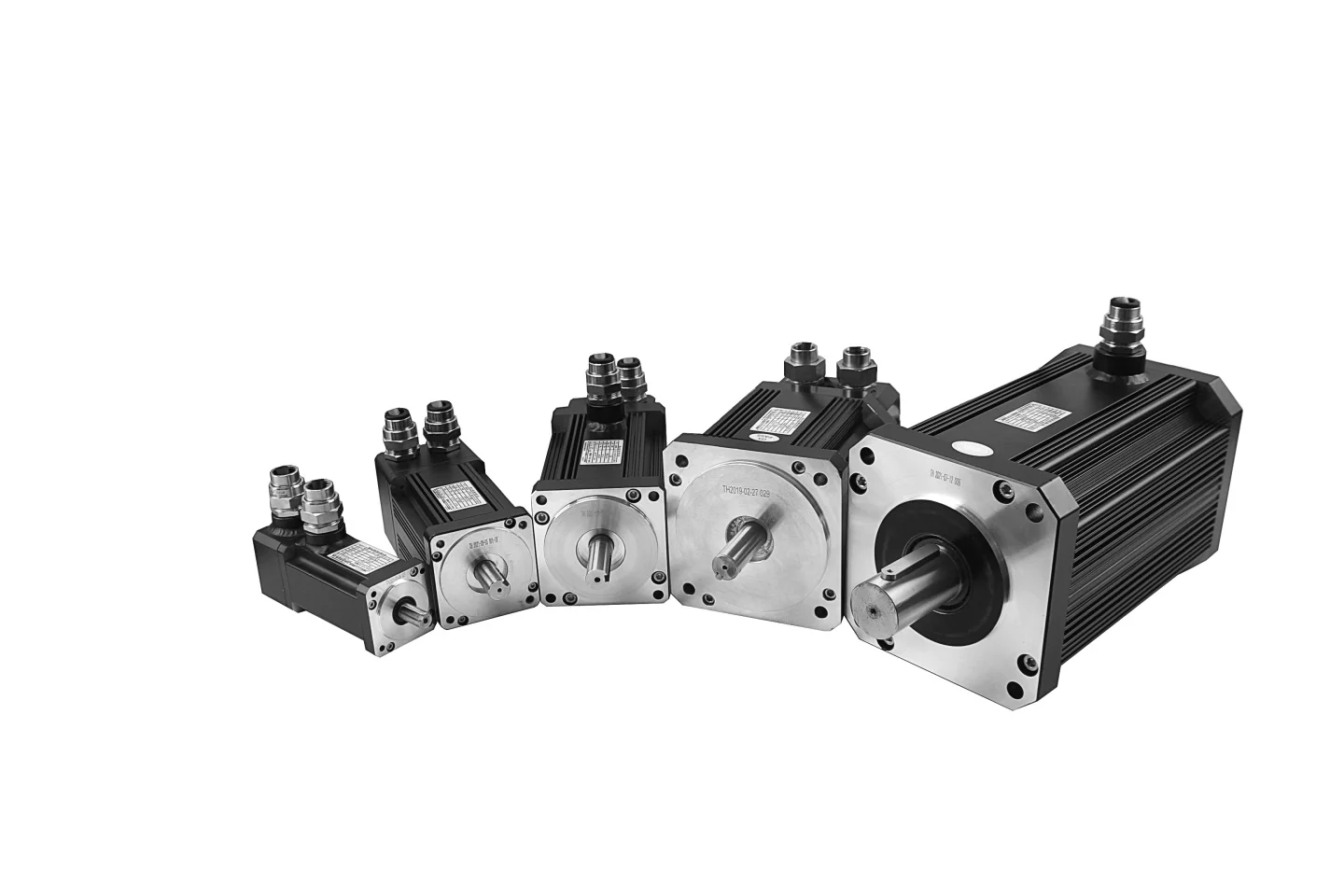

3KW DC servo motor with brake and driver 48V

Product Overview

Description

Low-voltage servo specification and model: SMC40S/60S/80S (magnetoelectric communication type single-turn/multi-turn absolute value encoder, photoelectric communication type single-turn/multi-turn absolute value encoder), SMH110D, SMC130D (photoelectric/2500P/R incremental magnetoelectric encoder)
Low voltage servo power range: 50W~3000W
Low voltage servo DC bus voltage VDC: 48V







New electromagnetic design
The cogging torque is small, the torque ripple is low, and the vibration during the motor operation makes the torque output more stable
Short fuselage design
Redesign the fuselage structure, shorten the fuselage length, save more installation space and reduce the size of the equipment
Latest magnetic braiding technology
The self-designed magnetoelectric encoder has good seismic resistance and high cost performance
Insulation class F
The motor in the industry is at the highest insulation level and has high reliability and stability under the high temperature limit environment
Energy efficiency level 2

• Support pulse control;
• Support MODBUS, CANopen, EtherCAT, Profinet communication control;
• Strong compatibility: it is compatible with the parameters of third-generation products and can be directly updated and replaced;
• Support dynamic braking function control;
• Support EASY Tune optimization and upgrading and online self-tuning;
• With notch filter to realize vibration suppression;
• With S curve control;
• Adapt to high-precision encoder applications;
• Real-time synchronous control can effectively improve production efficiency and improve multi-axis synchronous control accuracy;
• IO includes 7-channel digital input, 5-channel digital output and encoder output functions;
• It has driver overvoltage and undervoltage protection, overcurrent protection, overheat protection, short circuit protection, etc
