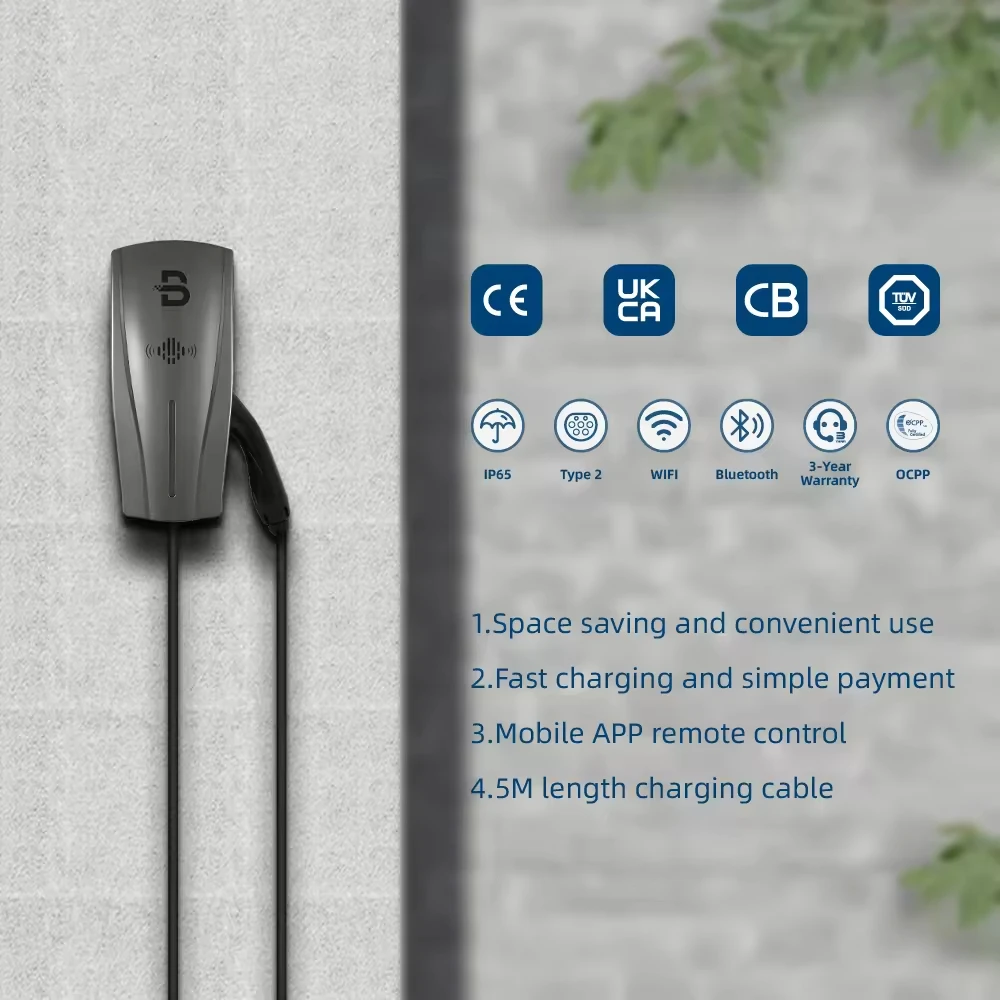

BENY Ev Charger Type 2 Ev Charger 7kw 11kw 22kw Ev Charger 3 Phase 22kw
- Category: >>>
- Supplier: ZHEJIANG BENYI NEW ENERGY CO. LTD.
Share on (1600741744237):
Product Overview
Description
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Product Paramenters
Product Advantages
* 1-Phase from 1.3kW to 7.4kW
* 3-Phase from 4.1kW to 22kW

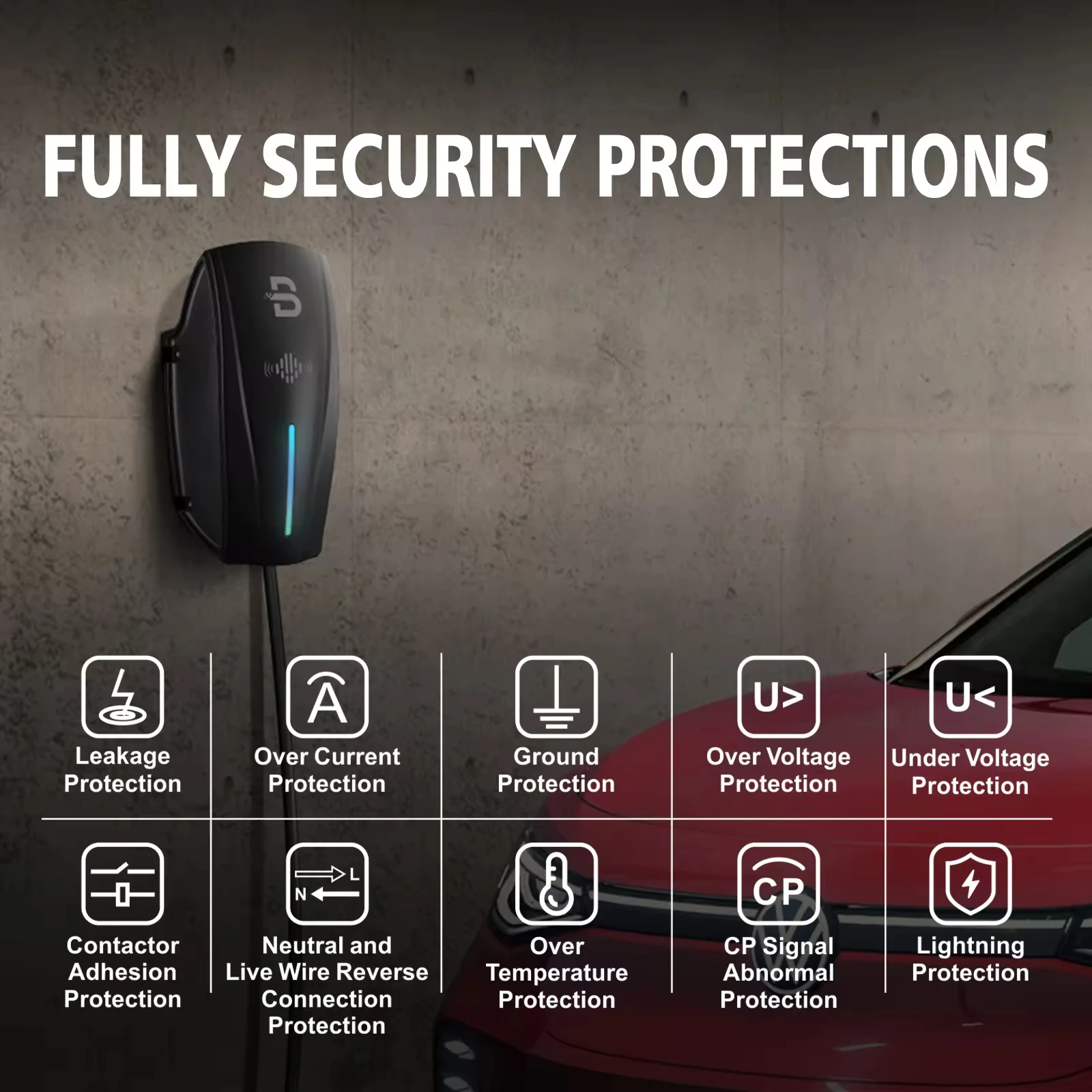

* Full Protection
* Dynamic Load Balancing (optional)

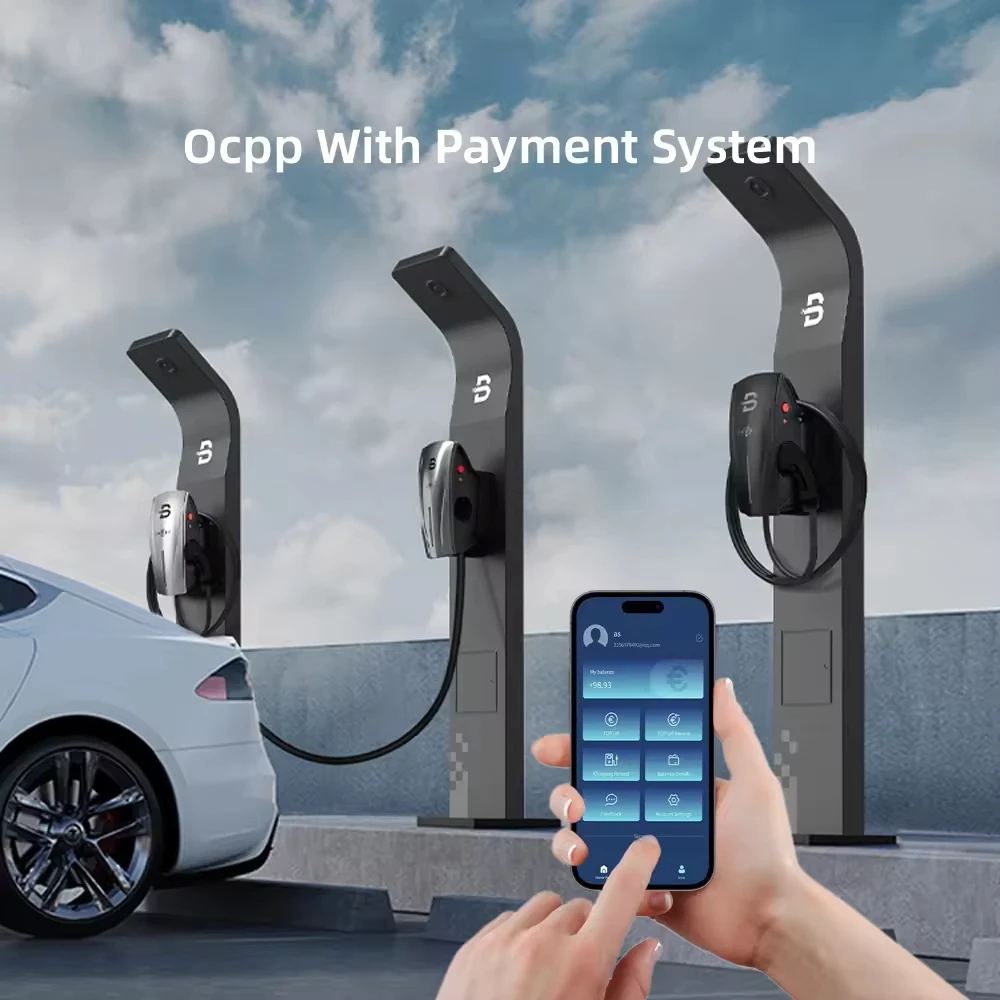

* Open Charge Point Protocol (optional)

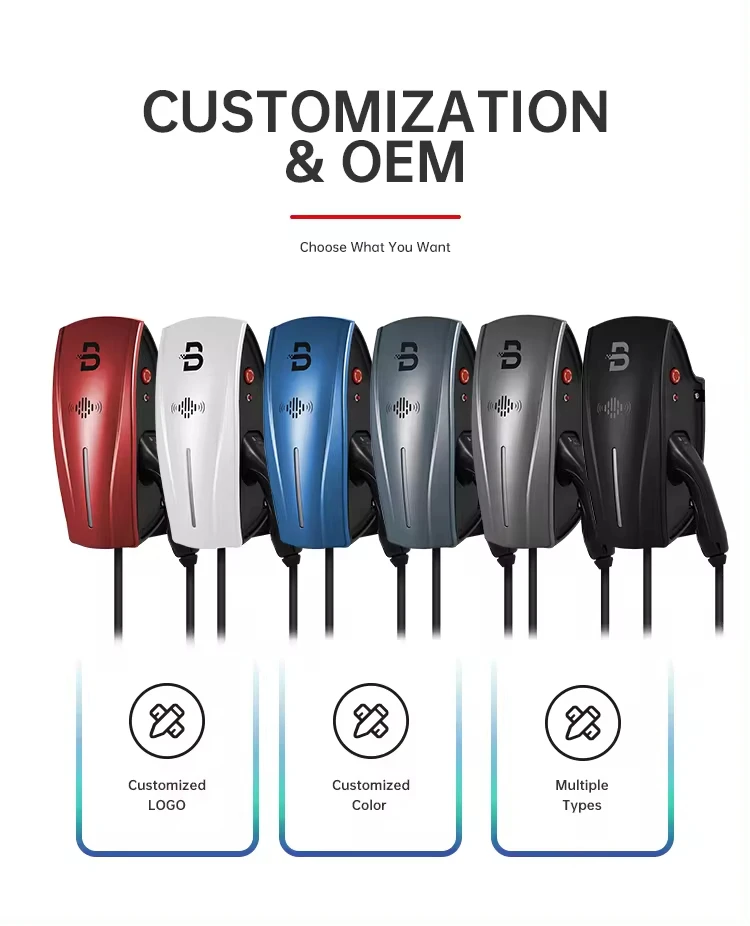

* Customize All Types of Connectors
* Smart Version with APP (optional)
* 3 Years Warranty
* 3-Phase from 4.1kW to 22kW
* Full Protection
* Dynamic Load Balancing (optional)
* Open Charge Point Protocol (optional)
* Customize All Types of Connectors
* Smart Version with APP (optional)
* 3 Years Warranty
* Built-in Type B RCD for Leakage Protection
* Over Temperature Sensor
* Clip-on Grid Current Sensor
* LED Ring Status Indication
* With Emergency Stop Switch
* Over Temperature Sensor
* Clip-on Grid Current Sensor
* LED Ring Status Indication
* With Emergency Stop Switch
Details Images
Wallbox Models | BCP-A2D-L | BCP-A2N-L | BCP-AT2N-L | BCP-A2N-P | BCP-AT2N-P | ||||
Categorization | Un-smart Version | Smart Version | OCPP Version | ||||||
Maximum Power | 1.3kw-7.4kW | 1.3kw-7.4kW | 4.1kW to 22kW | 1.3kw-7.4kW | 4.1kW to 22kW | ||||
Input Voltage/Output voltage | AC230 1-Phase | AC230 1-Phase | AC400 3-Phase | AC230 1-Phase | AC400 3-Phase | ||||
Meter | Metering Chip | Built-in metering chip + external MID meter (optional) | |||||||
Display | LED Lights | ||||||||
DLB | Optional | ||||||||
RFID | √ | √ | √ | √ | √ | ||||
Bluetooth | × | √ | √ | √ | √ | ||||
Wi-Fi | × | √ | √ | √ | √ | ||||
APP | × | √ | √ | √ | √ | ||||
4G | × | × | × | optional | optional | ||||
Over Voltage &Under Voltage Protection | √ | √ | √ | √ | √ | ||||
Emergency Stop | √ | √ | √ | √ | √ | ||||
Over Current Protection | √ | √ | √ | √ | √ | ||||
CP Signal Short Circuit Protection | √ | √ | √ | √ | √ | ||||
Over Temperature Protection | √ | √ | √ | √ | √ | ||||
Lightning Protection | √ | √ | √ | √ | √ | ||||
Contactor Adhesio Protection | √ | √ | √ | √ | √ | ||||
Protection Degree | IP65 | ||||||||
Working humidity | 95% non-condensing | ||||||||
Environment Temperature | -25℃~+55℃ | ||||||||
Maximun Altitude | ＜2000m | ||||||||
Dynamic Load Balancing Function
When the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home overload.Set the Max current value of the main line on the DLB box. The charger will read this current value and automatically adjust the charging current (6A-32A) according to the idle load quota, so that the total household current will not be overloaded due to charging. This function can effectively use the power supply without providing additional power for thecharging or home line update.
Advantages
Fast Charging:
DLB charging stations support fast charging,significantly reducing charging time and enhancing the convenience of electric vehicles.
Intelligent Management:
DLB charging stations are equipped with intelligent management systems that monitor and control parameters such as current,voltage,and temperature during the charging process,ensuring safe and efficient charging.
Interconnectivity:
DLB charging stations often support interconnectivity with other charging stations and vehicle management systems,enabling seamless communication and remote management of the charging station.
Charging Reservation:
DLB charging stations may support users to make advance reserations for charging, allowing them to secure charging slots at specific times.enhancing convenience and flexibility.

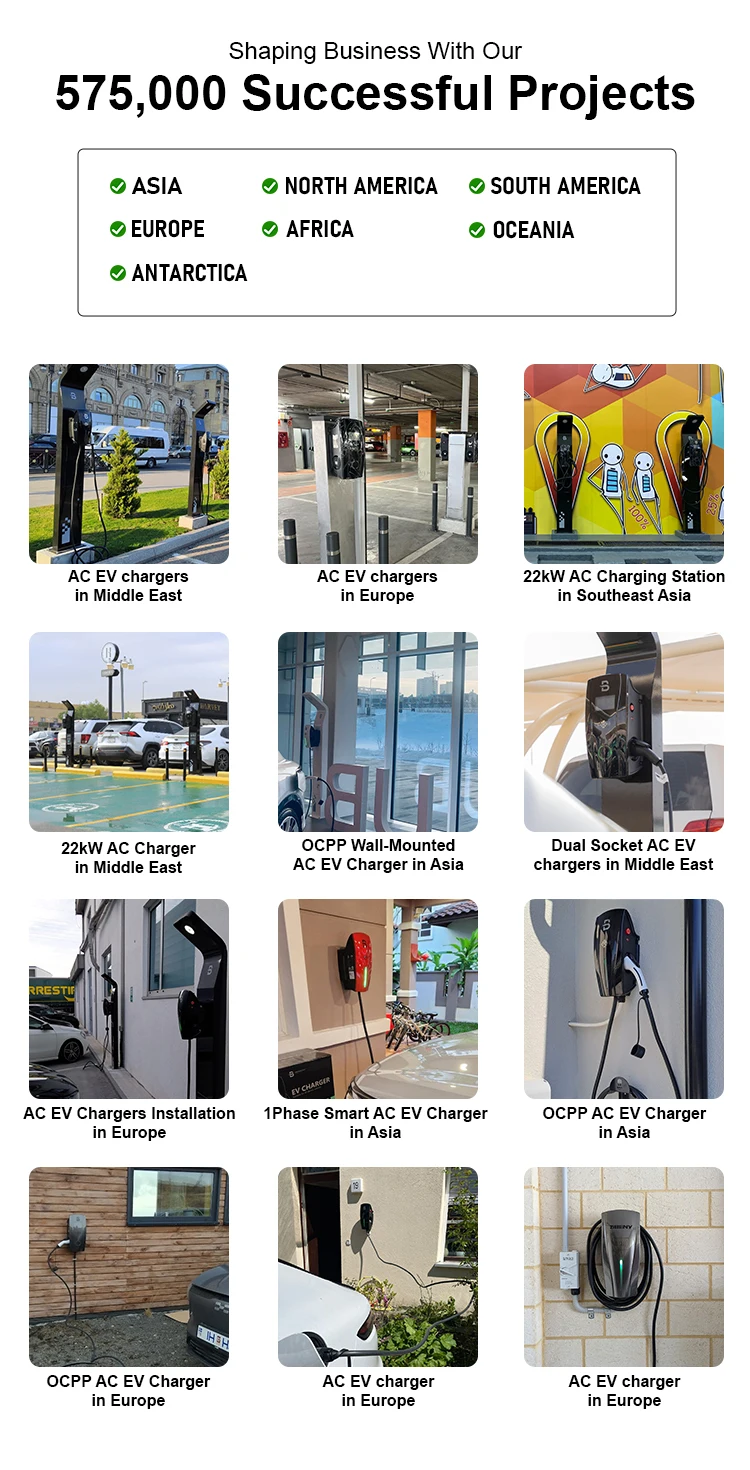

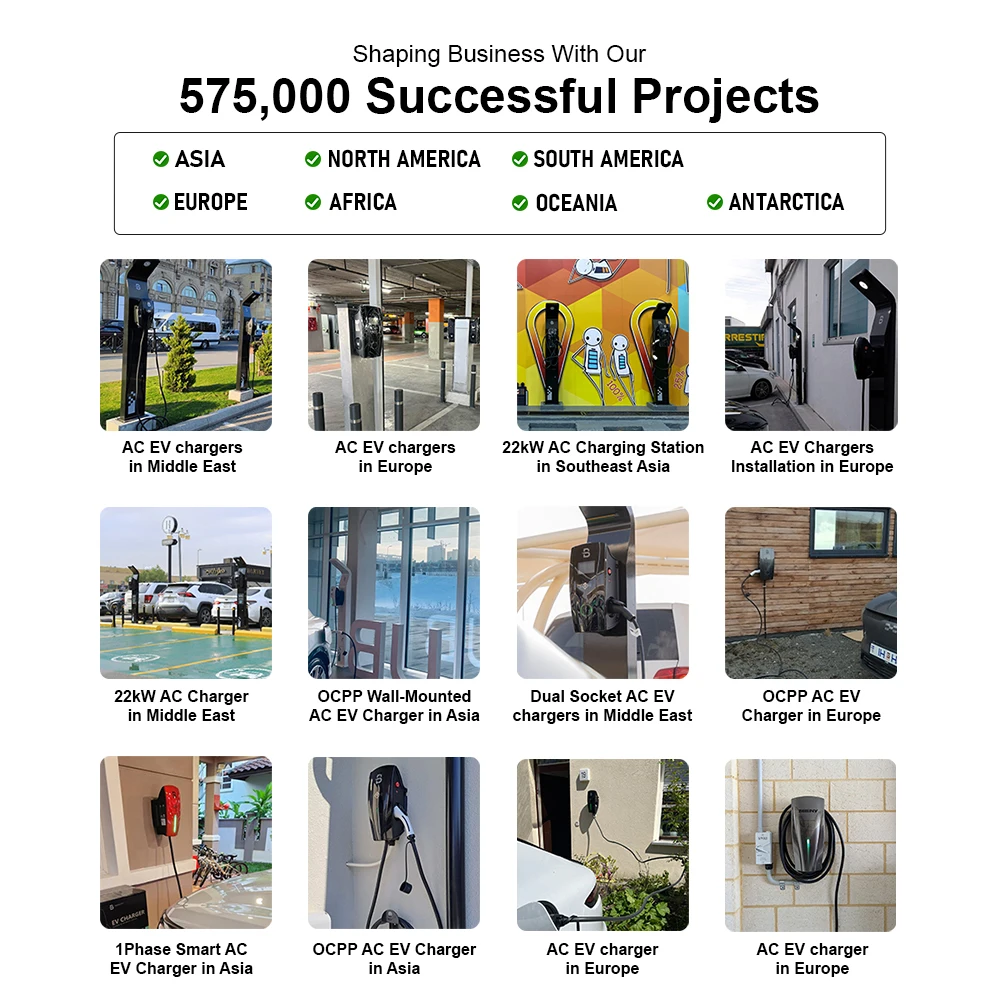

Product Application Case
Across the globe, BENY has forged robust business relationships with clients in the realm of EV charging station construction,offering comprehensive, cost-effective, instant charging solutions for their vehicles.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.
These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.
These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.

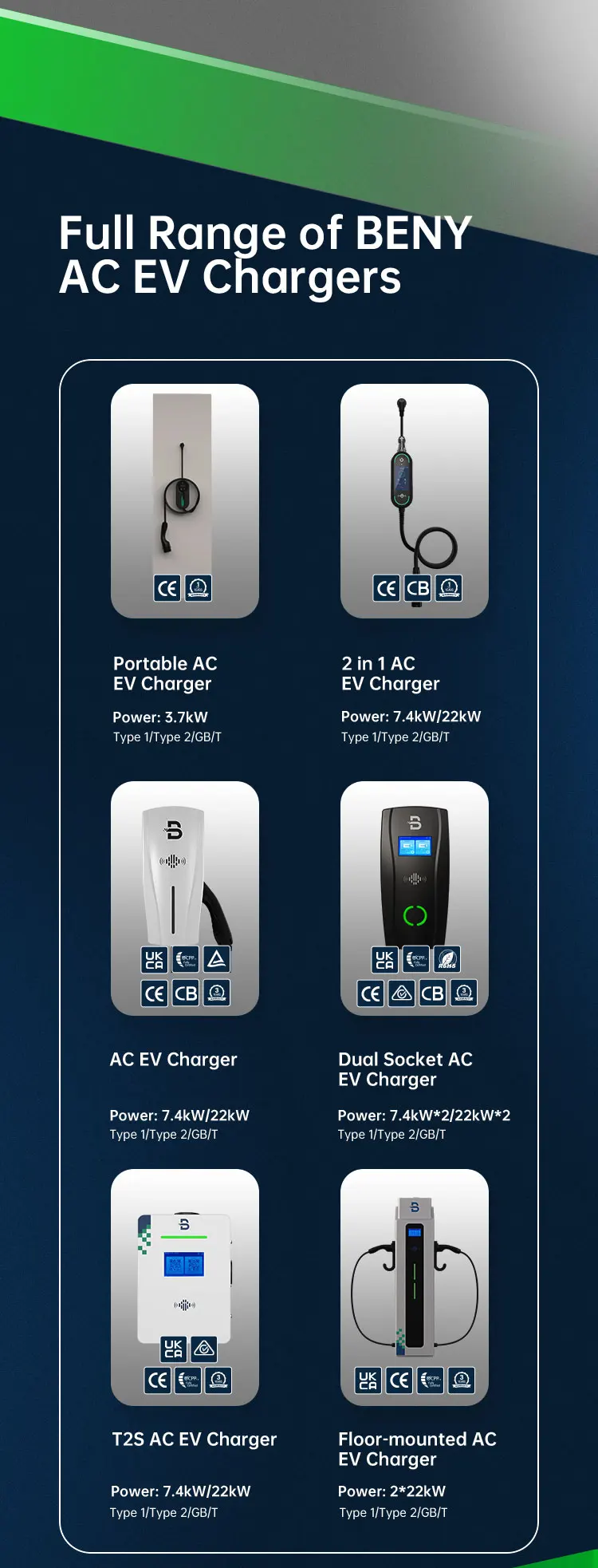

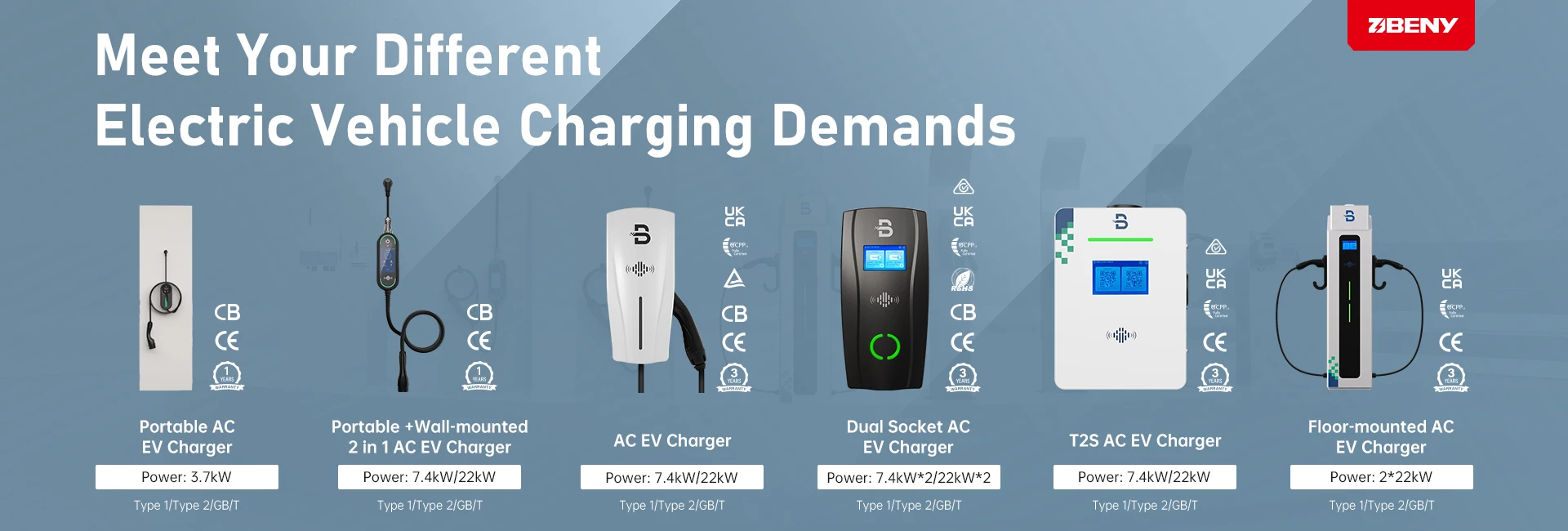

OUR EV CHARGER PRODUCT LINE
Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 600kW.
BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.
The robust build of our EV charger lets you satisfy various business goals while driving your brand.
