1.Tantalum Diameter and Tollerance
Diameter, inch (mm) | Tolerance, +/-inch (mm) |
0.125~0.187 excl (3.175~4.750) | 0.003 (0.076) |
0.187~0.375 excl (4.750~9.525) | 0.004 (0.102) |
0.375~0.500 excl (9.525~12.70) | 0.005 (0.127) |
0.500~0.625 excl (12.70~15.88) | 0.007 (0.178) |
0.625~0.750 excl (15.88~19.05) | 0.008 (0.203) |
0.750~1.000 excl (19.05~25.40) | 0.010 (0.254) |
1.000~1.500 excl (25.40~38.10) | 0.015 (0.381) |
1.500~2.000 excl (38.10~50.80) | 0.020 (0.508) |
2.000~2.500 excl (50.80~63.50) | 0.030 (0.762) |

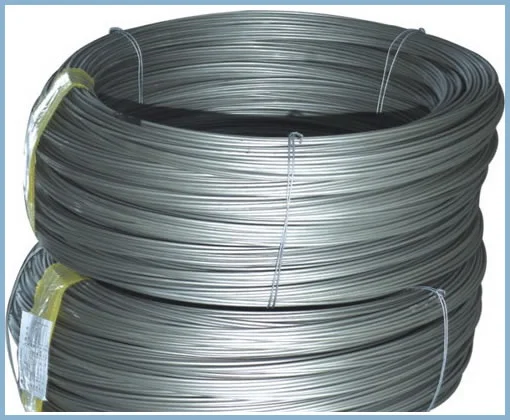

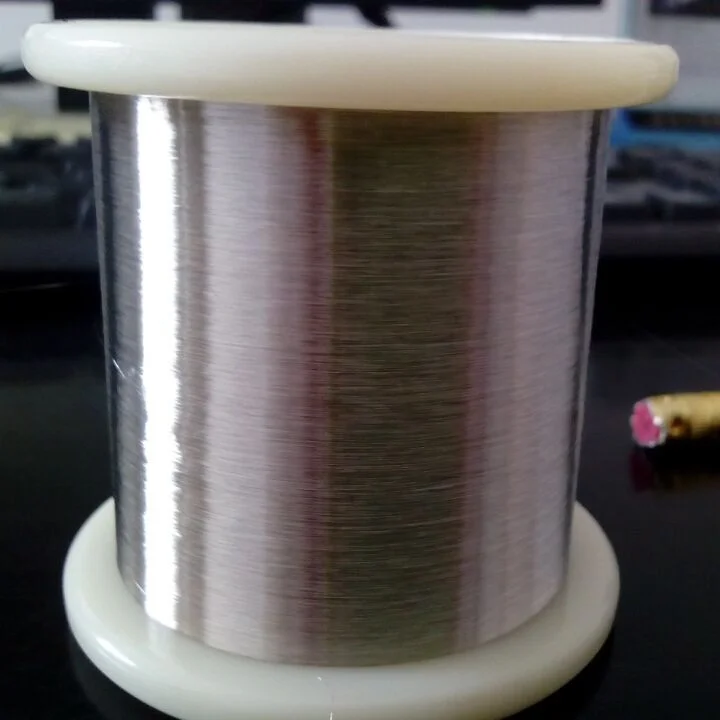

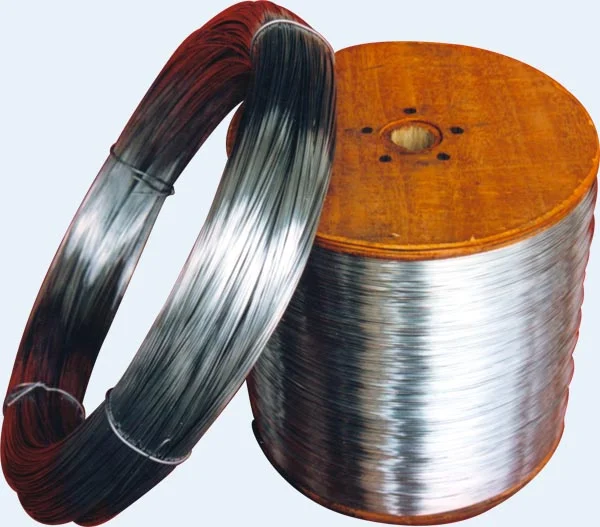

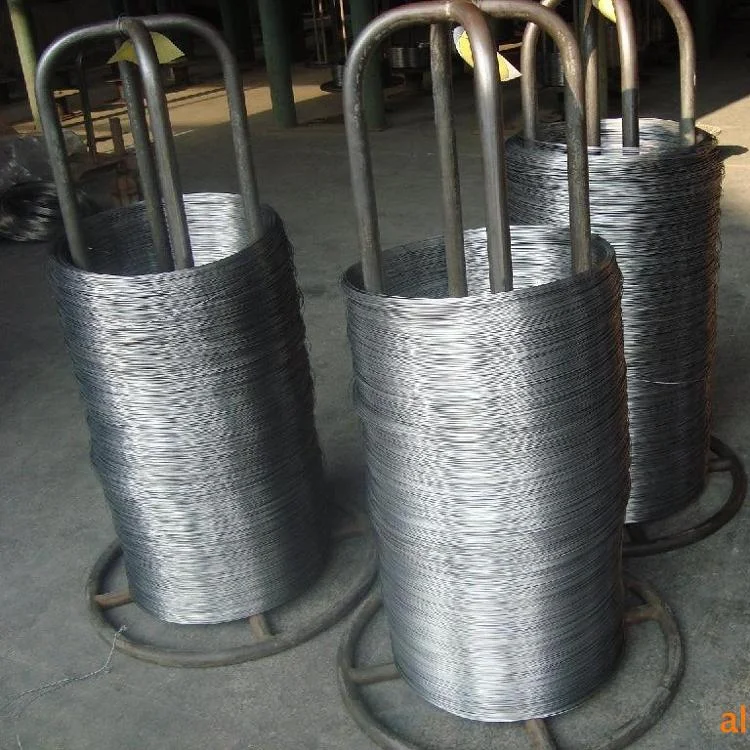

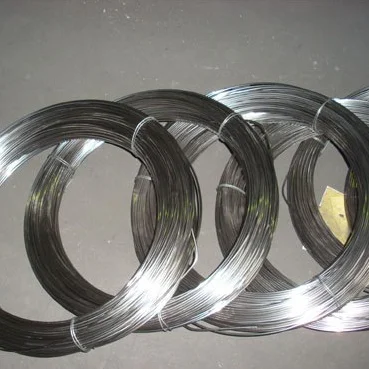

2.Tantalum wire Application
Tantalum wire is highly conductive of heat and electricity. It is renowned for its resistance to corrosion by acids. The major use for tantalum wire is in the production of electronic components, mainly capacitors and some high-power resistors. We offer all the normal sizes and customer specific (Non standard) sizes for various purposes in any industry.
