CF56II 2/CF56IINP 2 A3 size unit type Multicolor Offset printing machine

Product Overview

Description

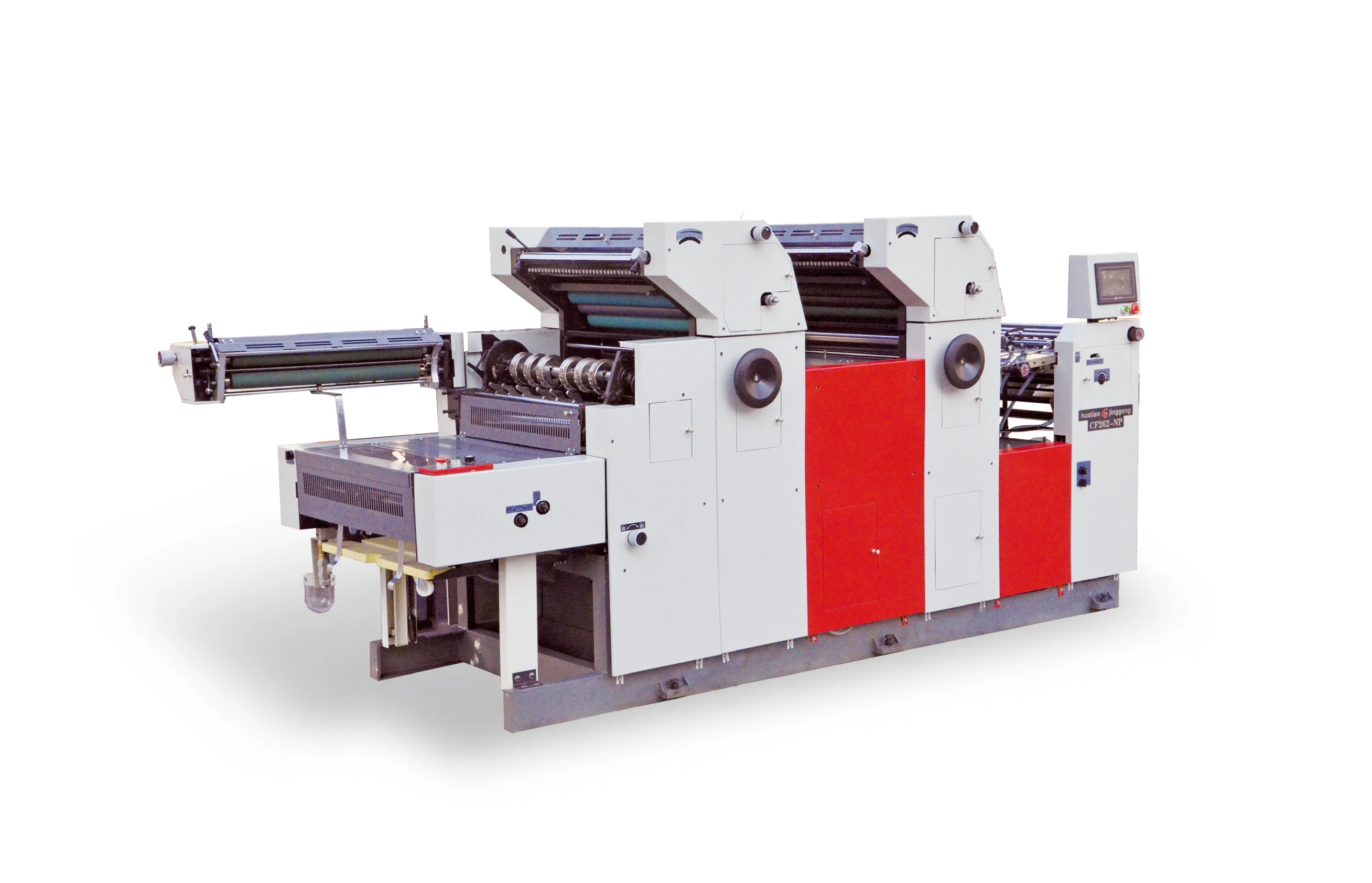

CF56II-2/CF56IINP-2 A3 size unit type Multicolor Offset printing machine



CF56II-2



CF56IINP-2



Technicial Parameter



Maximum printing area	544x 380mm
Maximum paper size	560 x 390mm
Minimum paper size	200 x 148mm
Paper type	17g-250g/m2
Number of ink rollers	14 pieces (3 form rollers)
Number of dampening rollers	4 pieces (2 form rollers)
Registration mechanism	Roller type side guide
Printing speed	2000-7000 sheets/hour
Motor power	Main motor:1.5kw	Air pump motor:0.55KW
Voltage	220v/50Hz(220v/60Hz optional)
Machine size	2450mm×1100mm×1500mm
Weight	900KG/1100KG



Characteristics

1.Two printing units closely arranged, there is enough space for operation.

2. It adopts the transfer feeder type same as heavy-duty, with small erroes and

ensure the overprint precisions.

3. It could do pringting for thin paper, thick paper, self-adhesive paper and color

printing with precise guide and small deformation.

4. It adopts the automatic ink and pressure device.

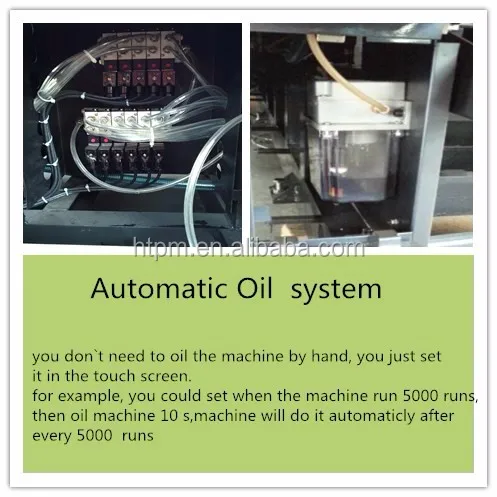

5. It has automatic oil supply system.

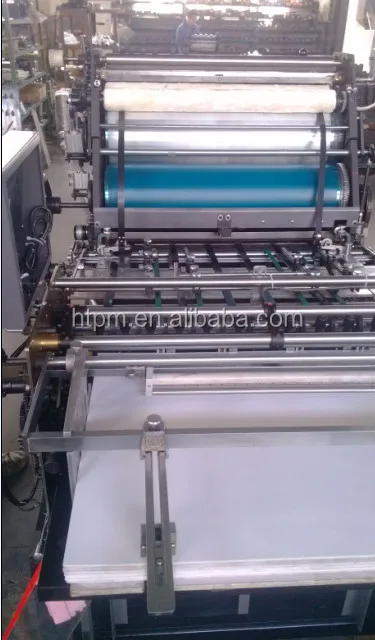

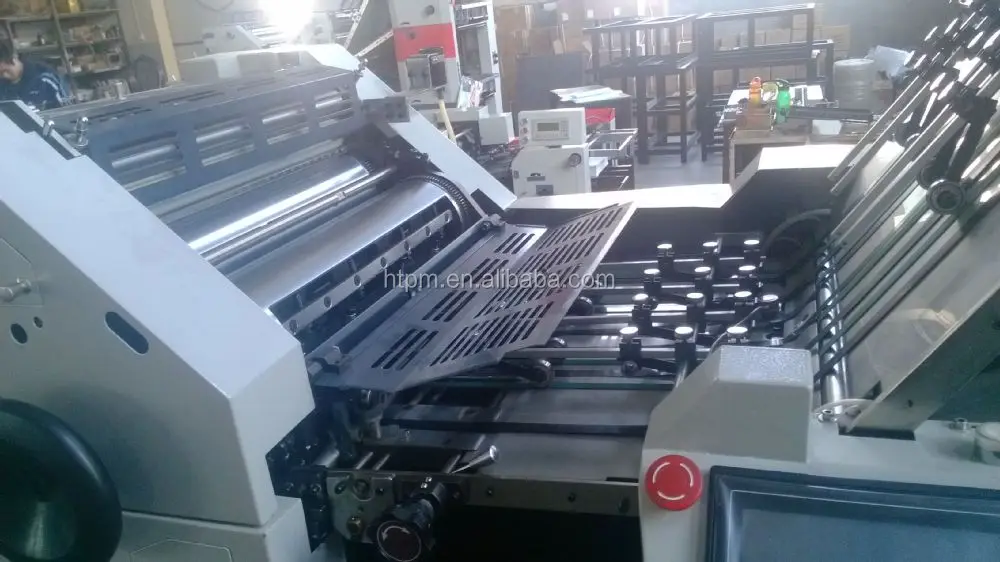

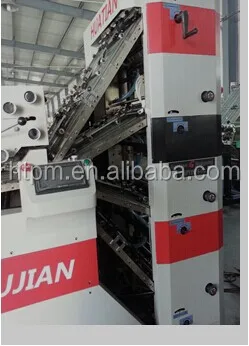

machine pic in our factory:

){$SOIHV6Y6YT$_`NYW)GD" width="649" height="1108" ori-width="375" ori-height="640"/>





Printed Sample :

















Factory and delivery and guarantee



                                              We will delivery the mahcine within 10- 20 days

                                                     We provide 1 year guarantee

                                       Packaging: wooden box  with the water proof

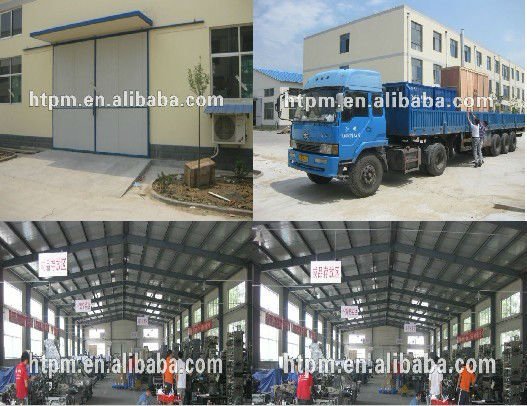

Company Information

Weifang Huatian Precision Machinery Co.,Ltd. is specialized in producing printing                  equipment, it has been continuously reinforcing basic enterprise management, strenthen               ing product quality control system, developing sales channels, and insisting

on product research and development since its establishement.





Our Services



1.We can send the engineer to your country for training for debugging machine(the                    fee should be paid by you)

2.Send the part of spare parts for you for free with the machine.

3.Send you the part for free if your parts broken up (when you operate the machine                    properly) for one year.

4.Offer you the parts you need with cost price when it more than one year.

5.Technical support and parts supply for all the machine life.
