7 inch lcd display board driver board controller board
- Category: >>>
- Supplier: Shenzhen,Fangxian,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
INTERFACE | INTERFACE DEFINITION |
CN1/CN9 (TYPE-C/4PIN2.0 optional) | DC IN CONNECTOR |
CN2/CN10 (TYPE-C/4PIN1.25 optional) | USB IN CONNECTOR |
CN4 (MINI-HDMI) | HDMI IN CONNECTOR |
CN7/CN8 (2PIN1.25) | SPEAKER INTERFACE |
CN6 (FPC6PIN0.5) | CAPACITIVE TOUCH SCREEN CONNECTOR |
CN11 (FPC4PIN1.0) | TOUCH PANEL CONNECTOR |
K1,K2,K3,K4,K5 (SMD4J6*6) | KEY |
CN3 (FPC-50PIN-0.5) | LCD PANEL INTERFACE |
K1 | EXIT Key |
K2 | DOWN Key |
K3 | UP KEY |
K4 | MENU KEY |
K5 | POWER Key |
RTD2660-V1.0NMonitoris a 7.0inch LCD Monitor; supports HDMI input; supports I2S digital audio signal input and speaker output; Support 4-wire resistive touch panelor 6-wirecapacitive touch panel. （This function can only be selected from
two）
two）
Hd -MI driver board
The FX can be supplied with a standard LCD driver plate. The board can transmit different video interfaces. Transmission
interfaces include LVDS, RGB, HDMI, AV and VGA. We can also integrate I2C to USB touch screen signal conversion. With the help of our driver board, customers can solve different video signal conversion. With our proven driver board solutions, customers can easily customize driver boards of different sizes and functions.
interfaces include LVDS, RGB, HDMI, AV and VGA. We can also integrate I2C to USB touch screen signal conversion. With the help of our driver board, customers can solve different video signal conversion. With our proven driver board solutions, customers can easily customize driver boards of different sizes and functions.
Company Profile
Shenzhen Fangxian Technology Co., Ltd.
FangXian（Fancyview） Technology has been specializing in TFT LCD and touch screen related products since 2005. Our business focuses on custom display and touch modules for projects such as industrial equipment, medical and smart home applications. Our mission is to provide one-stop solutions for our customers. With LCD, touch panel and display control board, driver board as the center of our products, we build a strong customization service system. Our advantage is that professional people do professional things, we have a strong team of engineers to provide customers with quality products. Our advantageous products.
Our advantageous products.
(1) Smart TFT LCMs
(2) Parallel port type display control board/module
(3) AV+MCU video overlay control board
(4) Resistive touch panel control board
(5) Capacitive screen touch control board
(6) Display driver board (AD driver board)
(7) Industrial monitors, Raspberry Pi monitors
(8) Andriod motherboard
(9) Complete solutions. We can also customize plastic frames, metal frames to
contain our TFT panel and control board. Your satisfaction is the driving force of our progress
contain our TFT panel and control board. Your satisfaction is the driving force of our progress

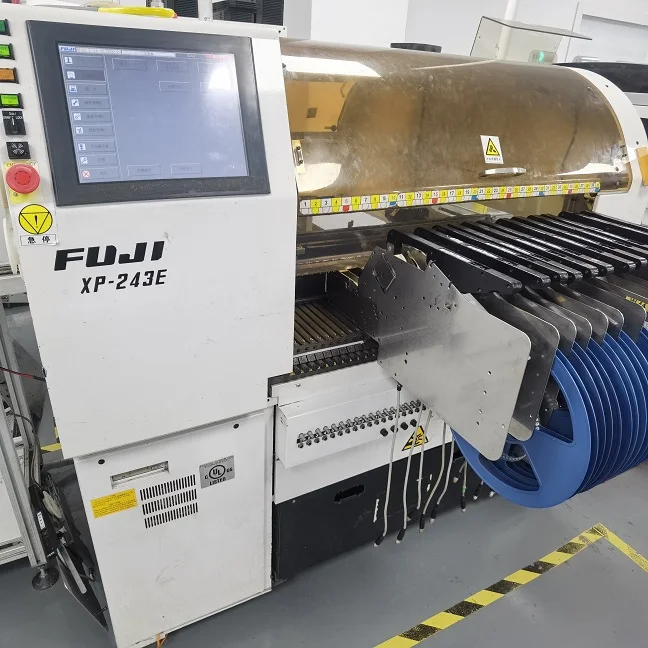

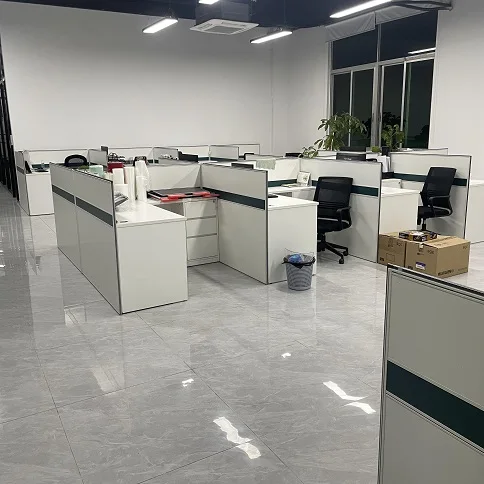

Factory picture
Packing & Delivery
Inner packaging: packing with bubble bags and filling with foam plastic materials;
Outer packaging: packing with serial size of carton or wooden box.
Outer packaging: packing with serial size of carton or wooden box.
FAQ
1. Where can I get the datasheet, initialization code and other technical files?
Chat with the Sale Manager or send me a email ([email protected])(wisnonszchuotai.com), we will reply you as soon as possible.
2.How to delivery the sample or goods?
Our support FOB or CIF delivery term. UPS, DHL, FedEx, TNT or other three-part forwarder are also will be welcome.
3. Can we customize the FPC, interface, screen touch cover graphic or even the brightness of the LCM?
Yes, it is the advantage of our factory with the whole production line. Just send me you CAD or PCB project file or describe what you need. Our engineer will support you well.
4. How to pay?
Small order or sample order (Below USD2000), we accept the T/T, Western Union, Meney Gram, Alipay and need to be paid in advance. If big order (exceed USD2000), we need to pay 40% deposit and the balance need to be paid before shipment.
5.How you guarantee your products’ quality? What’s warranty policy?
All the raw material are come from original factory and all A grade quality. Welcome customer & three-part inspection during production or finished products before shipment. Generally, the warranty is one year. Longer requirement needs to be negotiated with our sale manager.
6.What’s the MOQ for customized product?
Capacitive or resistive touch screen/panel or cover, no MOQ limited. If LCM (LCD + Touch Screen), we accept 300 to 500pcs/design.
7. What’s your policy for the defective & damaged products?
We will retrieve some of the problem products to analyse the problem. If it is our design, components or raw material problem, we will provide the perfect products and shipping free.
Chat with the Sale Manager or send me a email ([email protected])(wisnonszchuotai.com), we will reply you as soon as possible.
2.How to delivery the sample or goods?
Our support FOB or CIF delivery term. UPS, DHL, FedEx, TNT or other three-part forwarder are also will be welcome.
3. Can we customize the FPC, interface, screen touch cover graphic or even the brightness of the LCM?
Yes, it is the advantage of our factory with the whole production line. Just send me you CAD or PCB project file or describe what you need. Our engineer will support you well.
4. How to pay?
Small order or sample order (Below USD2000), we accept the T/T, Western Union, Meney Gram, Alipay and need to be paid in advance. If big order (exceed USD2000), we need to pay 40% deposit and the balance need to be paid before shipment.
5.How you guarantee your products’ quality? What’s warranty policy?
All the raw material are come from original factory and all A grade quality. Welcome customer & three-part inspection during production or finished products before shipment. Generally, the warranty is one year. Longer requirement needs to be negotiated with our sale manager.
6.What’s the MOQ for customized product?
Capacitive or resistive touch screen/panel or cover, no MOQ limited. If LCM (LCD + Touch Screen), we accept 300 to 500pcs/design.
7. What’s your policy for the defective & damaged products?
We will retrieve some of the problem products to analyse the problem. If it is our design, components or raw material problem, we will provide the perfect products and shipping free.
