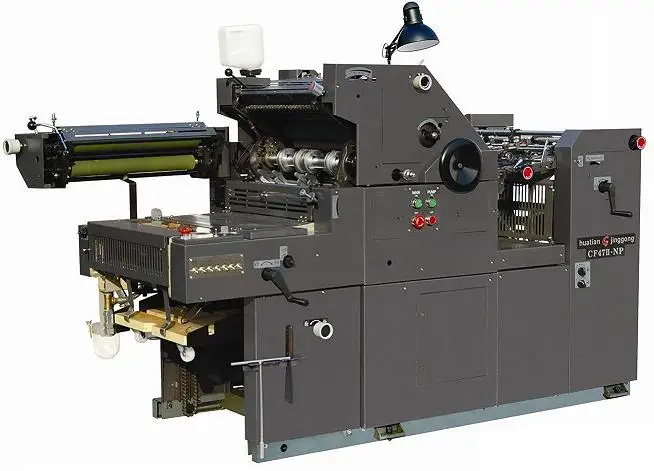

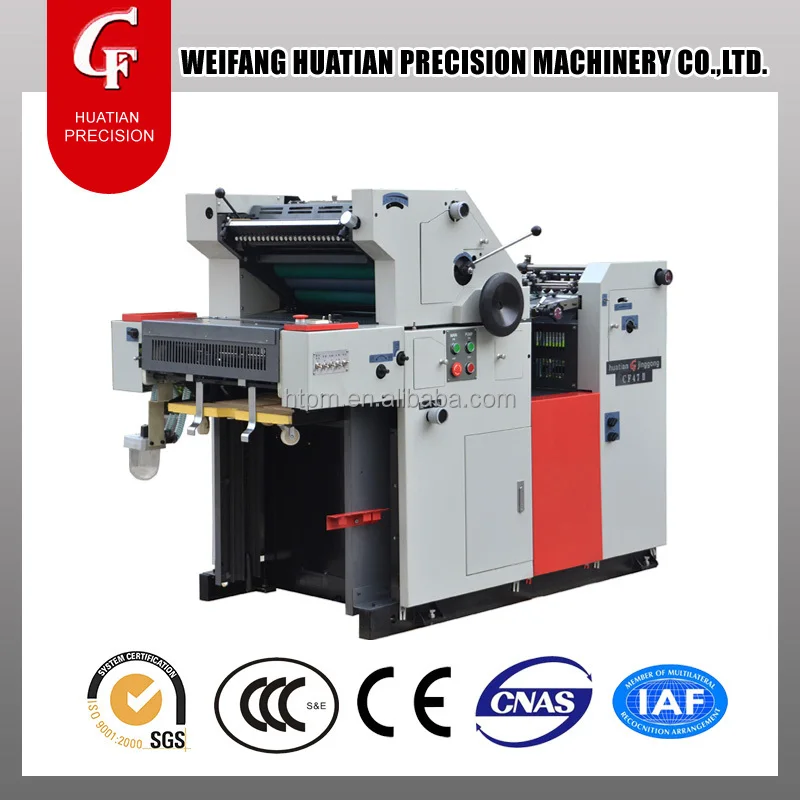

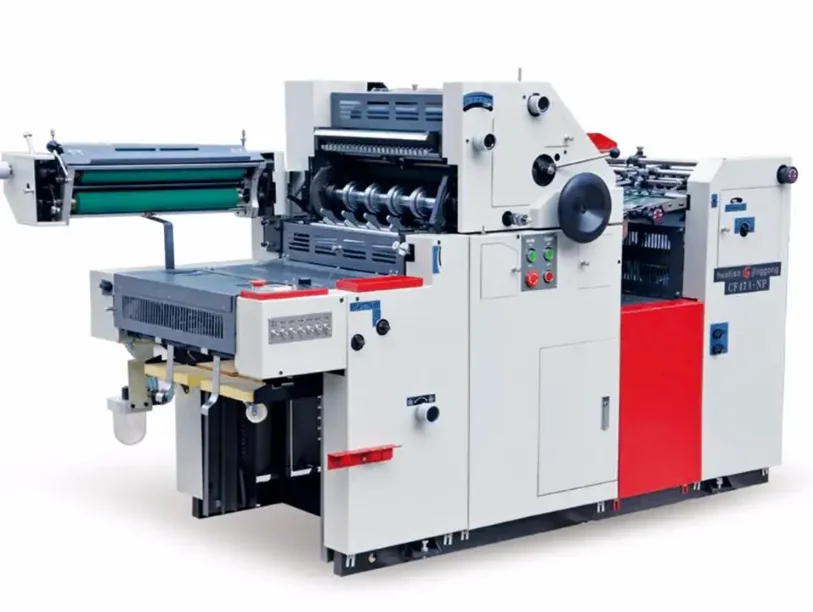

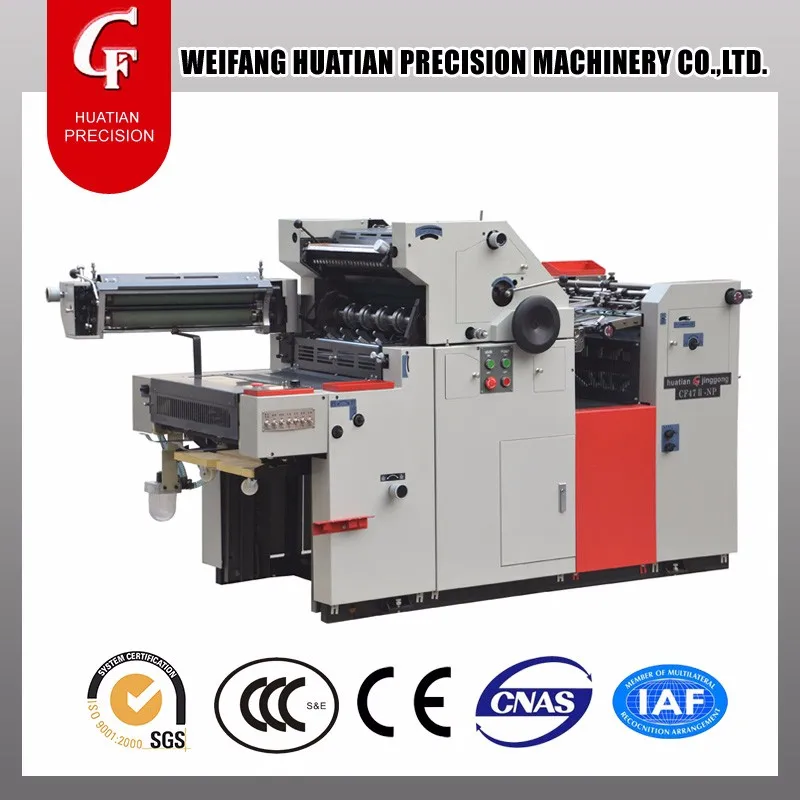

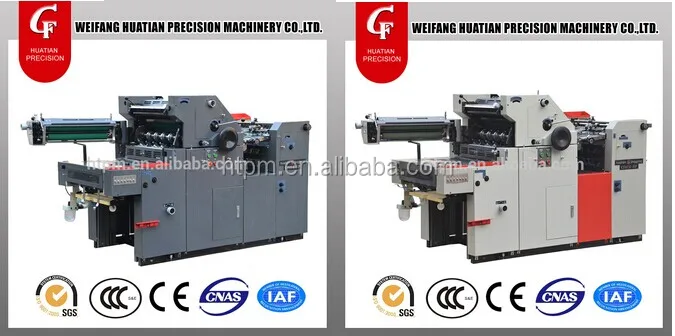

1 color Offset printer A3 size CF56II NP

Product Overview

Description

CF56II-NP

1 color Offset printer A3 size



Technicial Parameter



Maximum printing area	544x 380mm
Maximum paper size	560 x 390mm
Minimum paper size	200 x 148mm
Paper type	17g-250g/m2
Number of ink rollers	14 pieces (3 form rollers)
Number of dampening rollers	4 pieces (1 form roller)
Printing speed	2000-8000 sheets/hour
Motor power	Main motor: 0.75KW/220v	Air pump motor:0.55kw/220v
Machine size	2089mm×1040mm×1219mm
Weight	810KG
Second NP unit	optional
Cross and vertical perforating	√
Ultrasonic double sheet detector	optional

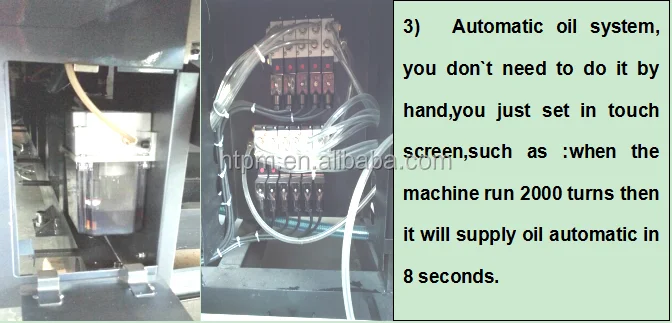

Automatic oil supply system	Optional
Automatic control system	Optional
Min space between number	Vertical number: vertical:71mm horizontal:48mm gripper edge:25mm Cross number: vertical:47mm horizontal:60mm gripper edge:25mm



Instruction



• CF56II is improved on the ink system, and added the quantity of the ink  form roller and ink vibrator, then the ink is unevenly distributed and ensure the high quality for the print work.This machine makes the colorful printing works simple, easy and comfortable, and make the printing color beautiful and bright.

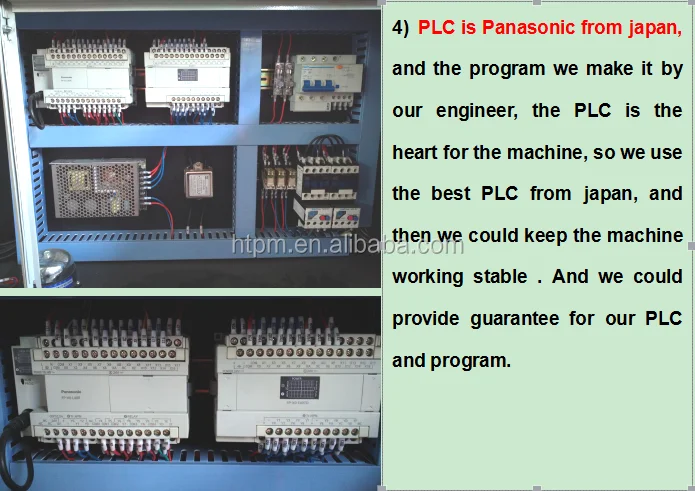

• CF56II-NP offset press is added the NP unit on the basis of CF47 series offset press, it could do the lithographic print, number print, resin plate print, crossand vertical perforate at same time. It is equipped with the PLC control curcuit with stable program;photoelectric automatic delivery table/static eliminator.                                                                                                                The NP unit also has photoelectric controlled impression on/off. This machine is made in high presicion, and they are offset printing machine  with multi-function, advantage feature and diversified  applications.

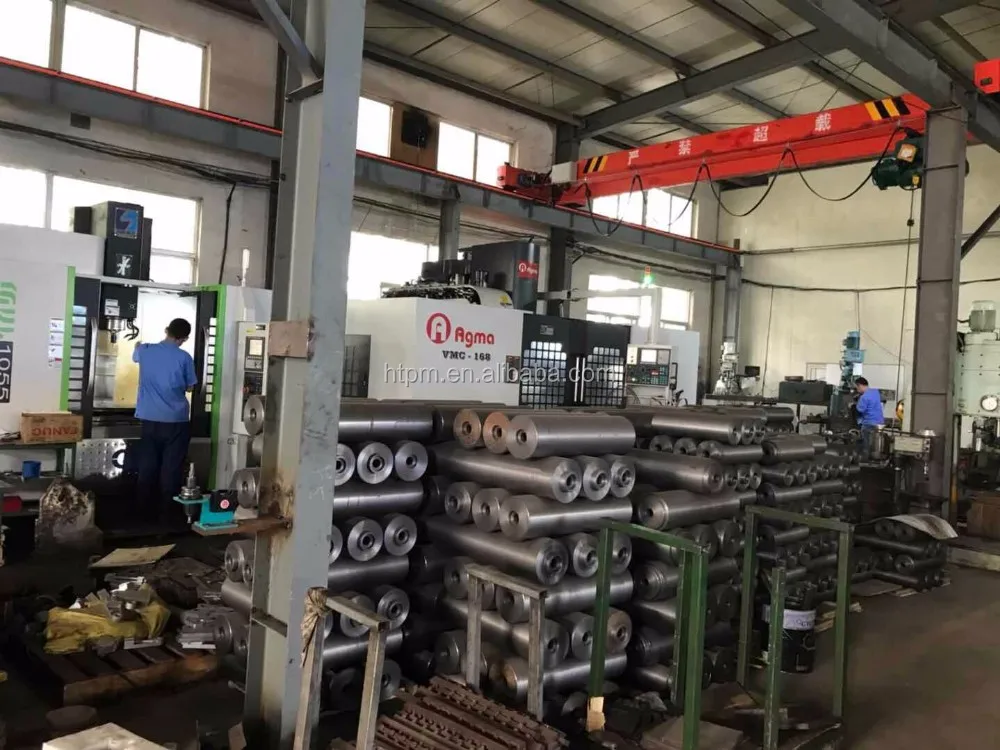

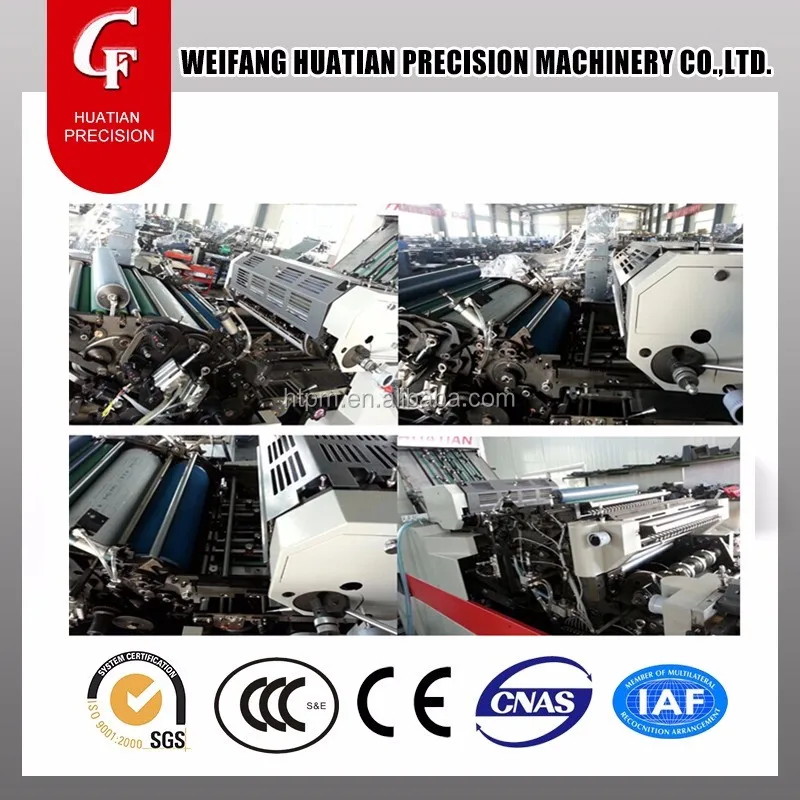

Factory







Printed Sample









 Delivery and guarantee

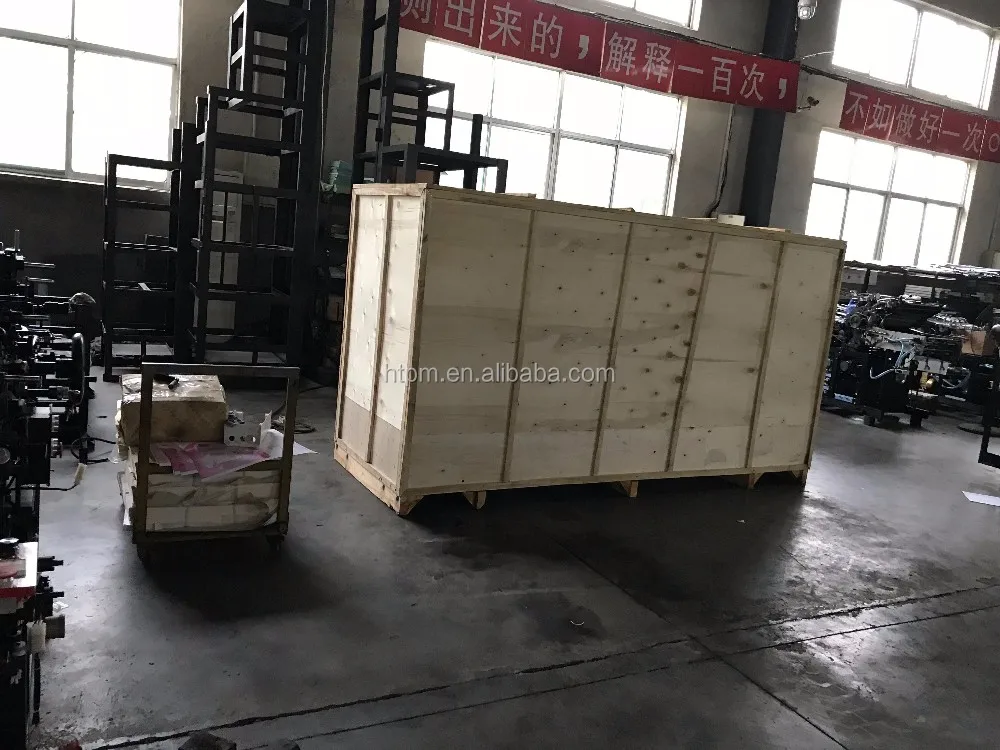

 Packaging: wooden box  with the water proof



 we will delivery the mahcine within 10- 20 days

 we provide 1 year guarantee



Company Information

     Weifang Huatian Precision Machinery Co.,Ltd. is specialized in producing printing equipment, it has been continuously reinforcing basic enterprise management, strenthening product quality control system, developing sales channels, and insisting on product research and development since its establishement.





 FAQ

1.Question: Are you Manufacture or Trading Company?
Answer:We are manufacture for the offset printing machine for about 12 years. And we have customer in about 60 countries.we have the4 color offset press, collate machine . Uv coating and spot uv machine. computer paper production  line ,folding machine. Binding machine ,die cutting machine and flexo graphic machine .

 2.Question: what is your payment term and delivery time ?Answer: we accept TT,30% prepaid as deposit, and before we delivery the machine, you  need to pay us the balance . We could arrange the delivery within 10-30 days after we get the deposit.
