Locksmith Companion Durable Carbide 45 Degree Cutter Blade Key Cutting Machine Supplies
- Category: >>>
- Supplier: Zhangjiagang Ruizheng Tool Co. Ltd.
Share on (1600743138795):
Product Overview
Description

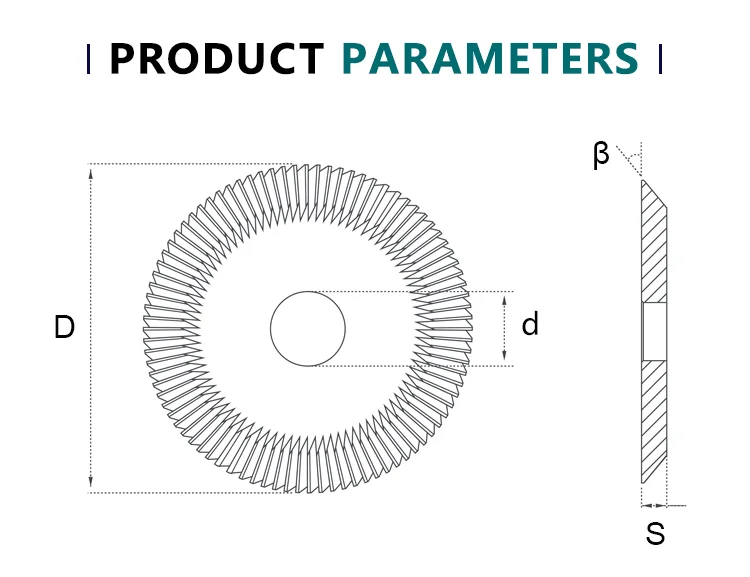

RAISE Ref | RAISE Ref | Material | D (mm) | d (mm) | β | S (mm) | |

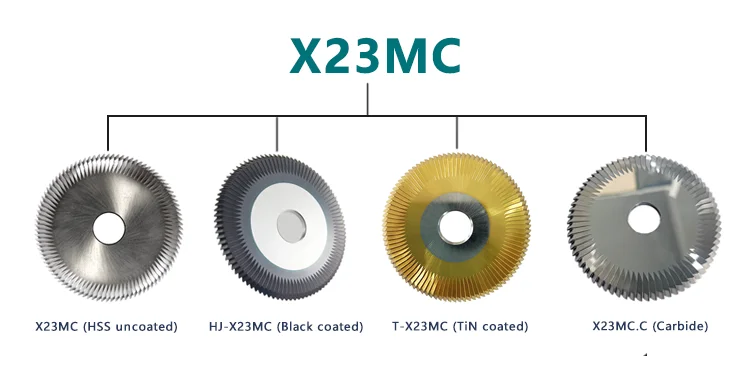

X23MC | X23MC | HSS M35 | 60.3 | 12.7 | 45° | 2.5 | |

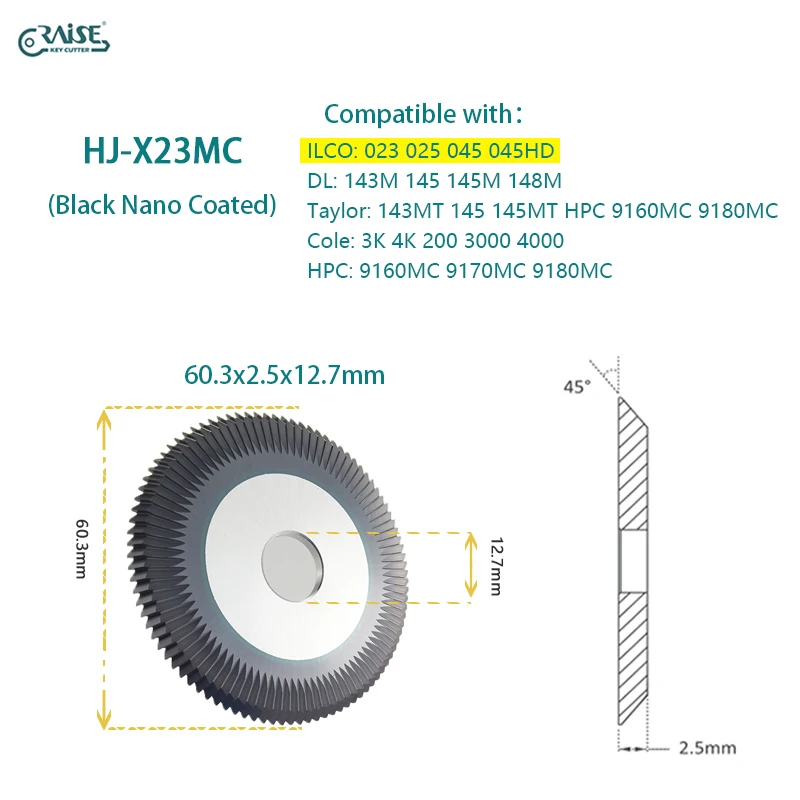

HJ-X23MC | HSS (Black nano coated) | 60.3 | 12.7 | 40° | |||
T-X23MC | HSS (Tin Coated) | 60.3 | 12.7 | 40° | |||
X23MC.C | Carbide | 60.3 | 16 | 40° | |||
23RF | 23RF | HSS | 57.1 | 12.7 | 45° | 6.35 | |

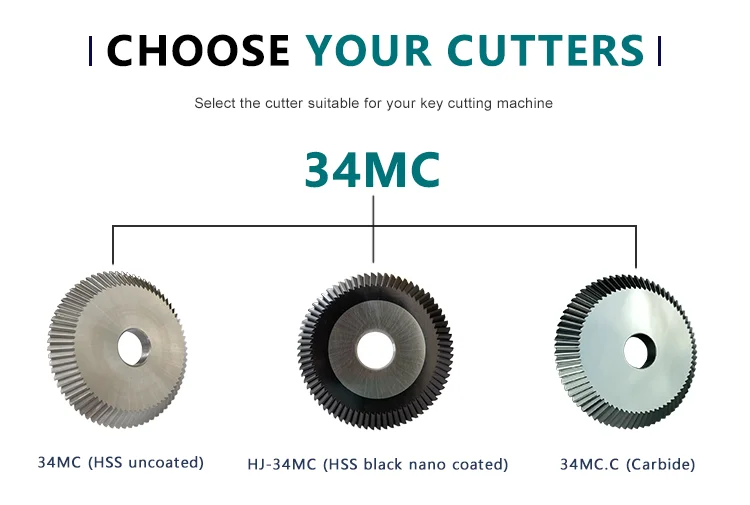

34MC | 34MC | HSS | 57.1 | 12.7 | 40° | ||
HJ-34MC | HSS (Black nano coated) | 57.1 | 12.7 | 40° | |||
34MC.C | Carbide | 57.1 | 10 | 40° | |||

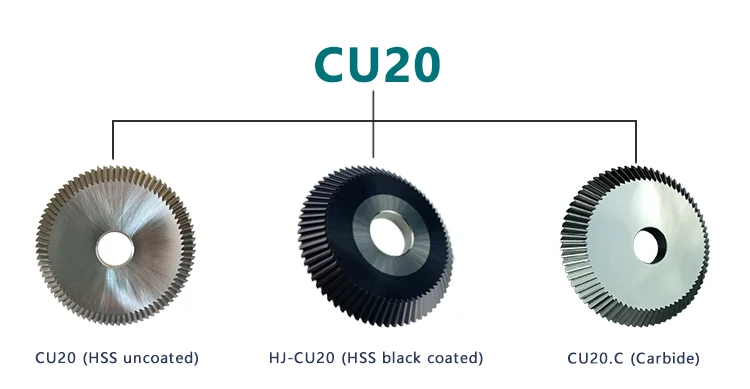

CU20 | CU20 | HSS | 60.32 | 9.525 | 40° | 6.32 | |
HJ-CU20 | HSS (Black nano coated) | 60.32 | 12.7 | 40° | |||
CU20.C | Carbide | 60.32 | 12.7 | 40° | |||
Introduction

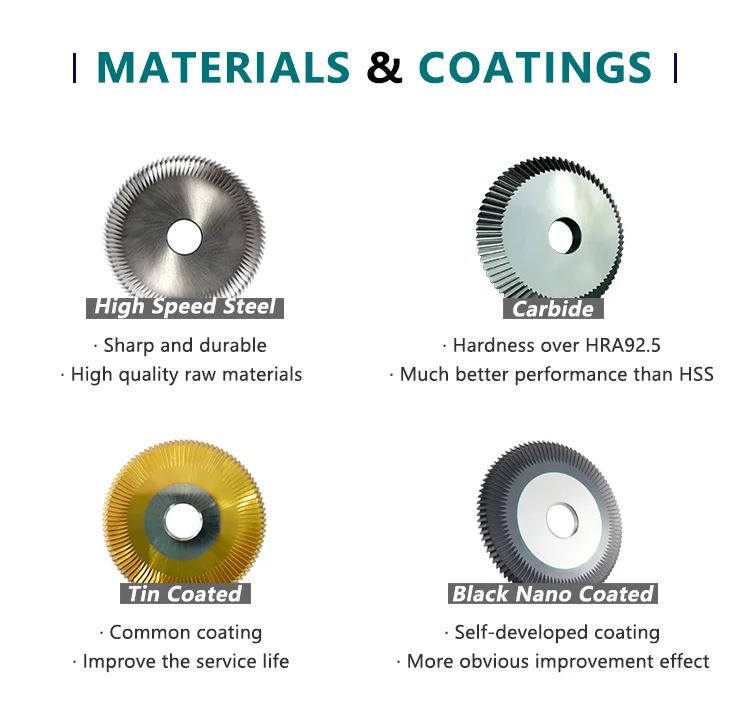

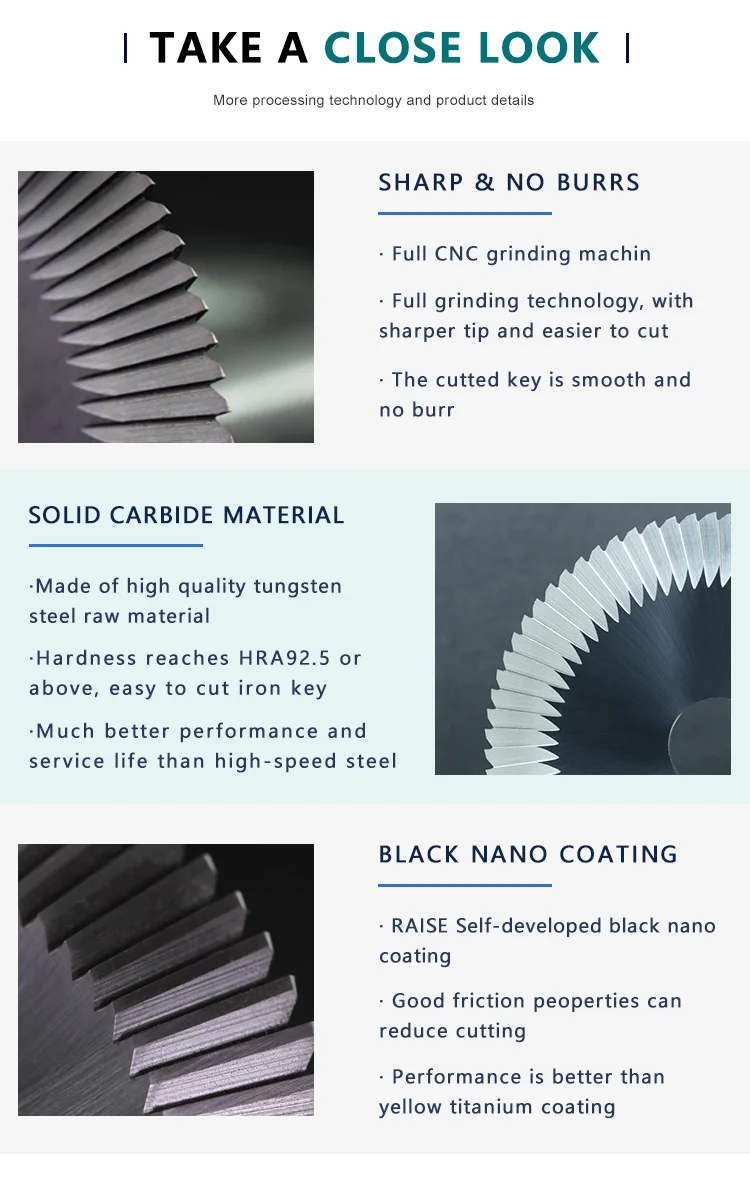

High-Speed Steel (HSS)
Tested hardness above HRC60, sharp and not easy to break, has excellent wear resistance and high-temperature resistance, allows high-speed cutting.
Carbide
It's a solid material with hardness over HRA92.5, durable, especially suitable to cut steel keys. RAISE invented a special grinding technique and redesigned the cutting edge to strengthen the cutter, it effectively improved impact resistance.
TiN Coated
Traditional coating. Icing on the cake for HSS material, makes service life longer and improves the quality of cutting surface.
Black Nano Coated
RAISE exclusive coating. Scratch resistant and improves hardness of HSS material.
Coated cutters are cleaned and coated at our special dust-free workplace to prevent any dust or fluid that may affect quality and precision.
Compatible with: ILCO: 022 027A HPC: 9120RM 9220RM DL: 125 125A 126 126M 136 136D 146 146D Taylor: KD1 KD1A KD5 KD6 KD6AG KD8 KD9
Compatible with: ILCO: 008 008A 008B 2184CD H2584CV 2585DU HPC: 9100 9110 DL: 145 145M 147 147M 149M Taylor: KD1 KD5 KD20

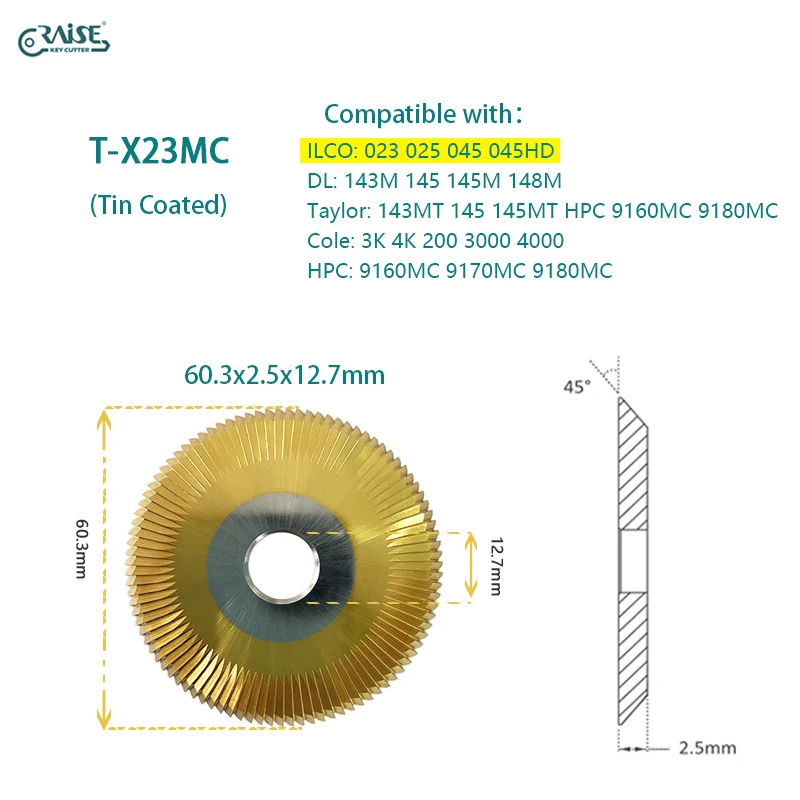

Compatible with: ILCO: 023 025 045 045HD DL: 143M 145 145M 148M Taylor: 143MT 145 145MT HPC 9160MC 9180MC Cole: 3K 4K 200 3000 4000 HPC: 9160MC 9170MC 9180MC

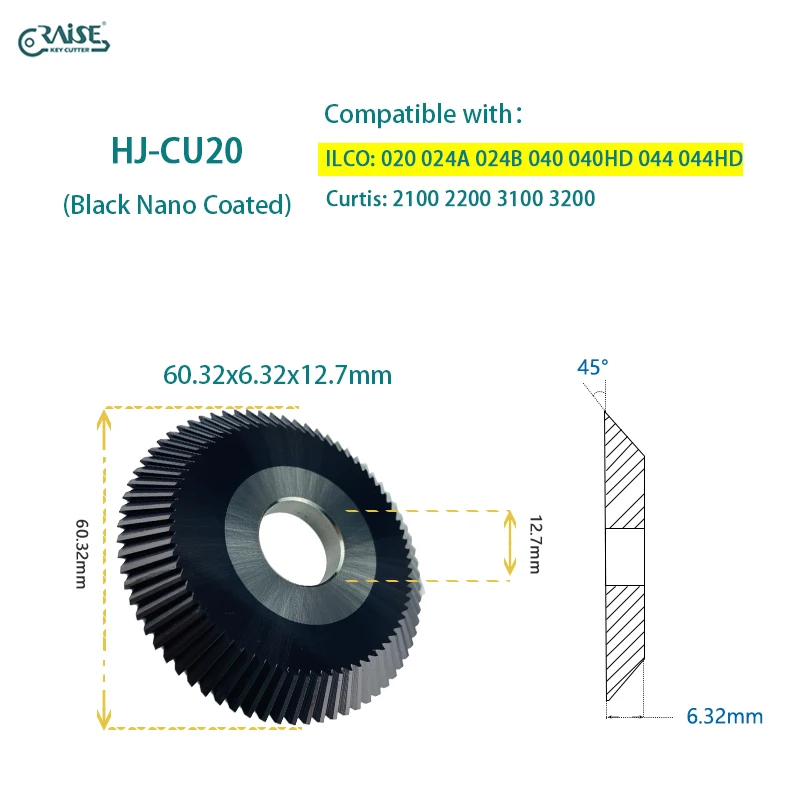

Compatible with: ILCO: 020 024A 024B 040 040HD 044 044HD Curtis: 2100 2200 3100 3200
If you can't find the suitable cutters, please don't hesitate to tell us. Our technicians can produce base on the size/drawing/sample/other details you provide. We value your precious experience in your specialty field and would love to offer support.

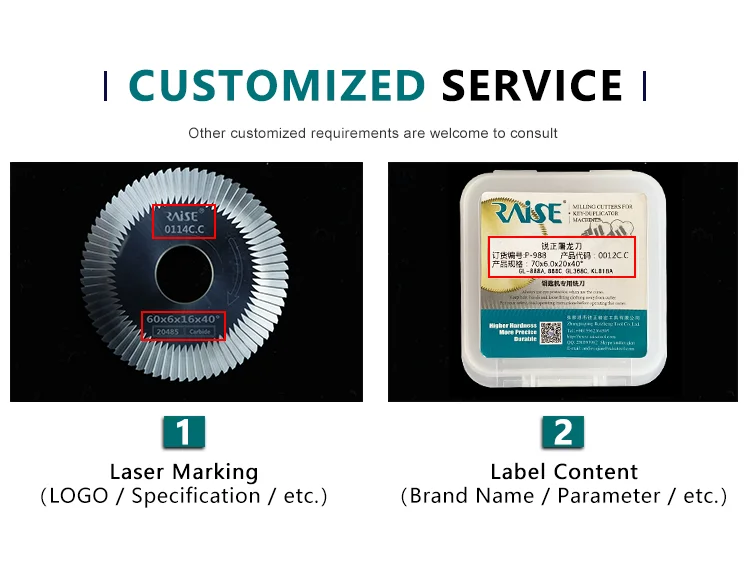

With diversified production line and trained technicians, RAISE support customizing label, package, cutter size, or anything that can be negotiated.
FAQ
Why did you only operate for one year？
We are an enterprise specializing in the production and R&D of key machine milling cutter for over 13 years.
It is just the length we joined Alibaba.
It is just the length we joined Alibaba.
So please don't worry about our ability.
What products can you produce？
We are specialized in producing all kinds of key machine end mills, tracer point, cutting blades, dimple cutter and CNC milling cutters, which have rich production experience and R&D capability.
What is your business philosophy?
Our business philosophy is:
RAISE CUTTERS RAISE PERFORMANCE
We firmly believe that product quality is the most important thing.RAISE CUTTERS RAISE PERFORMANCE
Our products will reach you only after strict quality inspection
