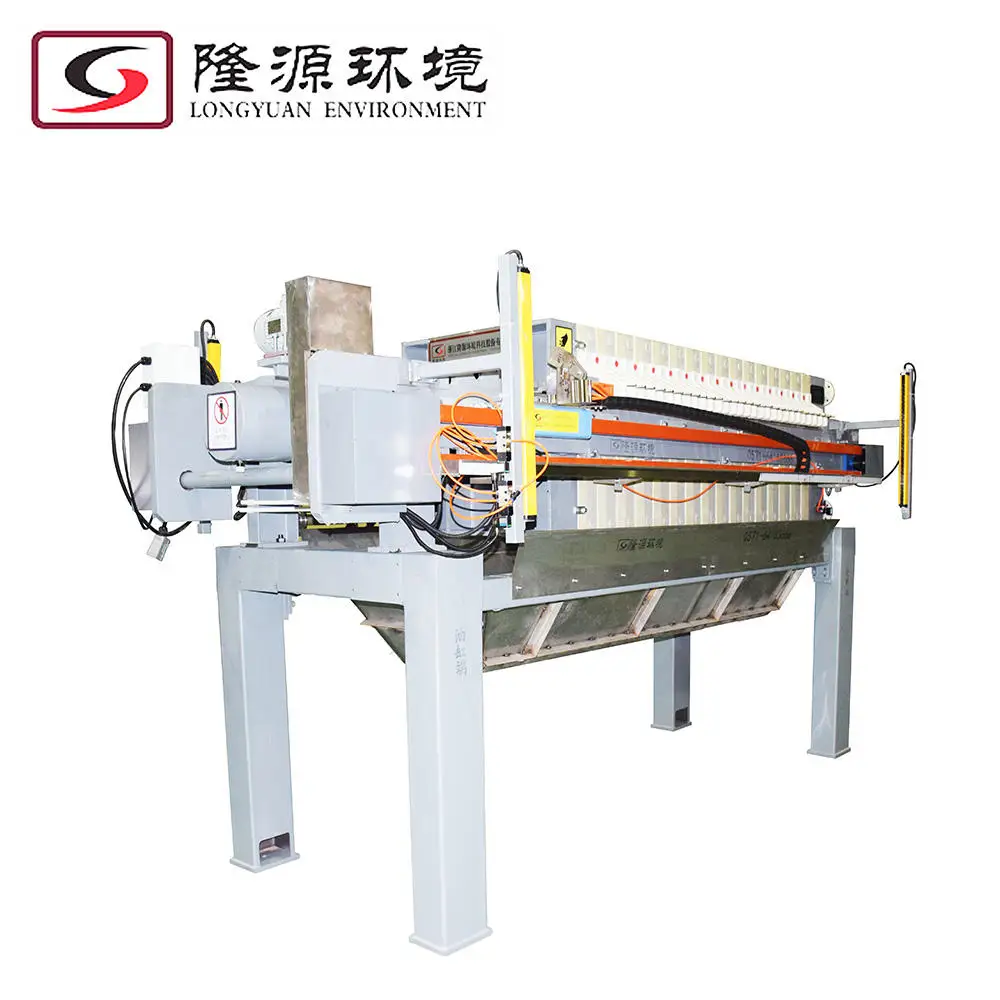

ZHEJIANG LONGYUAN Opening Automatic Chamber Membrane 236gb244 filter Press Filter Ceramic Dewatering Filter Press
- Category: >>>
- Supplier: Zhejiang Longyuan Environment Technology Co. Ltd.
Share on (1600743175487):
Product Overview
Description
Products Description
Application field
This filter press can be widely used in many industries, such as steelworks, coal preparation plant, sewage treatment plant, sand washing plant,piling site,etc.Specification | ||
Specification | Van type filter press | |
Filtration area | 100m2 | |
Filter chamber volume(cake volume) | 1.57m3 | |
Number of filter plate | 37 | |
Size of filter plate | 1250*1250*60mm | |
Specification | ||||||||
Machine type | Van type filter press | |||||||
Filtration area | 100m2 | |||||||
Filter chamber volume (cake volume) | 1.57m3 | |||||||
Processing capacity (processing speed of sewage) | 59000L/h | |||||||
Number of filter plate | 37 | |||||||
Size of filter plate | 1250*1250*60mm | |||||||
Thickness of cake | 30mm | |||||||
Filtration pressure | 1.0MPa | |||||||
Filtration temperature | 0~80 ℃ | |||||||
Voltage | 3ph-380V-50Hz, 3ph-415V-50Hz, 3ph-440V-60Hz & as required | |||||||
Electric power | (5.5~8.25)kW | |||||||
Certification | CE, ISO9000, ISO14000, national high-tech enterprise | |||||||
Colour | Grey,blue,yellow,green,white & as required | |||||||
After-sales service | Engineers available to service overseas | |||||||
Power type | Automatic hydraulic √ | Manual | ||||||
Cloth is embedded into plate | Yes | No √ | ||||||
Washing cloth automatically | Yes √ | No | ||||||
Machine body is stainless steel | Main girder is stainless steel 304 | The whole machine is SUS 304 | No √ | |||||
Filter plate shifting style | Auto shifting one by one √ | Auto shifting several by several | Manual shifting one by one | |||||
Diaphragm squeezing mode | PP diaphragm | Rubber diaphragm | Without √ | |||||
Drip tray | PP | Carbon steel √ | Stainless steel | Without | ||||
With vibration system to ensure discharge cake smoothly | Yes √ | No | ||||||
Product description
Filter press is a machine for solid-liquid separation.The target product can be solid,can be liquid, of course can be solid and liquid at the same time. Working process of the filter press is like this: 1. Compressing filter plates 2. Feeding target liquid 3.Maintaining pressure 4.Inflating the diaphragm (optional) 5.Loosening filter plates 6.Discharging the cake
Product feature
3.Reliable, easy maintenance, easy operation
1.Filters of larger processing capacity can simply switch to filter smaller capacity liquid. Customers don't need to buy one or more extra smaller machine when facing multi task.
2.High efficiency, low power consumption, economic
3.Reliable, easy maintenance, easy operation

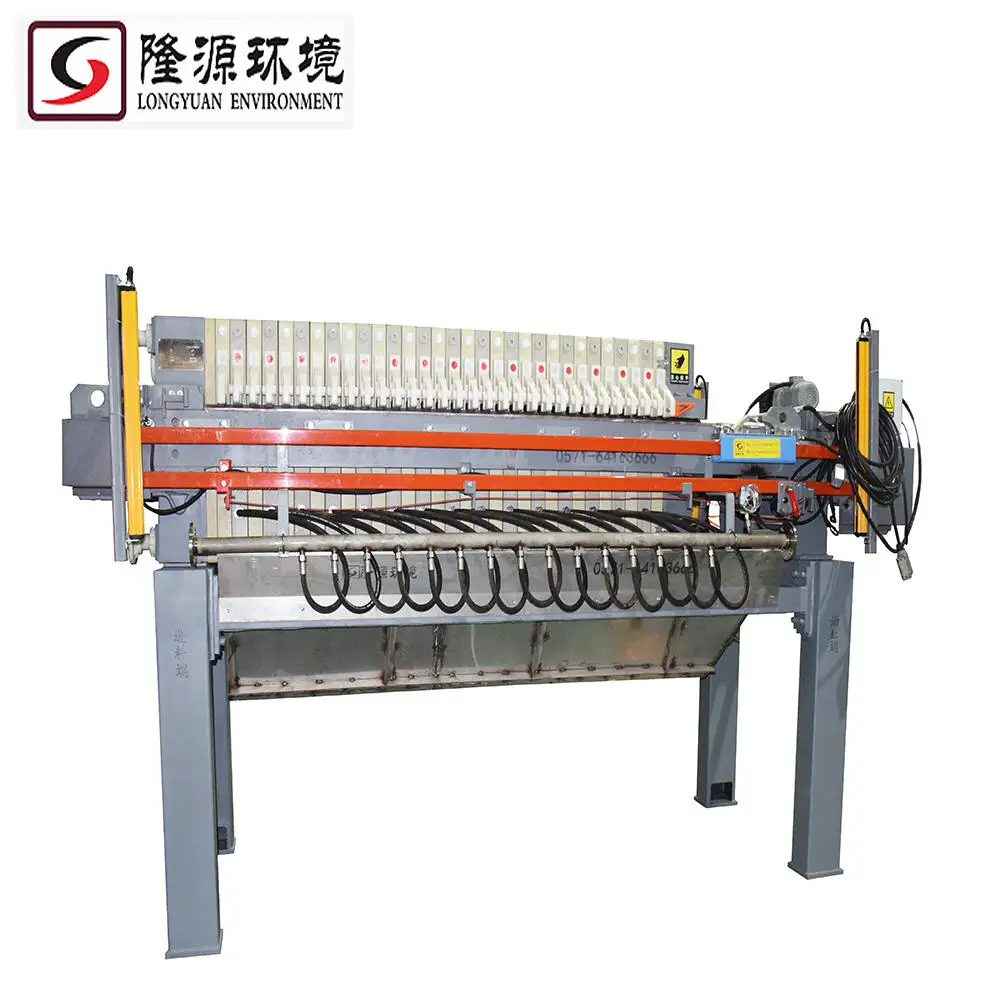

4.This filter press is with vibration system. That is specially designed to ensure that the machine discharge the cake smoothly and automatically. Thus, it is very convenient to replace the filter cloth and can improve the cake discharging speed and reduce the cleaning frequency of filter cloth.

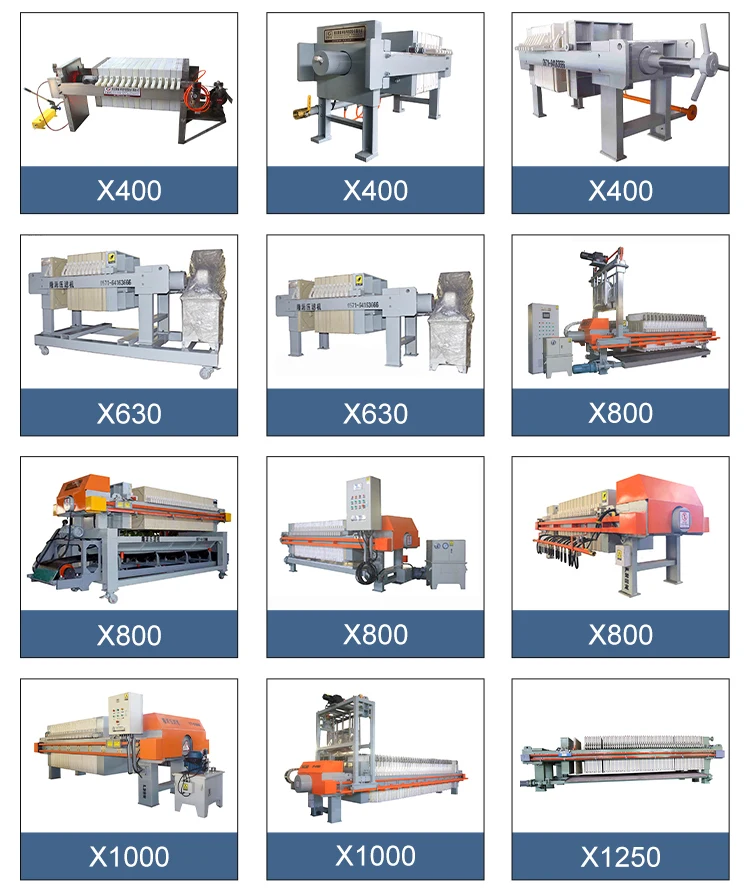

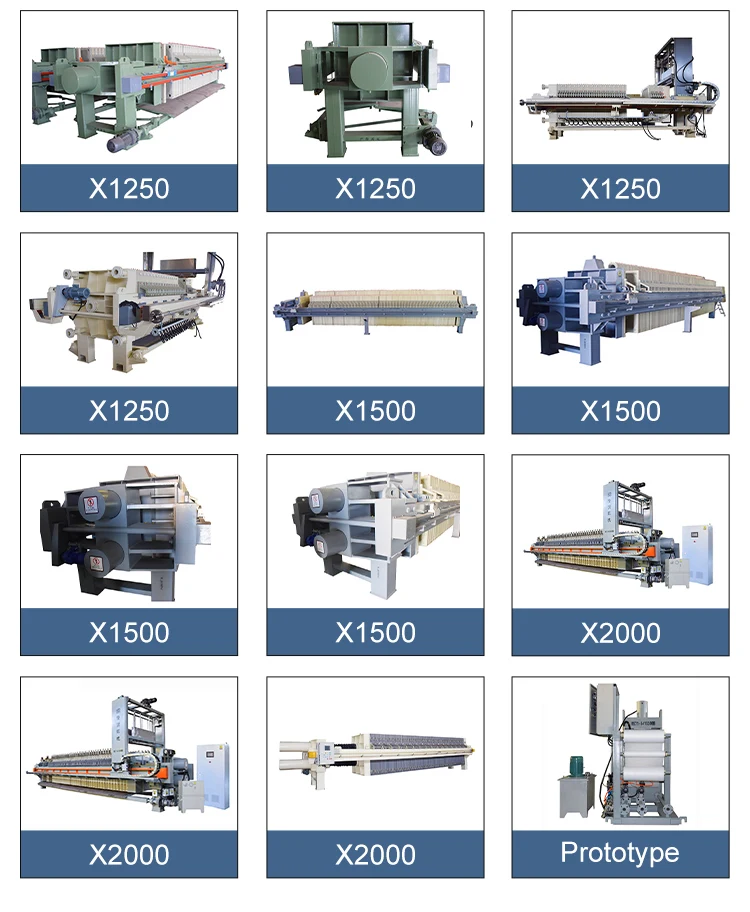

Product series
1.Van type filter press
2.Van type diaphragm filter press, including PP-diaphragm-type and rubber-diaphragm-type. Rubber diaphragm is detachable from the plate. So that each piece of well-worn rubber diaphragm can be replaced by a new one.
3.Filter cloth embedded type filter press, especially suitable for liquid which is poisonous or volatile
4.Stainless steel filter press
5.Automatic multifunctional filter press
6.Plate and frame filter press, however van-type is more advanced than plate and frame type.
7.Manual power van type filter press
8.Small and mini van type filter press
9.Supporting equipment, including spare parts, accessories, dosing device, belt conveyor, electric cake hopper, liquid collecting trough,etc
Recommend Products
Company Profile
Certifications
Packing & Delivery
FAQ
Q:Which country have your products been exported?
A:Many countries and regions, such as Eastern Europe, East Asia, North America, Russia, South America, etc.
Q:What is the voltage/phase for this machine ?
A:Can made as the clients’ need.
Q:How long can we get the goods?
A:We usually delivery in 35 days.
Q:What about Payment term?
A:T/T or L/C ---- 30% as prepayment, balance paid before delivery
A:Many countries and regions, such as Eastern Europe, East Asia, North America, Russia, South America, etc.
Q:What is the voltage/phase for this machine ?
A:Can made as the clients’ need.
Q:How long can we get the goods?
A:We usually delivery in 35 days.
Q:What about Payment term?
A:T/T or L/C ---- 30% as prepayment, balance paid before delivery
