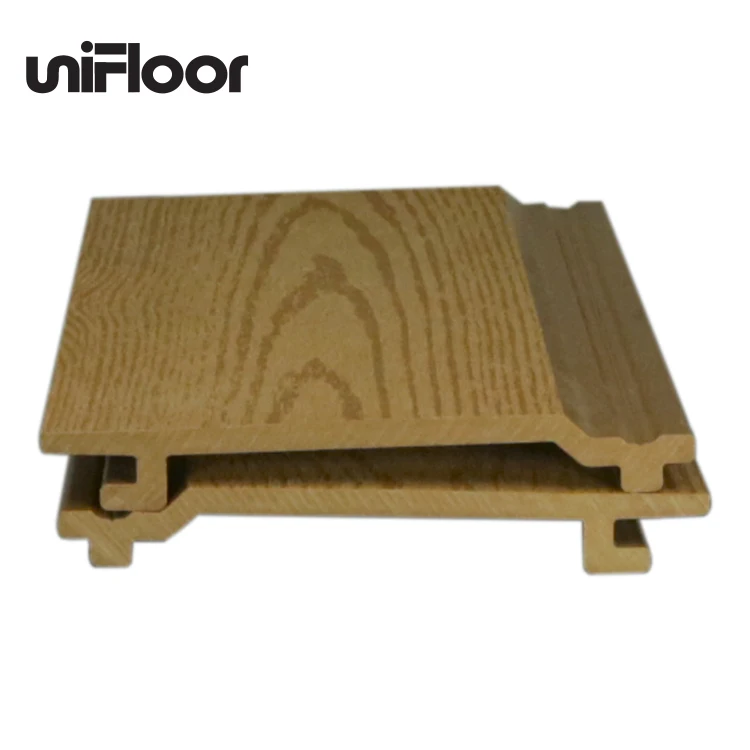

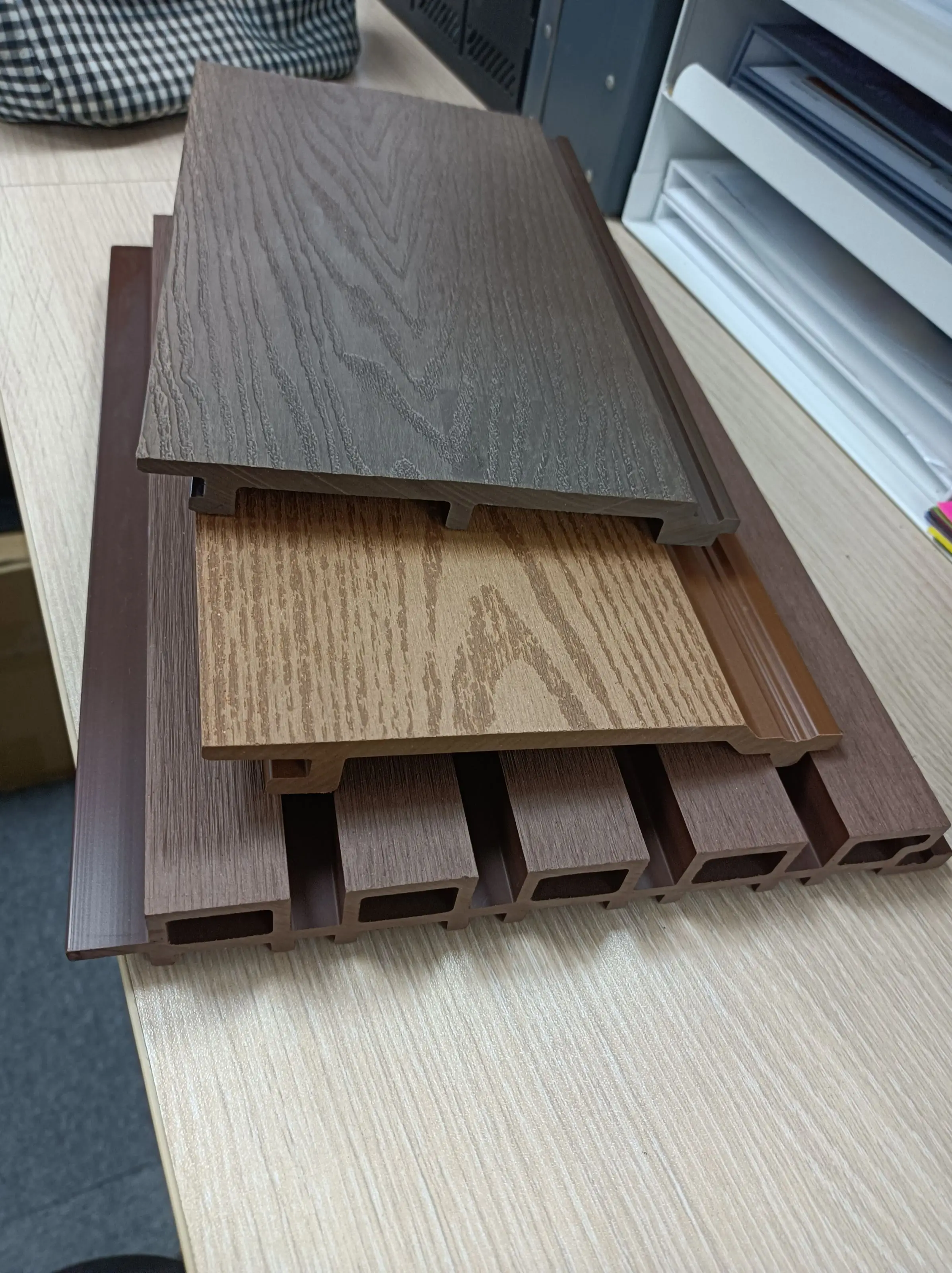

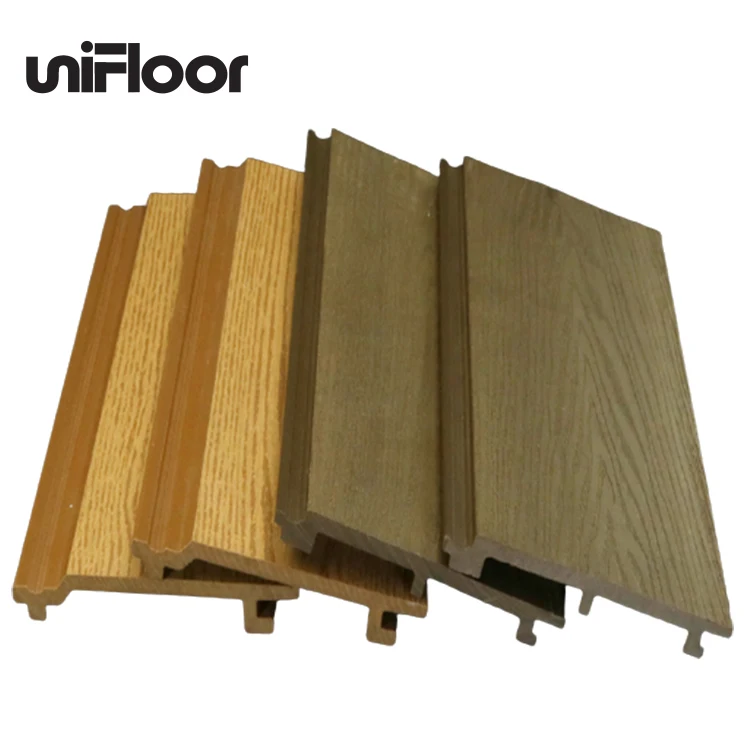

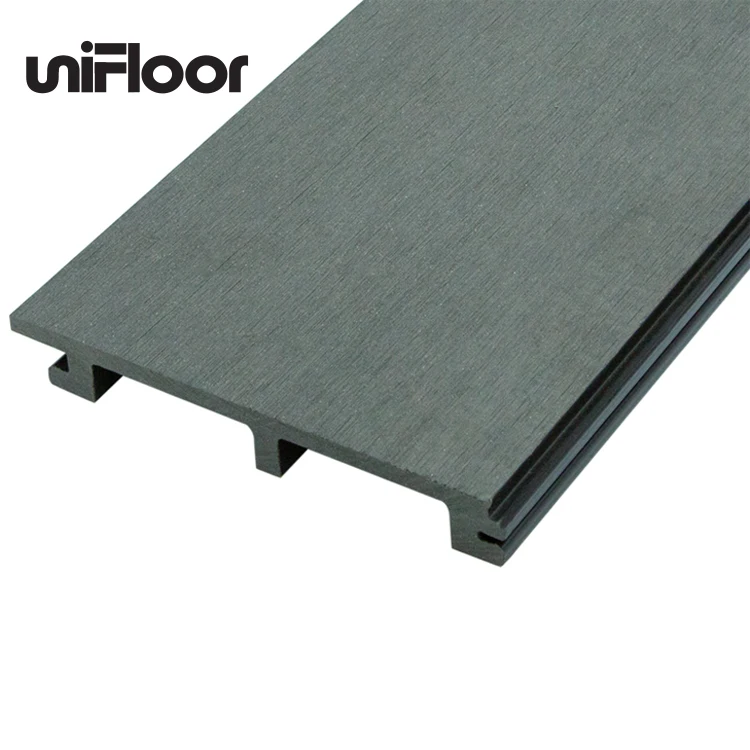

External Wood Composite Panel Wood Grain Pattern WPC Wall Wladding,External Vertical Wood Siding
- Category: >>>
- Supplier: Shanghai Unifloor New Material Co. Ltd
Share on (1600743190905):
Product Overview
Description
Product Description

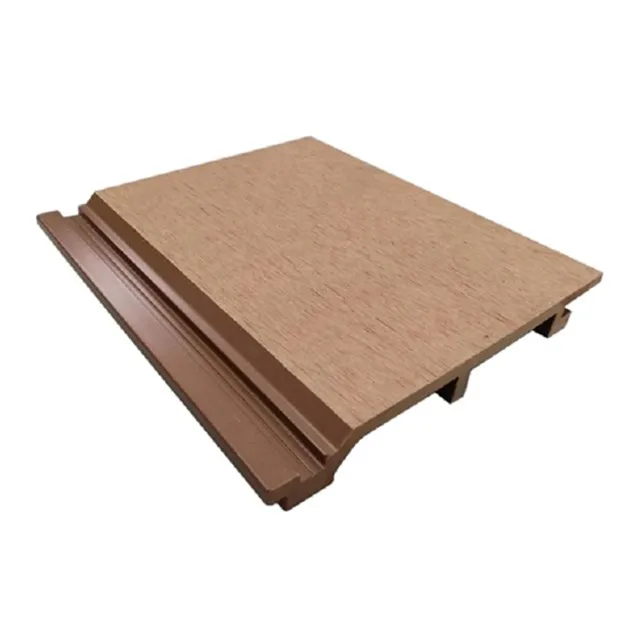

Product Name | Outdoor Wood Plastic Wall Panel/ WPC Wall Cladding/Exterior Wall Covering | ||||||

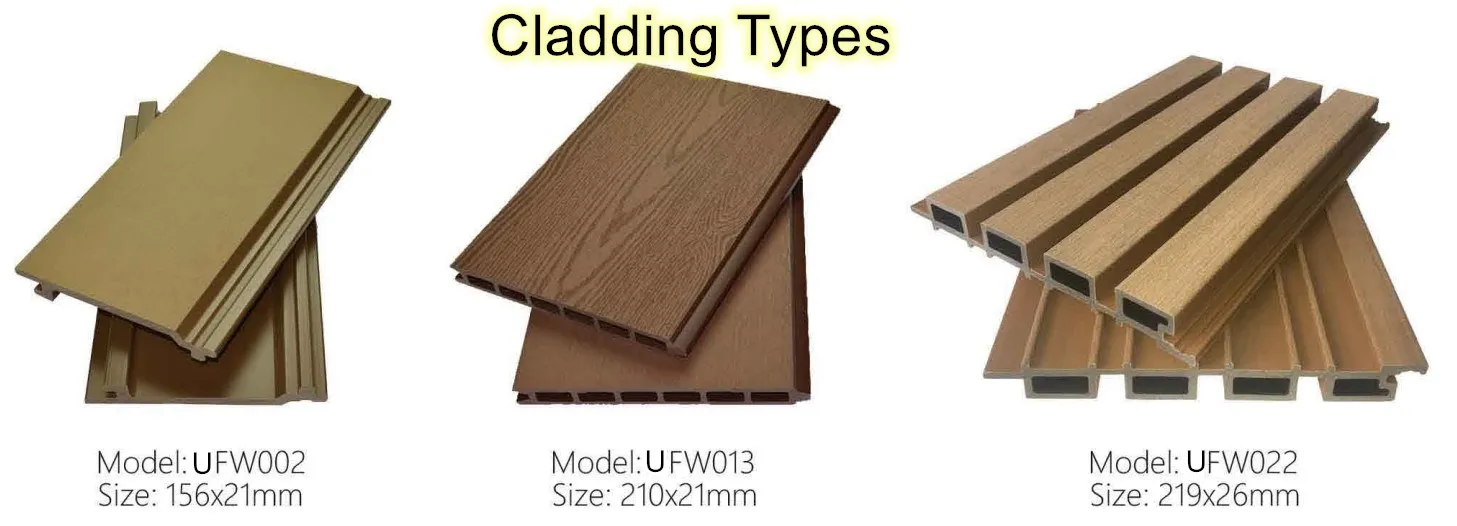

Model No. | UFW002,UFW009,UFW013,UFW015,UFW018,UFW019,UFW022,UFW023 | ||||||
Wall Panel Size | 156*21mm,177*31mm,210*21mm,225*17mm,212*19mm,219*26mm,222*26mm | ||||||
Surface Treatment | Brushed/Non-Brushed/Wood Grain/Deep Wood Texture | ||||||
Warranty | 5 Years | ||||||
Stardard Length | 2200mm,2900mm (or customized size) | ||||||
Package | Carton or Pallet | ||||||
Applied Area | Residential area,balcony,garden & private park,swimming pool | ||||||
Formula | 60% wood fiber+ 35% HDPE + 5% additives. | ||||||
Accessories Needed | Stainless Steel Starter Clips,Screw,Joist,L Corner Trim | ||||||
Product Features
Wall Panel Features
* 100% recyclable, eco-friendly, saving forest resources.
* Requires no painting, no glue, and low maintenances.
* Natural wood grain but without problems of timber.
* Weather resistant, suitable from -40°C - 70° C.
* Moisture and water resistant.Longer Lifespan.
* Color/wood grain/function customize are available.
* Requires no painting, no glue, and low maintenances.
* Natural wood grain but without problems of timber.
* Weather resistant, suitable from -40°C - 70° C.
* Moisture and water resistant.Longer Lifespan.
* Color/wood grain/function customize are available.
TECHNICAL INFORMATION | ||||||||
Specification | Distance(mm) | Comment | ||||||
Minium ground clearance | 100 | |||||||
Minium clearance over concrete | 50 | |||||||

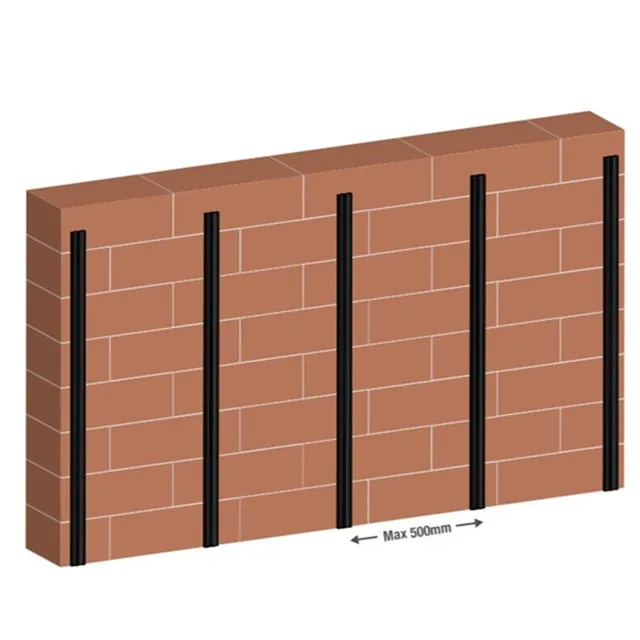

Joist centres(min & max distance | 300 to 600 | In high wind areas,joist spacing should be 300mm | ||||||
Joist Size | 50x30 | |||||||
Screw Distance from cladding board edges | Min 15,max 25 | |||||||
Joist Fastening Screws | 4 to 5mm x 40 to 60mm pending joist size | It must use drill to fix the screw. | ||||||
Cladding Fastening Screws | 3.5x30 stainless steel | |||||||

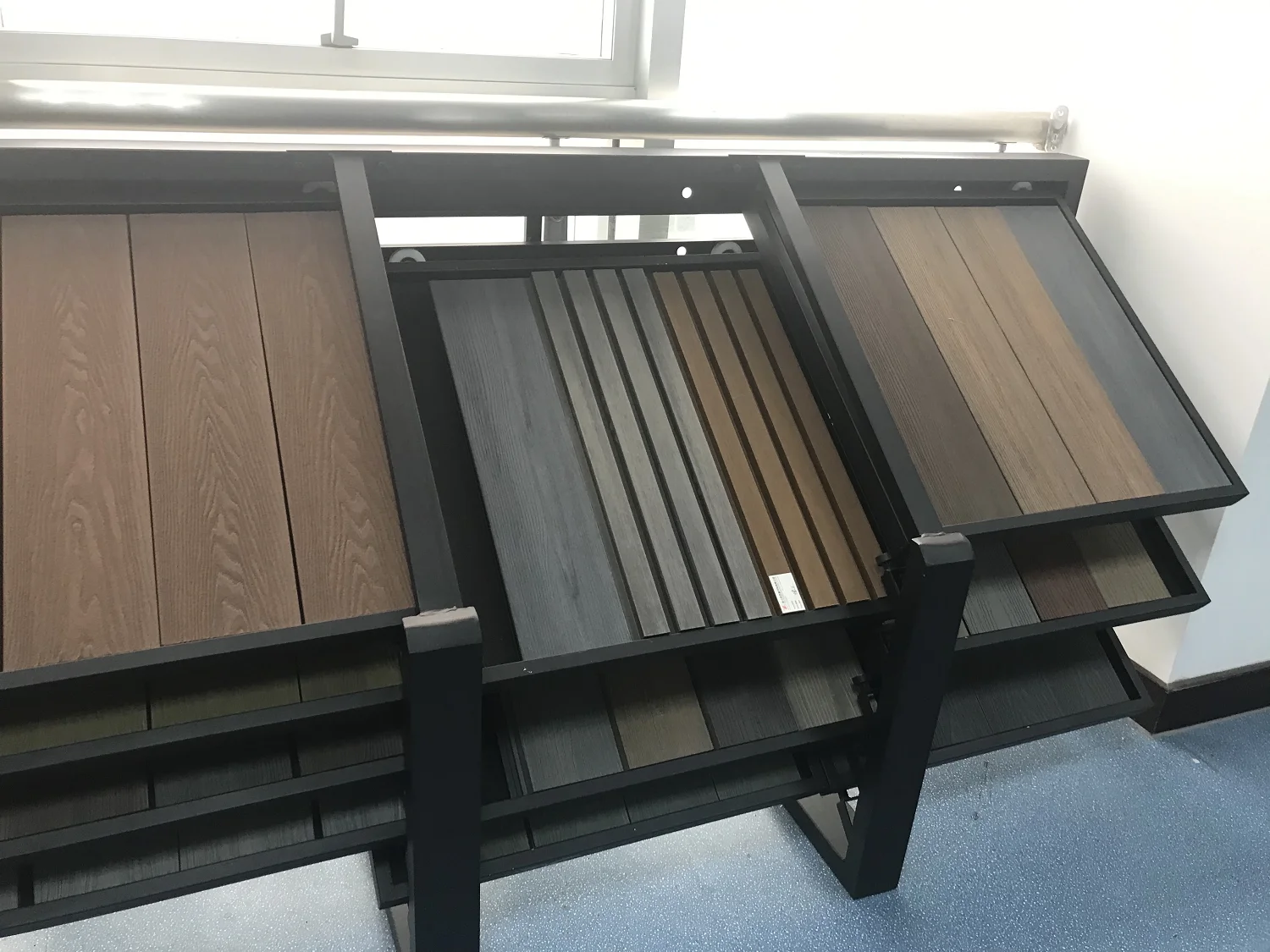

Our Regular Colors of WPC Cladding:

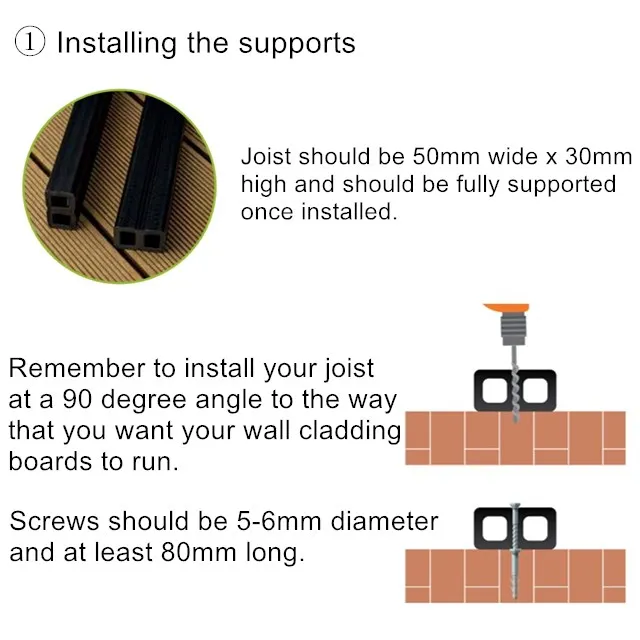

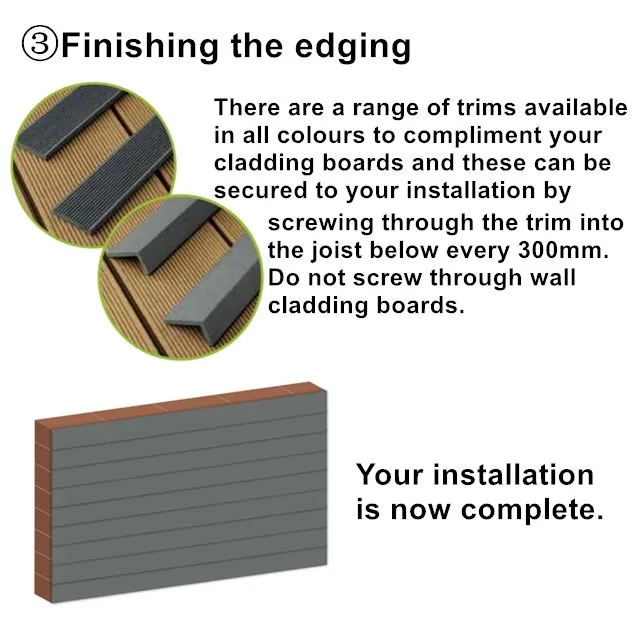

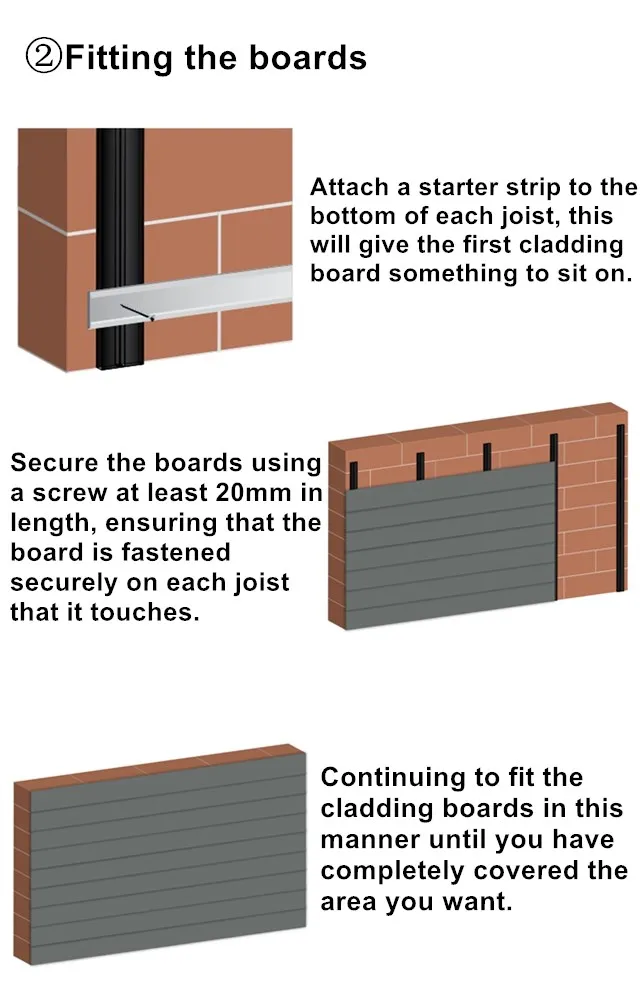

Wall Cladding Installation Guide

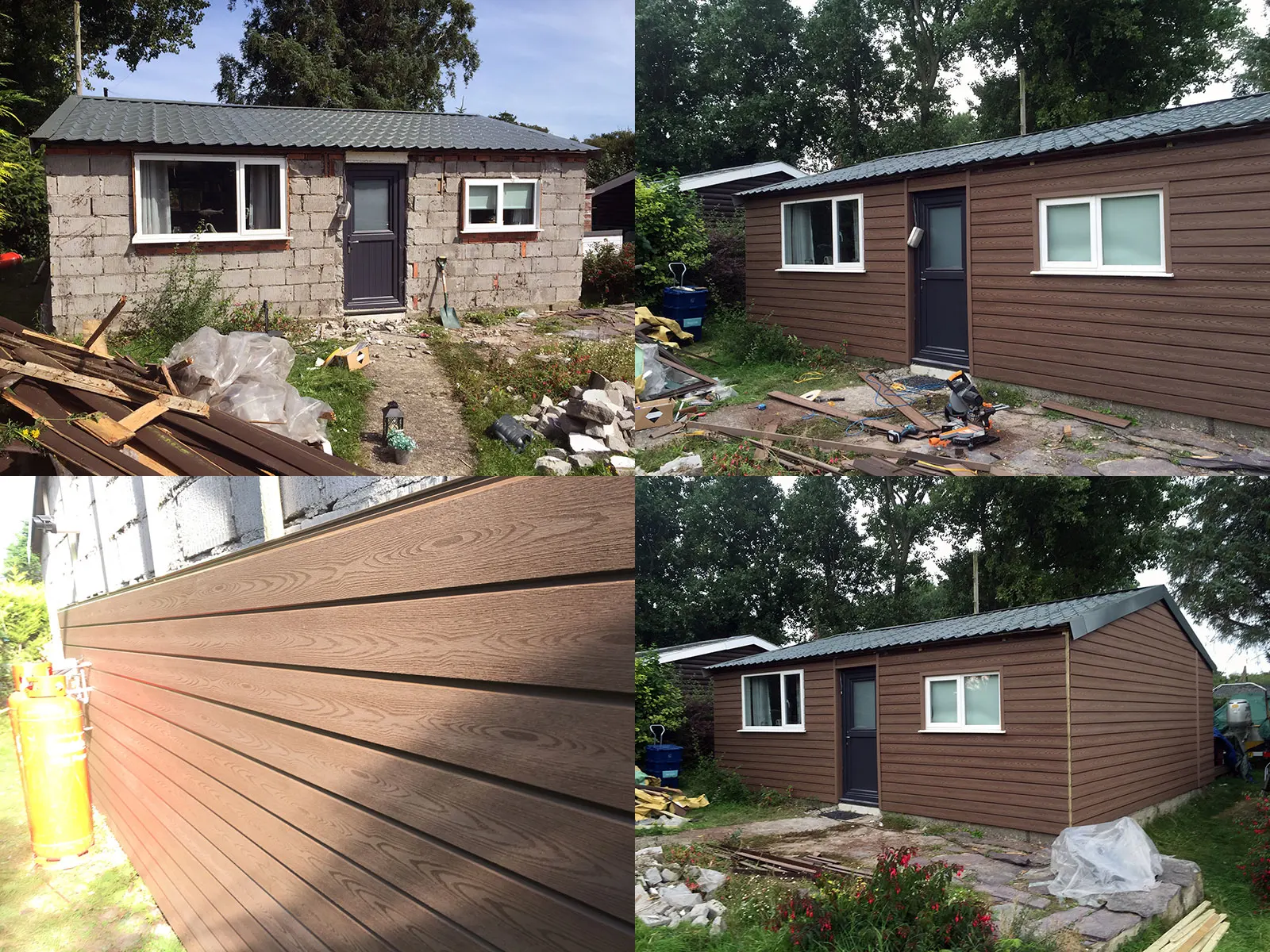

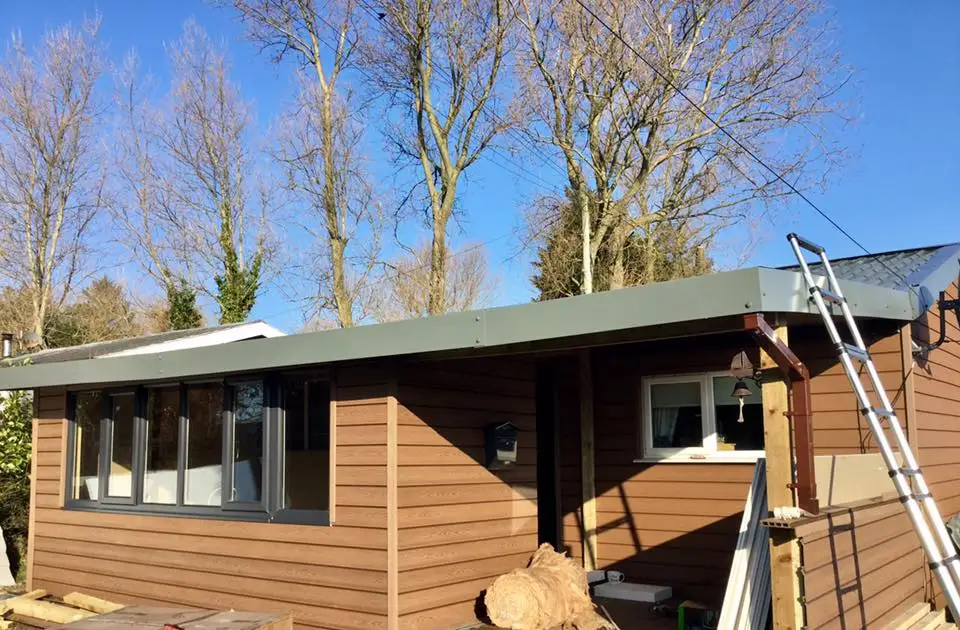

Our Wall Cladding Applications

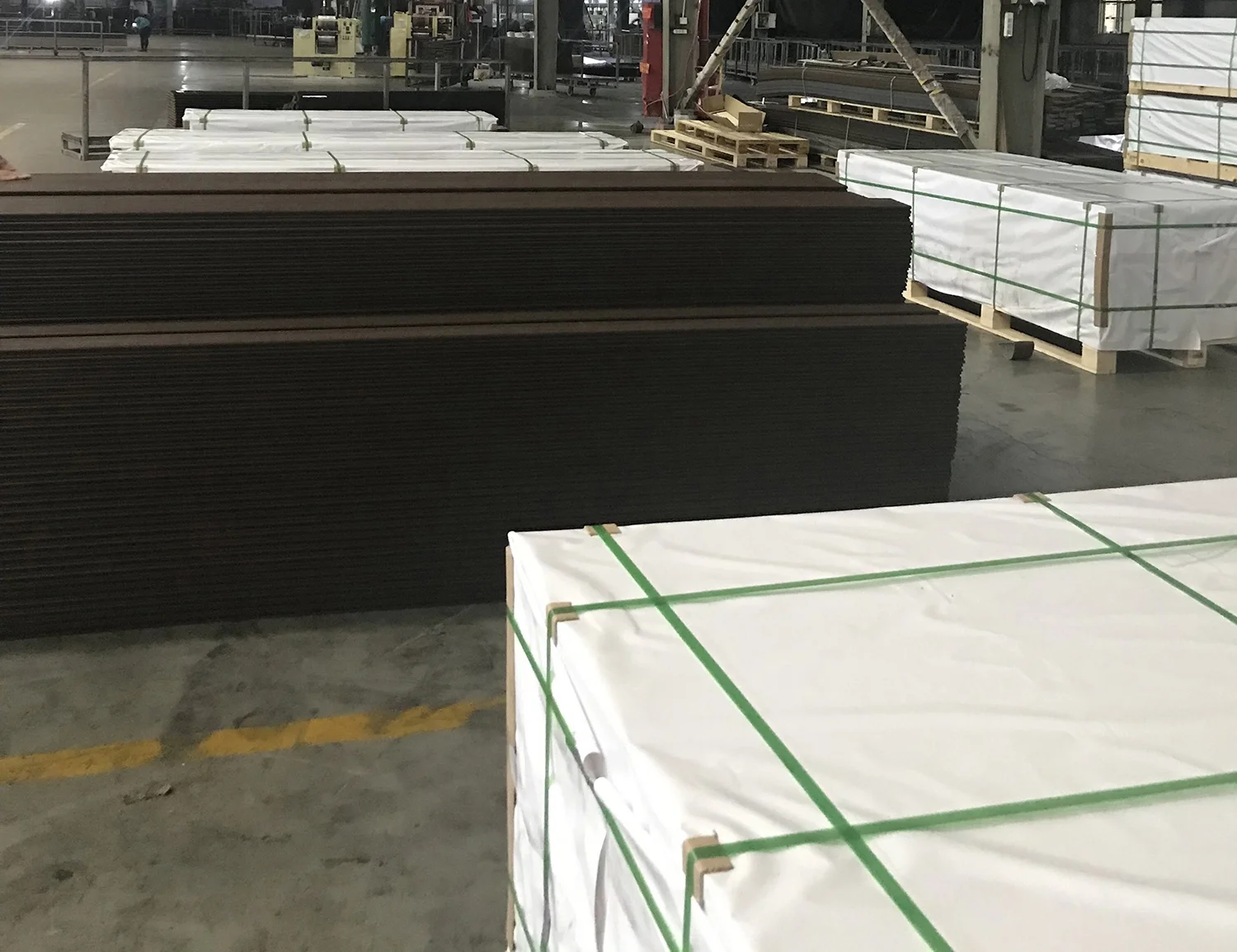

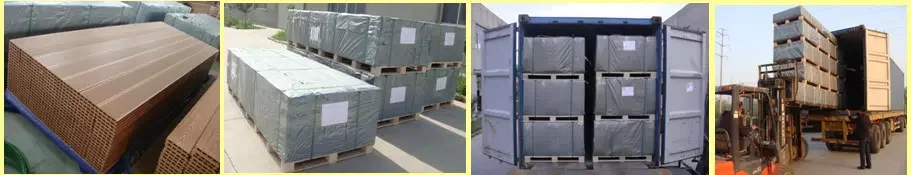

Product Packaging
Company Profile
Shanghai Unifloor New Material Co.,Ltd. is a professional manufacturer engaged in research,development,sale & service of WPC decking floor,WPC garden fence,WPC wall cladding,SPC Flooring,etc.
Our products have been exported to 60 countries and regions in the world. The company with integrity, professional, quality business philosophy, established a strict quality management inspection system, market-oriented, innovation-driven, quality for survival, development for growth, to provide customers with high-quality professional products and perfect pre-sales and after-sales service.
Our Services：
1) Free sample is available. You can choose the samples directly from our stock, or we can do the sample according to your required color design.
2) We can printed the package boxes as you required. If you need, we can send the popular designs for your reference.
3) We can design and offer the sample to help your promotion. We believe that if you sell well, and then we sell well.
4) We also provide matching profiles such as skirting, EVA sheet or cork etc. We promise to offer you the one-stop services.
FAQ
1.Payment term :
1. TT 30% deposit and 70% balance before shipment or against the B/L copy.
2. L/C at sight.
3. any other payment methods, please kindly remind in advance, it can be negotiated.
2.Delievery time :
Around 15~20 days after receiving 30% deposit.
3.How can I get the samples :
Small samples and color swatch is free for you,you only need to undertake the freight cost.
4.How many designs do you have ?
Pls contact me directly,I will send you our specification list.
5.Can you provide samples?
Yes sure we can, according to our company’s policy, all samples are free, customer only need to bear the freight cost.
6.Is the wall/decking installation difficult?
Actually the installation is quite easy, both wall panel and decking, only require simple tool like electric drill, clips and
screws. Customers can finish the installation quite quickly, usually 2 person can finish about 50 sqm wall panel/decking.
7. What is your deliver time?
Usually 10-15 days for one 20ft container(nearly 850 sqm goods), this time can be reduced to 7 days if the order is regular, so that we could arrange the product works in advance.
8. Are you a factory ?

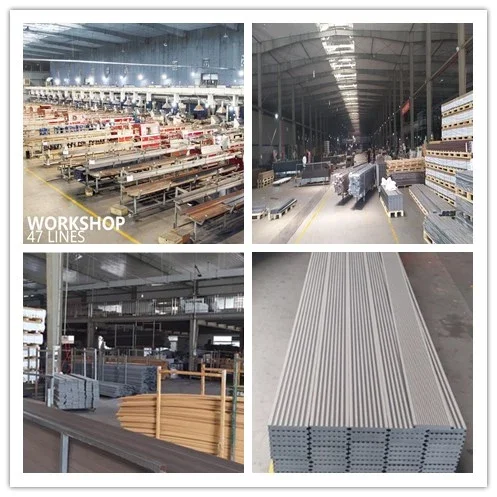

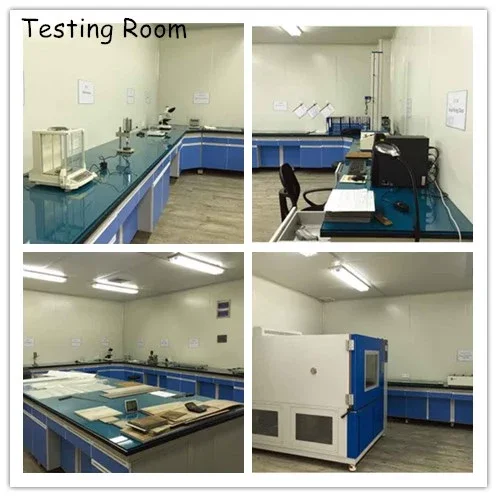

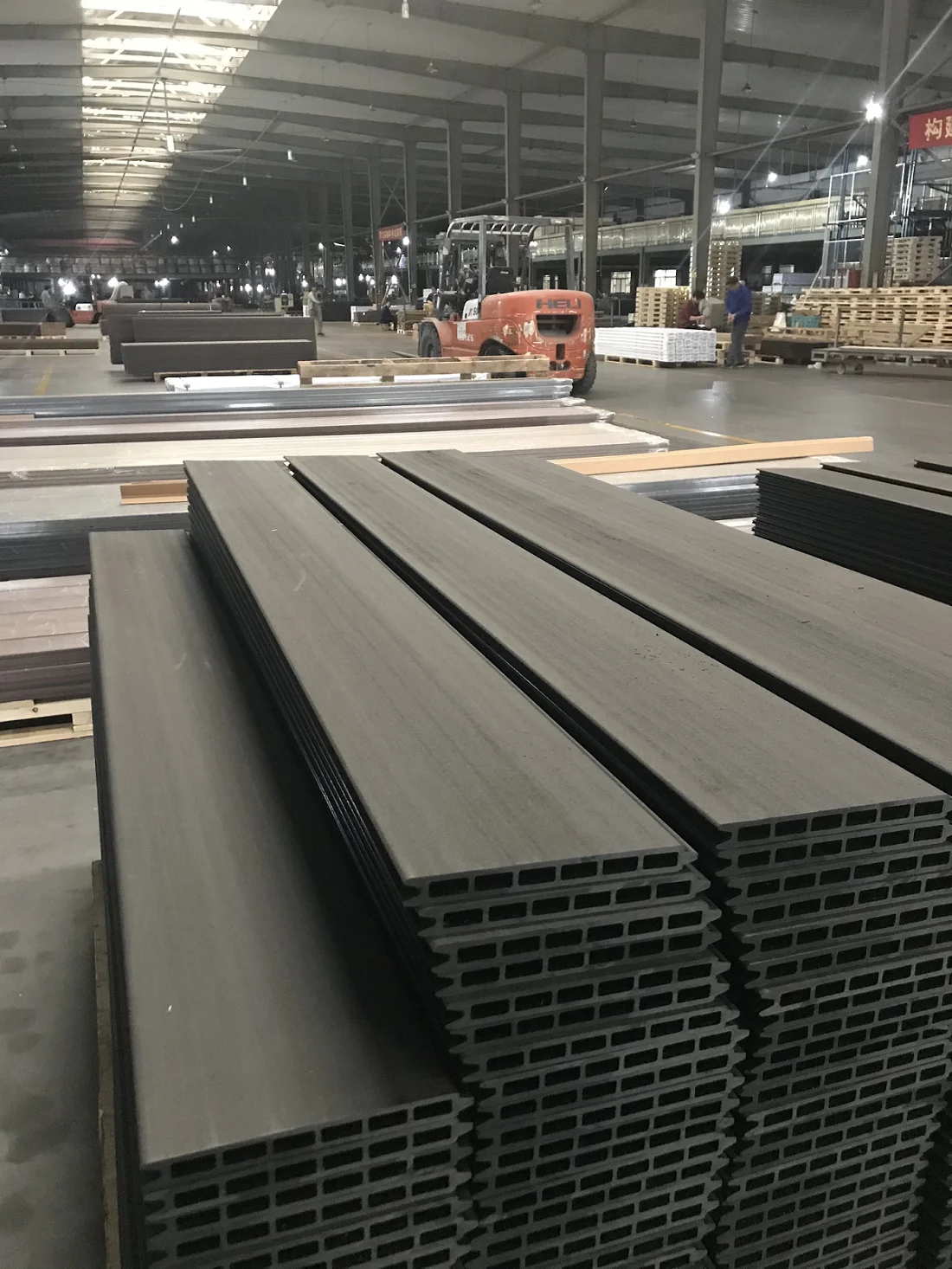

Yes,our sales department is in Minhang,Shanghai. Our factory is located in Zhejiang Haining City,it covers 80000 square meters,we have 58 extrusion production lines,and cooperate with supermarket and big wholewsalers all over the world,we have the laboratory room to test the products and beautiful show room. Welcome to visit our factory and our office in Shanghai.
1. TT 30% deposit and 70% balance before shipment or against the B/L copy.
2. L/C at sight.
3. any other payment methods, please kindly remind in advance, it can be negotiated.
2.Delievery time :
Around 15~20 days after receiving 30% deposit.
3.How can I get the samples :
Small samples and color swatch is free for you,you only need to undertake the freight cost.
4.How many designs do you have ?
Pls contact me directly,I will send you our specification list.
5.Can you provide samples?
Yes sure we can, according to our company’s policy, all samples are free, customer only need to bear the freight cost.
6.Is the wall/decking installation difficult?
Actually the installation is quite easy, both wall panel and decking, only require simple tool like electric drill, clips and
screws. Customers can finish the installation quite quickly, usually 2 person can finish about 50 sqm wall panel/decking.
7. What is your deliver time?
Usually 10-15 days for one 20ft container(nearly 850 sqm goods), this time can be reduced to 7 days if the order is regular, so that we could arrange the product works in advance.
8. Are you a factory ?
Yes,our sales department is in Minhang,Shanghai. Our factory is located in Zhejiang Haining City,it covers 80000 square meters,we have 58 extrusion production lines,and cooperate with supermarket and big wholewsalers all over the world,we have the laboratory room to test the products and beautiful show room. Welcome to visit our factory and our office in Shanghai.
