Counter Pressure Retort Autoclave for Food with Vacuum Packaging Film Food Sterilizer 50L/100L/150L
- Category: >>>
- Supplier: Hangzhou,Liangyin,Imp.,And,Exp.,Co.,Ltd.
Share on:
Product Overview
Description
Introduction
counter pressure sterilizer

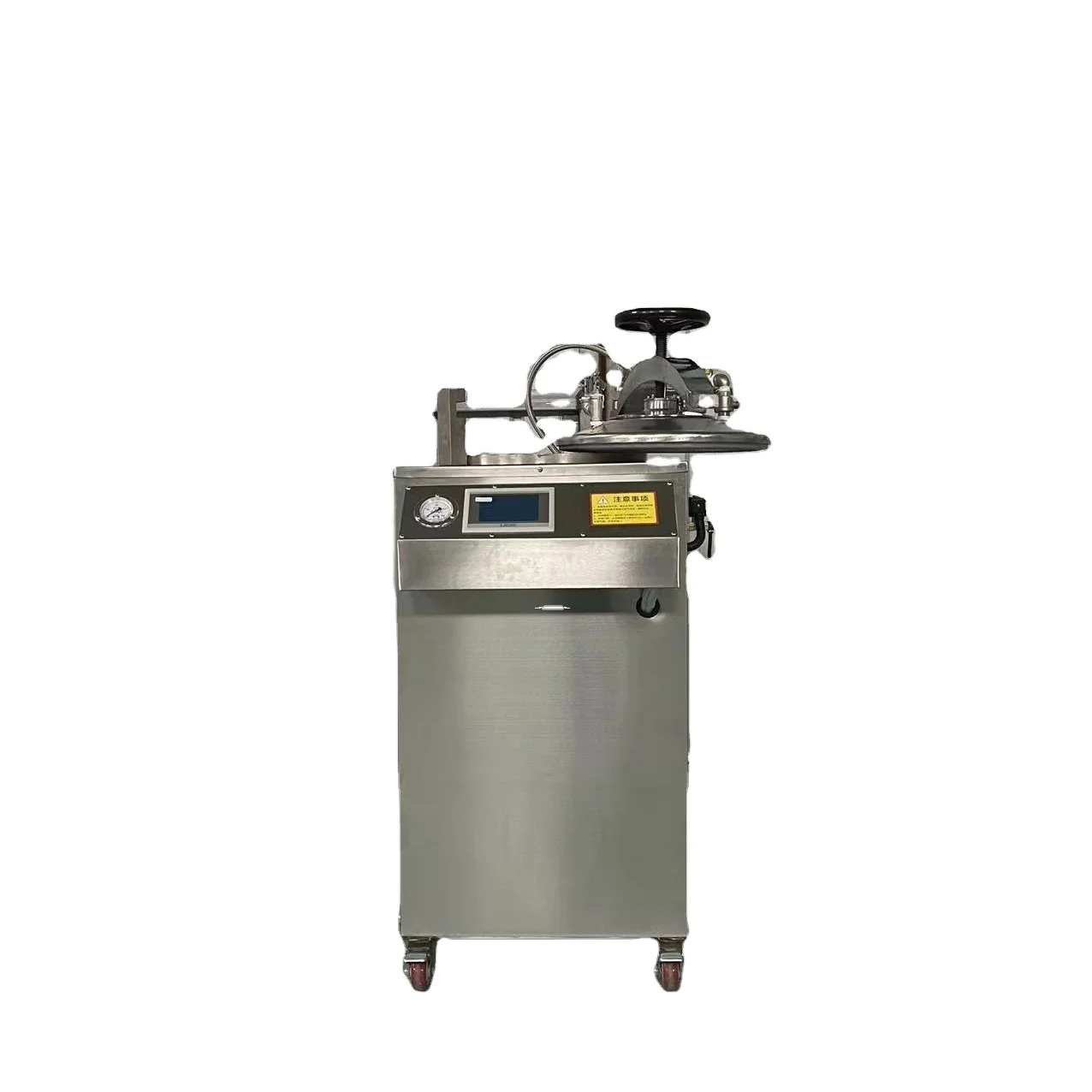

LY-50, LY-100, LY-150 series counter pressure sterilizer is microcomputer-program -controlled,which is adopts electric heating method. The water is directly injected into the sterilization chamber to heat, and generates the high-pressure steam required for sterilization purpose. After the sterilization is finished, the compressed air is externally supplied for proceed the cooling for 3 minutes, the temperature inside would lower 30~40℃. The sterilizer is designed to perform both boiling sterilization and rapid cooling pressure sterilization. The boiling range is set at ≤100 °C. The rapid cooling pressure sterilization range temperature is pre-selected from 105 ° C to 134 ° C. The heating tubes are provided with overload protection ,and the buzzer would alarm to indicate the sterilizing end. It is easy to operate, safe and reliable, which is suitable for disinfection and sterilization of food packaging and utensils, equipment and other items and especially suitable applying in food research institutes for sterility testing.
Features
1. Built-in electric heating pipe heating, high heating efficiency and fast heating speed;
2. Built-in stainless steel basket, handwheel rotation, translational opening of pot cover, screw structure sealing; Convenient and fast operation;
3. The equipment has the functions of time control, temperature control, liquid level control, water shortage alarm, and sterilization end buzzer prompt, which is convenient and reliable to use
Product Paramenters
Model | LY-50SS | LY-50SF | LY-100SS | LY-100SF | LY-100WS | LY-150WS | |||||
Capacity | 50L | 50L | 100L | 100L | 100L | 150L | |||||
Material | SUS304 | ||||||||||
Cylinder size | Φ400*600mm | Φ400*800mm | Φ500*800mm | ||||||||
Work temperature | 100~120℃ | ||||||||||
Heating method | electricity 4.5KW | electricity 12KW | electricity 15KW | ||||||||
Sterilization time | 20~30 minutes | ||||||||||
Sterilization type | Steam | ||||||||||
Control | semi-auto | full-auto | semi-auto | full-auto | full-auto | full-auto | |||||
Accessories | air compressor, water pump, basket | ||||||||||
Voltage | customized | ||||||||||
Vertical Steam Retort Type
Vertical Water Soaking Retort Type
Vertical Steam Retort Type
Vertical Water Soaking Retort Type
Details Images
Just turn the disc to open the cover
Simple operation and tight sealing
Simple operation and tight sealing
When the pressure reaches 0.15MPA, the overpressure will be released automatically
When the relief valve fails to work normally, the safety valve will automatically deflate (or manually)

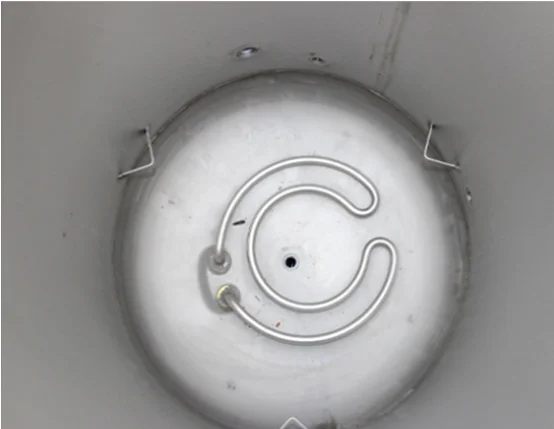

It is safer to prevent dry burning of heating ring
a) Suitable for all kinds of meat products and chemical beauty products packaged in high-temperature aluminum foil bags;
b) Suitable for canned products in glass bottles, bottled bird's nest, various kinds of sauces in glass bottles, etc;
c) Suitable for all kinds of high-temperature transparent bagged meat products, bean products, dairy products, pasta, etc;
d) Suitable for tin cans of cat food, dog food, canned fish, beef cans, etc
Package
Company Profile
Liangyin machine specializes in designing and producing various stainless steel vessels, like jacketed kettle, sterilizers, reaction kettles, fermentation tanks, widely used for food and beverage processing, cleaning and sterilization. Liangyin is professional with 20 years experience of solution of good service, turnkey project and machines for food and beverage enterprise. Liangyin have lots of technology patents in China. Based on prompt pre-sale service, advantaged technology and great after-sale service, Liangyin have been highly appreciated as a reliable and intimate partner of customers worldwide.
