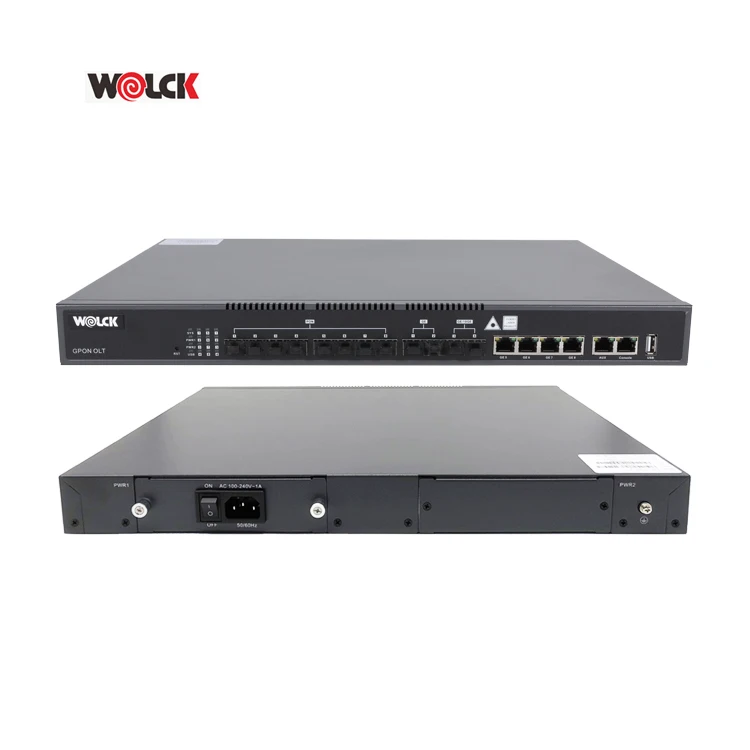

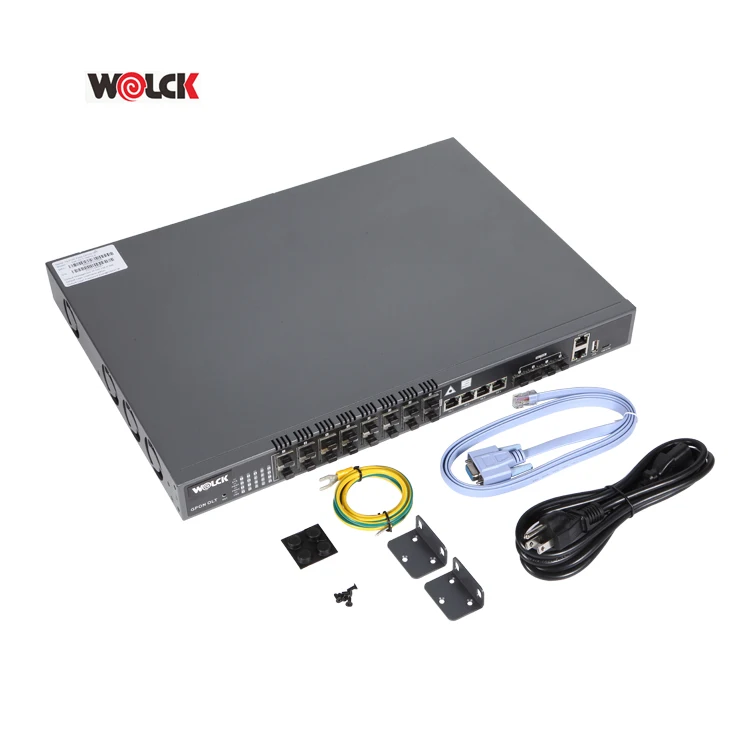

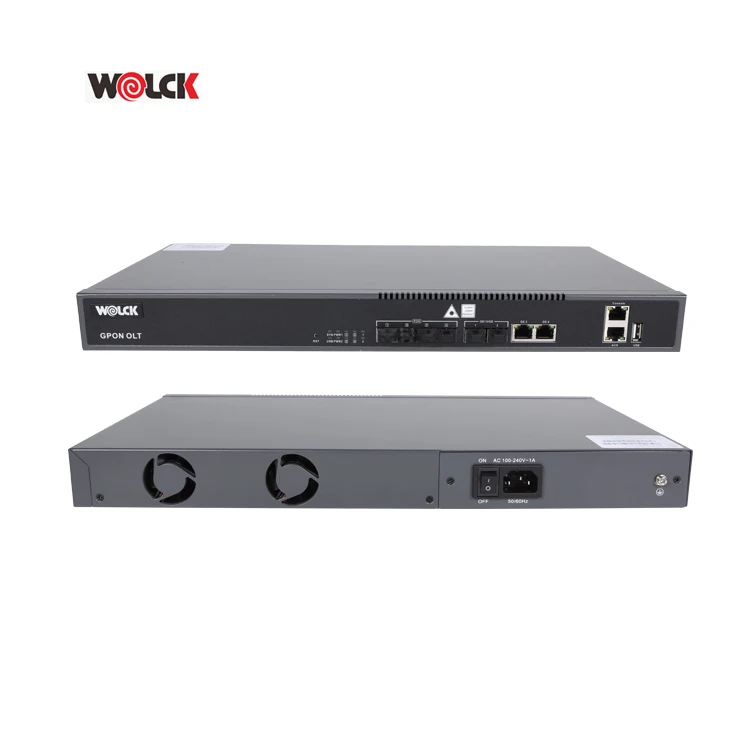

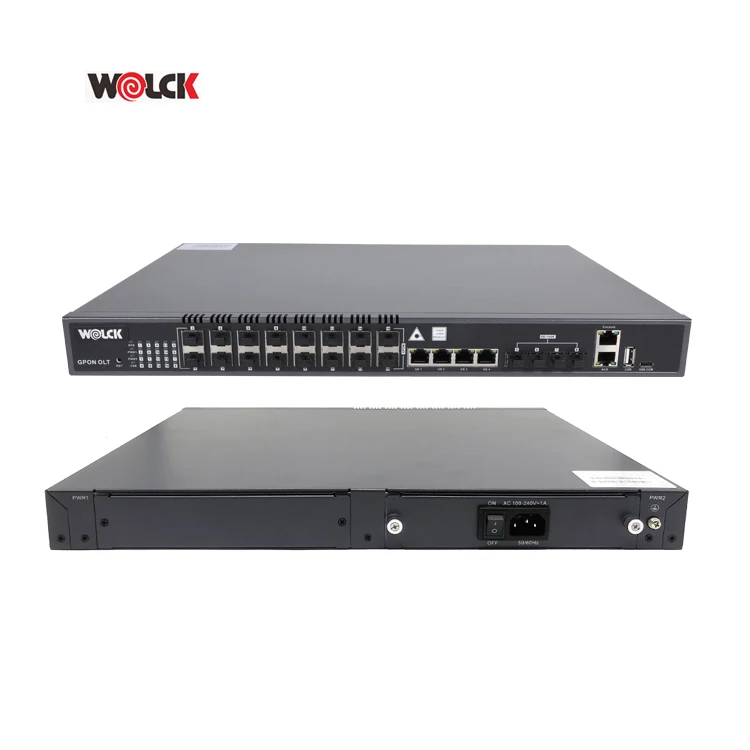

Wolck OEM Vsol Mini De 1 4 8 16 Puert Gpon V1600D8 4 Port 16 Pon OLT

Share on (1600743227129):


Price:

Quantity:


Product Overview

Description





Product Description


WOLCK FTTH EPON GPON 1\\4\\8\\16 Port OLT ONU GE 10GE Uplink OLT

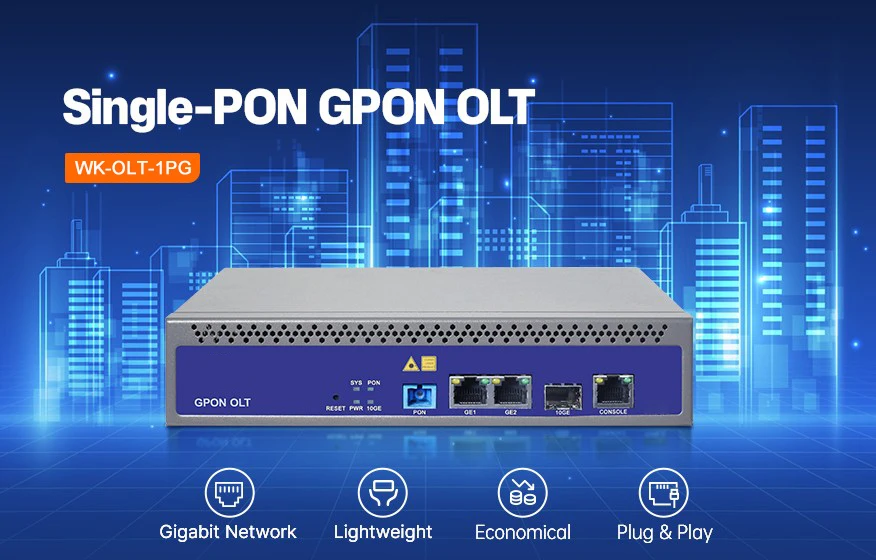

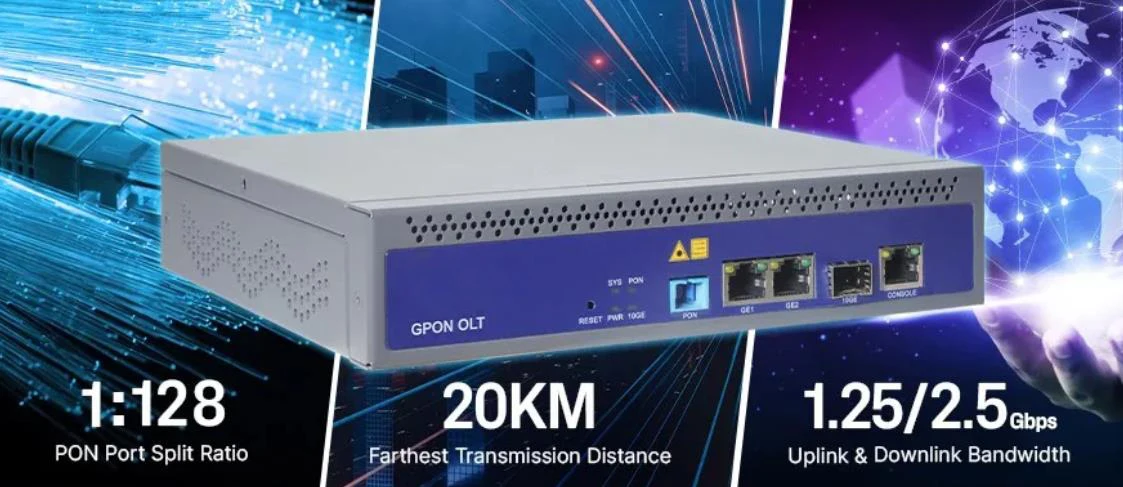

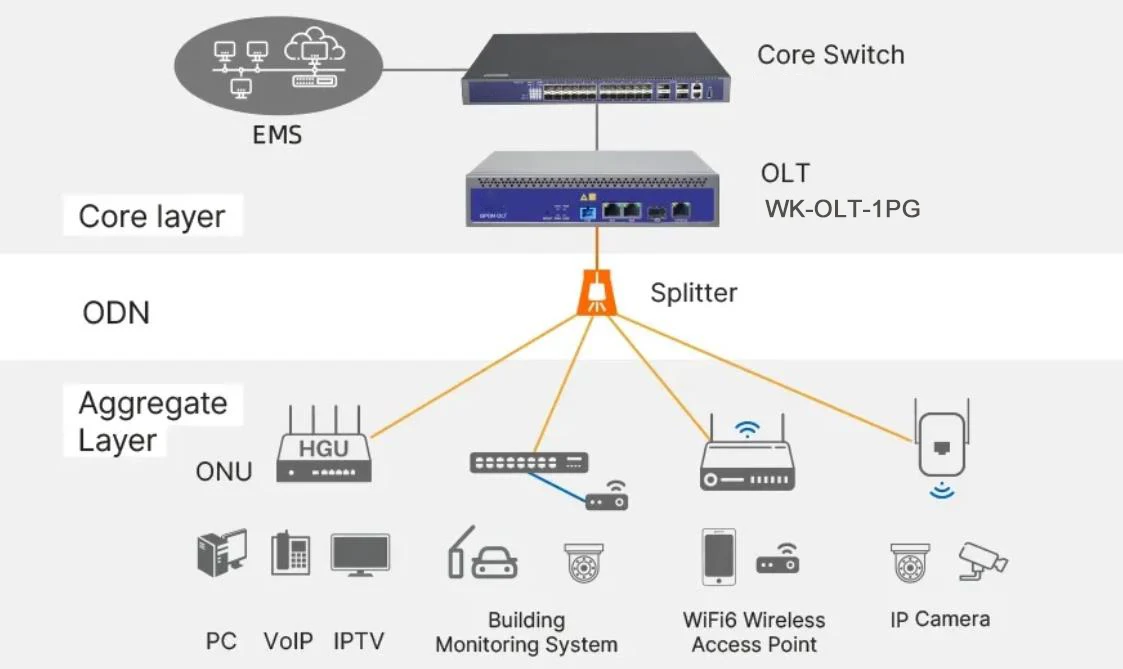

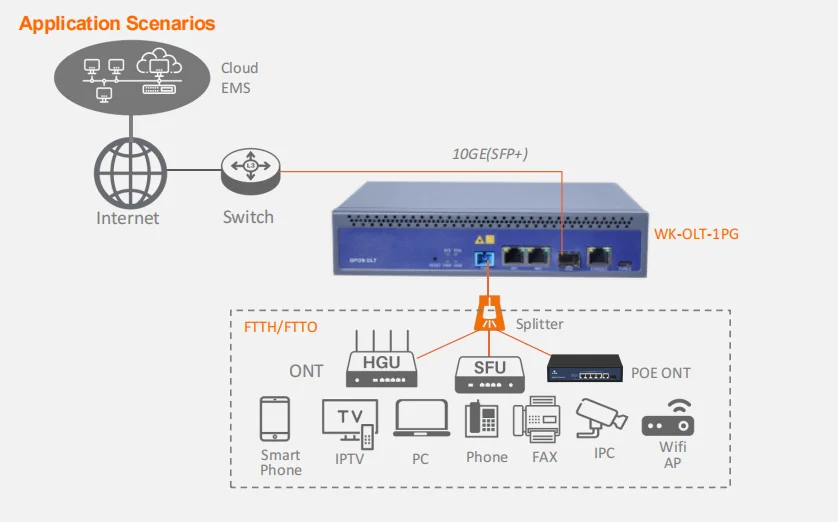

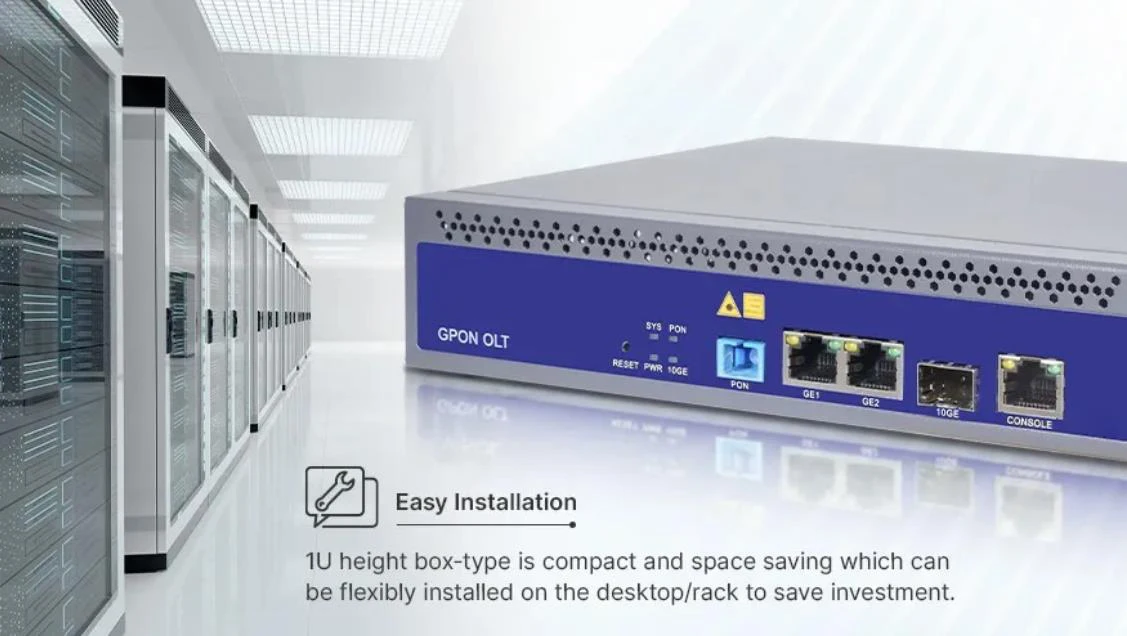

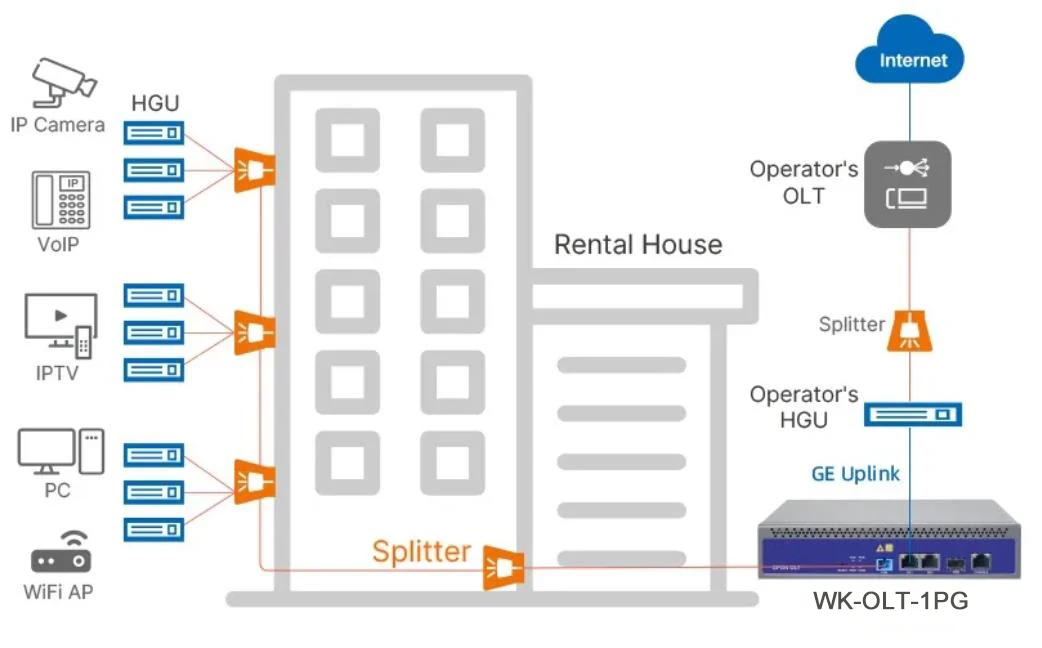

WK-OLT-1PG is a box-type GPON OLT with one PON port. The price of WK-OLT- 1PGis very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps. WK-OLT-1PG Highlights can be widely used in FTTH, SOHO, small business office and other application scenarios.




















Specification


item
value
Model Number
WK-1PG-A
Type
OLT
Place of Origin
China
Brand Name
wolck
Use
FTTX
Warranty Time
5 YEARS
Network
Wireless Lan, wifi
GPON port speed
Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength
TX 1490nm, RX 1310nm
Max splitting ratio
1:128
Transmission Distance
20km
TX Power
7db
Rx Sensitivity
-34db
Saturation Optical Powe
-8db

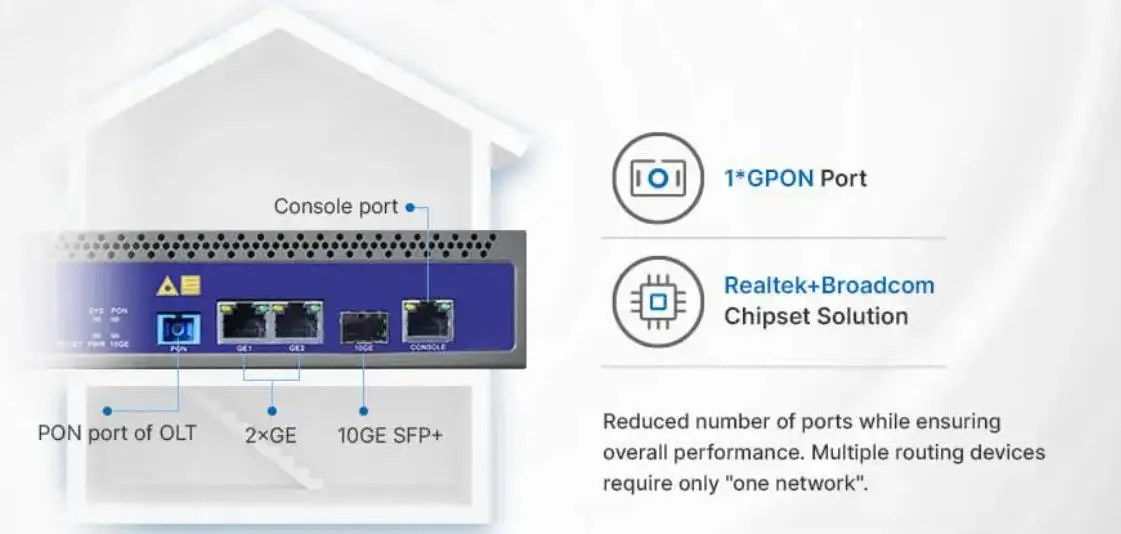

Management Ports
1*CONSOLE port, 1*USB Type- C

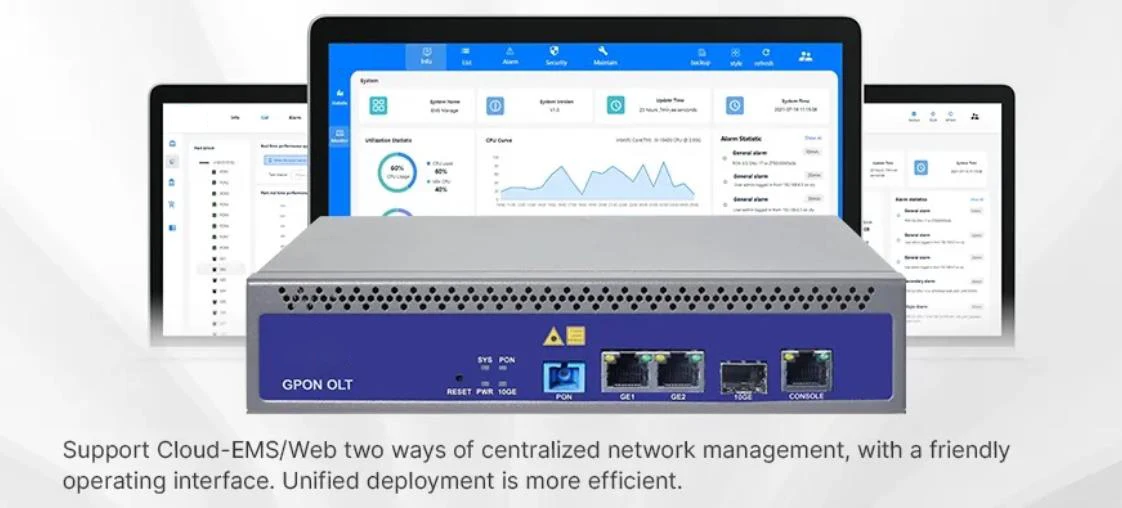

Management Mode
Console/WEB/Telnet/CLI




Company Profile




WOLCK Network Product Co., Ltd. of Shenzhen City since its inception has been committed to cable television and broadband network technology development, equipment manufacturing and triple play systems integration and technical support services. The company's product coverage FTTx network transmission equipment: GPON / GEPON optical line terminal equipment OLT, GPON / GEPON optical network office equipment ONU, ONT ......; Cable television transmission equipment: 1550nm optical transmitter, 1550nm PON high power band-division optical amplifier, FTTH small light machine .......

We provide our customers with comprehensive solutions based on CATV transmission and FTTx network integrated application service system as well as technical support services for PON + CATV system integration. Including PON + CATV network construction and transformation, FTTx network management system, remote monitoring system. Walker full range of products have been issued by the state network access certificate. Companies adhere to standardize the operation, the steady development of business philosophy, scientific management methods.

WOLCK company through the ISO9000 international quality system certification, FTTx network technology research and development, project management has accumulated rich experience, training and accumulation of a large number of outstanding high-tech talent. Walker products are renowned for their high quality in the industry and have established long-term, good and stable business relationships with many customers at home and abroad. After years of unremitting efforts, the company has become one of the more well-known network equipment manufacturers.
