KF16 High Vacuum exhaust cutout valve with ultra high vacuum

Product Overview

Description

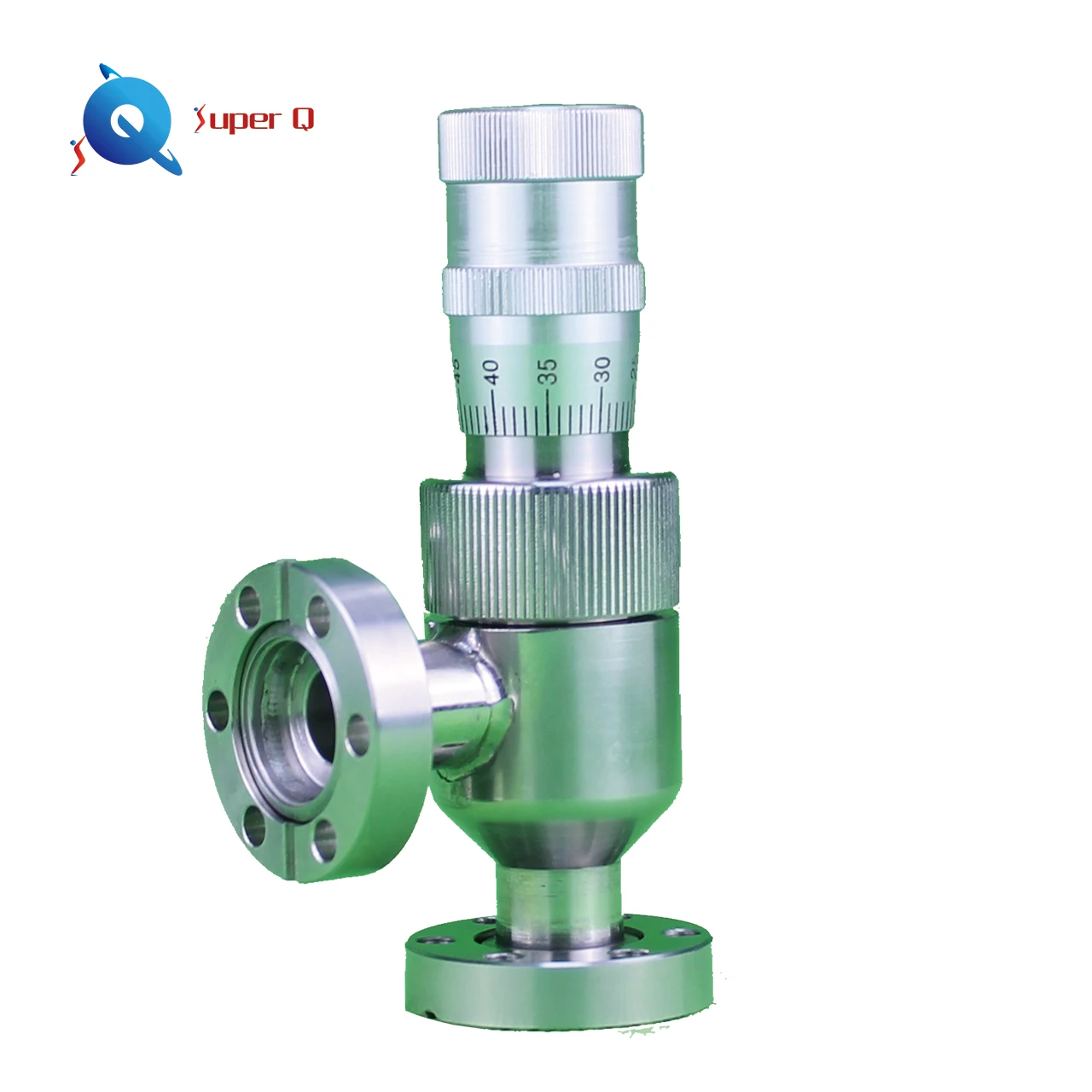

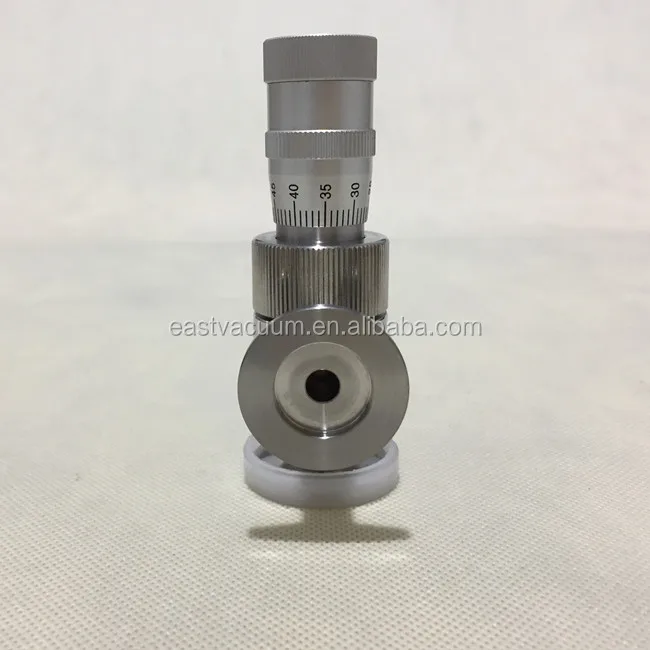

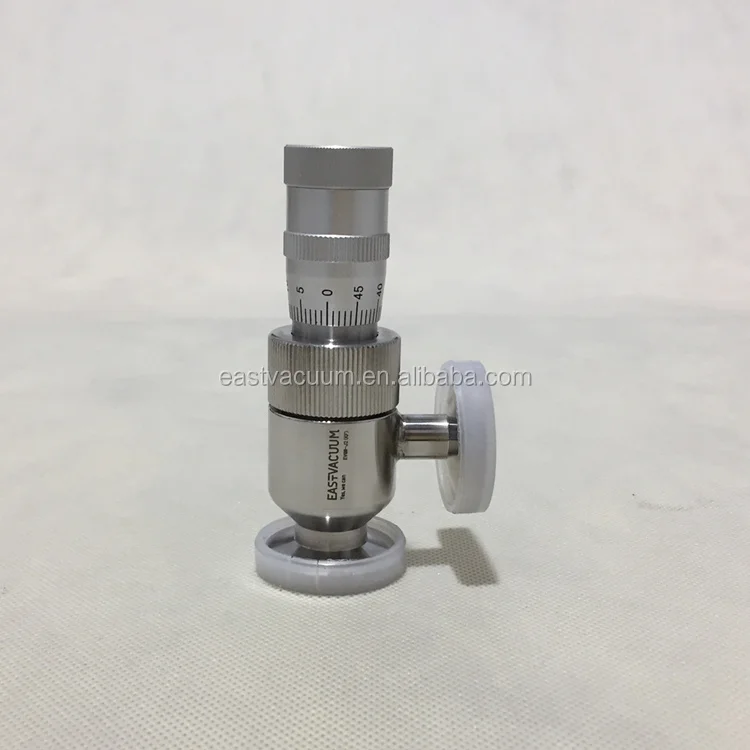

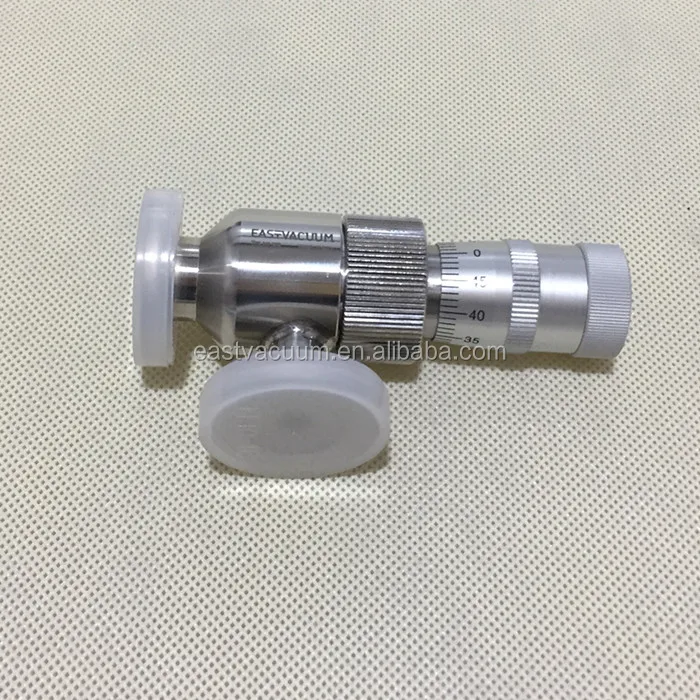

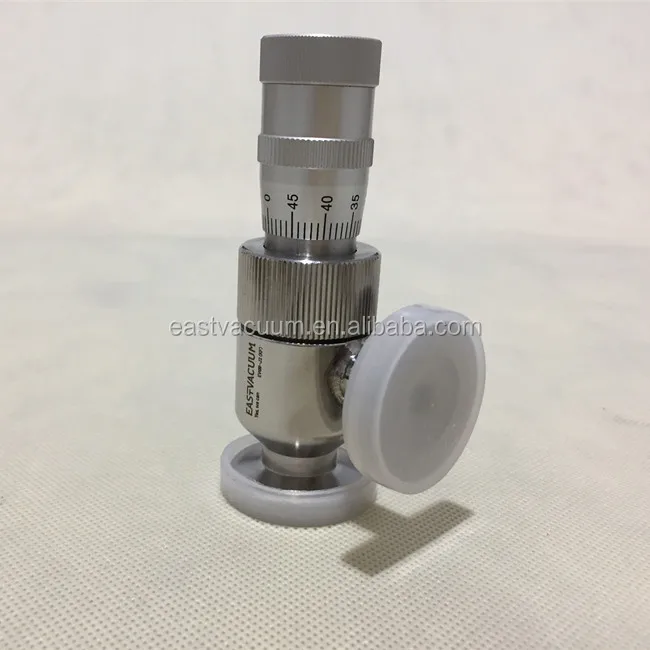

KF16 High Vacuum Metering Valve

EVGW Series of valves are manual precise trimming ones.

High vacuum metering valves are used to control gas flows. Precise flow rate is set by adjusting the dial. Great for controlling the exact flow rate into or out of the system for:

• adjusting the vacuum level.


• adjusting vacuum flow speed.


• back filling with inert gas.


• safe and gradual release of vacuum.


• stabilizing vacuum controlling system.

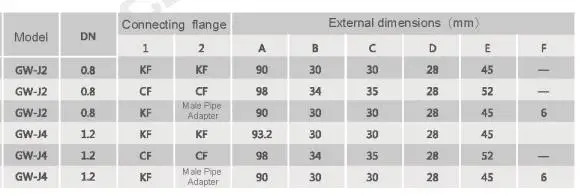

Model	DN(MM)	Connecting Flange
		1	2
EVGW-J2(KF)	0.8	KF	KF
EVGW-J2(CF)	0.8	CF	CF
EVGW-J2(KF+MPA)	0.8	KF	Male Pipe Adapter
EVGW-J4(KF)	1.2	KF	KF
EVGW-J4(CF)	1.2	CF	CF
EVGW-J4(KF+MPA))	1.2	KF	Male Pipe Adapter



Adjusting scope:1×10-5Pa~1.2×105Pa

Minimum adjusting flow:4.7×10-3Pa·L/s

Differential pressure before open valve plates:≤1.2×105a any direction

Leak rate of valves’ body and base:<1.3×10-7Pa·L·s-1

Cycles until first service:3,000 times

Baking Temperate of valve bodies:≤150℃

Position of installation:Arbitrary
