HuaWei xFusion 2288H V6 2u 16xDDR4 Slot Intel Xeon 4310*2 64GB Memory 3.84TB SSD*3 server data center

Server Type

2U rack server

Processors

One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W

Chipset

Intel C621A

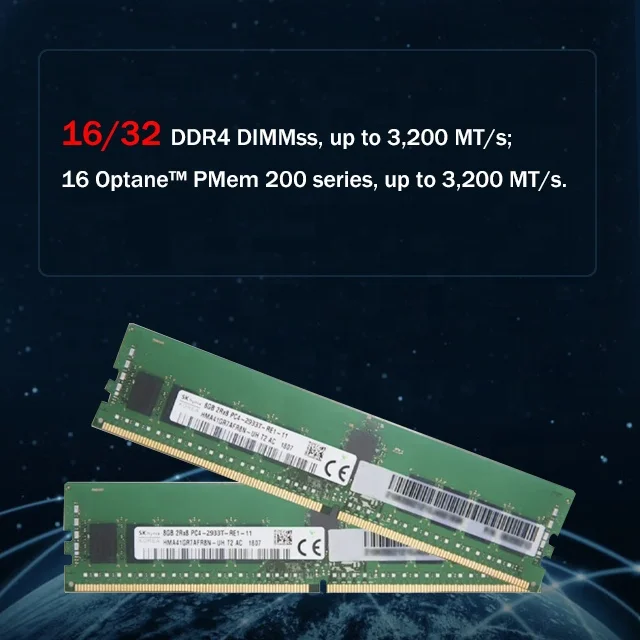

Memory

16/32 DDR4 DIMMss, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s.

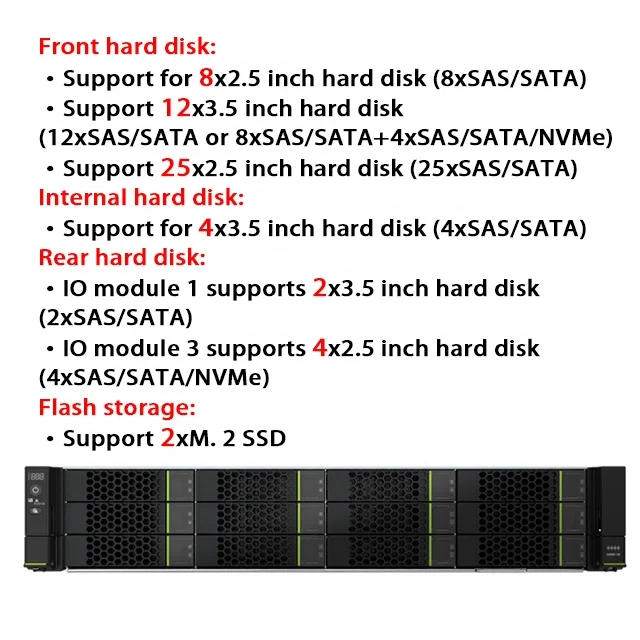

Local Storage

Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
• Dual M.2 SSDs

RAID Support

Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level
migration, drive
roaming, self-diagnosis, and remote web-based configuration.

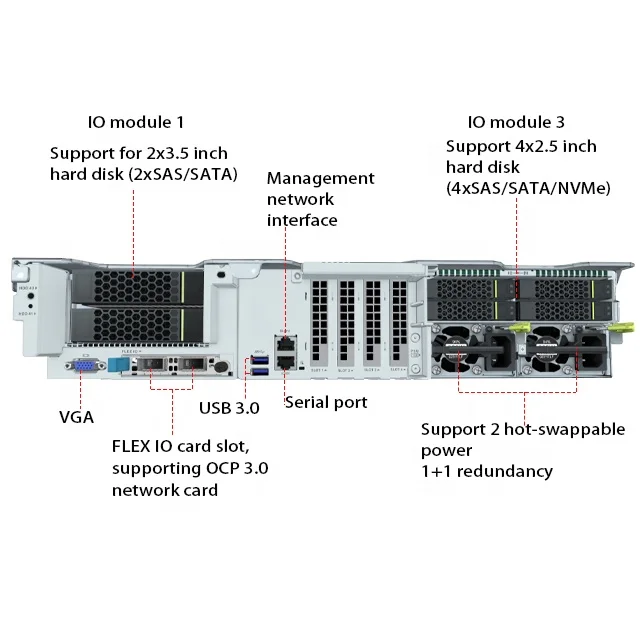

Network

Provides expansion capability of multiple types of networks.
Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as
required.
Hot swappable function supported.

PCIe Expansion

Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated
for OCP 3.0,
and eleven PCIe 4.0 slots for standard PCIe cards.

Heterogeneous
Acceleration Cards

Supports four 300 W FHFL dual-width GPU accelerator cards, eleven HHHL GPU accelerator cards, or eight FHFL single-width GPU
accelerator cards.

Fan Modules

Four hot-swappable counter-rotating fan modules in N+1 redundancy mode

Power Supply

Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Management

The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis,
automated O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on
HTML5/
VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for
smart
and simplified management.
• (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five
intelligent
technologies, realizing intelligent, automatic, visualized, and refined management throughout the lifecycle.

Operating Systems

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian,
etc.

Security Features

Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.

Operating
Temperature

5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant)

Certifications

CE, UL, CCC, FCC, VCCI, RoHS, etc

Installation Kit

L-shaped guide rails, adjustable guide rails, and holding rails.

Dimensions
(H x W x D)

86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.)
