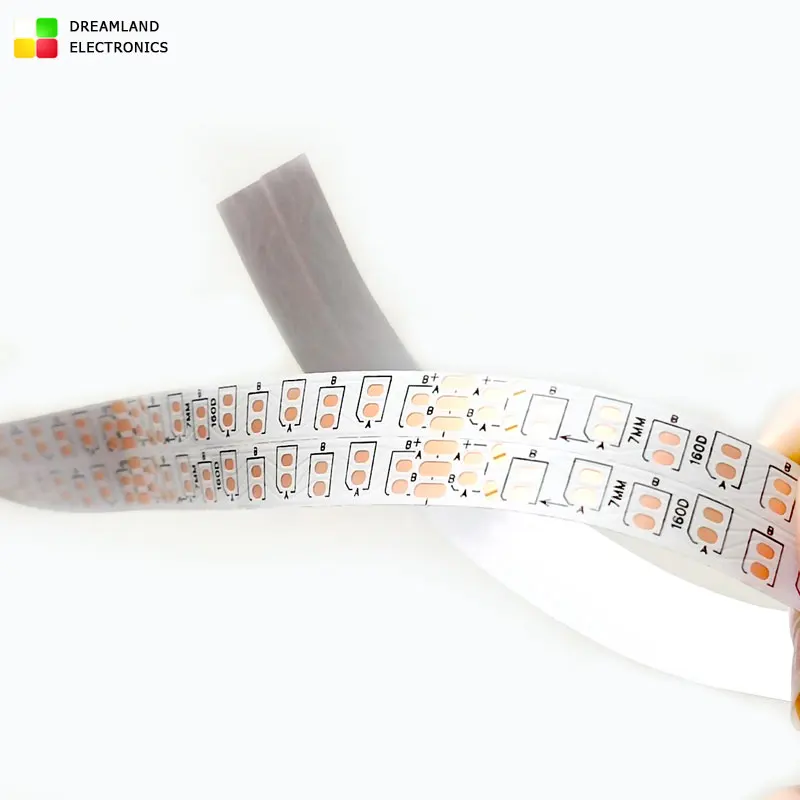

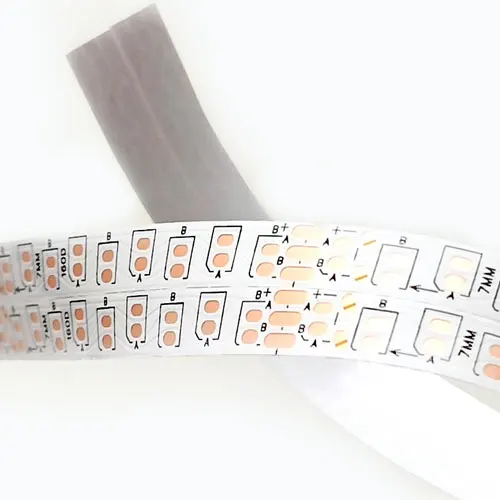

Hot sale led strip flexible pcb board factory bendable led light custom fpc manufacturer
- Category: FPC >>>
- Supplier: Shenzhen,Dreamland,Electronics,Co.,Ltd
Share on:
Product Overview
Description
We produce 1-2 layer metal substrate PCB, and 1-30 layer rigid PCB.
For metal substrate PCB, we're professional at aluminum pcb,and copper pcb board.
Item | specification |
LED flex pcb | 1 2 layer polymide pcb for led strip |
LED metal pcb | 1 to 2 layer aluminium, copper pcb for led light |
Flexible led pcb | 0.4mm high current flexible aluminum pcb |
Other service | PCB design, PCB +BOM clone, PCB assembly(SMT, DIP...) |
Max. Length 1.5m & Reel to Reel LED Flex PCB
Max. Board Thickness=12mm
0.2mm, 0.4mm Flexible Aluminiu PCB
High Heat Conducting Thermoelectric Separation Copper PCB
Design & Clone LED PCB PCBA
Customize 1L/2L Polymide Flexible PCB
NO | Item | Process capability |
1 | Layers | 1-2layer |
2 | Material | aluminum substrate, copper substrate, iron base |
3 | Maximum Size | 1500*500mm |
4 | Board Outline Tolerance | 0.125mm |
5 | Board Thickness | > 0.2mm |
6 | Thickness Tolerance ( t≥0.8mm) | 10% |
7 | Insulation Layer | FR4 |
9 | Min Line | 0.1mm |
10 | Min Space | 0.1mm |
11 | Outer Copper Thickness | 10oz (350um) |
12 | Finish Hole | 0.5mm |
13 | Diameter Tolerance | 0.075mm |
14 | Min Soldermask Bridge | 0.1mm |
15 | Plug Hole Diameter | 0.3mm |
16 | Surface Finish | anti-oxidation, gold deposition, tin spraying |
17 | Featured products | thermoelectric separation, 10mm thick aluminum substrate, thick copper battery resistance aluminum substrate |
Dreamland Electronics is the group company, one of the most dynamic manufacturing company in high-tech Printed Circuit Board production in Shenzhen, China. We rapidly expand in terms of capacity and technology in recent years, especially in the areas of 1-12 layer flex PCB , 1-2 layer led pcb etc.
Our manufacturing facilities cover over an area of 1500 square meters, with 80-100 employees including 10% management and engineers who have professional experience in the field of flex PCB fabrication with 10 years at least. We very tightly controls the quality of the products with ISO system, and many raw material have attained UL and Rosh.
Q1, What needs to be provided for quote?
1, PCB file：gerber, .pcbdoc, CAD, or DDB.
2, Quantity.
3, Special technique.
PCB board thickness：0.15mm, 0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, etc
FPC board thickness：0.05mm, 0.1mm, 0.2mm, 0.25mm, etc
IMS board thickness：0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm, etc
Copper thickness：18um, 35um, 50um, 72um…
Surface treatment：HASL, HASL-LF, ENIG, OSP, Tin immersion, Gold plating.
Solder mask：White, Black, Green, Blue, Yellow…
4, Special services.
SMT PCBA assembly, BOM, components provide by customer or Dreamland.
PCB copy: please provide the sample.
PCB design: please provide the schematic diagram
Q2, About lead time?
Sample: 3-5 days for production
Mass production: 8-12 days for production
SMT assembly: 2-5 days
Fast PCB: 42/72 hour
Q3, What’s the MOQ?
1PCS, we custom made pcb from your requests.
Q4, How to pack up the goods, and the shipment methord?
Normal/Vacuum package;
Small quantity delivery by DHL, FedEX, TNT, SF-express in 3-5 days
Batch quantity is delivery by air, train, sea.
Q5, May I know your products meet the environmental protection?
We custom made pcb boards, which can be produced according to customers' environmental protection requirements.
Q6, Do you offer guarantee for the products?
Yes, we offer 1-3 years warranty to our products.
Q7, How to deal with the faulty?
1st, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2nd, We requests all PCBs must be fly-probe test, or tested by test tooling.
3rd, During the guarantee period, if it's our fault, we will repair them and resend to you or we can discuss the detail, and find the final solution.
Q8, What’s the main market of Dreamland?
Our team has 12 years domestic production & sales experience, and 7 years export experience, with registered export qualification. Welcome your inquiry.
