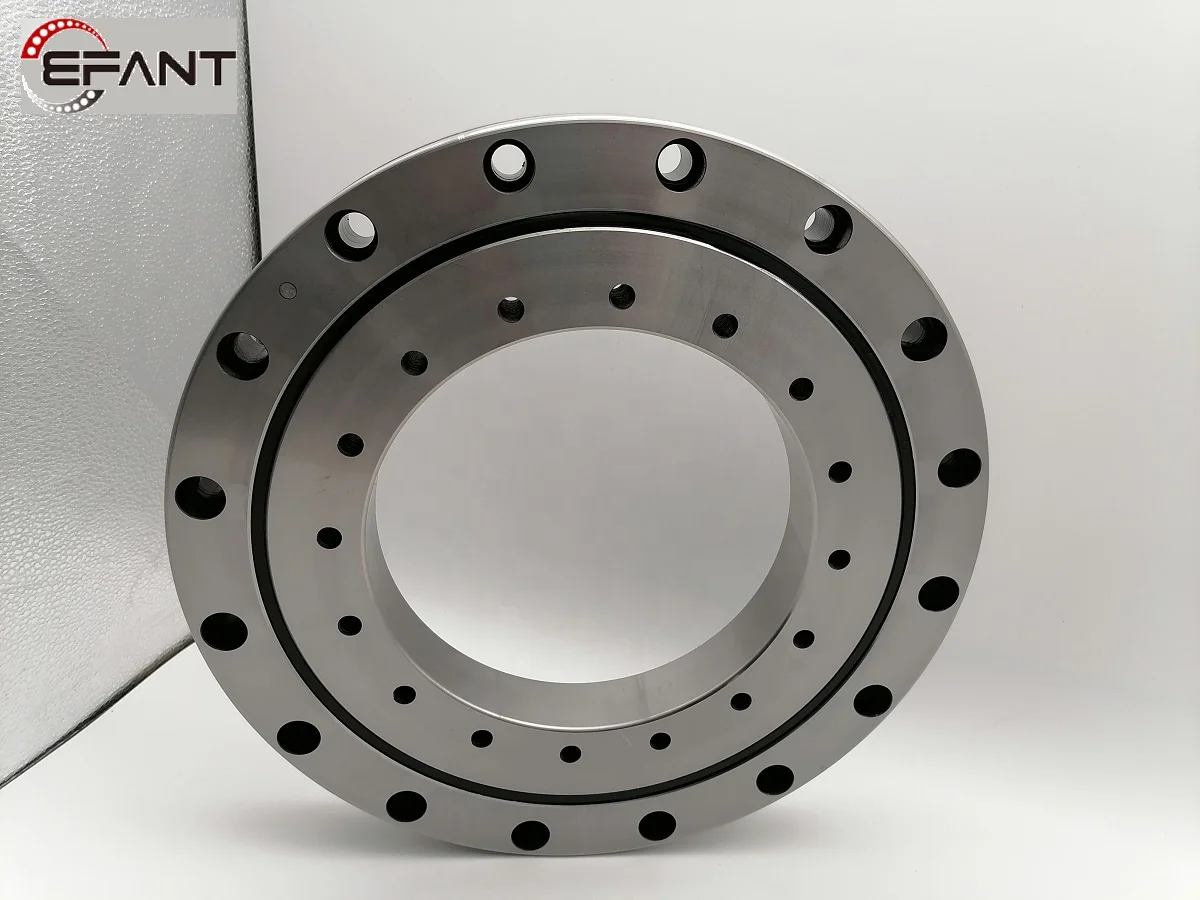

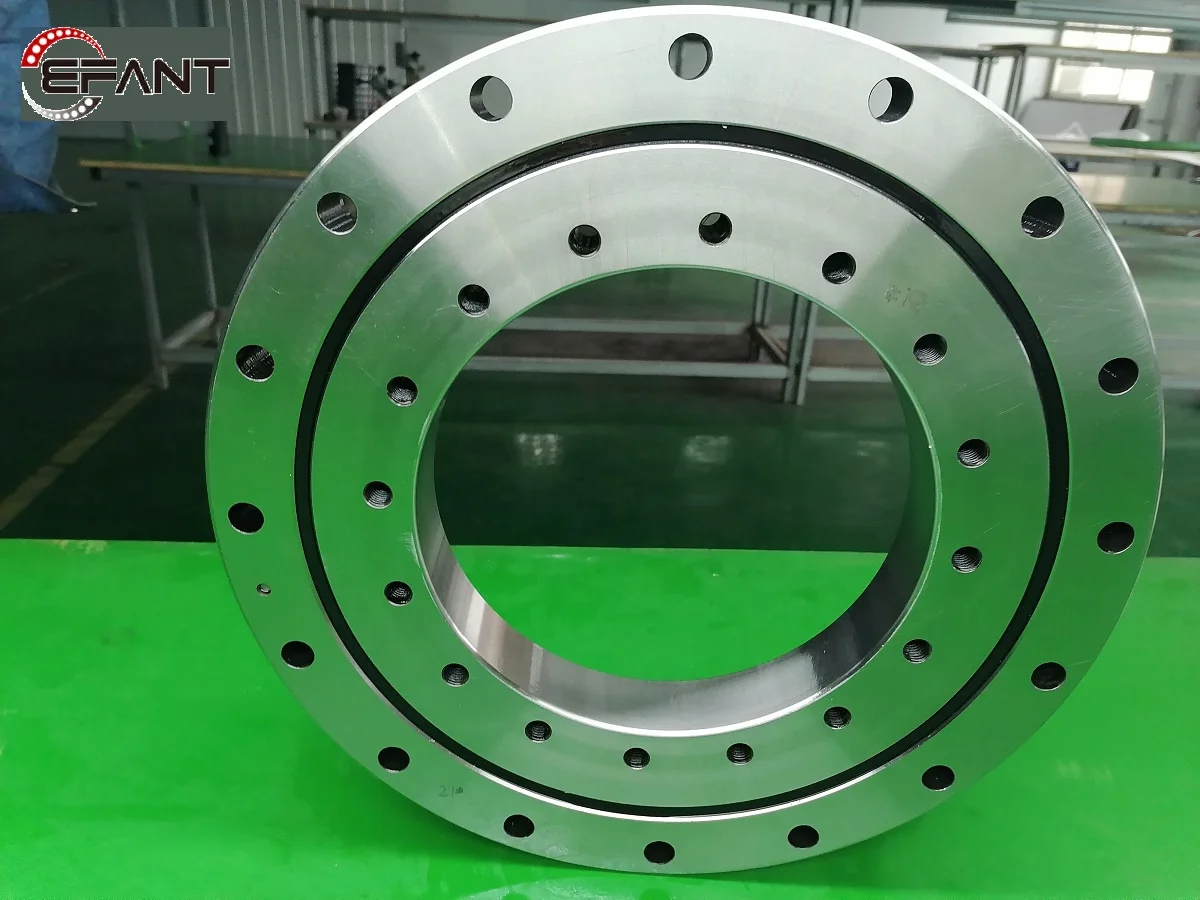

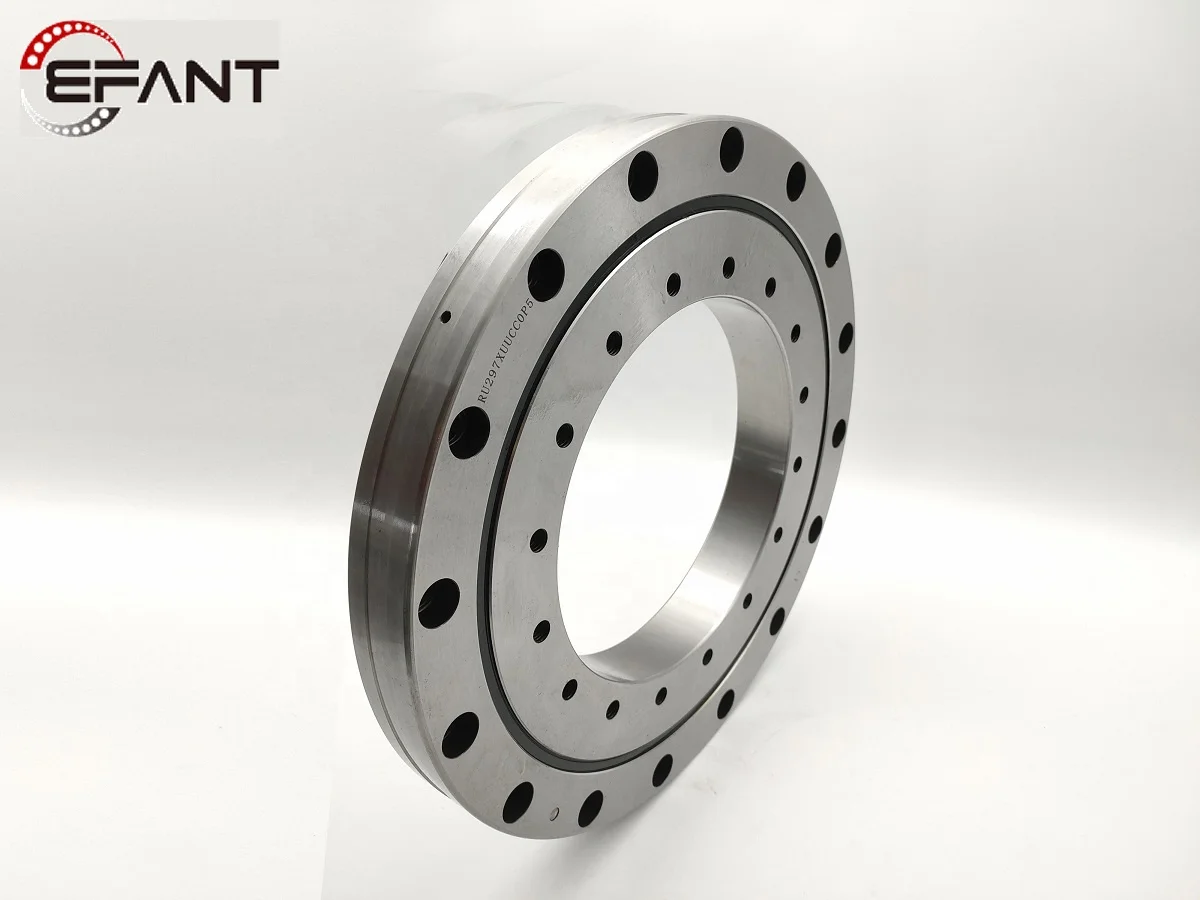

Luoyang EFANT RU Series RU297X RU297G Cross Roller Bearing In Stock Cylindrical Roller Bearing
- Category: >>>
- Supplier: Luoyang E-Find Precision Bearing Manufacturing Co. Ltd.
Share on (1600743368340):
Product Overview
Description
Products Description
XU CROSS TAPERED ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
Standard XU series cross roller bearings are bulk in stock. Customization is also acceptable. You can send us drawings or tell us your application, we can issue drawings for your confirmation.
Model | Inner Dia. | Outer Dia. | Pitch Dia. | Weight |
d（mm） | D（mm） | Dpw(mm) | m（Kg） | |
ERBF2012 | 20 | 70 | 41.5 | 0.29 |
ERBF3515 | 35 | 95 | 66 | 0.62 |
ERBF5515 | 55 | 120 | 85 | 1 |
ERBF8022(G) | 80 | 165 | 124 | 2.6 |
ERBF8022X | 80 | 165 | 124 | 2.6 |
ERBF9025(G) | 90 | 210 | 147.5 | 4.9 |
ERBF9025X | 90 | 210 | 147.5 | 4.9 |
ERBF11528(G) | 115 | 240 | 178 | 6.8 |
ERBF11528X | 115 | 240 | 178 | 6.8 |
ERBF16035(G) | 160 | 295 | 227.5 | 11.4 |
ERBF16035X | 160 | 295 | 227.5 | 11.4 |
ERBF21040(G) | 210 | 380 | 297.3 | 21.3 |
ERBF21040X | 210 | 380 | 297.3 | 21.3 |
ERBF35045(G) | 350 | 540 | 445.4 | 35.4 |
ERBF35045X | 350 | 540 | 445.4 | 35.4 |
