Product Introduction

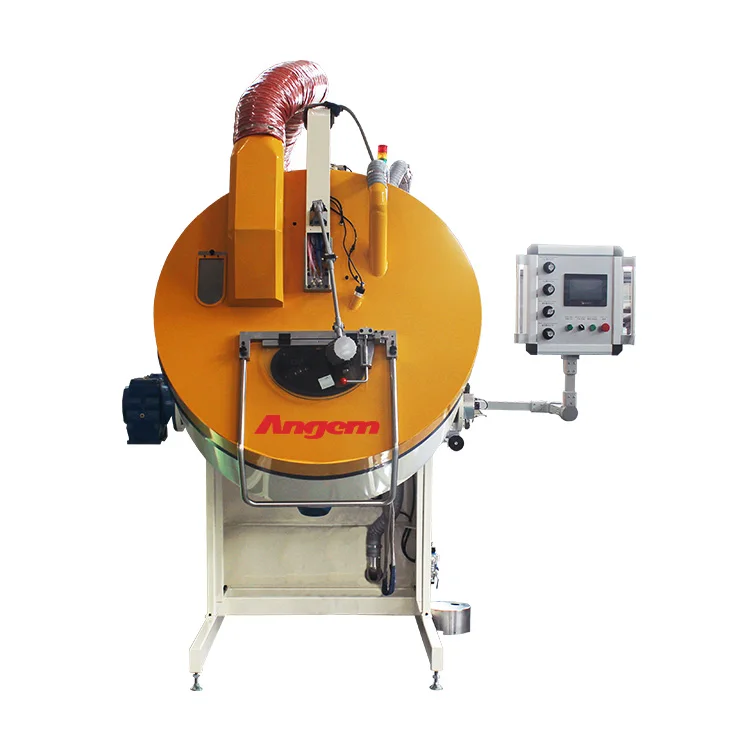

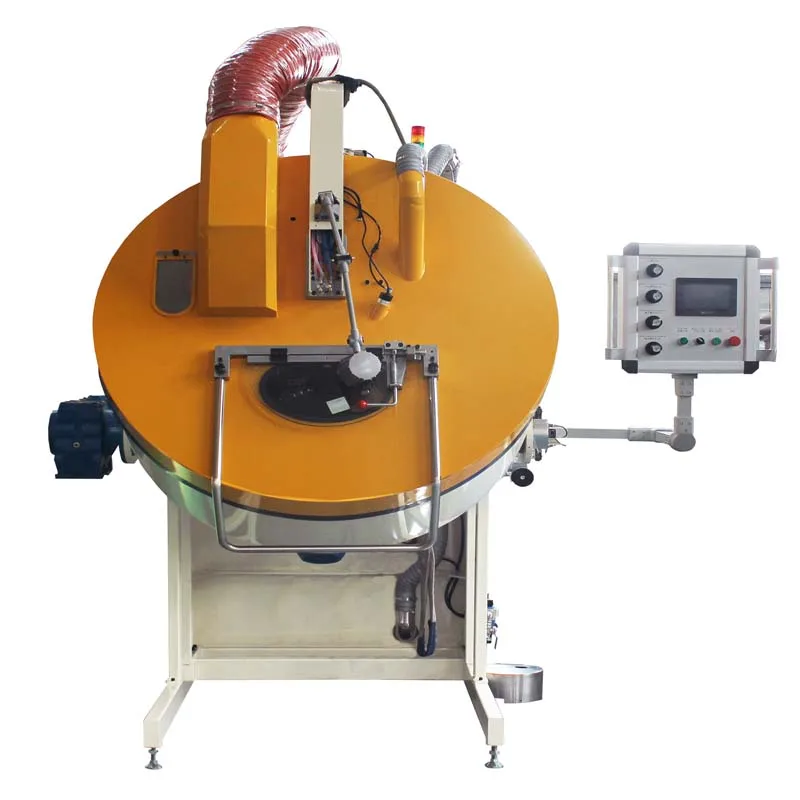

Angem automatic roller coating machine AJL.R120A
The automatic roller coating machine AJL.R120A is a high-tech product independently developed and designed by Suzhou Angem Precision Machinery Co., Ltd. and has independent intellectual property rights. It is mainly used for the whole body spraying paint and adhesive treatment of small and medium parts such as ballpoint pen holders. Used in rubber and hardware industries. It is our company completed the transformation according to the customer's product characteristics and combined with the R90 series. It has many advantages such as high degree of automation, environmental protection, high productivity and energy saving.


Features


Brand-new design concept, modern sheet metal technology and precision processing technology are dedicated to manufacture, thesurface is sprayed with plastic treatment, the appearance is exquisite, beautiful and generous
The fully enclosed spraying mode and multi-stage exhaust gas filtration can reach high-quality emission standards.
The technology-specific spraying control system allows the parts to obtain a good surface quality.


Automatic product unloading, energy saving and environmental protection is a professional solution for large quantities of small parts and automatic spraying.
Adopting a fully imported glue supply system and imported automatic spray gun to provide reliable guarantee for spraying quality.
Adopt all imported electrical control system and unique design mechanism. It provides a reliable guarantee for the long-term stable operation of the equipment, and the technical indicators of the product are more stable.


Product Paramenters


PRODUCT PROPERTIES
TECHNICAL PARAMETER
Production cycle
40～60min/barrel, adjustable
Number of spray guns
2
Drying temperature
Normal temperature～120℃, adjustable
Preheating temperature
Normal temperature～120℃, adjustable
Rotation speed of drum
10～30rpm/ min
The diameter of the drum
Φ1200mm, optional
Processing capacity
30-70L or 50kg
Loading height
 1.55m
Air source pressure
0.6 Mpa
Compressed air consumption
300-600L/min
Heating power
Total 10KW
Total power
About 14.5 KW
Voltage
380V±10%, 50Hz
Dimensions
L2800*W1750*H2700mm
Whole machine weight
1400kg


Applications

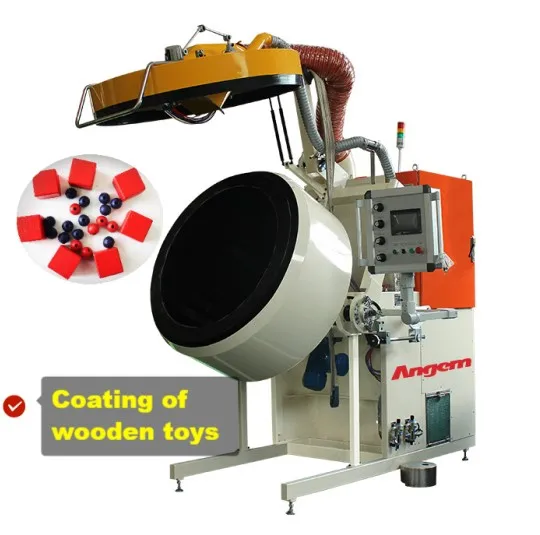

Decorative spraying: for pen sticks, dovetail clips, wooden toys, hearing aids, zipper heads, buttons, fishing hooks, springs, bottle caps and other small parts.

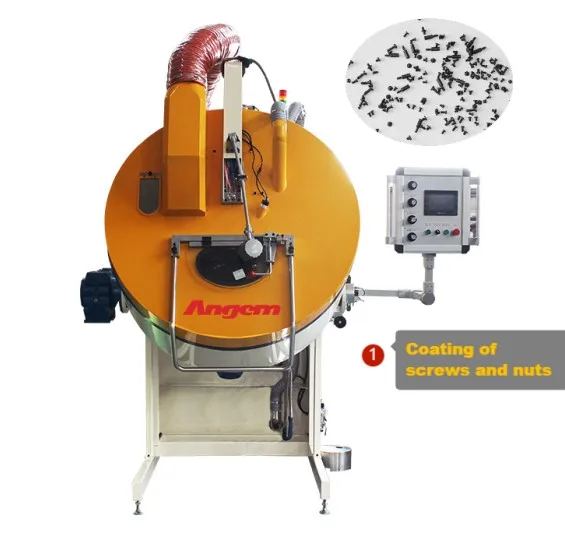

Anti-corrosion spraying: for nuts and screws bolts, small nails, fasteners small hardware and other parts of the surface anti-corrosion.



Sliding performance improvement spraying: for O-ring water-based lubrication coating, PTFE lubrication coating spraying.



Spraying of adhesives: for oil seal skeleton, automotive shock absorber bushing skeleton, brake seal, engine seal



Spraying for electrical insulation: for soft core, hard core, toroidal core, battery cap and other insulation coating.


Company Profile


Enterprise strength
17 years of brand management, the winning leader in the coating equipment industry
With 17 years of experience in R&D, design and production of coating equipment, the company was listed on the New Fourth Board in 2018.
Products are exported to more than 20 countries and regions, such as Southeast Asia and developed countries in Europe and America, and the quality is trusted and guaranteed.
It is the preferred brand recommended by Rohde Chemical, Xibang, Rohmhaas and other mastic suppliers.


Quality Assurance
Strict quality inspection management system to ensure 0 error in the factory
The factory covers an area of 10,000 square meters, with more than 20 R&D engineers and an efficient production team of more than 30 people.
In 2018, we successfully listed on the new fourth board and passed the ISO9001:2015 quality system certification.
Modern production equipment and standardized production process management to meet the needs of a variety of product capacity.
One-stop after-sales service, all-round cooperation without worry
Fast response after-sales service of 3 people to provide customers with timely technical communication, technical support and technical training.
One-year warranty, lifelong maintenance, regular return visits, free replacement of damaged parts during the warranty period (except consumables)
Product packaging and transportation in strict accordance with national standard packaging technology to meet the needs of long-distance transportation, lifting and loading and unloading.
