Tobee Effluent Handling
$12,600

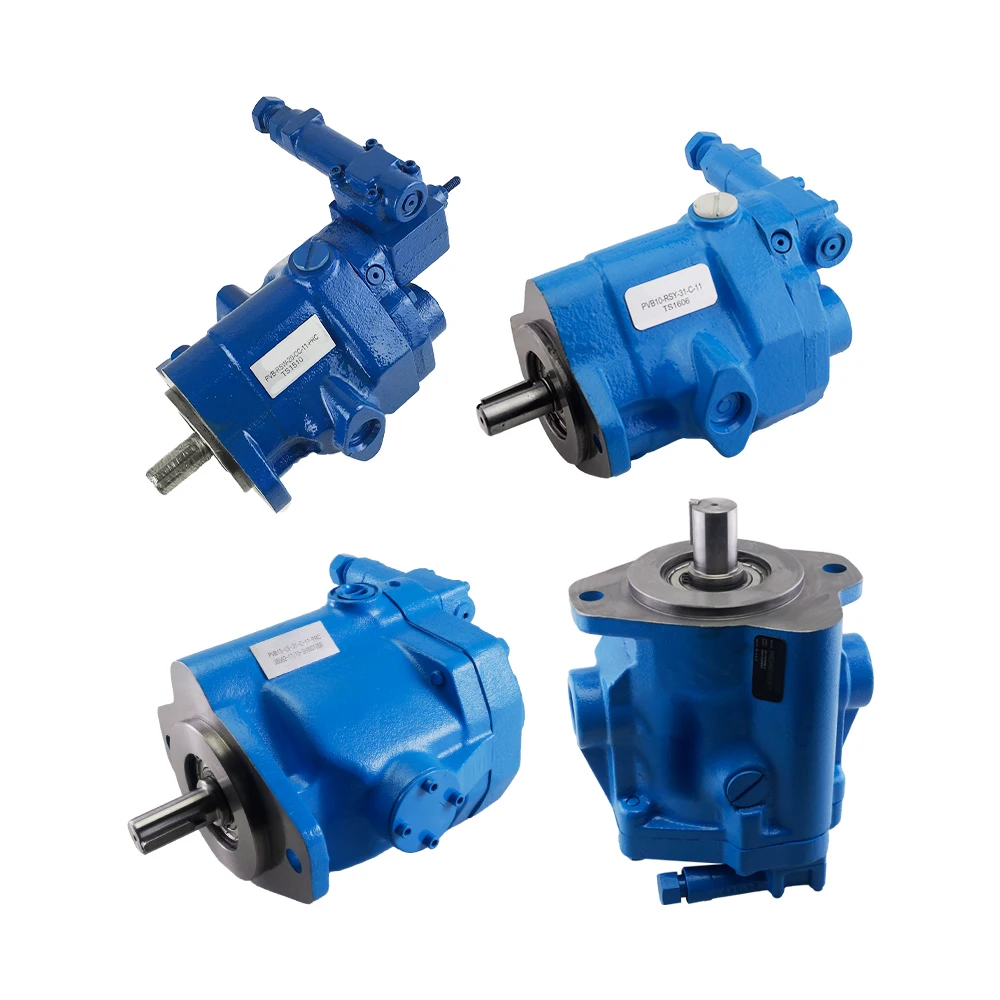

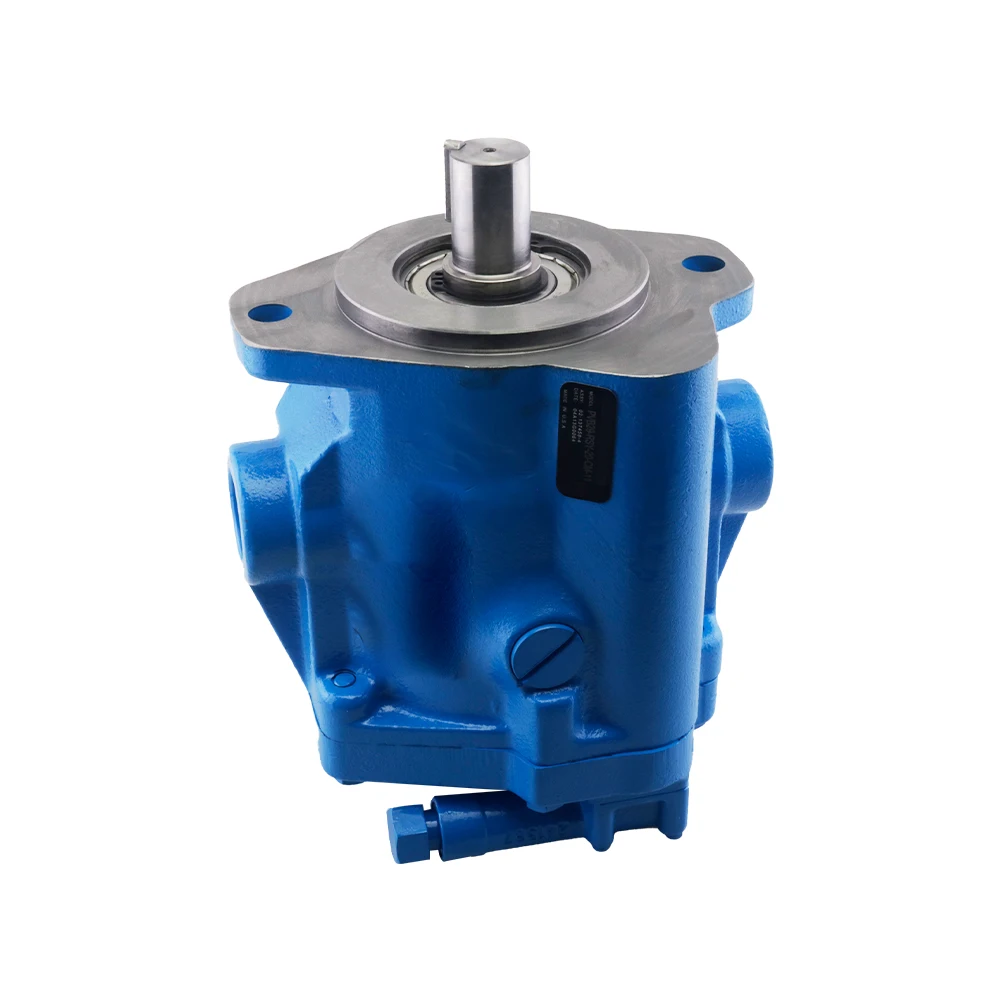

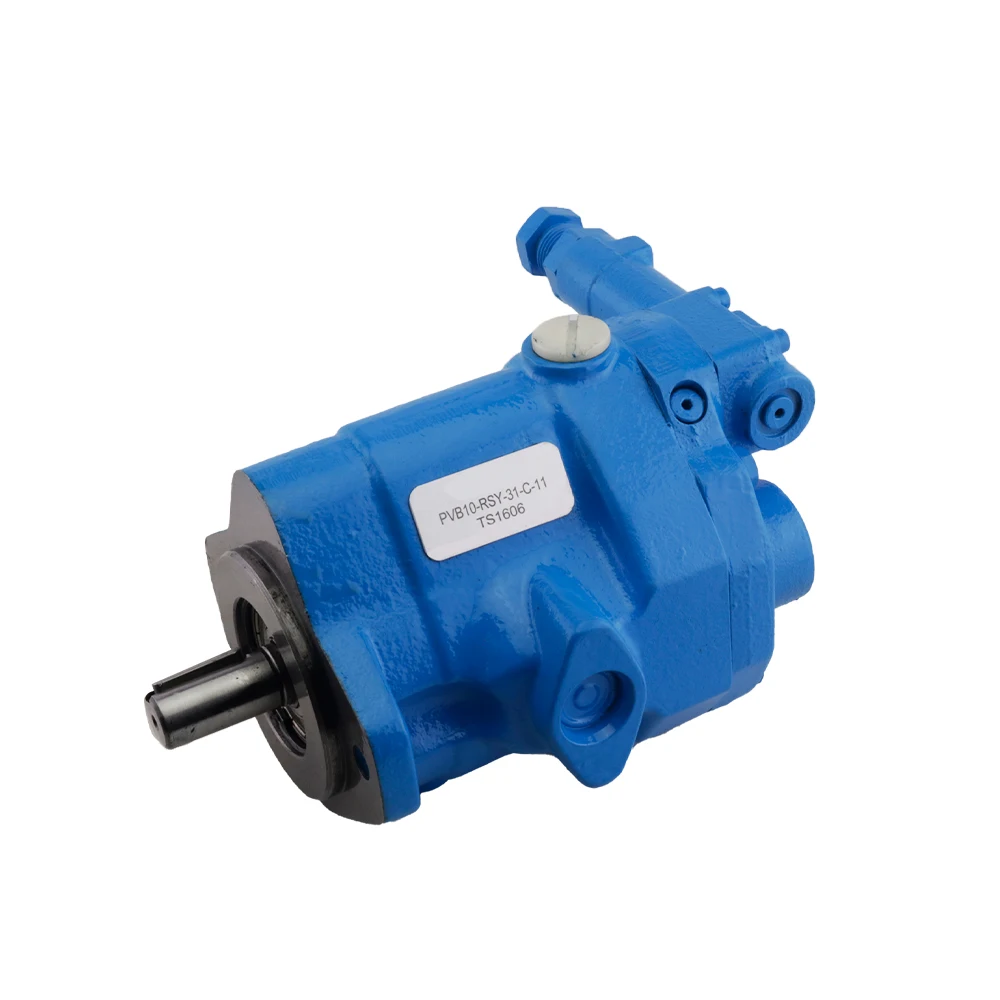

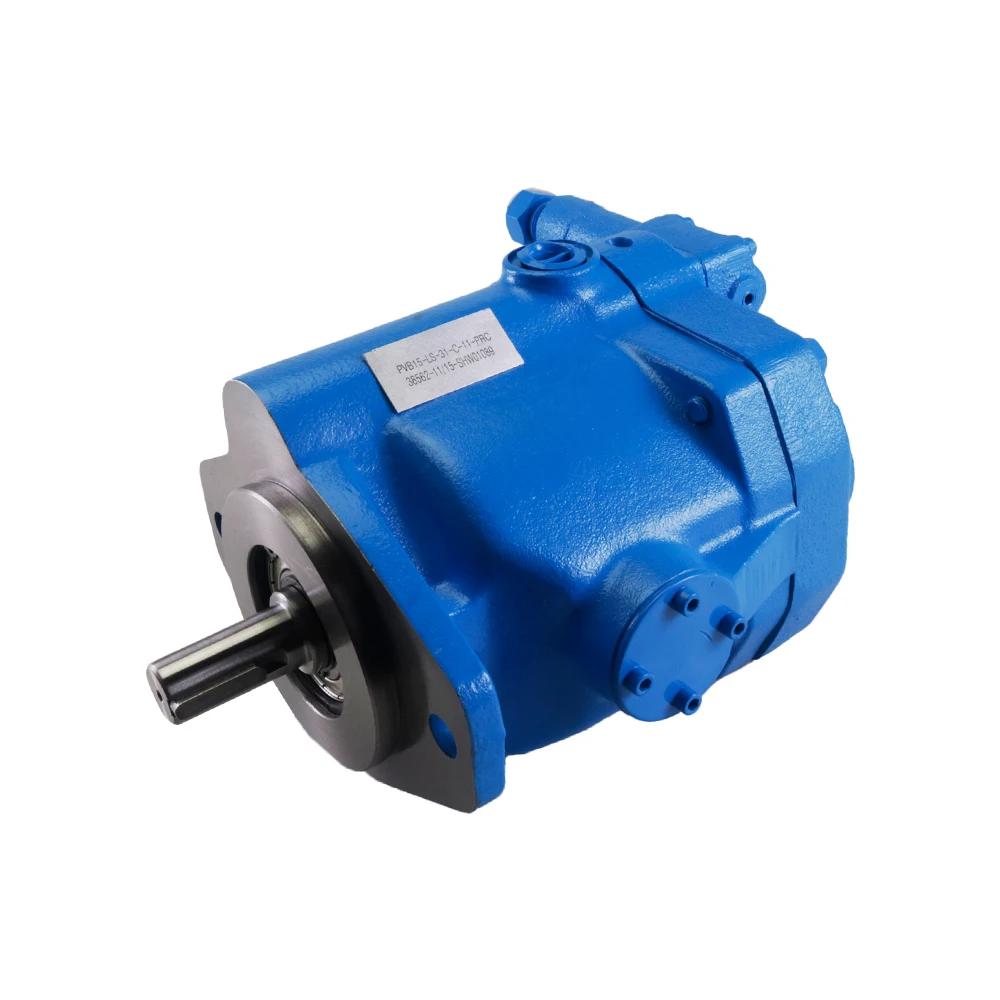

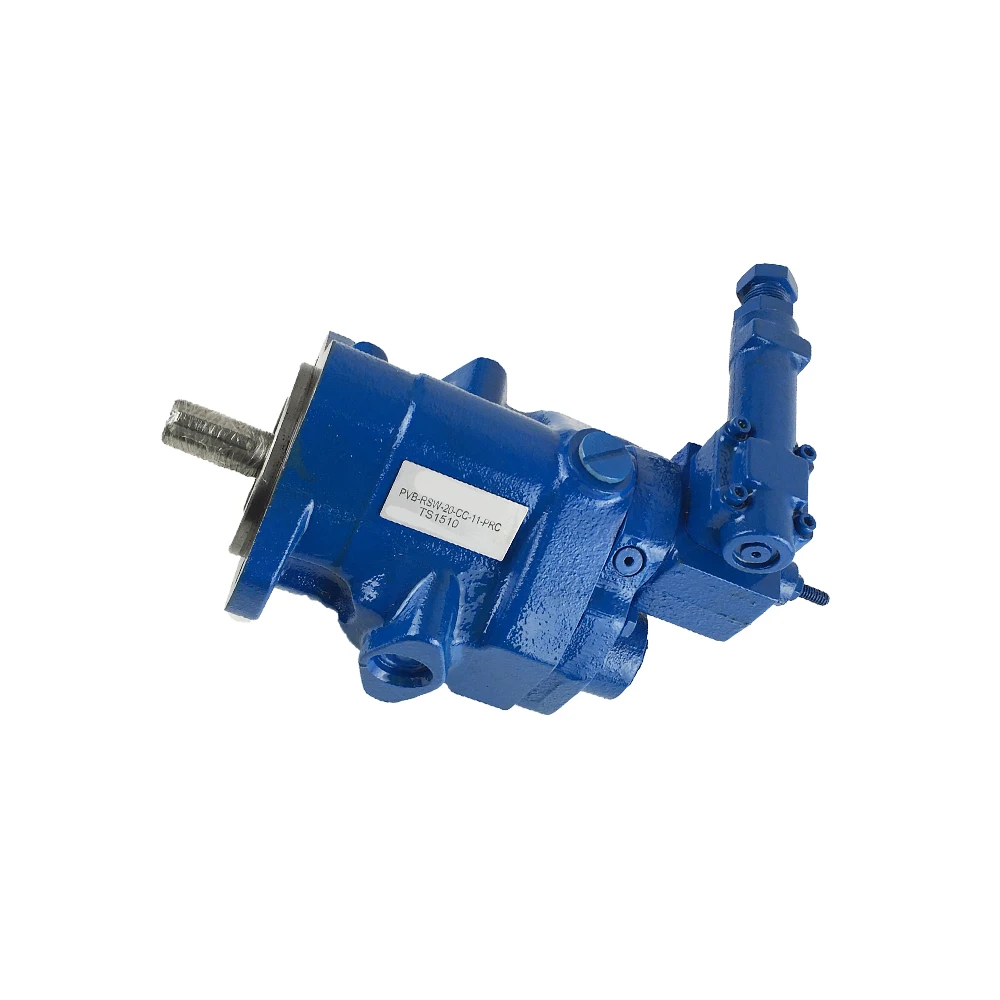

High pressure piston pump PVB5 PVB10 PVB15 PVB29 series PVB29 RSY 20 CM 11 hydraulic variable axial piston pump
- Category: >>>
- Supplier: Shenzhen Baoan Shiyan Hengju Hydraulic Machinery Equipment Firm
Share on (1600743428046):
Product Overview
Description
Product Details
Product Parameters
Product Name | Hengju Hydraulic PVB5 PVB10 PVB15 PVB29 Series PVB29-RSY-20-CM-11 Hydraulic Fixed Variable Displacement Axial Piston Pumps |
Feature | High Pressure,Low Noise,Reliable quality |
Max pressure | 21MPa |
Speed | 750-1800RPM |
Popular model | PVB5 PVB6 PVB10 PVB15 PVB29 |
Application | Injection molding machine,cutting machine,plastic machine,leather machine,blowing machine,forging and engineering machinery field.etc |
Company Profile
Shiyan Hengju Hydraulic Machinery Equipment, Baoan District, Shenzhen
We are Hengju Hydraulic Machinery Equipment, located in Foshan City, Guangdong Province, China. We have R&D department with about 5-10 engineers and designers. Our factory has more than 100 skilled employees, and the production equipment has advanced manufacturing equipment and testing equipment such as CNC lathes, machining centers, CNC milling machines, CNC special grinding machines, double-sided grinding machines, and fully automatic 3D measuring instruments.
The main products are hydraulic variable vane pumps, duplex pumps, HVP high pressure variable vane pumps, PV2R1&PV2R2 series, V&VQ series, T6&T7 series, SQP series, VQ series quantitative vane pumps and hydraulic motors.
Our products are widely used in industrial machinery, CNC lathes, shoemaking machinery, woodworking machinery, plastic machinery, construction machinery and various hydraulic system machinery. We are also able to provide customized products and services according to your specifications. , we look forward to sincere cooperation with your company.
The main products are hydraulic variable vane pumps, duplex pumps, HVP high pressure variable vane pumps, PV2R1&PV2R2 series, V&VQ series, T6&T7 series, SQP series, VQ series quantitative vane pumps and hydraulic motors.
Our products are widely used in industrial machinery, CNC lathes, shoemaking machinery, woodworking machinery, plastic machinery, construction machinery and various hydraulic system machinery. We are also able to provide customized products and services according to your specifications. , we look forward to sincere cooperation with your company.
Team Style
Office business customer service team
The company has more than ten professional customer service staff, with over two years of hydraulic experience, who can solve problems for customers very well.
Workshop technical team
We have an independent research and development department with 5-10 engineers and designers with over five years of hydraulic experience, able to provide customers with more professional technical support.
Application
Packaging machinery, injection molding machinery, rubber machinery, hydraulic machinery, die-casting machinery, plastic machinery, construction machinery, machine tool machinery, forging machinery and walking machinery, etc.
Usage Notice
Pump Start-up Procedure
Preparation Prior to Start-up
The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid.
Circuit Cleanup
The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump.
Filling Pump and Removing Air
If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape.
Pump Start-up
All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections. Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.
Preparation Prior to Start-up
The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid.
Circuit Cleanup
The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump.
Filling Pump and Removing Air
If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape.
Pump Start-up
All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections. Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.
Customer Praise
The company has been in the liquid pressure business for more than ten years, has acquired multi-level engineering technology, has participated in multiple large and small liquid pressure exhibitions, and has received many international customers.
FAQ
Q1:Can you ship the goods to our country?
A:Yes, you can choose express (DHL/UPS/FEDEX/EMS/ARAMEX/TNT) and by air, by sea to most countries.
Q2:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: Are you trading company or manufacture?
A: We are factory
Q4: How long is your delivery time?
A: Gernally it is 1-2days if the goods are in stock.It is 5-7days if the goods no stock.It is subject to order quantity.
Q5: Do you provide sample,Is it free or extra?
A: We are willing to provide samples to test quality first, it is not for free because it is high value products. But sample cost can return in bulk order.
Q6: What is the terms of payment?
A: 100% deposit or 30% deposit, 70% before shippment.
Q7: How long is the warranty?
A: We offer 12 months warranty.
Q8:How do you make our business long term and good relationship?
A:1. We will ensure the interests of our customers with good quality and competitive price;
2. We treat every customer as a friend and sincerely do business with everyone and make friends, no matter where they are from.
A:Yes, you can choose express (DHL/UPS/FEDEX/EMS/ARAMEX/TNT) and by air, by sea to most countries.
Q2:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: Are you trading company or manufacture?
A: We are factory
Q4: How long is your delivery time?
A: Gernally it is 1-2days if the goods are in stock.It is 5-7days if the goods no stock.It is subject to order quantity.
Q5: Do you provide sample,Is it free or extra?
A: We are willing to provide samples to test quality first, it is not for free because it is high value products. But sample cost can return in bulk order.
Q6: What is the terms of payment?
A: 100% deposit or 30% deposit, 70% before shippment.
Q7: How long is the warranty?
A: We offer 12 months warranty.
Q8:How do you make our business long term and good relationship?
A:1. We will ensure the interests of our customers with good quality and competitive price;
2. We treat every customer as a friend and sincerely do business with everyone and make friends, no matter where they are from.
