HIKROBOT MV IDC007X 06MW/12MW/15MW 1.6 MP Compact Mechanical Focus Lens Intelligent Code Reader

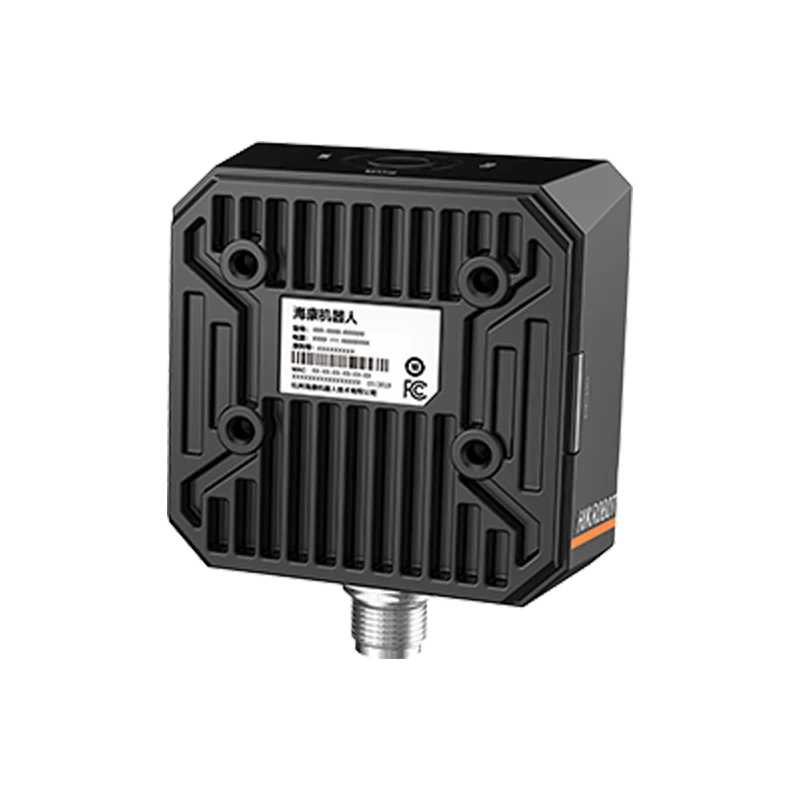

HIKROBOT MV-IDC007X-06MW/12MW/15MW 1.6 MP Compact Mechanical Focus Lens Intelligent Code Reader
HIKROBOT MV-IDC007X-06MW/12MW/15MW 1.6 MP Compact Mechanical Focus Lens Intelligent Code Reader

HIKROBOT MV IDC007X 06MW/12MW/15MW 1.6 MP Compact Mechanical Focus Lens Intelligent Code Reader

Share on (1600743449098):


Price:$294.00 - $300.00

Quantity:


Product Overview

Description



Product Features


1.Excellent Sensor selection for high-speed acquisition of high-quality images
2.A single cable provides rich IO interface, can access multiple input and output signals
3.External waterproof debug button, support external manual trigger
4.Top ring indicator for quick observation of working status
5.Double-sided side waistline result indicator, reading code OK/NG state multi-angle visualization
6.Modular light source design, sub-circuit control, easy to replace


Products Description






Specifications





Model
Model Number
MV-IDC007X-06MW
MV-IDC007X-12MW
MV-IDC007X-15MW

Name
Compact, 1.6 MP, 6mm/12mm/Mechanical Focusing Lens, White Light Source, Distribution Model









Performance

Bar code categories
1D code: Code 39, Code 93, Code 128, CodaBar, EAN, ITF25, MATRIX25, MSI, CODE11, INDUSTRIAL25, CHINAPOST, etc.
2D codes: QR Code, Data Matrix, etc.
Stacking Code: PDF417

Maximum processing frame rate
60 fps

Max. reading speed
84 yards per second

Sensor type
CMOS, global Shutter

Image element size
3.45 µm×3.45 µm

Target surface size
1/2.9”

Resolution
1408×1024

Exposure time
16 μs ~ 1 sec

Gain
0 ~ 40 dB

Black and white/color
Mono

Communication protocols
SmartSDK，TCP Client，UDP，Serial，FTP，HTTP，TCP Server，PROFINET，Ethernet/IP，MELSEC，ModBus





Electrical characteristics


Interface
17-pin M12 interface provides power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1
RS-232 input, 1 RS-232 output isolated outputs (LineOut 0/1/2), 1 RS-232 input, 1 RS-232 output Supports device triggering via top
button



Ethernet
Fast Ethernet（100Mbit/s）


Digital I/O
Includes 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS232 input, 1 RS232 output Supports
device triggering via top button

Power supply
24 VDC

Maximum power consumption
20 W@24 VDC (with fill light enabled)







Structure
Focal length
6 mm
12 mm
15 mm

Lens interface
M12-Mount, manual focus



Lens hoods
Transparent lens hood, optional polarizing lens hood



Light source
Spot white light, optional spot red / blue / infrared, wide angle white / blue / red light
White
White(polarized)

Indicator lights
Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG

Form factor

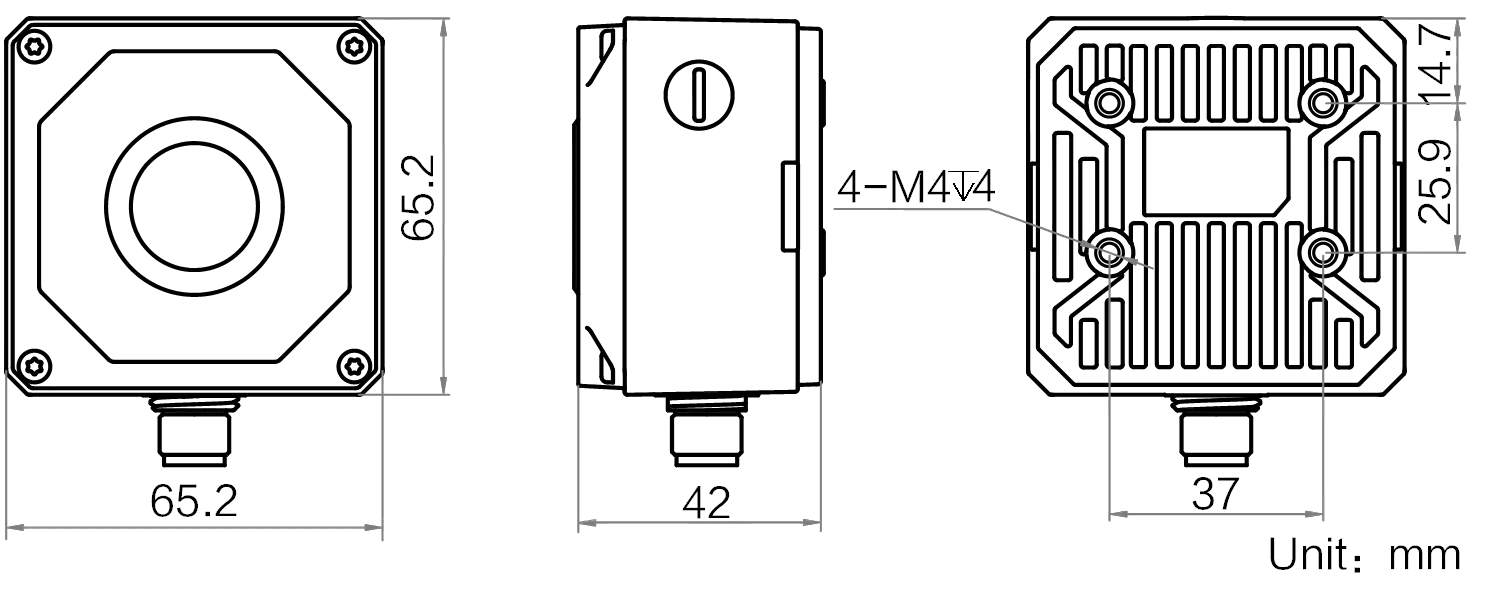

65.2 mm×65.2 mm×42 mm

Weight
Approx 250 g

IP Protection Rating
IP67 (with proper lens waterproof cover installed correctly)

Temperature
Working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Humidity
20% ~ 95%RH non-condensing
General Specifications
Software
IDMVS

Certification
CE，FCC，RoHS，KC
