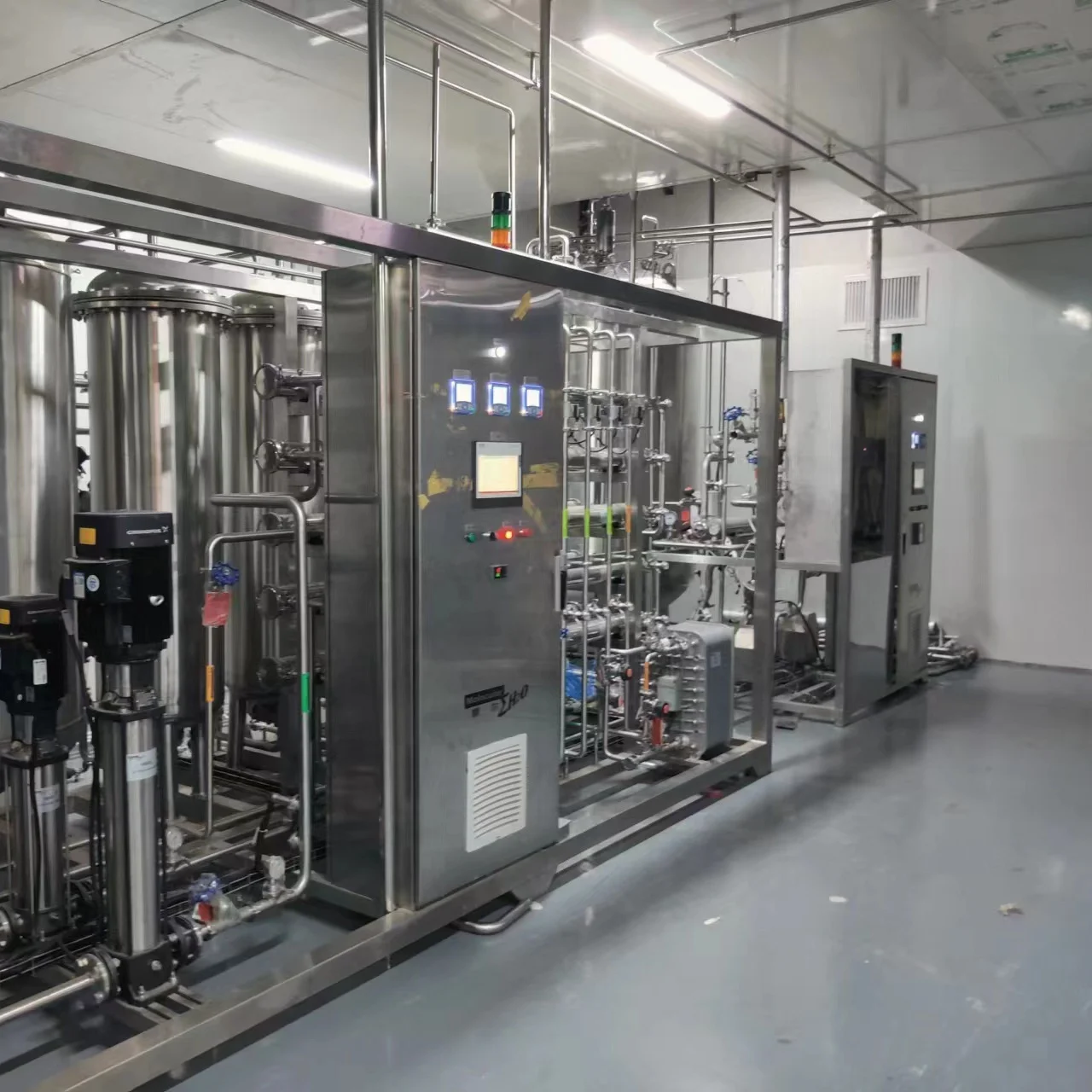

China Plant Purified Water /WFI Generation/PSG With Distribution /Loop System
Pharmaceutical water treatment systems includes Purified water generation system ,multi effect distillation system to get WFI.Design meets GMP standard.
The control of water quality, including microbiological and chemical quality, throughout production, storage and distribution processes is a major concern.
Pharmaceutical water production, storage and distribution systems should be designed, installed, commissioned, qualified, validated, operated and maintained to ensure the consistent and reliable production of water of intended quality.
1.Product Specifications:

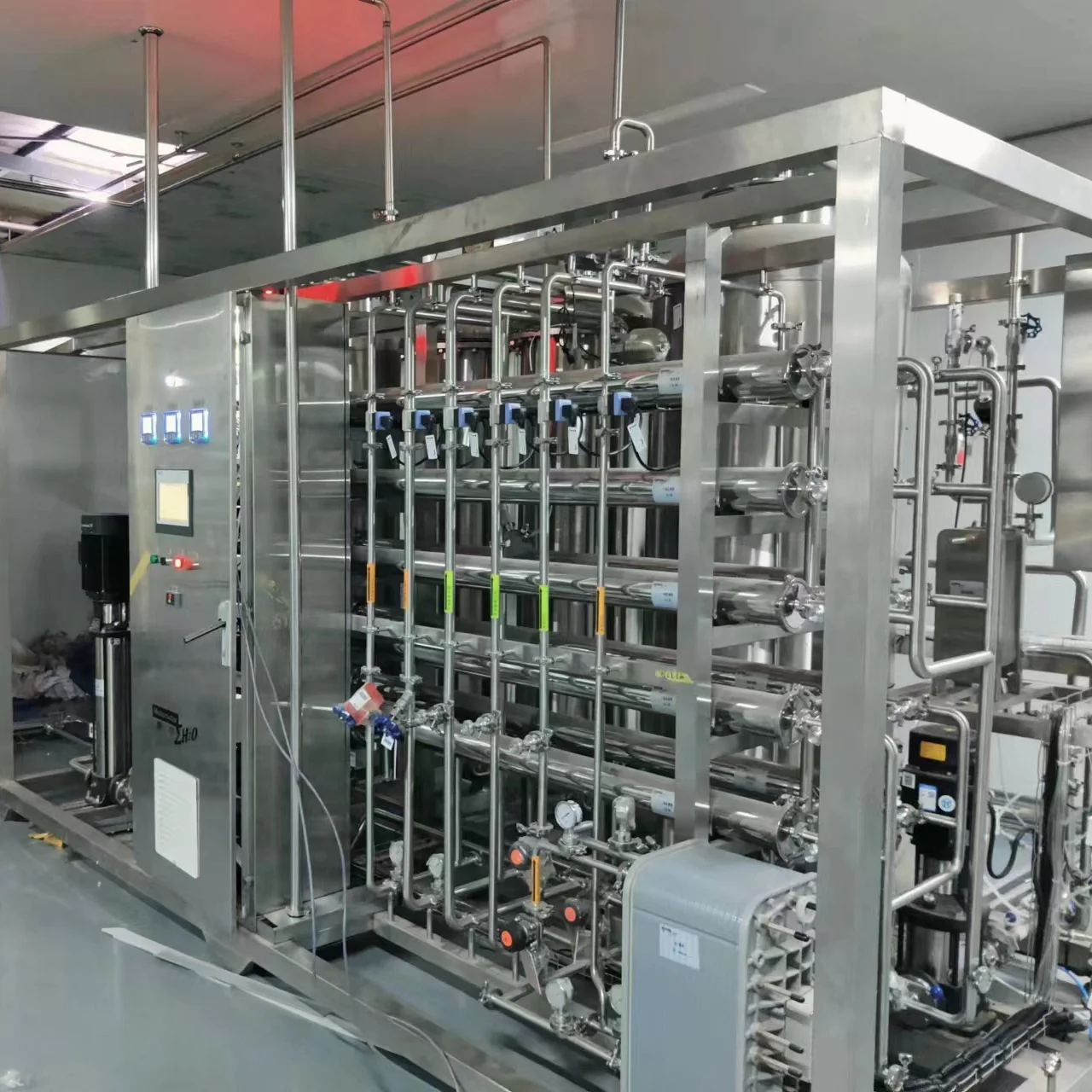

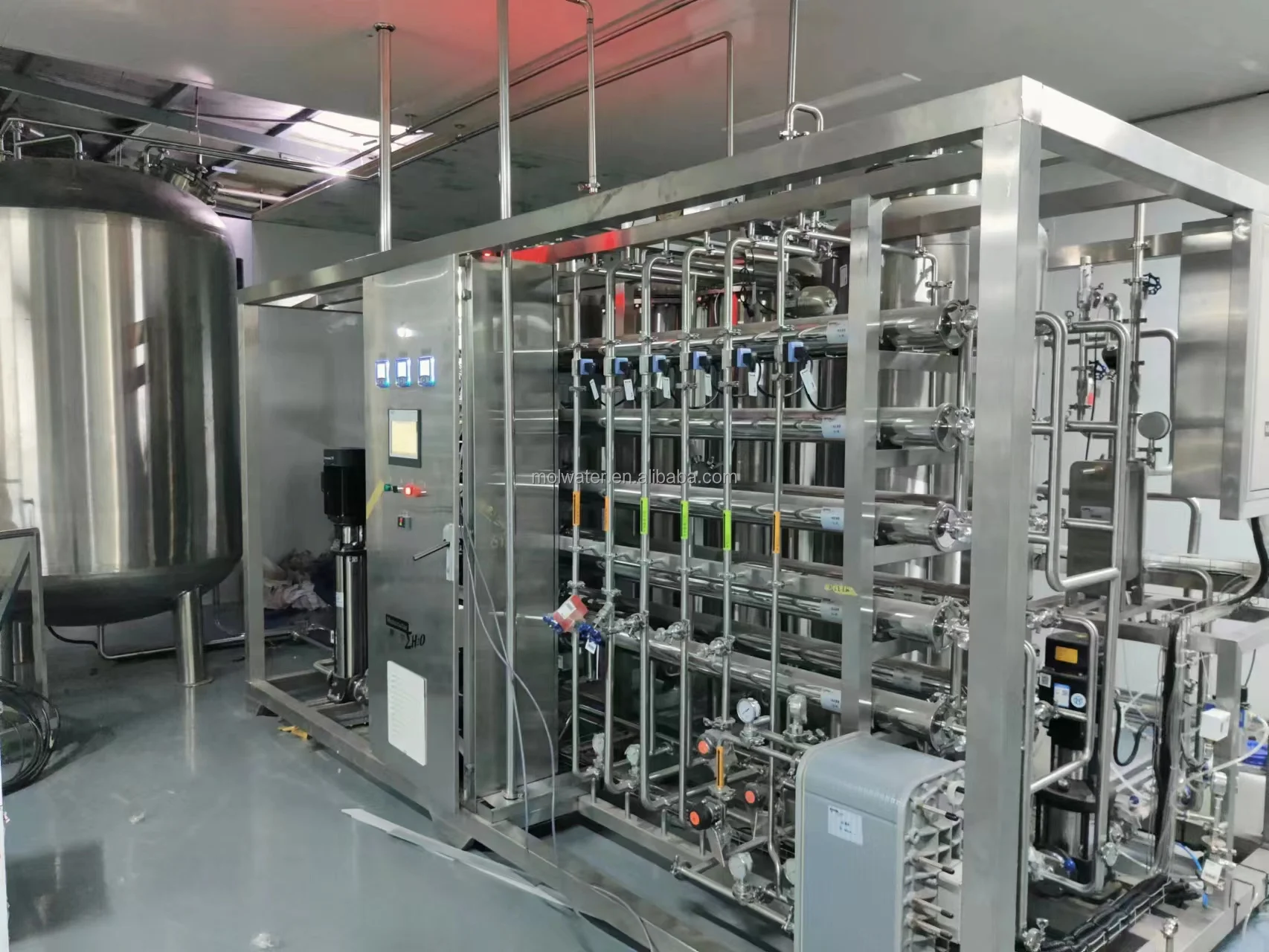

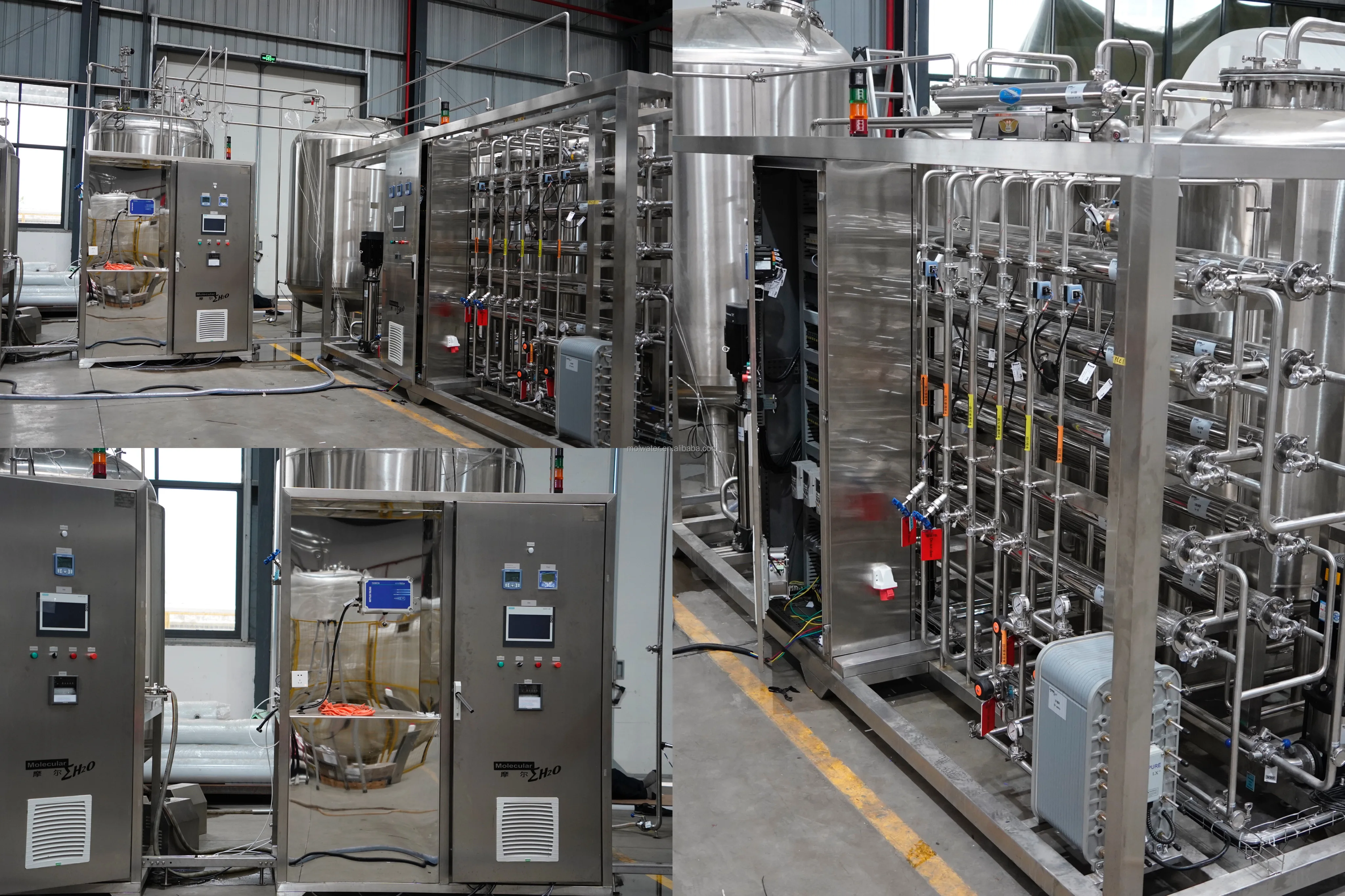

1.1.PW system specifications:
Feeding water quality | Drinking Water /City water /Tap water |
| Water capacity | 250 to 10,000LPH |
| Pretreatment | Multimedia ,active carbon ,softener filter |
| Sterilization | Ozone sterilizer / Hot water over 85 degrees/UV Lamp |
| RO membrane | DOW USA |
| EDI brand | Ionpure brand |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Meter brands | Chinese & burket ,Jumo &others |
| Control | Automatic with PLC,Simens |

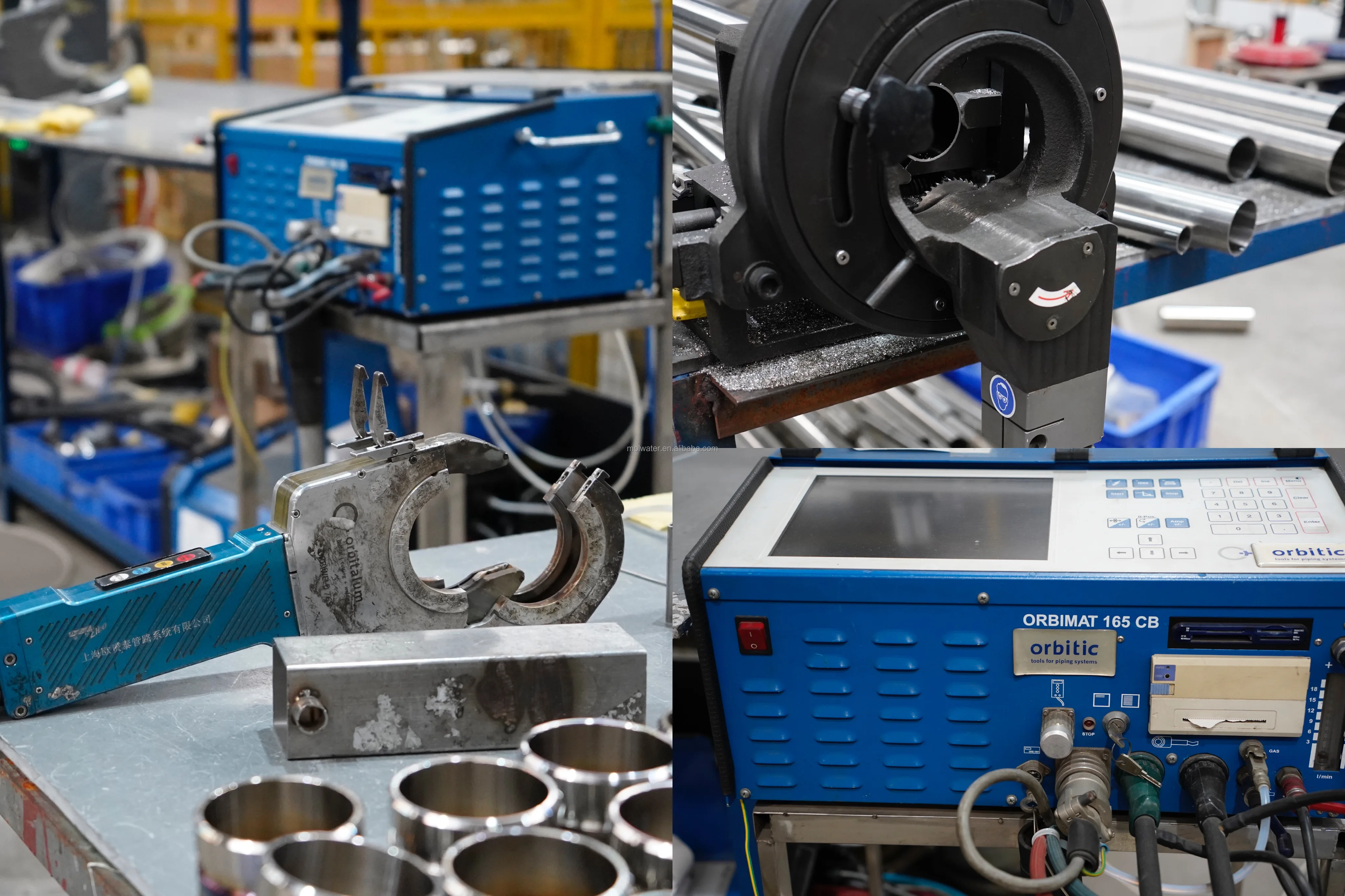

| Welding | Automatic Orbit welding |
| Standards | GMP |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | capsules, tablets, syrups, suspensions, injectables, soft gelatin capsules, suppositories, creams, and ointments ,healthcare medicine,animal medicine production and so on. |

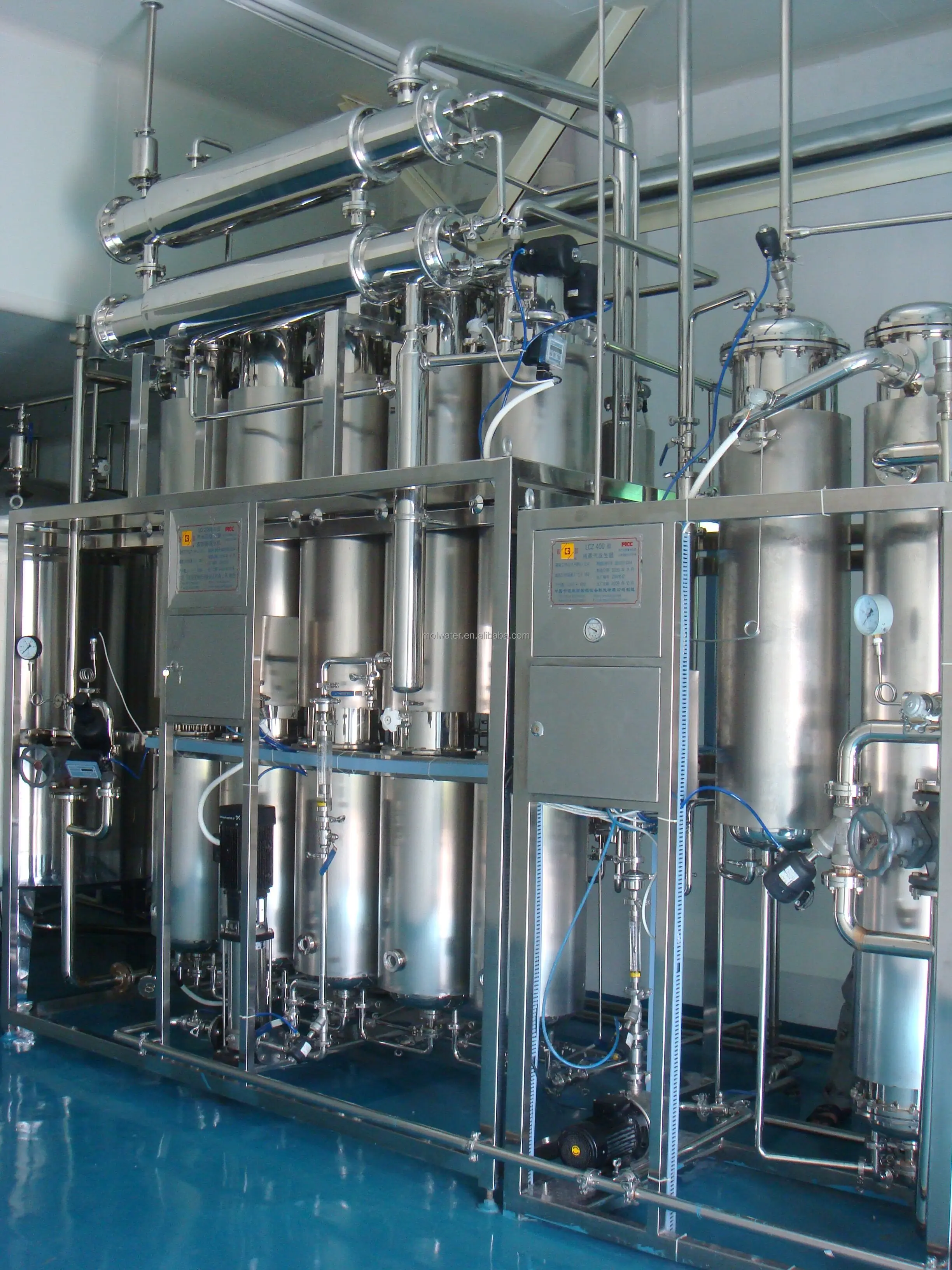

1.2.WFI System Specifications
Product Name | Multi effect distillation System |
Feeding water quality | Purified Water |
| Water capacity | 250 to 10,000LPH |
| Output water quality | Endotoxin is less than 0.25EU/ml |
| Technology | Evaporation unit, separation unit, condensing unit |
| Online Meters | Chinese brand or Europe brand |
| Endotoxin reducing rate | > 99.99% |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Control | Automatic with PLC |
| Welding | Automatic |
| Standards | cGMP |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | Injection (IV) water production & cleaning system & Water for sterile pharmaceutical production |
2.Product Features:
2.1 Features of PW System
- Backwashing for the pretreatment filter
- Heat water disinfection for the active carbon filter
- 1st ,2nd RO Water Conductivity & water flow rate Online monitoring
- EDI water resistance online monitoring
- TOC online monitoring is optional
- Separated CIP device for the RO membrane
- Whole stainless steel comply with GMP standards
- Recycling system for pure water with conductivity and flow rate online monitoring
- 2nd RO & EDI concentrated water back to the raw water tank
- Heat water or Ozone sterilizer disinfection for pure water and loop system
2.2 Features of WFI System
- Online monitoring
- Seperated distribution system
- more than 99.99% endotoxin reducing rate
- Advanced technology and process ; High performance
- Easy to operate;Use reliable;Low noise;Energy saving
- The maximum capacity of multi-effect distillation machine is about 10000L/H.
3.Our Service :
- Technical discuss service
- Design and offer drawing & proposal
- Documents service
- Safe shipment service
- Oversea installation service

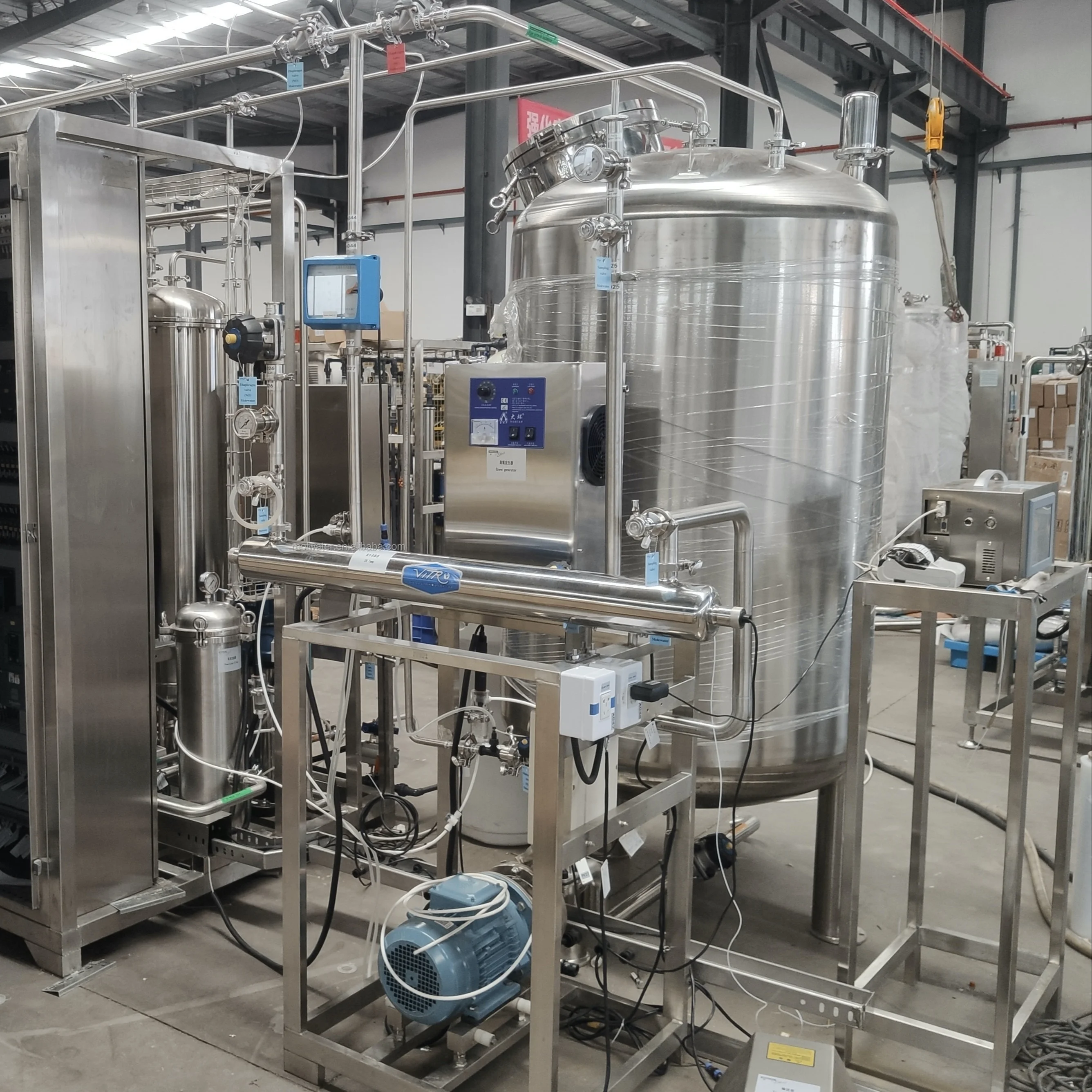

- Separated Distribution System including UV lamp, sanitary pump ,electrical control cabinet
- Regularly disinfection for the loop system
- Recycling water quality online monitoring
Clients need to prepare for the water purification machines at site
- Feeding water supply
- Electrical supply
- Compressed air & industrial steam if possible
- Drains for concentrated water on the ground
- Enough equipment room area
- Ventilation environment
- Necessary chemical for dosing
Molewater System Co., Ltd
Established Year : 2003
Registered Capacity: 5Million US Dollar
Factory Area: 50,000m2 new and clean factory
Export Country Quantity: Exported to more than 40 countries
Number of Employee: 120 people + 20 engineers with more than 10 years experience
Sample Clients: such as Apple, Vivo, Roche, Foxconn, Quanta Taiwan, SGS, Dupont, Sabic, Bayer, BASF, SK, Pepsi-Cola, Hitachi, Shell, SINOPEC, Ford etc famous companies
Main Products : Ro purification treatment system for pharmaceutical industry and drinking ,lab,hospital .
Address:No.29 Baihai Road,Baishiyi,High-tech Zone,Chongqing,China
Jiangbei Airport to company : About one hour by car
Contact : Ms.Serena
Email:serena(at)molewater.com
Tel: +86 1388 3975 943 / Whatsapp:+86 183 2368 2968

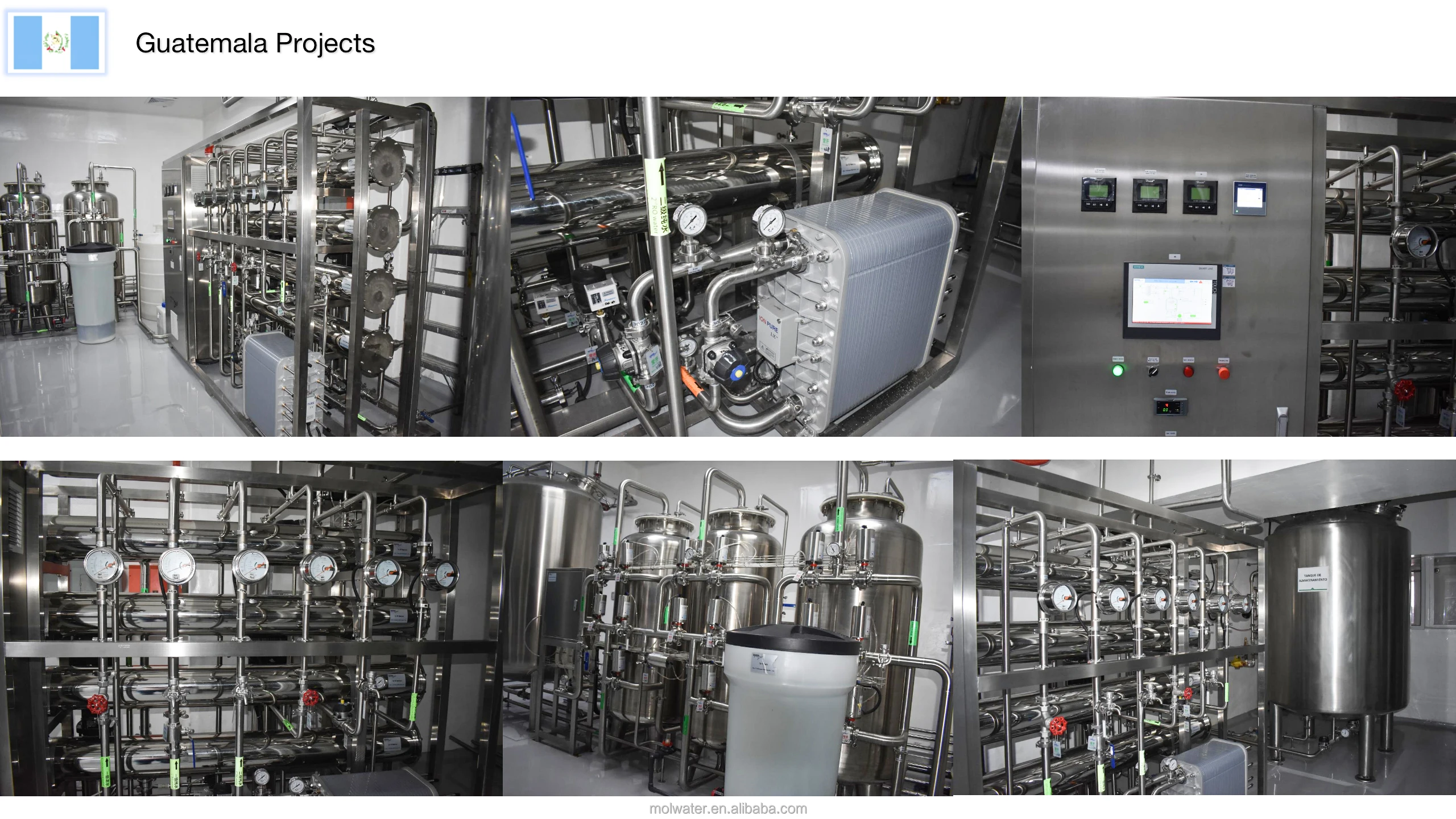

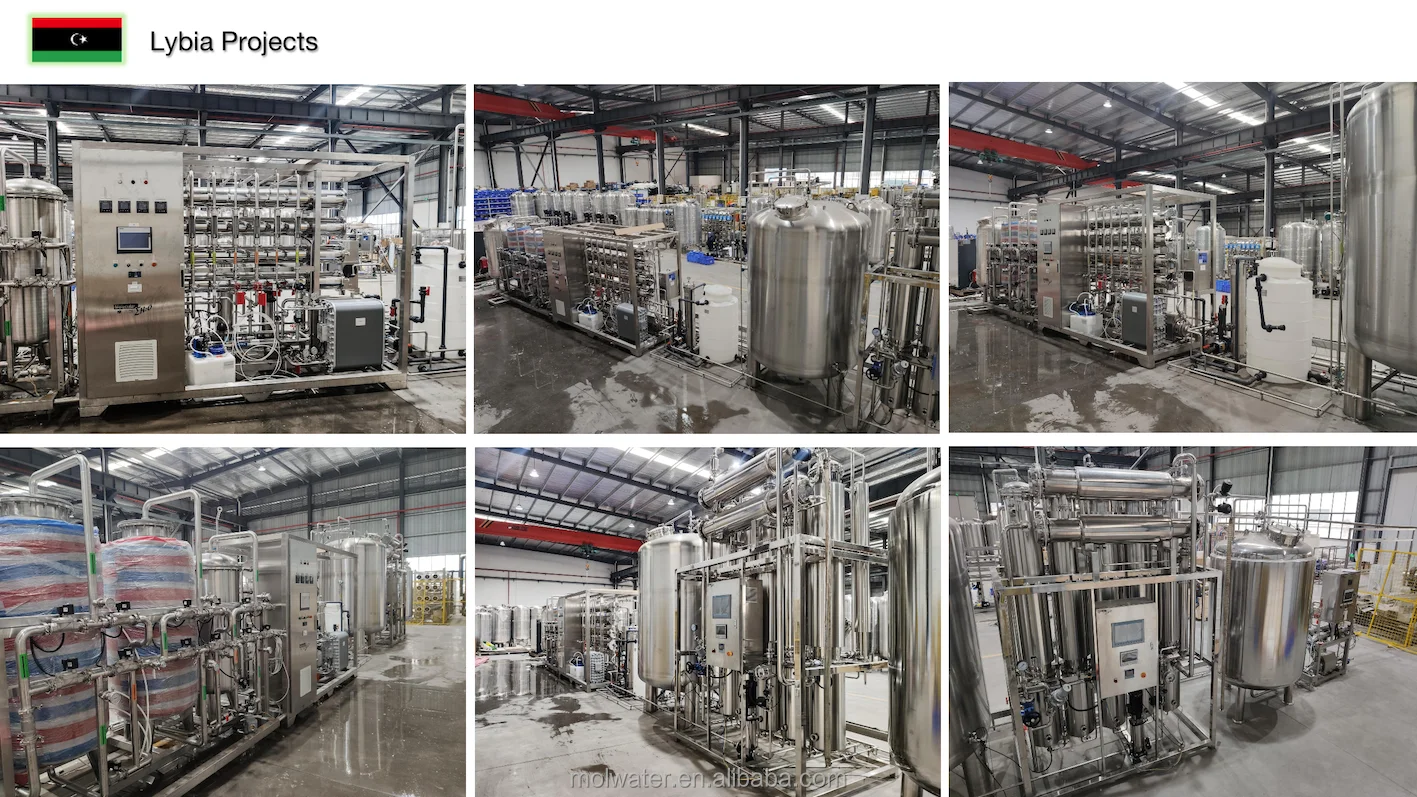

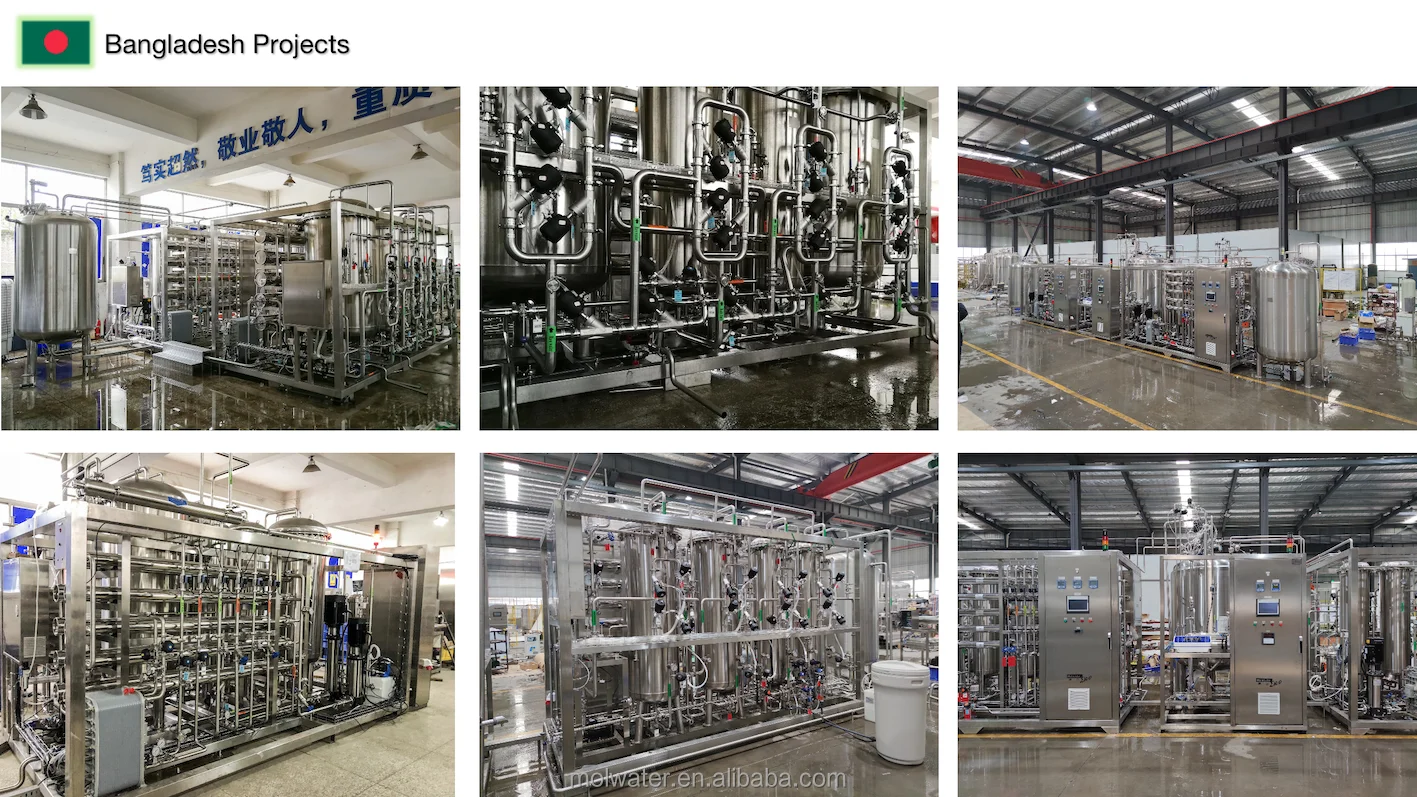

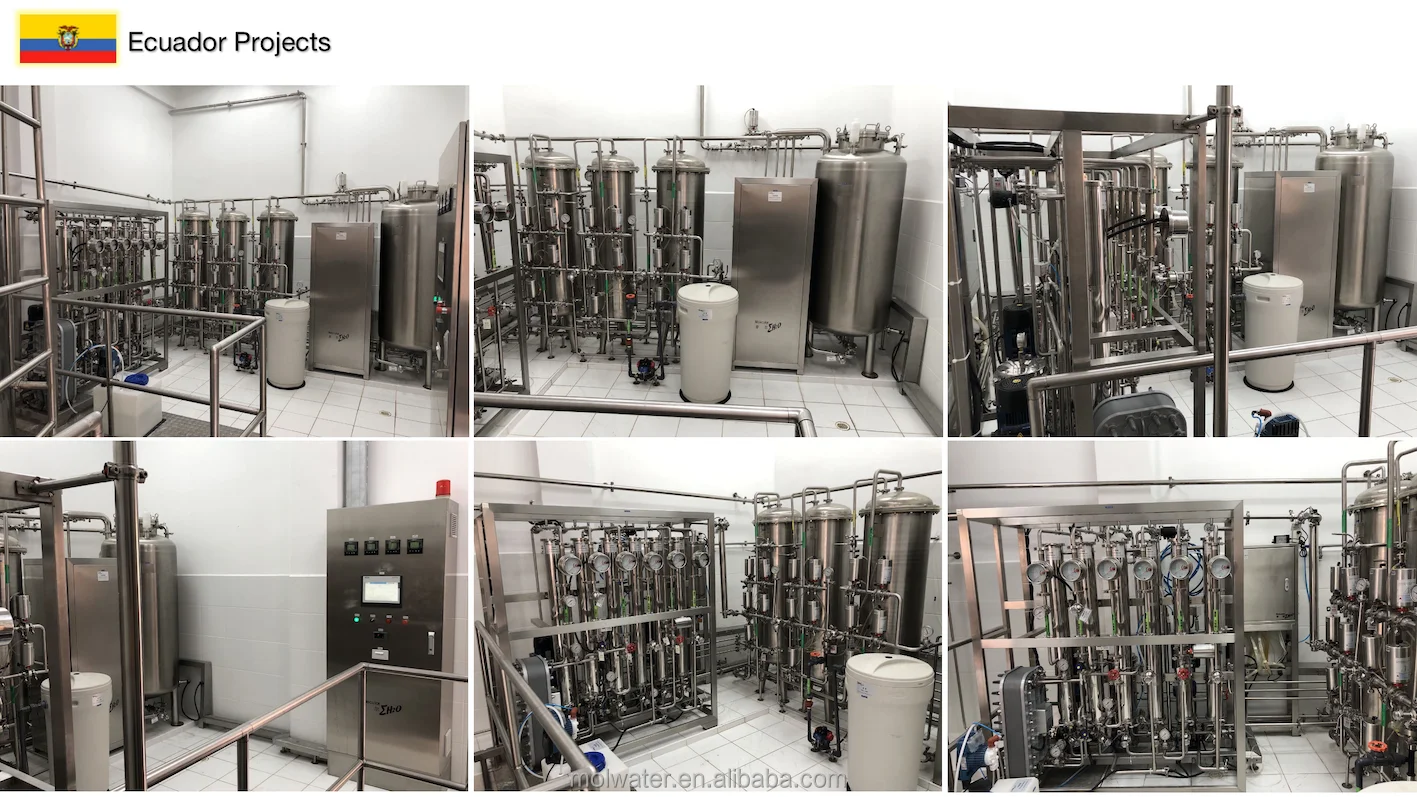

Project Samples:Bangladesh , Ecuador ,Guatemala , Libya ,Russia etc.
Office working time : From Monday to Saturday ( 8:30am-17;30pm)
You can contact me at any time ,when I receive your inquiry I will reply you soon.
