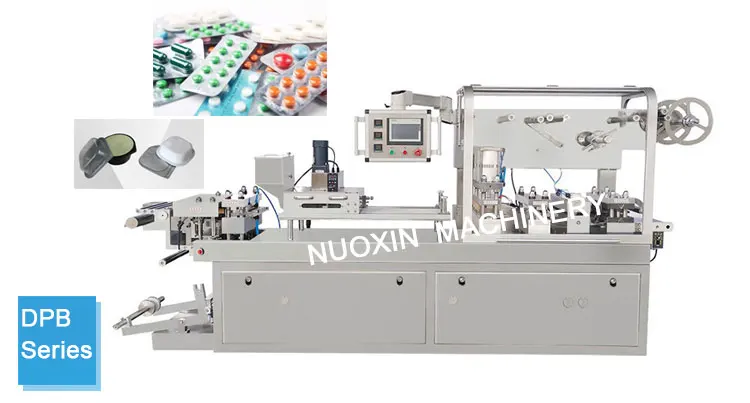

DPB 320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine
- Category: >>>
- Supplier: Yangzhou Nuoxin Packaging Machinery Co. Ltd.
Share on (1600744002129):
Product Overview
Description
DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine
Products Description
Model | DPB-320 |
Cutting Frequency(times/min) | 20-50 times/min |
Capacity (strip/h) | 15000 strip/h (standard blister sheet 80*57) |
Max shaping areas and depth(mm) | 320*160*26mm |
Stroke(mm) | 20-120(can be manufactured as user's requirements) |
Standard Sheet(mm) | 80*57, 80*35, 95*65, 105*42, 105*55mm(can be manufactured as user's requirements) |
Air Pressure(kw) | 0.5-0.7 Mpa 0.2m3/min |
Total power | 380V/220V 50Hz 8kw |
Pressure(kw) | 1.5 kw |
PVC hard pieces(mm) | 0.15-0.5*320 |
PTP Aluminum Foil(mm) | 0.02-0.035*250 |
Dialysis Paper(mm) | 50-100g*320 |
Mould Cooling | tap water or recycled water |
Overall Dimensions(mm) | 2910*820*1600mm |
weight | 2200kg |
Applications:
Our DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is a latest high-precision medicine packing machine in current pharmacy industry.
DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry.

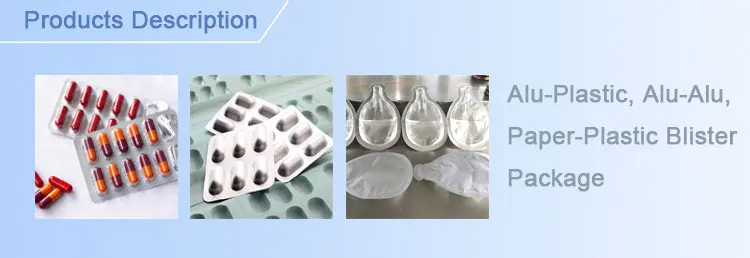

DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is also widely used in electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Characteristic:
1.The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.
2.It can be equipped with cursor device etc. as customer's requirement.
3.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
4.Stroke can be adjust freely, widely used, ease of operation, stable running.
Our DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is a latest high-precision medicine packing machine in current pharmacy industry.
DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry.
DPB-320 Automatic Pharmaceutical Nutrition Hard Gelatin Capsule Blister Packing Machine is also widely used in electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Characteristic:
1.The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.
2.It can be equipped with cursor device etc. as customer's requirement.
3.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
4.Stroke can be adjust freely, widely used, ease of operation, stable running.

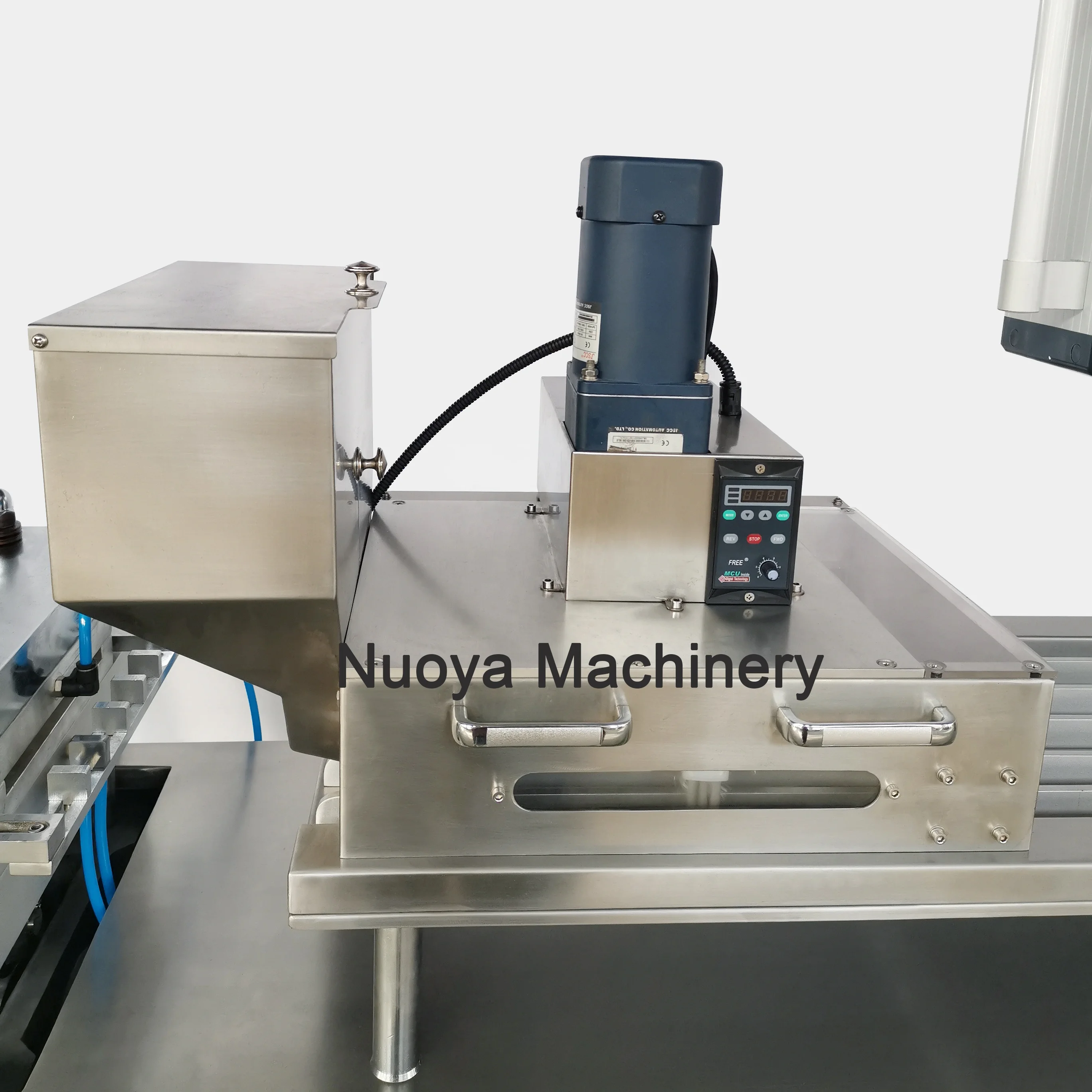

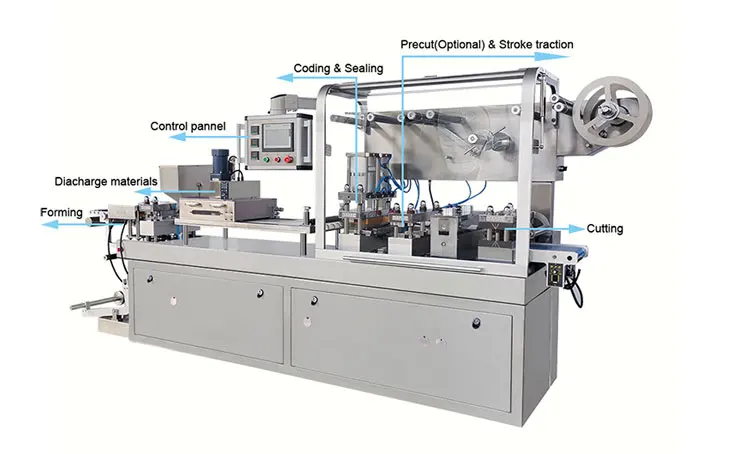

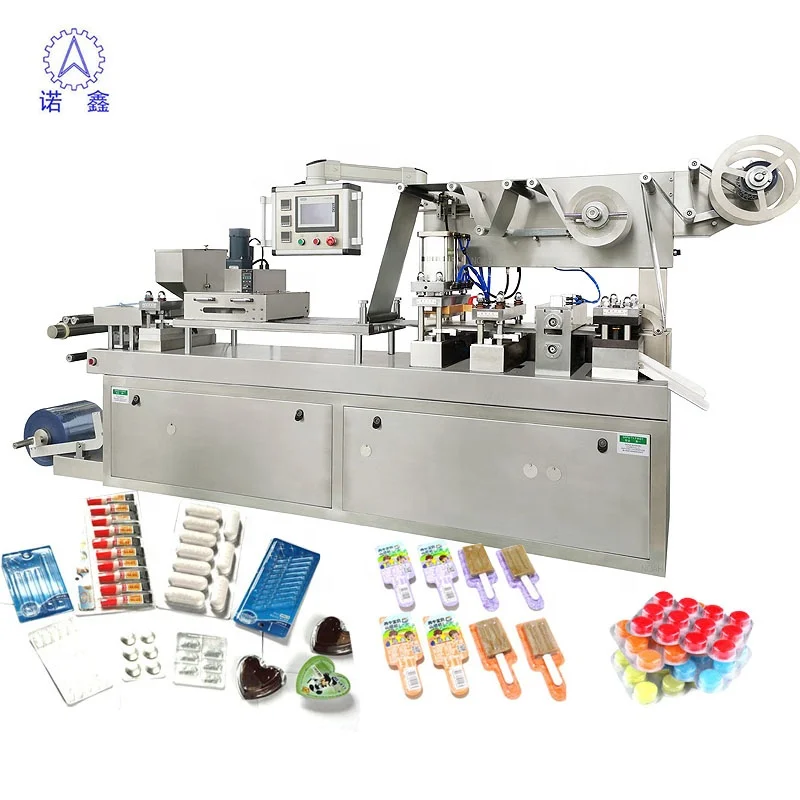

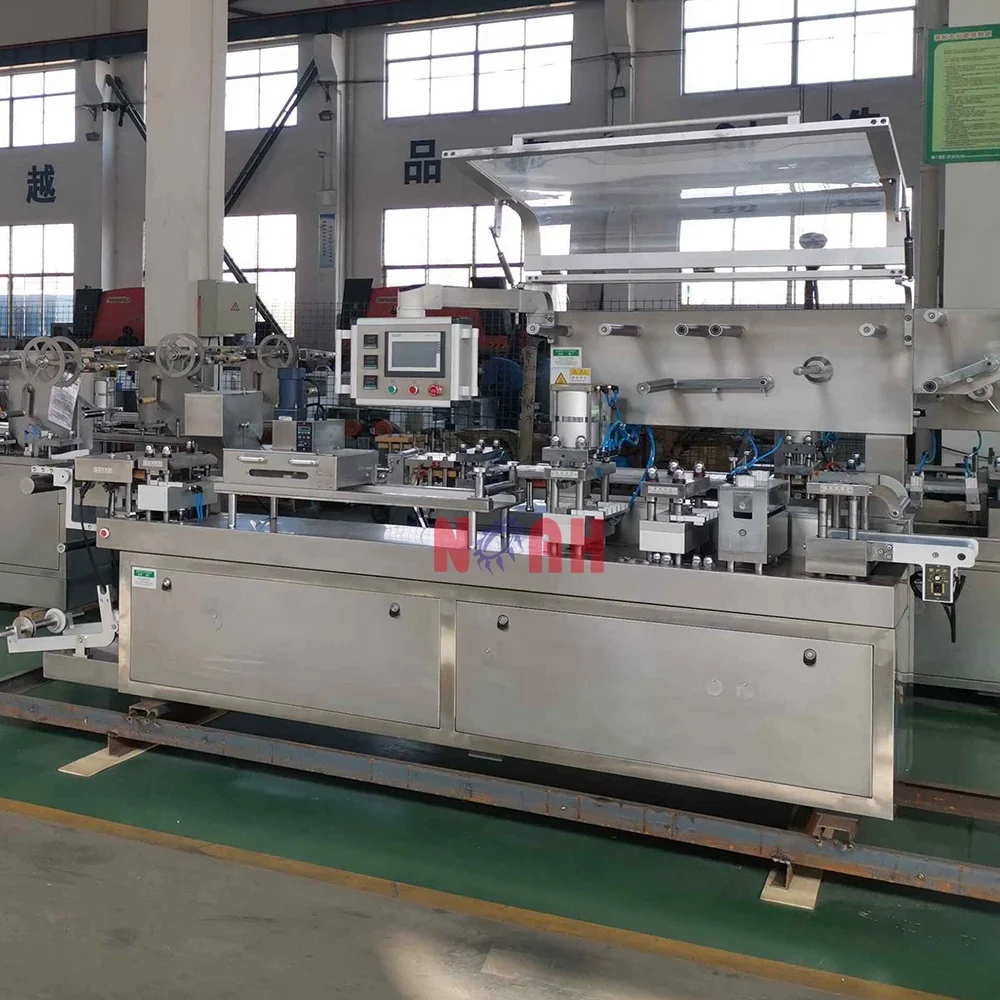

Details Images
Our Advantages
Product packaging

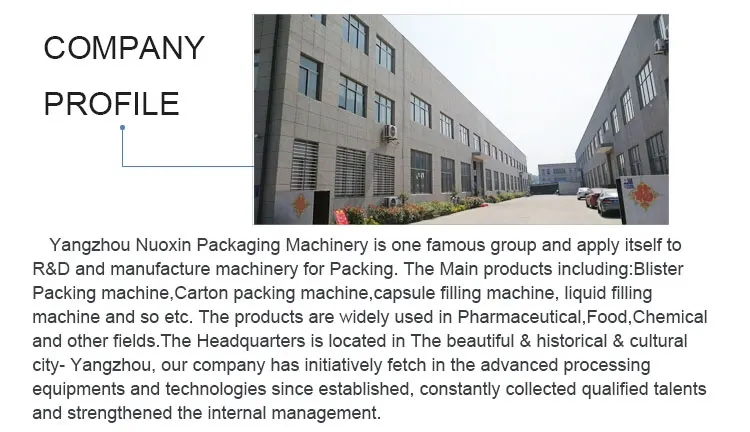

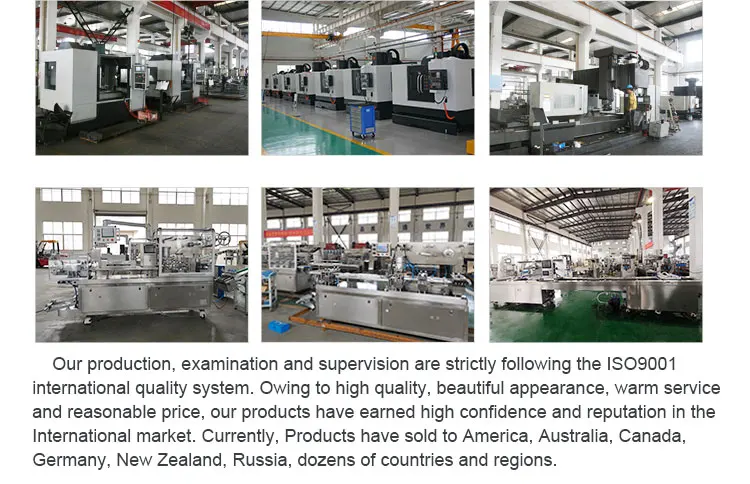

Company Profile
Customer Photos
