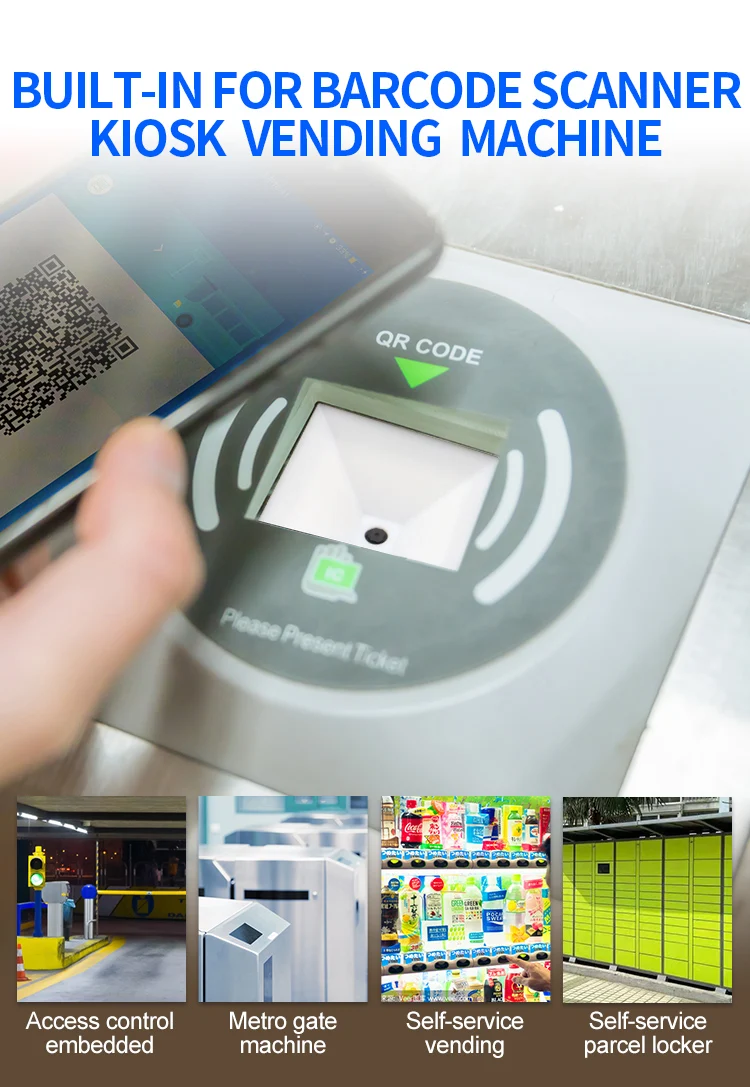

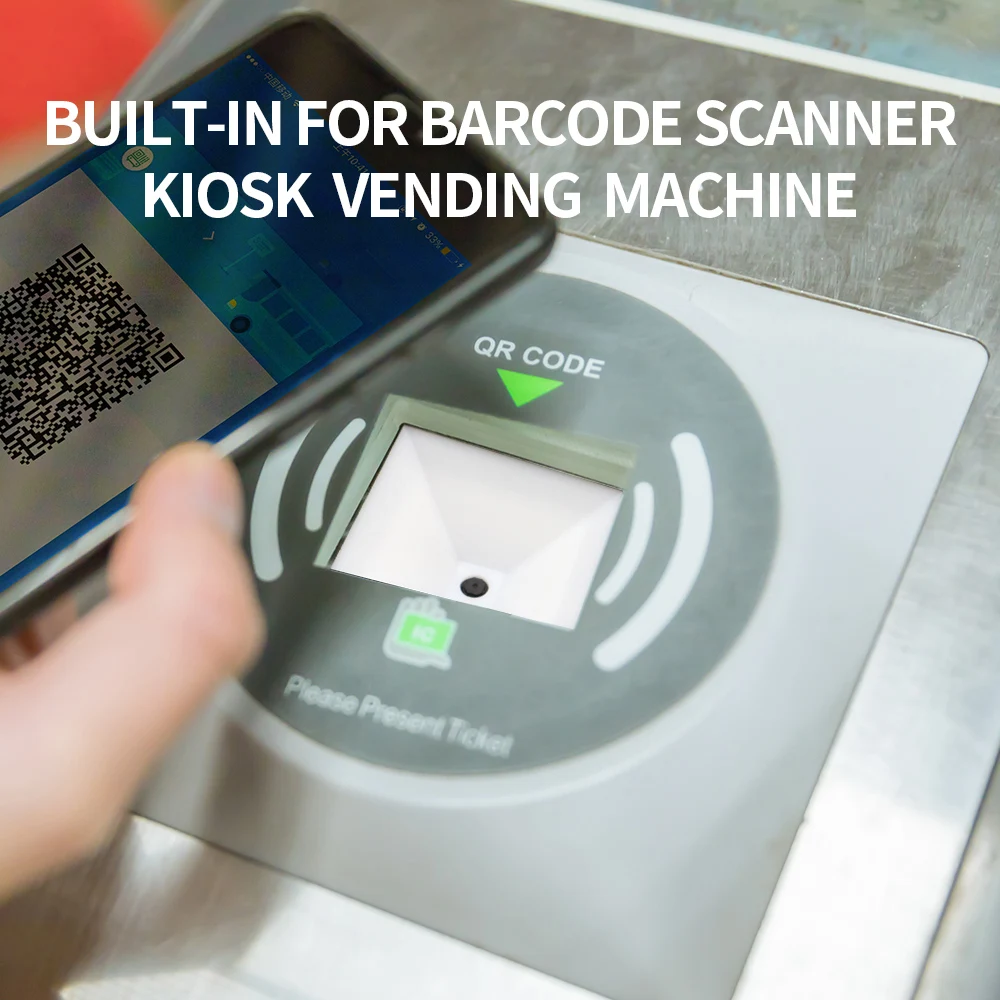

Fast Reading Qr Code Scanner Module Embedded Wall Mounted 1D 2D Barcode Scanner for Parking Payment Machine
- Category: >>>
- Supplier: Shenzhen Setlcom Technology Co. Ltd.
Share on (1600744005407):
Product Overview
Description
HOT SALES 2022
Technical Parameter
| Product model | GT-7700E | ||||||

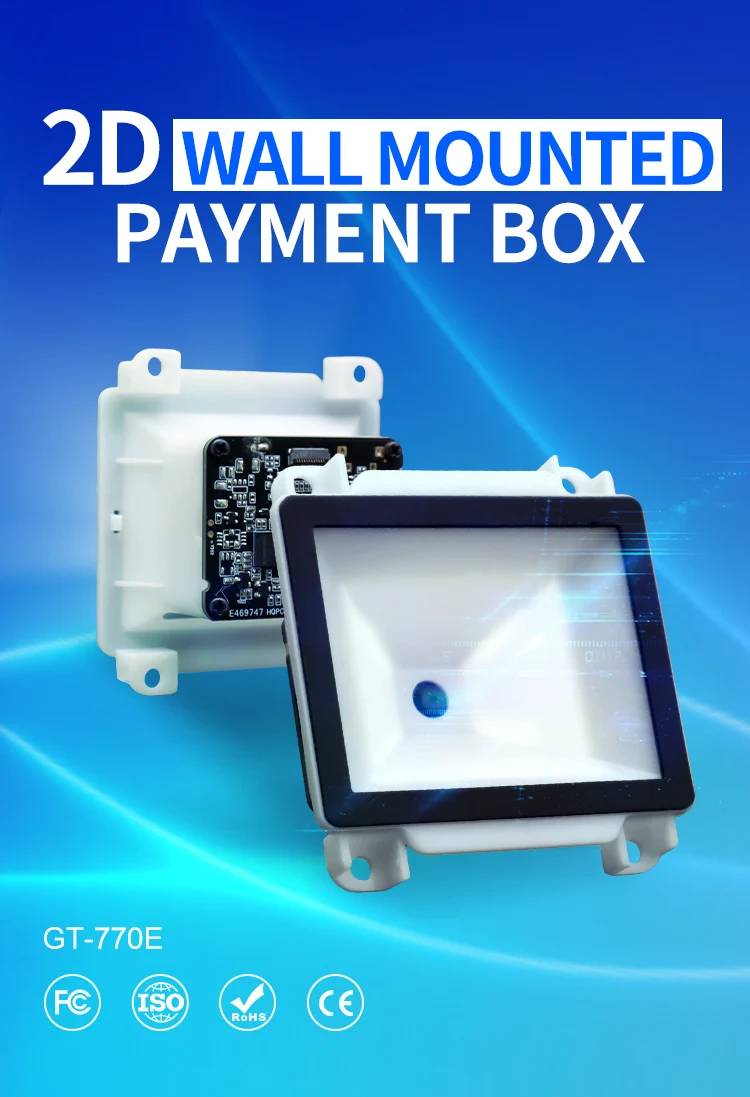

| Product name | Wall mounted payment box | ||||||
| Physical parameters | |||||||
| texture of material | ABS | ||||||
| Power supply | DC 5V ±5% | ||||||
| power waste | 0.53w (working);0.43w (standby);0.65mw (peak) [average power consumption] | ||||||
| electric current | 105ma (working);87ma (standby);130mA (peak) [average current] | ||||||
| weight | 18.0g ± 2g (excluding wire) | ||||||

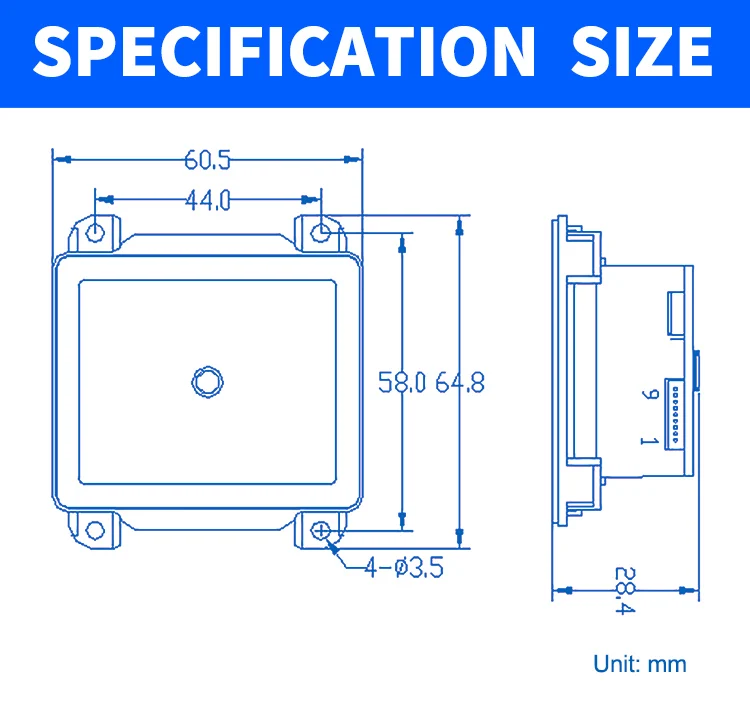

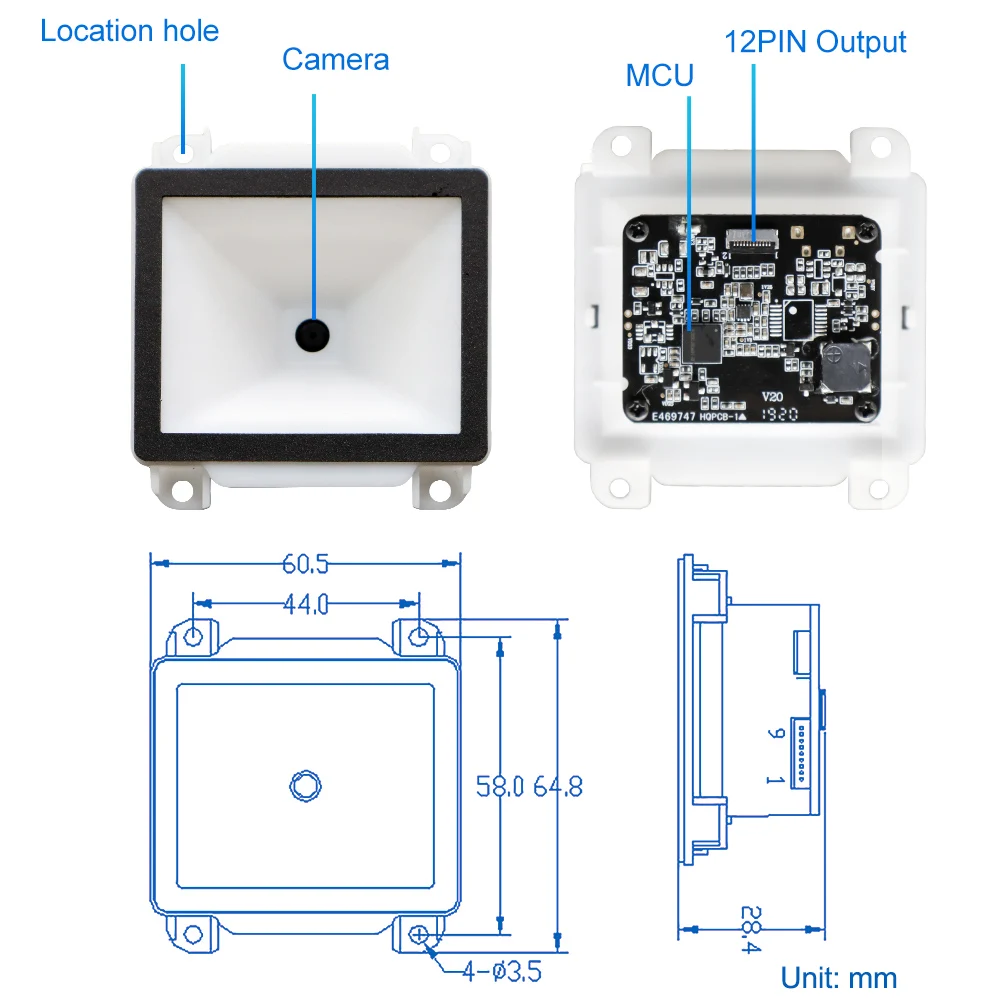

| size | long×wide×Height: 64.8 (W) mm×60.5(D)mm×28.4(H)mm | ||||||
| colour | white | ||||||
| performance parameter | |||||||

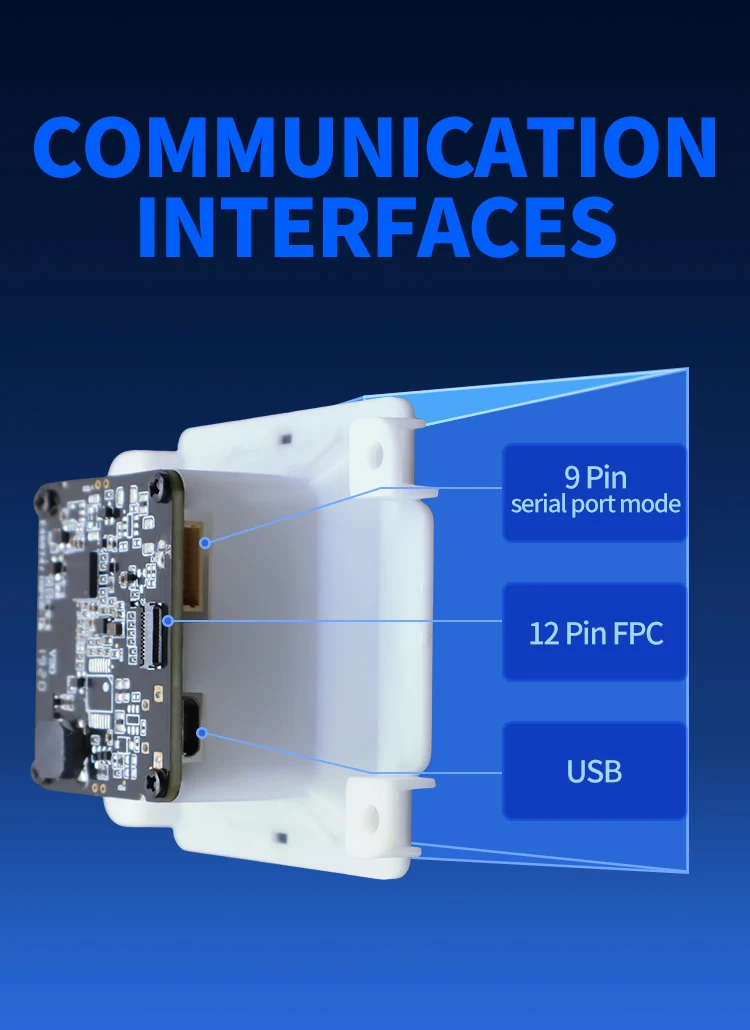

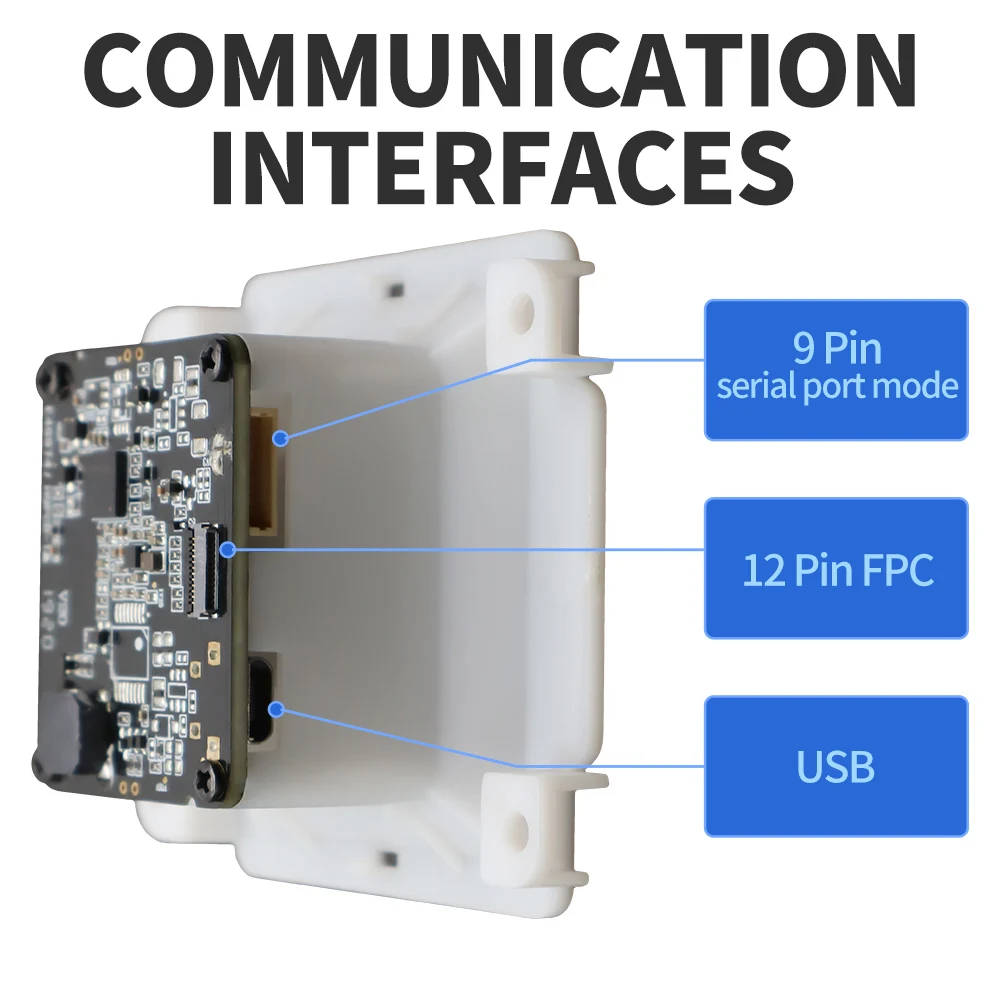

| Interface | USB;RS232 / TTL (customizable) | ||||||

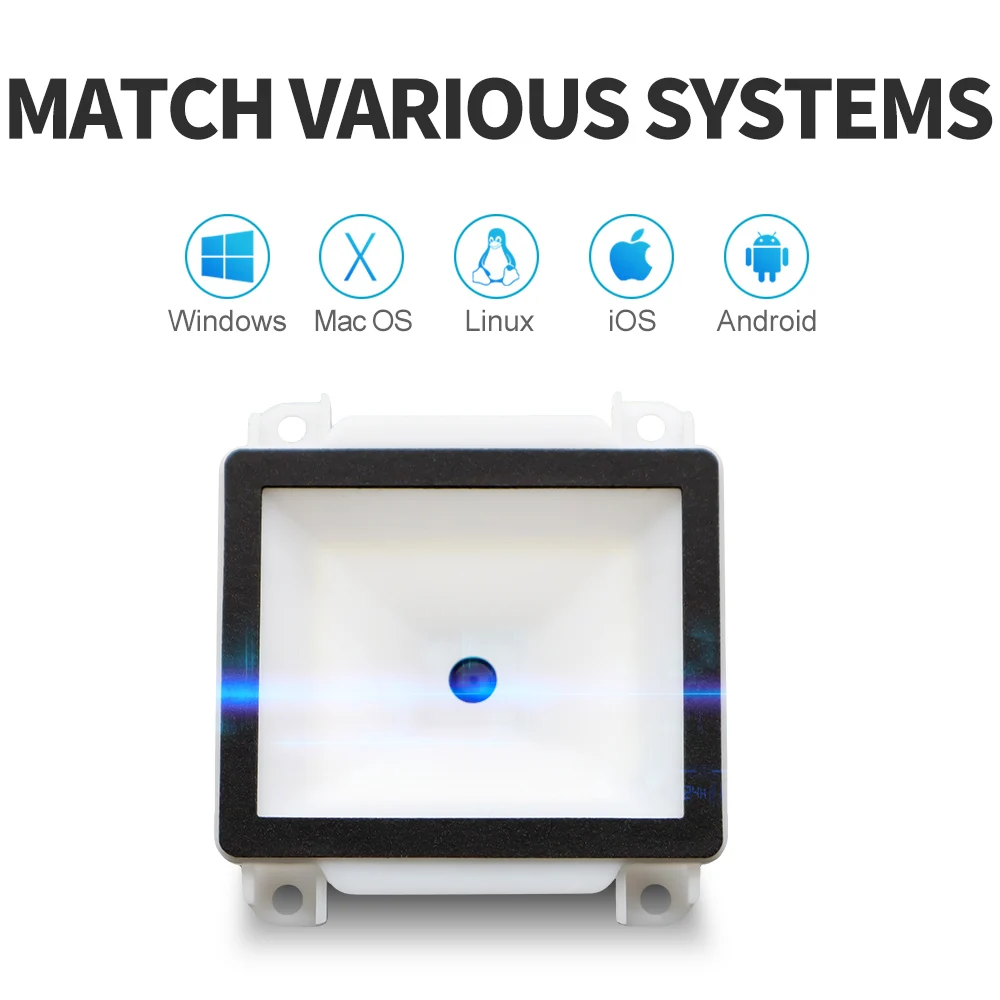

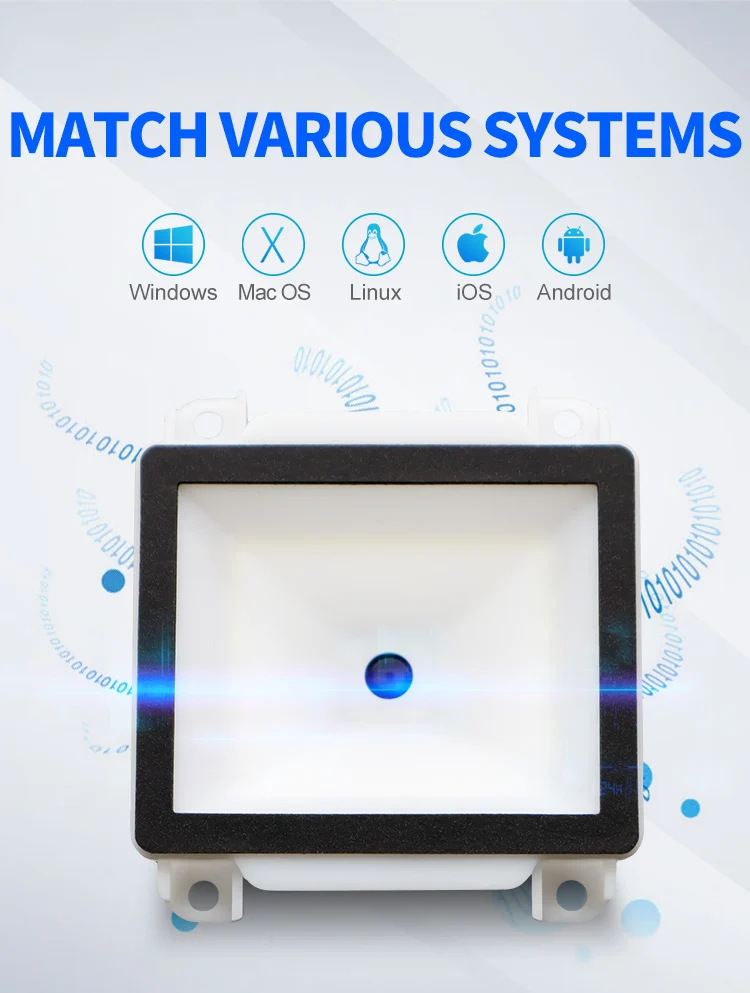

| System support | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language support | American English;Finnish;Belgian French;French;German;Sweden;Denmark;Norway;Hungarian;Italian;Japanese;Spanish;Portugal;Turkey f;Russia;Czech Republic;Thailand;Ukraine;Brazil;Greece;Netherlands;Turkey Q;Poland;Romania;Slovakia. \t\t\t[support virtual keyboard] | ||||||
| sensor | Planar CMOS sensor 640×four hundred and eighty | ||||||
| light source | White LED | ||||||
| processor | 32-bit ARM MCU | ||||||
| Motion tolerance | code 128:10cm/sec \t\t\t QR:20cm/sec | ||||||
| resolving power | ≥5mil | ||||||
| error rate | 1 / 5 million | ||||||
| Reading mode | image | ||||||
| Trigger mode | Self induced mode | ||||||
| Feedback mode | Indicator light (LED) + buzzer | ||||||
| Print contrast | ≥30% | ||||||

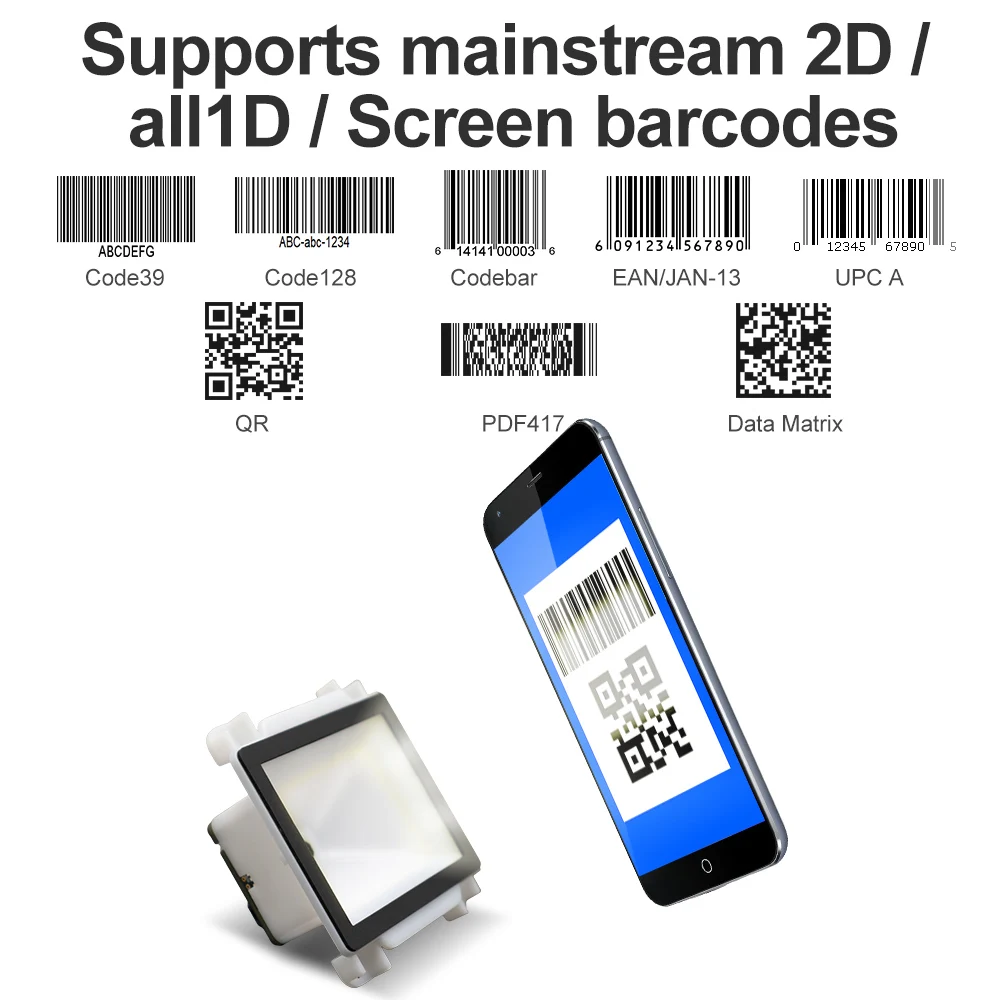

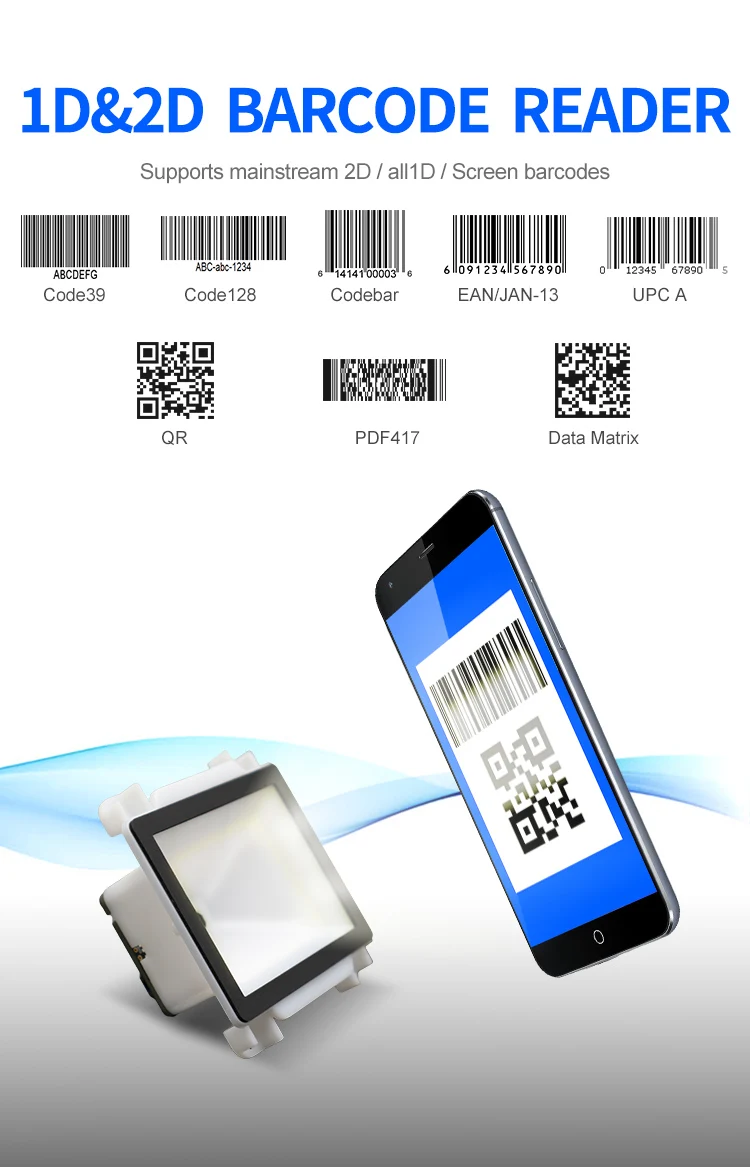

| Reading code system | 1D | Code25-Interleaved Code25-Standard Code25-Matri \t\t\tCode39 ITF-6 Code32 \t\t\tCode93 ITF-14 Code128 \t\t\tEAN/GSL/UCC-128Auto Codabar MSI \t\t\tEAN/JAN-13 UPC-A JAN-8 \t\t\tCode11 UPCE0 | |||||
| 2D | QR Code Data Matrix PDF417 | ||||||
| Recognition angle | Angle 360 °;Elevation ± 55 °;Deflection angle ± 55 ° | ||||||
| Depth of field | QR 10.83mil (8 bytes) 2cm - 5cm \t\t\tCode128 5.83mil (15 bytes) 4.5cm - 6cm \t\t\tCode28 10.83mil (16 bytes) 5cm - 12cm \t\t\tWechat payment one-dimensional code 3.5cm - 14cm \t\t\tWechat payment QR code 3.5cm - 22cm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85% (no condensation) | ||||||
| Storage humidity | 20% to 85% (no condensation) | ||||||
| Electrostatic protection | 15kV air discharge | ||||||
| Seismic capacity | Free fall 1.2m (concrete ground) | ||||||
Product Description

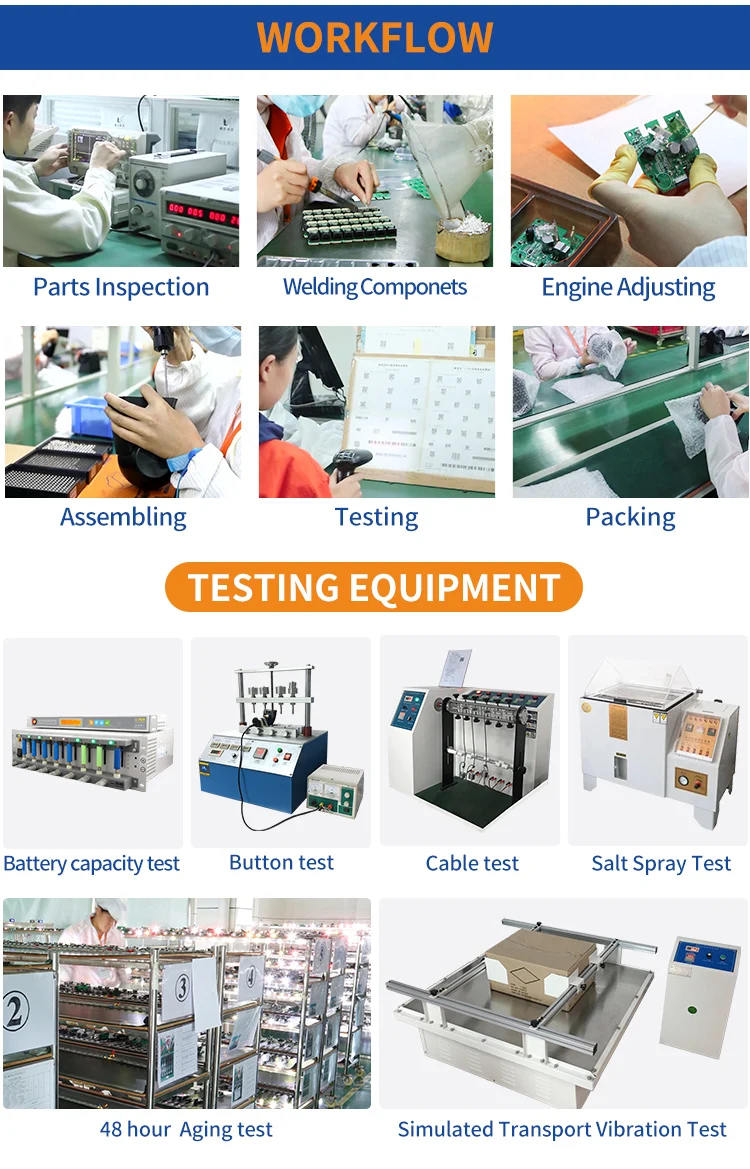

Production Flow
FAQ
\t\t\t 1. How about the quality? \t\t\t Professional QC team and testing machine(Engine age testing,wire bending machine, \t\t\t switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc. \t\t\t |
\t\t\t 2. Why so competitive? \t\t\t With almost 10 years experience,we owned a large domestic market in China. \t\t\t We are the best seller in China. So large quantity will reduce our raw material cost directly. \t\t\t What's more,we have mature technology to save cost. \t\t\t |
\t\t\t 3. How to control the performance stable? \t\t\t We take the flow line production in the whole processing. \t\t\t Every product will test 4 times at least before it delivery. \t\t\t |
\t\t\t 4. Is OEM or ODM available? \t\t\t Yes.We are the factory directly.We can make it as your requirement. \t\t\t 5. Why customer choose us? \t\t\t ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service. \t\t\t 6. How about the factory? \t\t\t We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech \t\t\t enterprise by the government.Owned many technical and design patents in different professional fields. \t\t\t |
