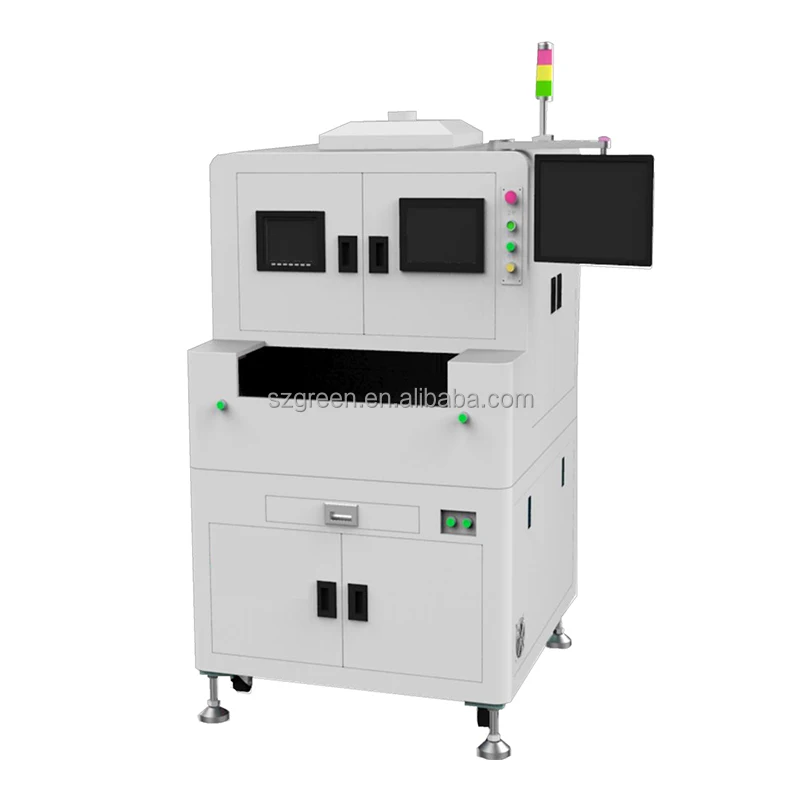

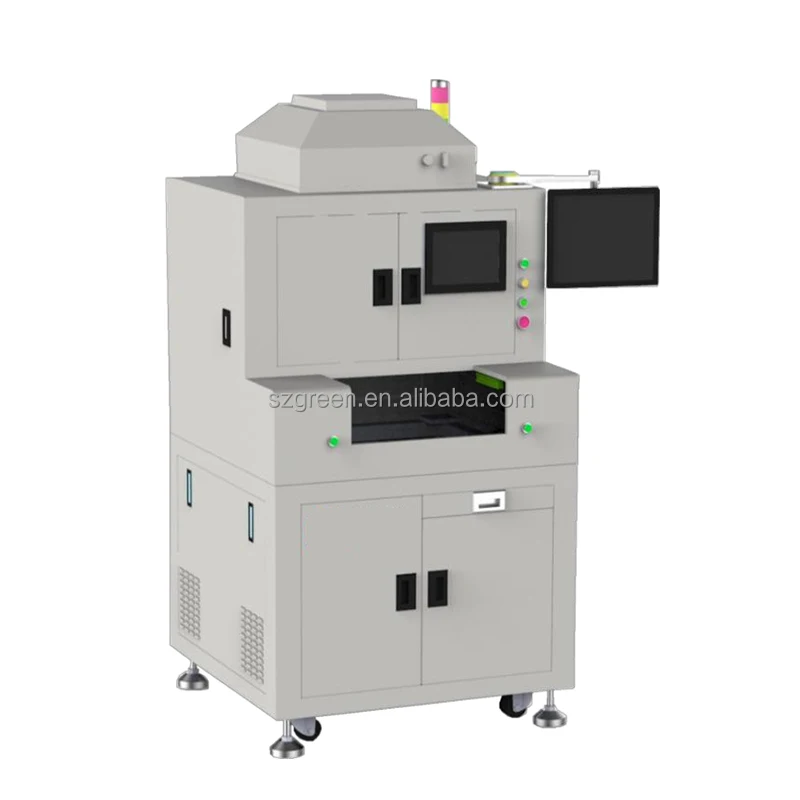

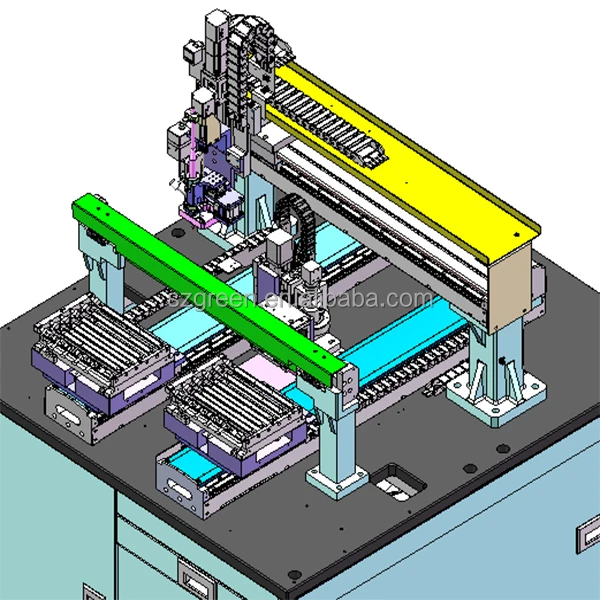

Green Duplex Laser Solder Ball Welding Machine LAB201 For FPC and PCB/Wire Rod and PCB/ THT Plug in Device Welding
- Category: >>>
- Supplier: Green Industrial (china) Co. Ltd.
Share on (1600744008443):
Product Overview
Description
Product Description
Specification
item | value |
Type | Soldering Machine |
Condition | New |
Applicable Industries | fuse industry, semiconductor industry, communication industry |
Video outgoing-inspection | Not Available |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Motor, Pressure vessel |
Showroom Location | None |
Place of Origin | China |
Guangdong | |
Brand Name | GREEN |
Voltage | 220V |
Dimensions | 100*110*165(cm) |
Usage | soldering wire |
Warranty | 1 Year |
Key Selling Points | High-accuracy |
Weight (KG) | 500KG |
Model | LAB201 |
Solder ball specifications | 0.15-0.25mm/0.3-0.76mm/0.9-2.0mm(Optional) |
Visual positioning system | CCD, The resolution±5um |
Camera pixels | 5 million pixels |
Control mode | PLC+PC Control |
Mechanical repeatability accuracy | ±0.02mm |
Processing range | 200mm*150mm(Customizable) |
Use power | <2KW/H |
Air source | Compressed air>0.5 MPa nitrogen>0.5MPa |
Outer demension(LW*H) | 1000*1100*1650(mm) |
Application field:
CCM camera/module, gold finger/FPC, wire, communication device, optical device, fuse industry,semiconductor industry solder
Application Range
Laser solder ball welding realizes precision class: PCB pad and gold finger solder connection, FPC and PCB welding, wire rod and
PCB welding, part THT plug-in device soldering. Products with PIN pins on one side and contralate products with PIN pins on both
sides, and many other precision welding products.
Laser solder ball welding realizes precision class: PCB pad and gold finger solder connection, FPC and PCB welding, wire rod and
PCB welding, part THT plug-in device soldering. Products with PIN pins on one side and contralate products with PIN pins on both
sides, and many other precision welding products.
Product Advantages
1. The heating and droplet process is fast and can be completed within 0.2s;
2. Complete the melting of the solder ball in the solder nozzle without splashing;
3. no flux, no pollution, to maximize the life of electronic devices;
4. The minimum diameter of the solder ball is 0.15mm, which is in line with the development trendof integration and precision;
5. Welding of different solder joints can be completed through the selection of solder ball size;
6. Stable welding quality and high yield rate；
7. Cooperate with CCD positioning system to meet the needs of assembly line mass production;
8. UPH > 8000 points, yield > 99% (different according to different product )
2. Complete the melting of the solder ball in the solder nozzle without splashing;
3. no flux, no pollution, to maximize the life of electronic devices;
4. The minimum diameter of the solder ball is 0.15mm, which is in line with the development trendof integration and precision;
5. Welding of different solder joints can be completed through the selection of solder ball size;
6. Stable welding quality and high yield rate；
7. Cooperate with CCD positioning system to meet the needs of assembly line mass production;
8. UPH > 8000 points, yield > 99% (different according to different product )
