The machine applies PLC and touch screen with advanced molding technique can produce various shapes of EPS products, the vacuum and hydraulic system can increase molding speed and reduce cooling time.

Techical Data | Technical Data | |||||||||
ITEM | Item | LWS-1200T | LWS-1400T | LWS-1600T | LWS-1750T | |||||
Mould Dimension(mm) | Mould size(mm) | 1200*1000mm | 1400*1200mm | 1600*1400mm | 1750*1450mm | |||||
Max Produce Size(mm) | 1050*850*400 | 1250*1050*400 | 1450*1250*400 | 1600*1300*400 | ||||||
Stoke(mm) | 150-1350 | 150-1350 | 150-1350 | 150-1350 | ||||||
Steam | Entry | DN80 | DN80 | DN100 | DN100 | |||||
Consumption | 5~7kg/cycle | 6~9kg/cycle | 7~10kg/cycle | 8~12kg/cycle | ||||||
Pressure | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa | ||||||
Water | Entry | DN80 | DN80 | DN80 | DN80 | |||||
Consumption | 45~130kg/cycle | 50~150kg/cycle | 55~170kg/cycle | 55~180kg/cycle | ||||||
Pressure | 0.3~0.5Mpa | 0.3~0.5Mpa | 0.3~0.5Mpa | 0.3~0.5Mpa | ||||||
Air | Entry | DN50 | DN50 | DN50 | DN50 | |||||
Consumption | 1.5m3/cycle | 1.8m3/cycle | 2m3/cycle | 2.5m3/cycle | ||||||
Pressure | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa | ||||||
Vacuum motor | 5.5kw | 5.5kw | 7.5kw | 7.5kw | ||||||
Hydraulic motor | 5.5kw | 5.5kw | 7.5kw | 7.5kw | ||||||
Cycle time | 60~100s | 60~120s | 70~140s | 70~140s | ||||||
Power | 13kw | 13kw | 17kw | 17kw | ||||||
Machine overall size(mm) | 5200*2200*4500 | 5300*2300*4600 | 5400*2400*4700 | 5400*2600*4800 | ||||||
Weight | 5100kg | 6400kg | 7600kg | 8100kg | ||||||
Other Size Can Also Be Made According to Client's Requirements | ||||||||||




1.\tThis machine applies PLC and touch screen,advanced moulding technique and can produce various shapes of EPS products.
2.\tThis machine can provide different kinds of foam articles with lower moisture content, high foaming speed and lower consumption of energy.
3.\tThere are four kinds of operating mode (automatic,semi-automatic,pause-startup and manual operation)with safe-guard protective device to ensure safe operation.
4.\tThis machine has microcomputer control and touch screen display. It can function high efficiently under computer control and management with high automation.Simplicity of operation and easy to maintain,it can reduce the labor intensity.
5.\tThis machine applies advanced electrical and hydraulic integration system,which improves the moulding speed,lowers the energy consumption remarkably and reduces the environmental pollution.
6.\tMechanic de-mould mode.
Applications of Longwell Hot Sale Polystyrene Foam Ceiling Tiles EPS Making Decorative Machine

EPS foam packages for fish, vegetable, egg & others,
EPS foam decorations for interner house

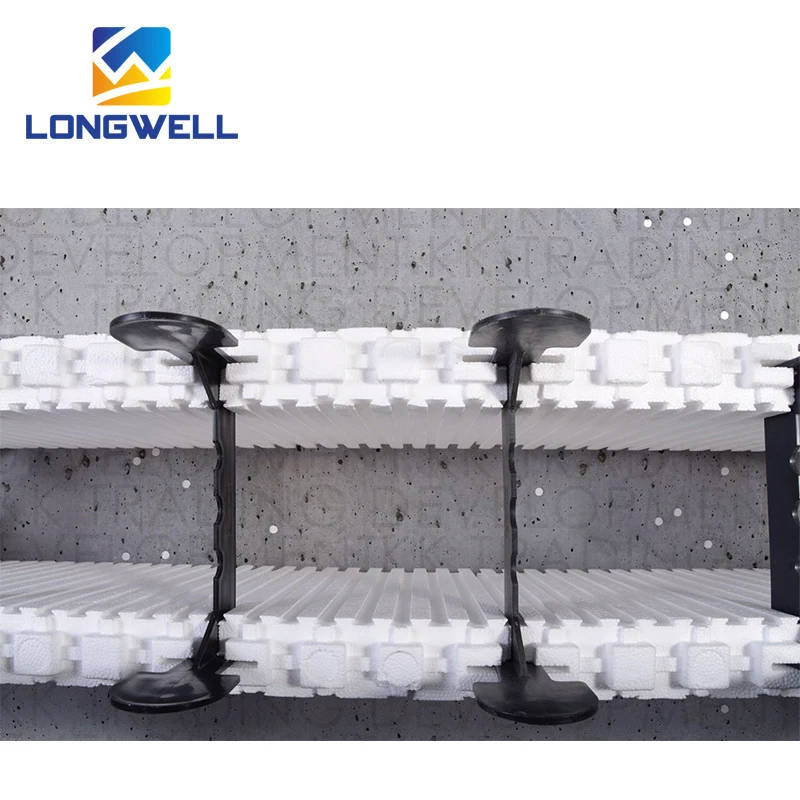

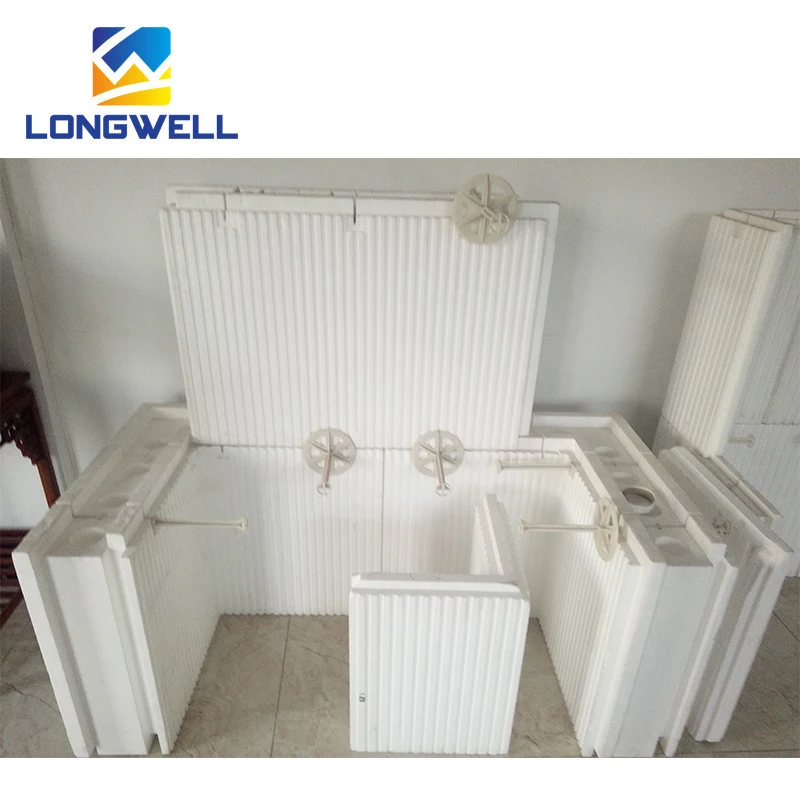

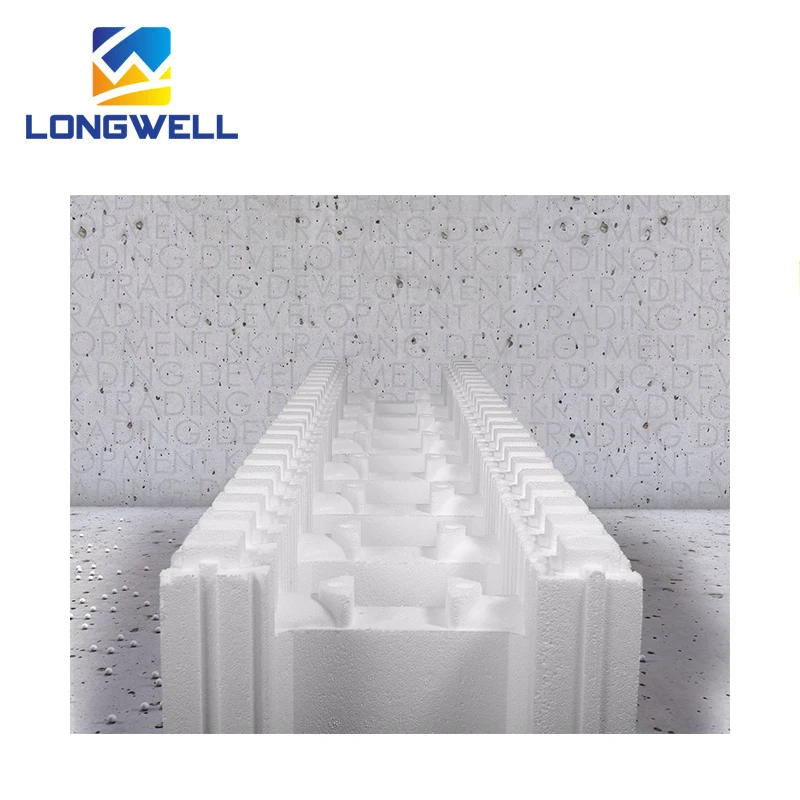

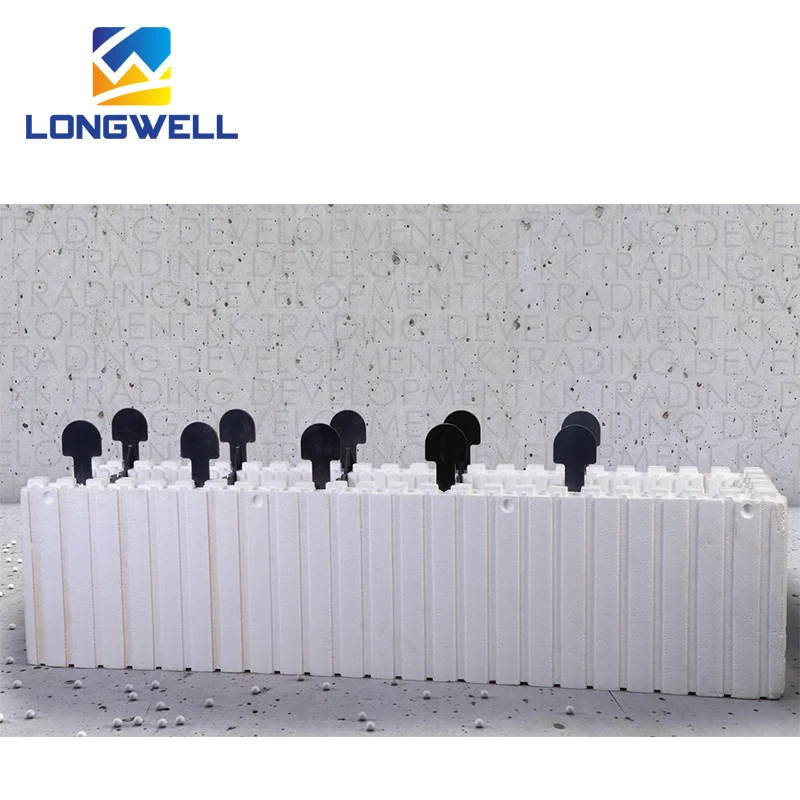

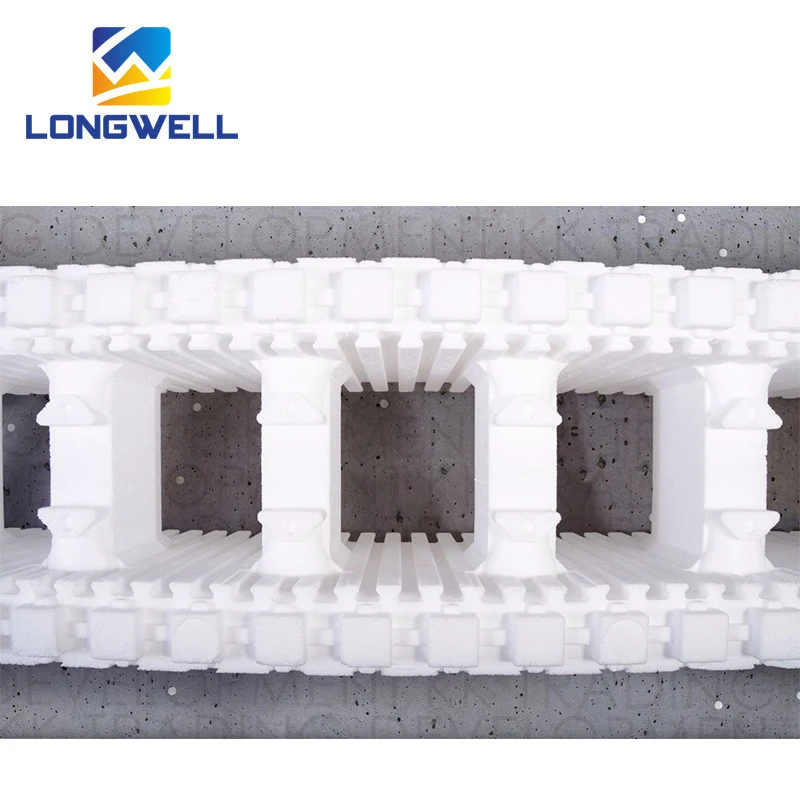

EPS foam ICF blocks for construction building walls
EPS foam inner helmets for protection
EPS foam interlock bricks for insulation
EPS foam slabs for construction floor & roofing
