4G driver fatigue monitor GPS location fleet management MDVR with ADAS system DMS DSM

Product Overview

Description

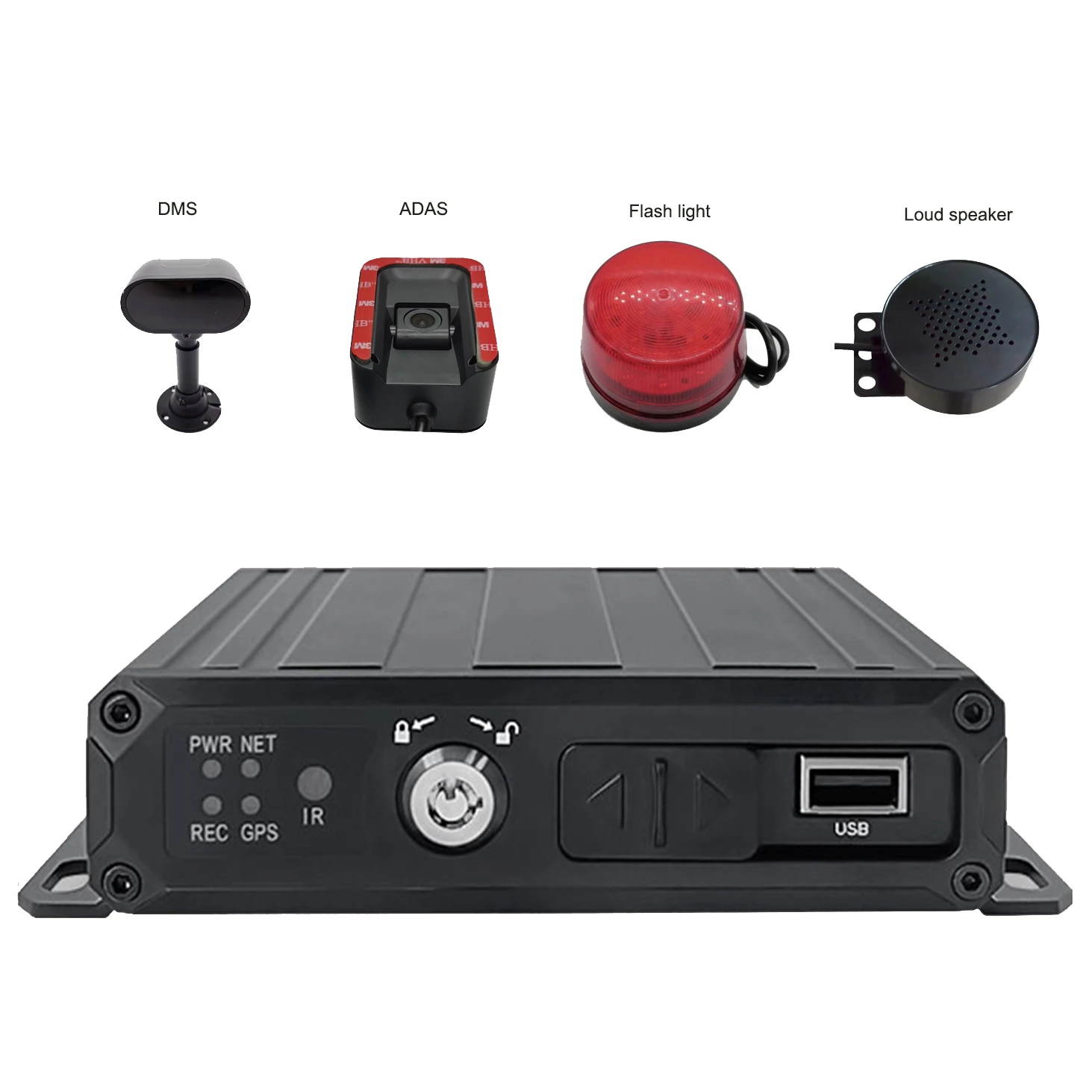

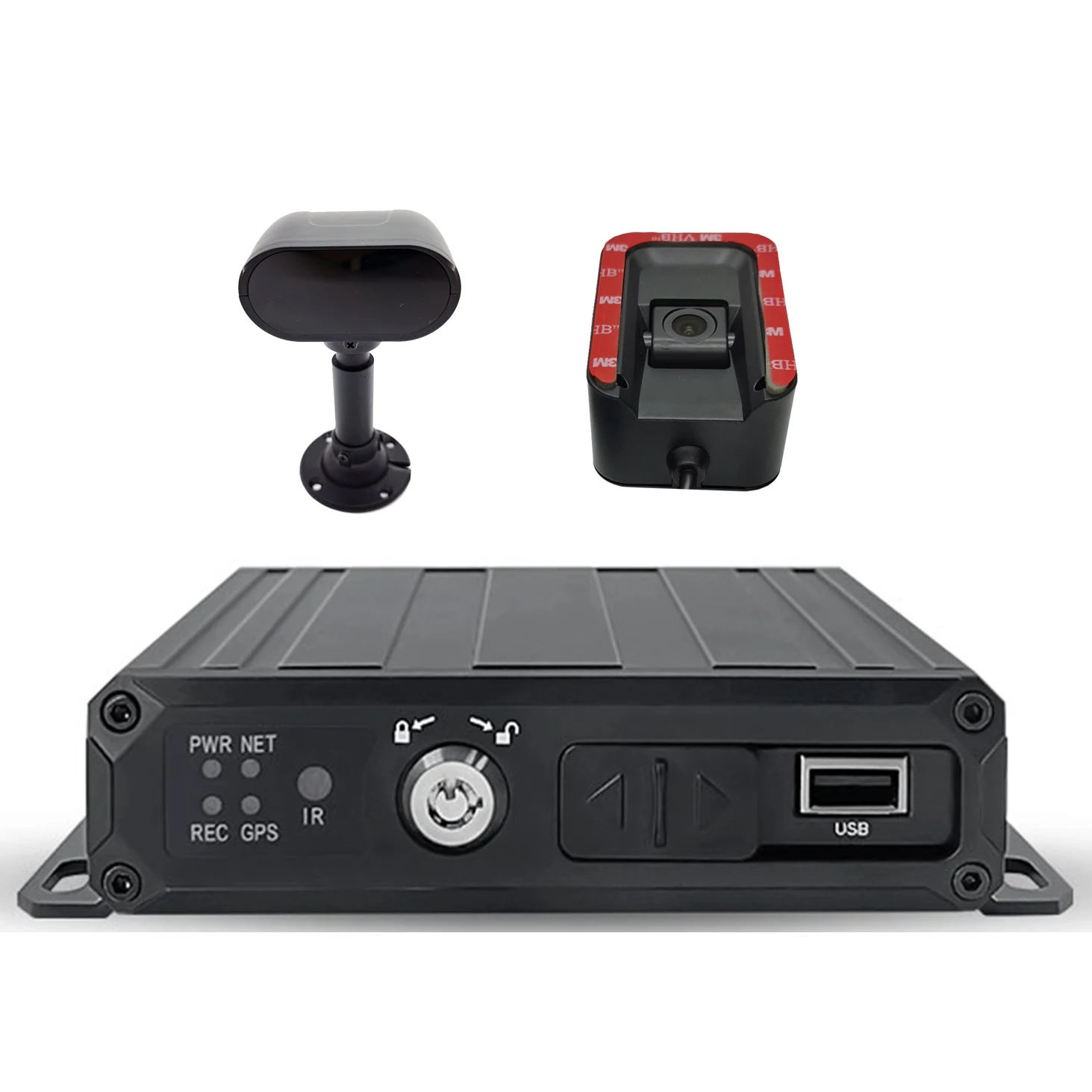

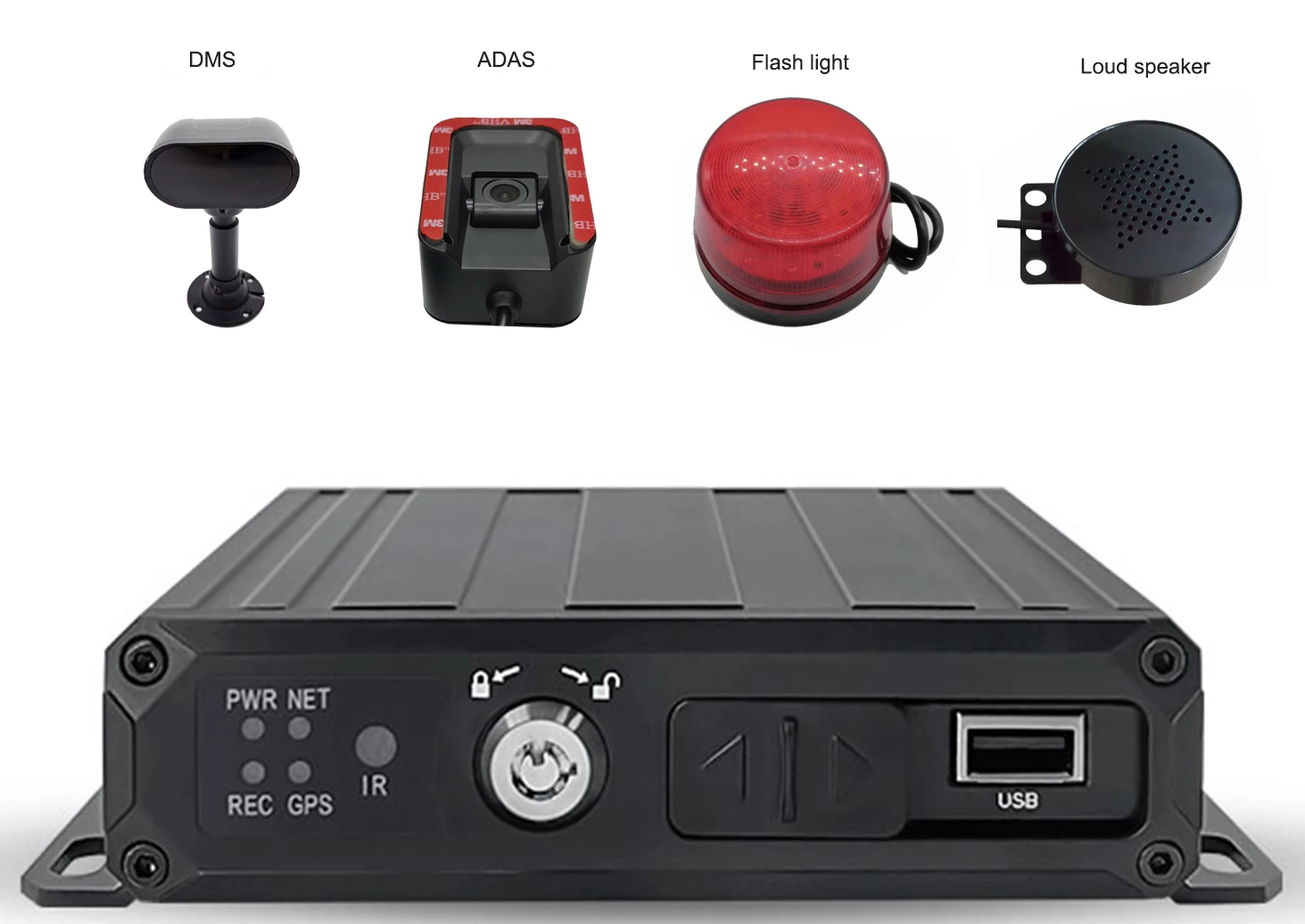

DSM04A 4-in-1 Driving Assistance Solution ADAS+DSM+4G GPS+ monitor center



DSM04A, based on leading computer vision technology, is capable of monitoring target objects from the road ahead, such as vehicles, lanes, pedestrians, cyclists, traffic signs, etc. When the system detects potential collision dangers during driving, it will issue warnings to improve the driving safety.



Components:







ADAS Features	Description	Warning Strategies
Lane Departure Warning	Lane change without turn signals	Speed>50km/h
Headway Monitoring and Warning	Too close to vehicles ahead	Level 1: Speed > 40km/h, TTC<0.8s
		Level 2: Speed > 40km/h, TTC<0.4s
Forward Collision Warning	High relative velocity to the vehicle ahead	TTC<2.7s
Pedestrian Collision Warning	Potential collisions with pedestrians	Speed < 60km/h, TTC<1.4s
Virtual Bumper	The vehicle unintentionally moves forward when the vehicle ahead stops	Distance: <1m
Front Vehicle Departure Warning	The vehicle stands still when the vehicle ahead starts to move forward	Front vehicle departure time : > 3s



DSM Features	Description	Warning Strategies
Eye Closure	the driver’s eyes are closed	Speed>20km/h
Yawning	the driver is yawning	Speed>20km/h
Head Down	the driver is looking down	Speed>20km/h
Eyesight Deviation	the driver is not looking forward	Speed>40km/h
Phone calls	the driver is talking over the phone	Speed>20km/h
Smoking	the driver is smoking in the vehicle	Speed>20km/h
Empty	the camera didn’t detect the driver’s face	Speed>20km/h
Shelter	the camera is covered	Speed>20km/h
