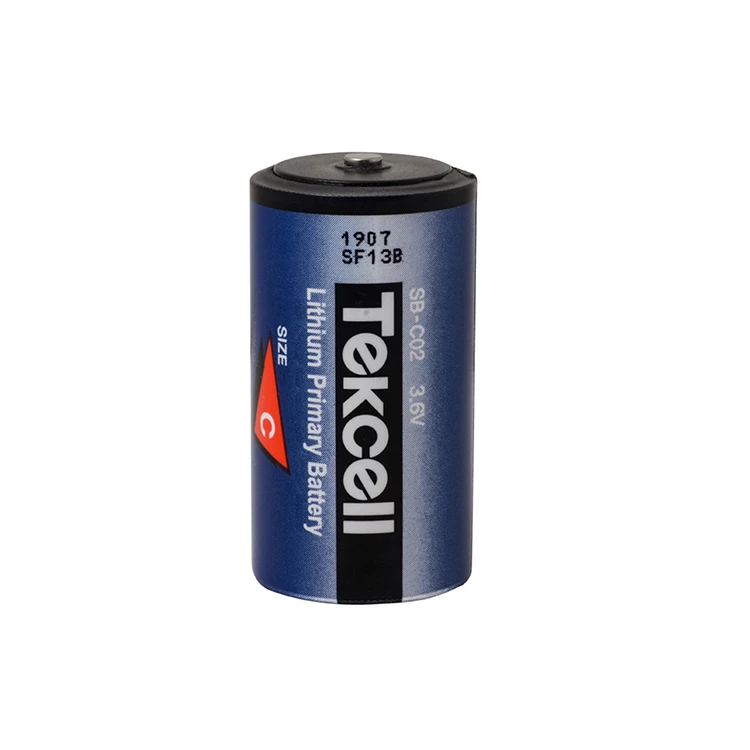

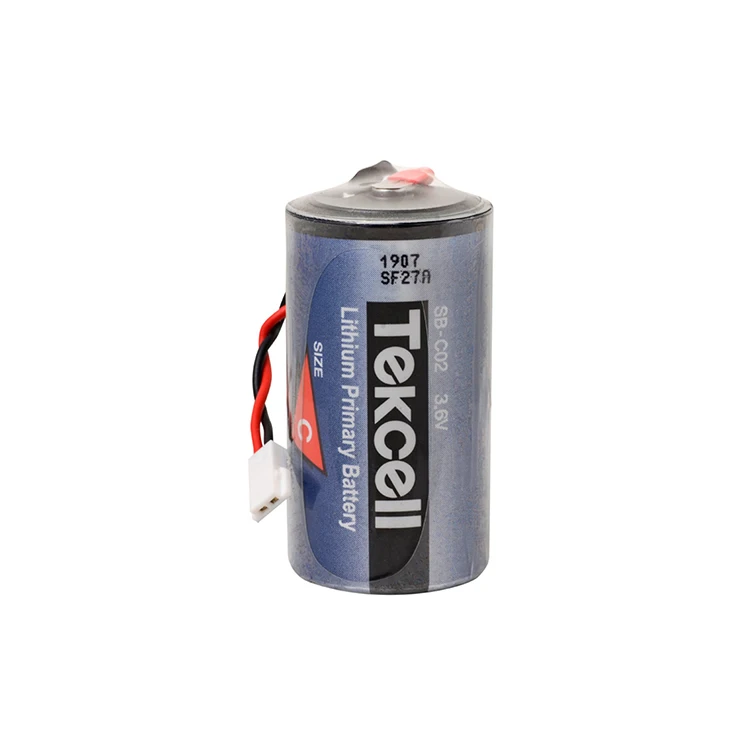

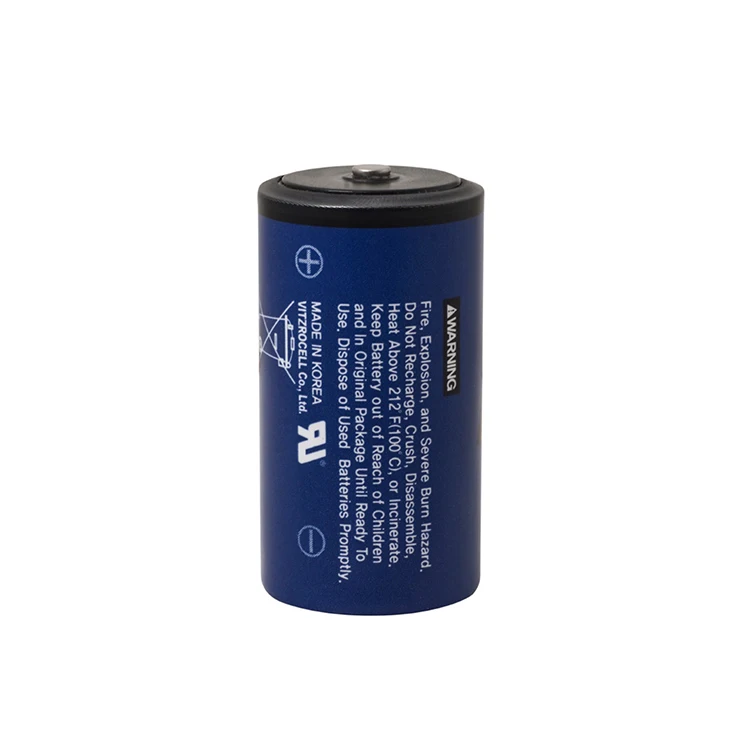

Tekcell Sized C Lithium TC Battery 3.6V 8.5Ah SB C02 Replacement LS26500 ER26500
- Category: >>>
- Supplier: Shenzhen iHope Technology Co. Ltd.
Share on (1600744072176):
Product Overview
Description
Specifications
Tekcell SB-C02 C Sized 3.6V Primary Lithium Battery is based on the Lithium-Thionyl chloride (Li-SOCl2) chemistry.
The Tekcell SB-C02 cell is designed for long-term (up to 10 years) applications. Less than 1% self-discharge after 1 year storage at 20°C, Compatible Part Numbers: LS26500, TL5920, T52/41, T52/51
The Tekcell SB-C02 cell is designed for long-term (up to 10 years) applications. Less than 1% self-discharge after 1 year storage at 20°C, Compatible Part Numbers: LS26500, TL5920, T52/41, T52/51

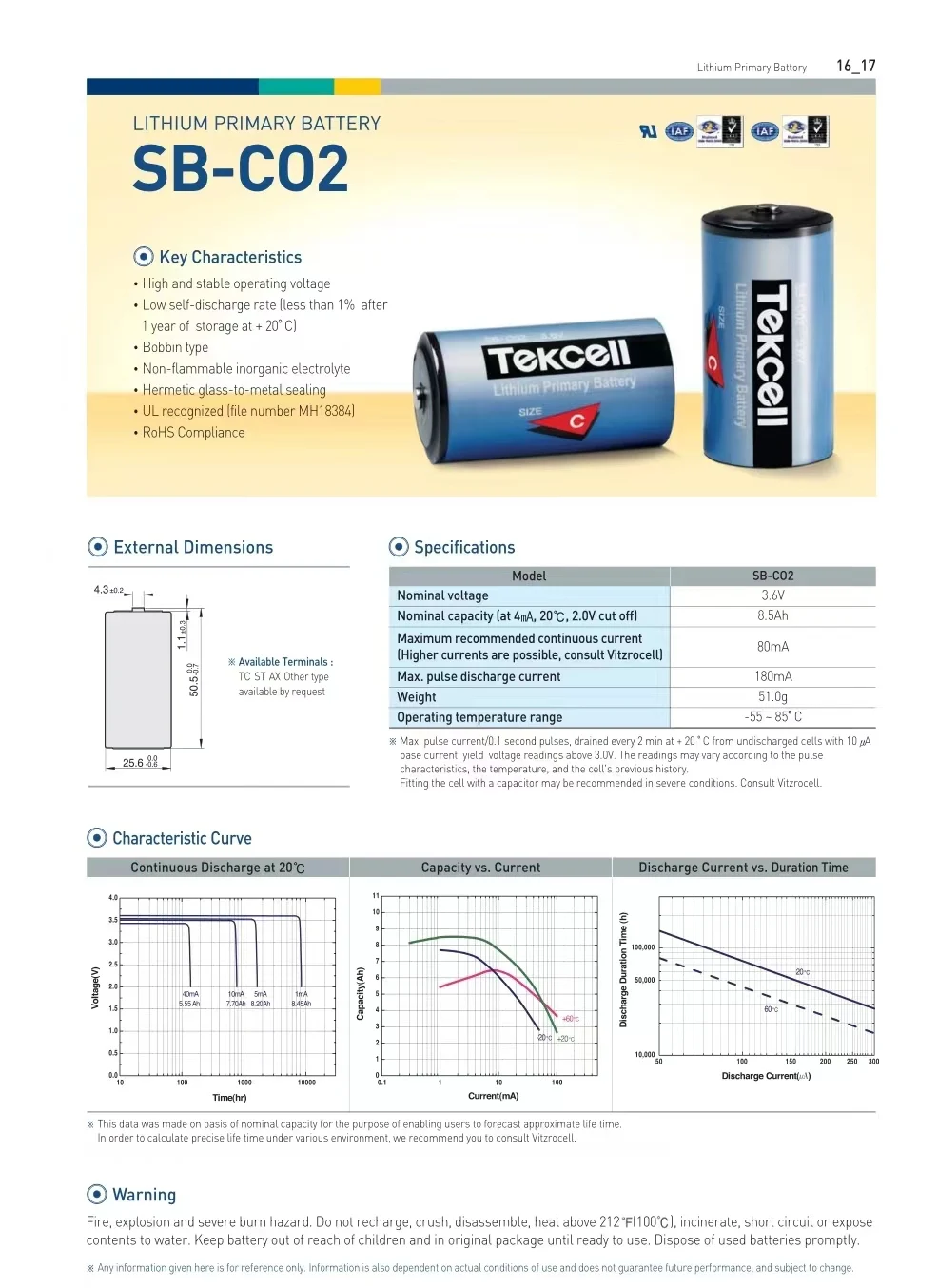

Model Name | Tekcell SB-C02 |
Size | C |
Nominal Capacity | 8.5Ah |
Nominal Voltage | 3.6V |
Max Recommended Continuous Current | 80mA |
Max Pulse Discharge Current | 180mA |
Operating Temperature | -55-85℃ |
Dimensions | H: 50,5mm D: 25,6mm |
Net Weight | 51g |
Product Description
Construction Features:
* Bobbin Type
* Hermetic glass-to-metal sealing
* Un-fused individual cells
* Underwriters Laboratories (UL) Component Recognition - File Number MH 18384
* Main Applications:
* Memory back-up
* Real-time clocks
* Utility metering
* Automated meter reading
* Wireless alarms and Security devices
* Emergency locations transmitters beacon
* Electronic toll collection
* Professional electronics
* Benefits
* High operating voltage, stable during most of the application lifetime
* Some of the highest nominal capacities on the market today
* Excellent reliability over extended operating life
* Operating Temperature Range: -55°C/+85°C (-67°F/+185°F)
* Low self-discharge rate (less than 1% after 1 year of storage at 20°C)
* Excellent resistance to humid environments
* Low magnetic signature
* Good resistance to passivation
* Compliance with the European directive RoHS
* Bobbin Type
* Hermetic glass-to-metal sealing
* Un-fused individual cells
* Underwriters Laboratories (UL) Component Recognition - File Number MH 18384
* Main Applications:
* Memory back-up
* Real-time clocks
* Utility metering
* Automated meter reading
* Wireless alarms and Security devices
* Emergency locations transmitters beacon
* Electronic toll collection
* Professional electronics
* Benefits
* High operating voltage, stable during most of the application lifetime
* Some of the highest nominal capacities on the market today
* Excellent reliability over extended operating life
* Operating Temperature Range: -55°C/+85°C (-67°F/+185°F)
* Low self-discharge rate (less than 1% after 1 year of storage at 20°C)
* Excellent resistance to humid environments
* Low magnetic signature
* Good resistance to passivation
* Compliance with the European directive RoHS
