SCON LED Magnetic Track Light Aluminum Modern Lighting Indoor Black Track Rail Track Lighting System 5W 7W 10W 15W 30W
- Category: >>>
- Supplier: Zhongshan Scon Lighting Technology Co. Ltd .
Share on (1600744103168):
Product Overview
Description

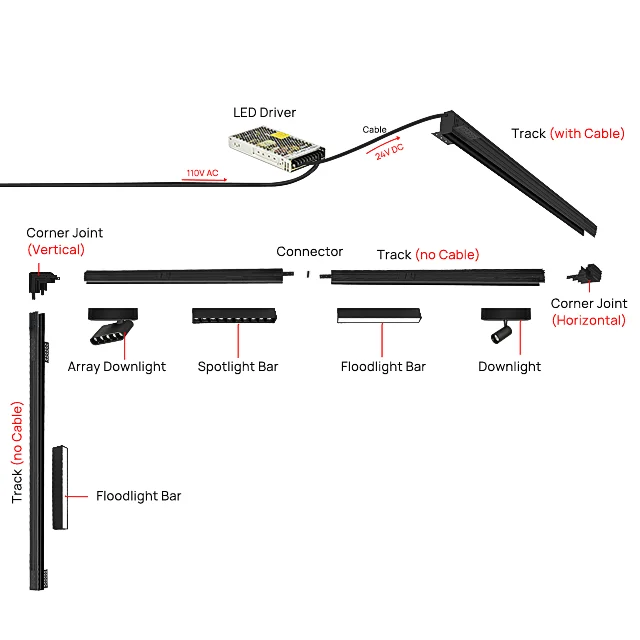

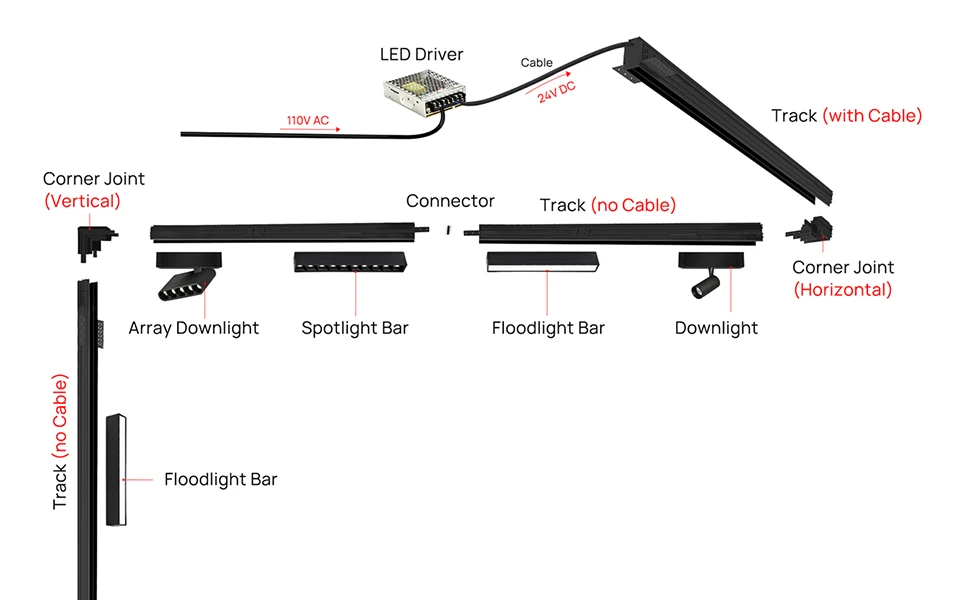

The principle of SCON Recessed Magnetic Track Light System
TO DESIGN A MAGNETIC TRACK LIGHTING SYSTEM, THESE COMPONETS MUST BE HAVE:
1. Drive. INPUT: 110V AC/220V AC. OUTPUT: 24V DC.
2. Track rail with wire.
3. Track rail no wire (if you need more than 1m track rail).
4. Track lighting heads.
3. Track rail no wire (if you need more than 1m track rail).
4. Track lighting heads.

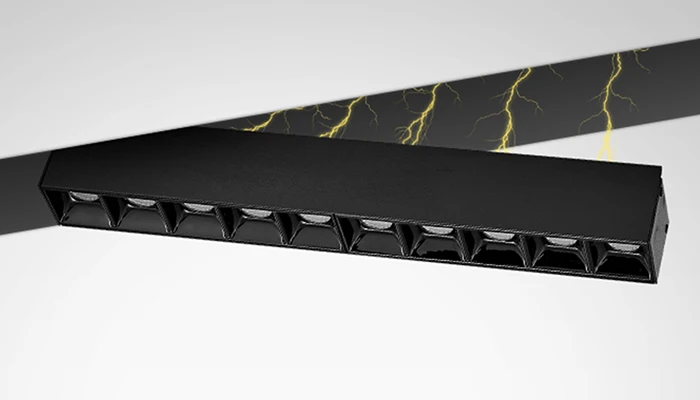

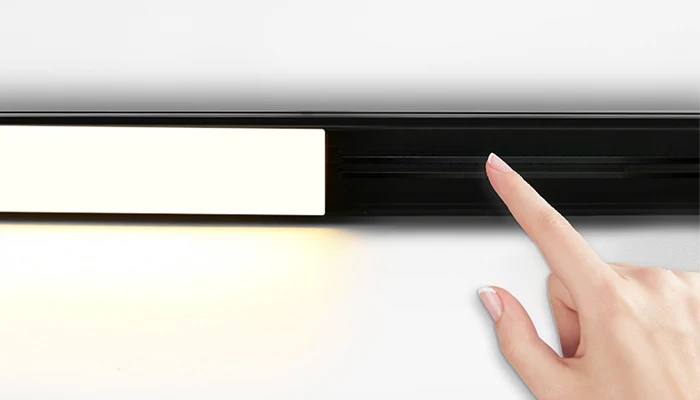

STRONG MAGNETIC EASY TO INSTALL
Built--in powerful magnet,
Attracts when close;
Easy install and remove at will.
24V SAFE OUTPUT
VOLTAGE
VOLTAGE
enjoy a comfortable light with a safe lamp.

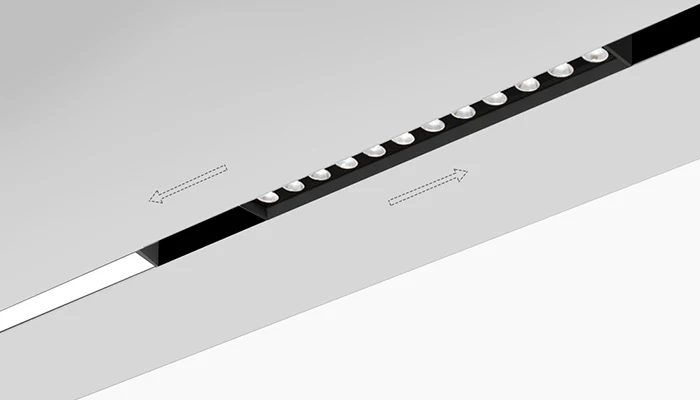

FREE MOVEMENT
Set up your own lighting scheme withunlimited creativity.

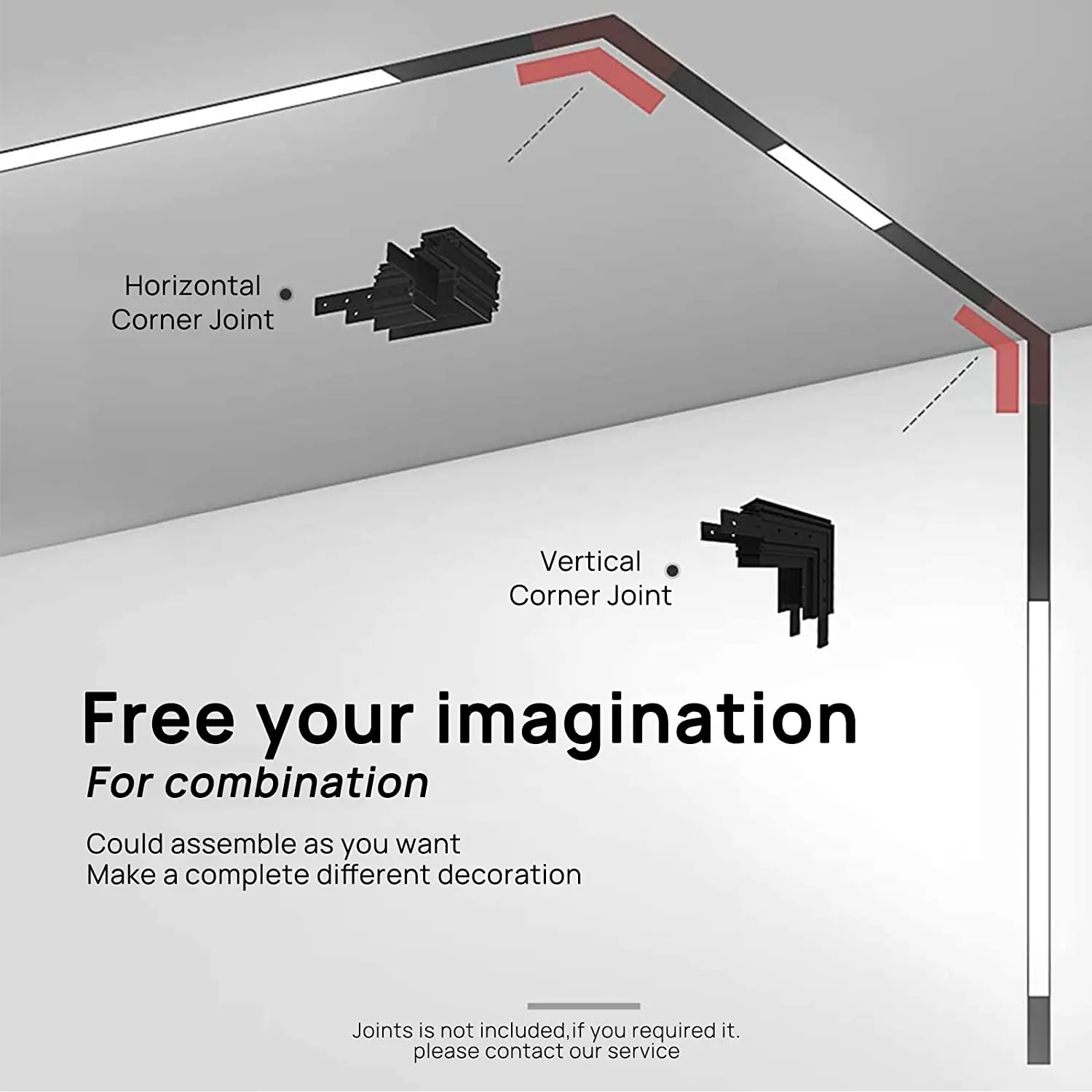

Connectors only using on combination(2 sets rail or more)

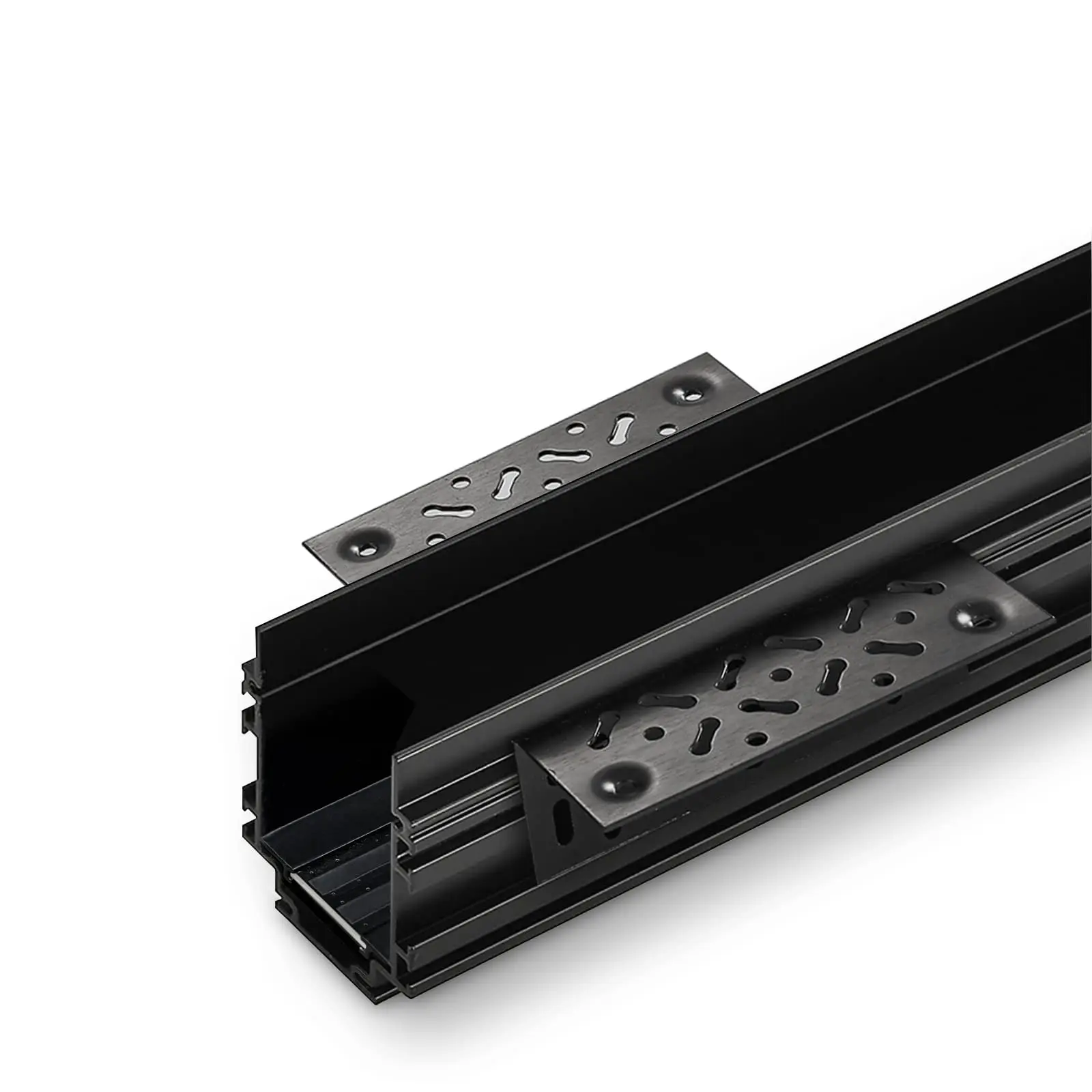

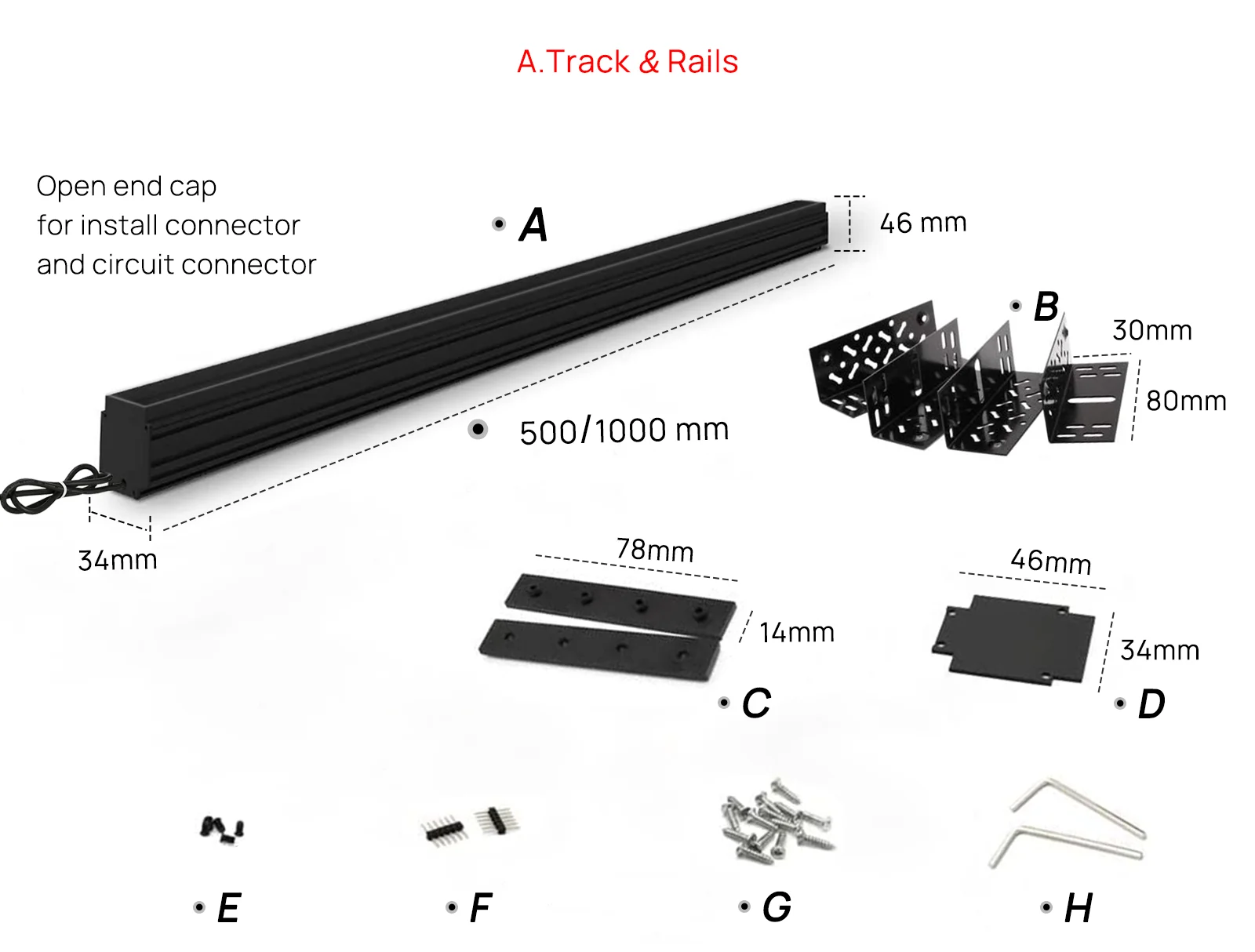

A) Track(50cm/100CM)*1
B) Side holder*4/6
C) Connector bar joint*2
D) End cap* 1（Another end cap in already on rail）
E) Screw(black)*5（Using on end cap）
F) Circuit connector*2
G) Screws*14（ Using on ins tailing on wall/ceihng）
H) Tool*2

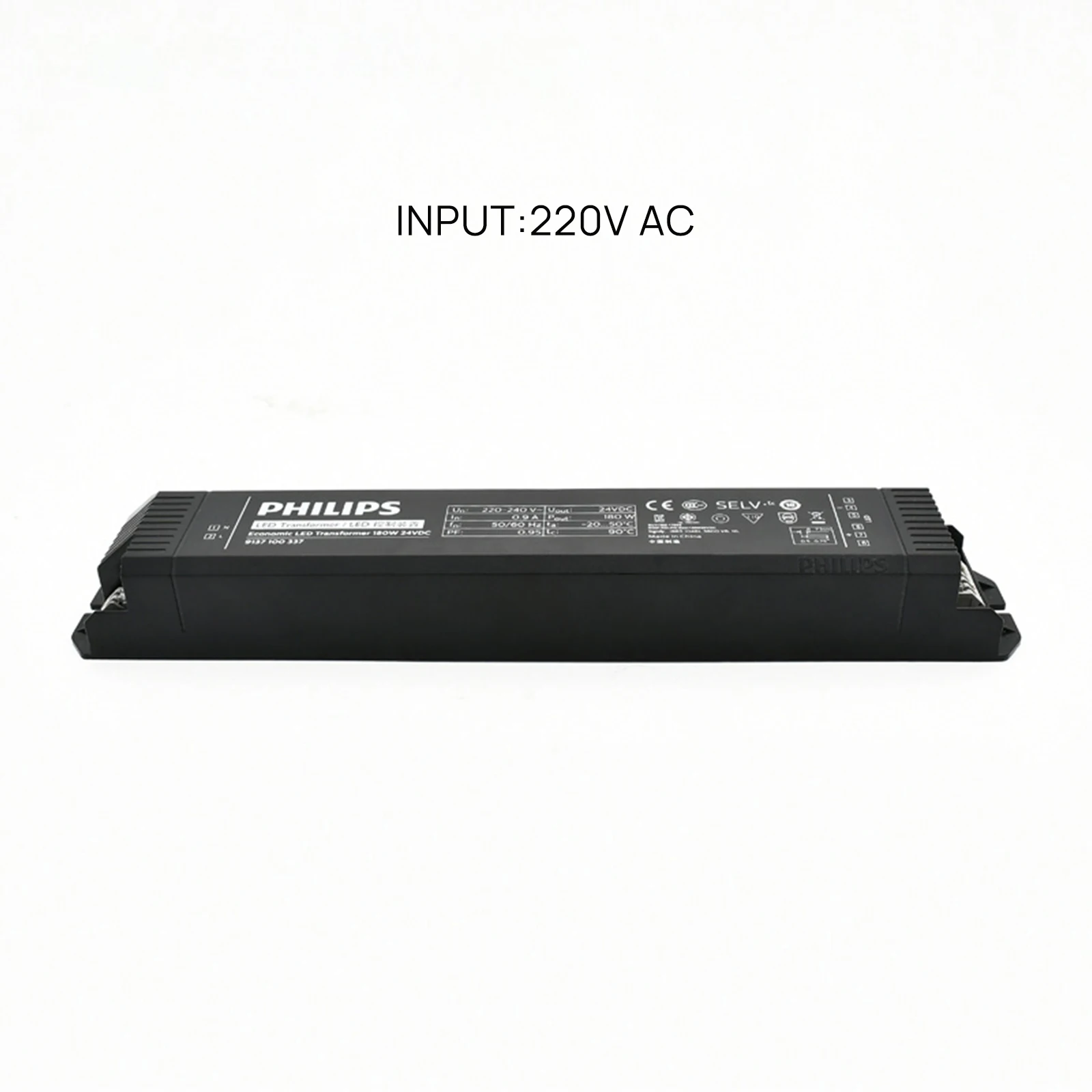

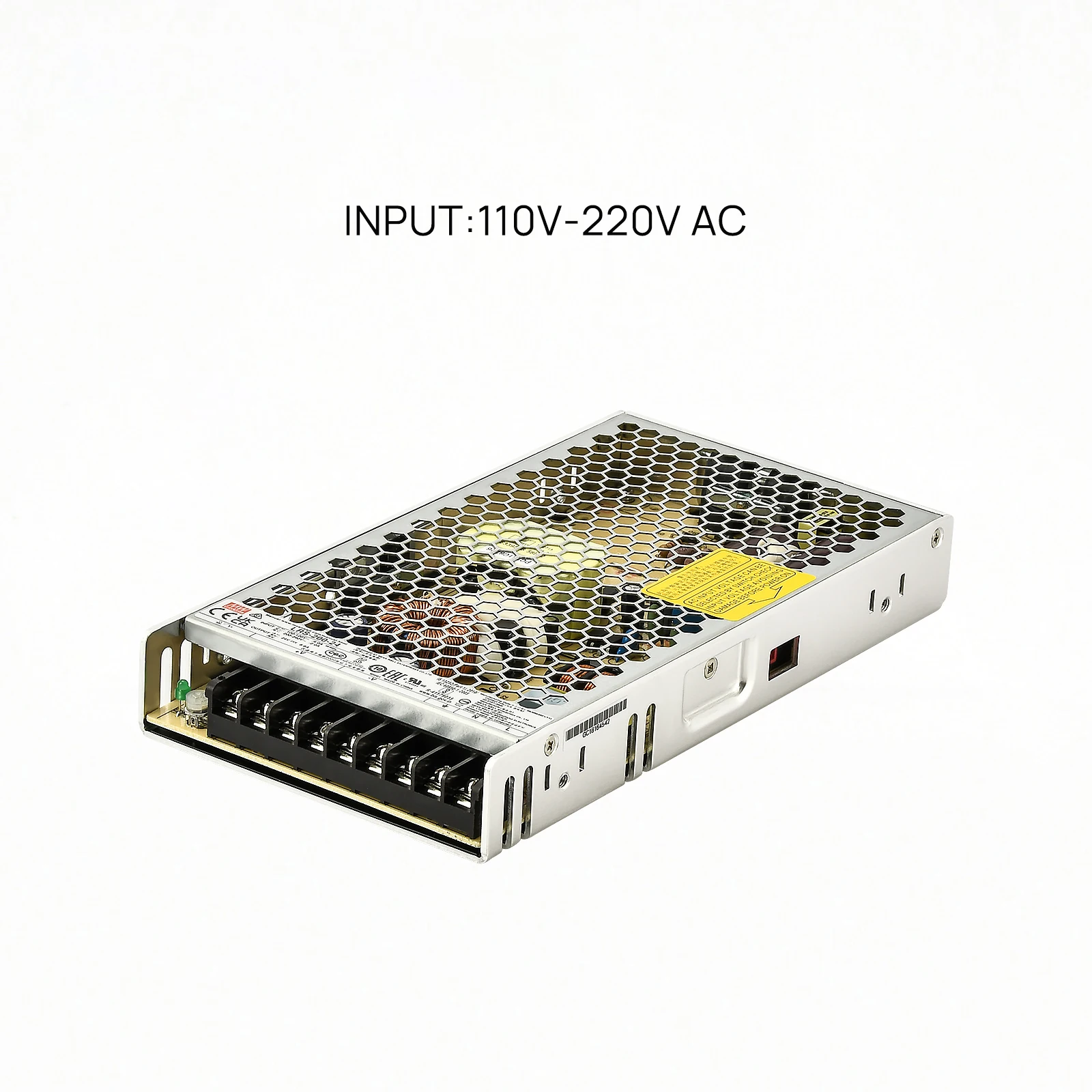

B.Driver
Name | MeanWell Driver | PHILIPS Driver |
Input | 110V-220V | 220V |
Output | 24V | 24V |
Power | 100W-350W | 100W-300W |

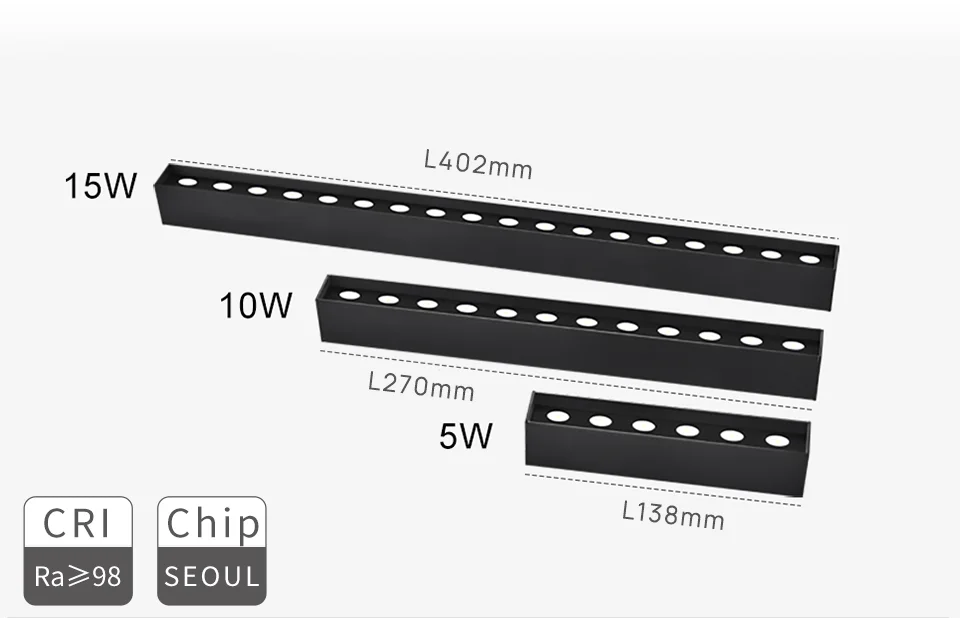

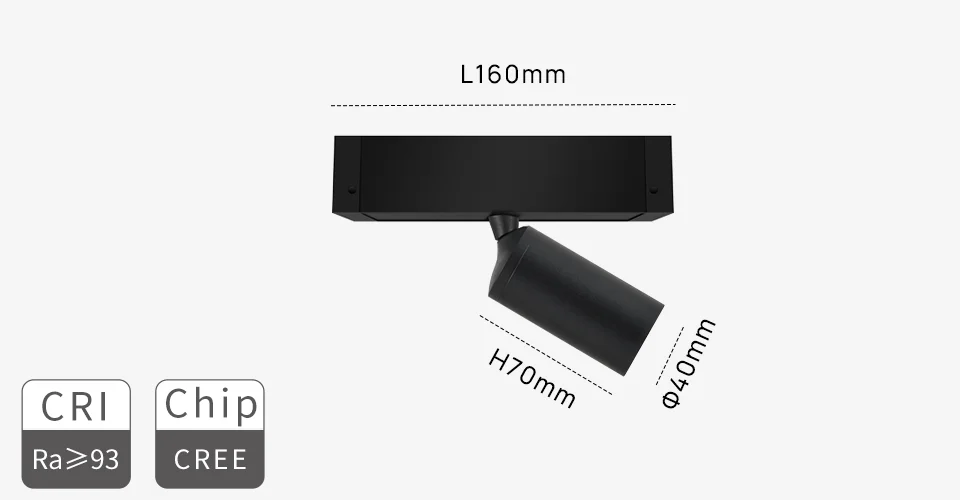

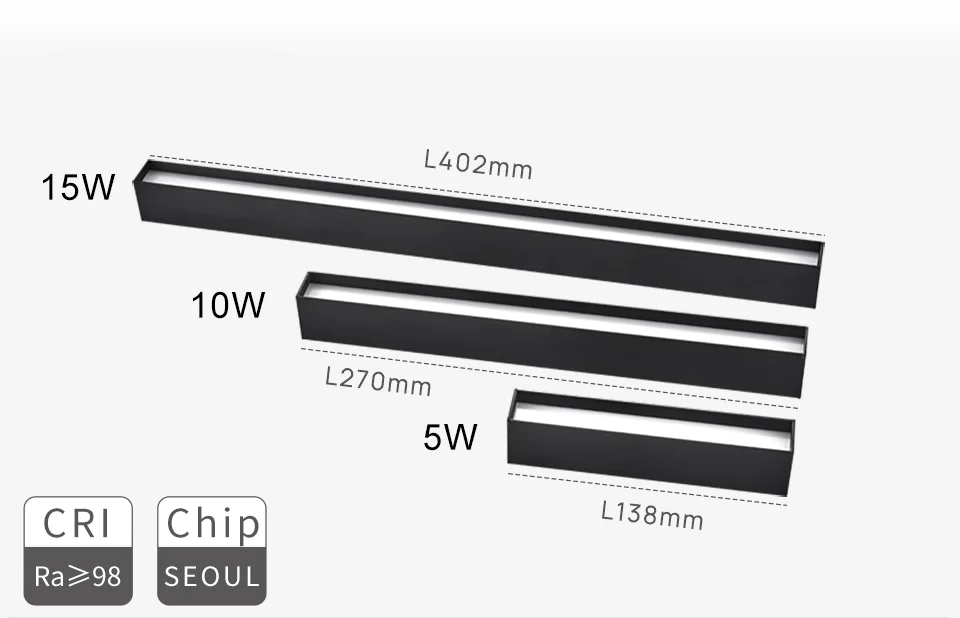

C. Track Lighting Heads
Linear Floodlight | Linear Spotlight | ||||||||||||||||
Power | L*W*H(mm) | Beam angle | CCT | Color | Power | L*W*H(mm) | Beam angle | CCT | Color | ||||||||
5W | 138*33*40 | 90° | 3000K 4000K | Black | 5W | 138*33*40 | 15°/30°/40° | 4000K | |||||||||
10W | 270*33*40 | 10W | 270*33*40 | ||||||||||||||
15W | 402*33*40 | 15W | 402*33*40 | ||||||||||||||

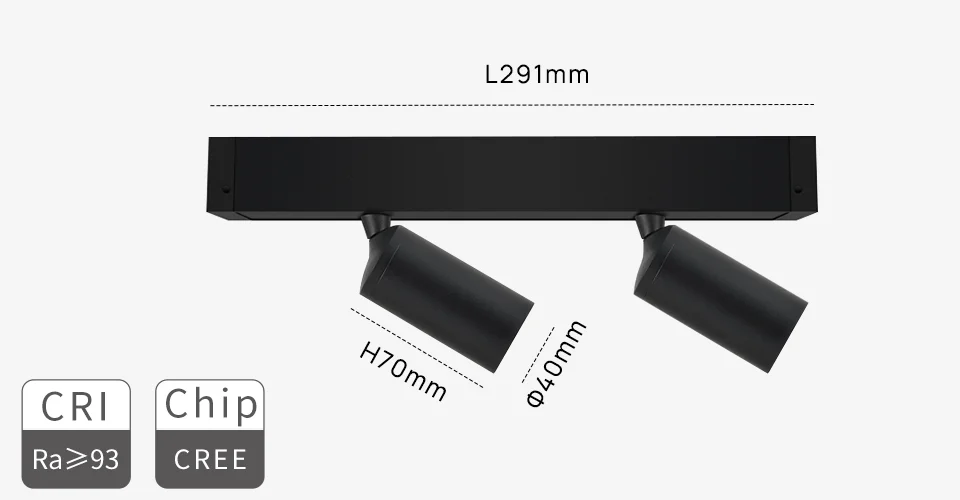

Linear Floodlight | Double Head Spotlight | ||||||||||||||||
Power | L*W*H(mm) | Beam angle | CCT | Color | Power | L*W*H(mm) | Beam angle | CCT | Color | ||||||||
5W | 138*33*40 | 90° | 3000K 4000K | Black | 5W | 138*33*40 | 15°/30°/40° | 3000K 4000K | Black | ||||||||

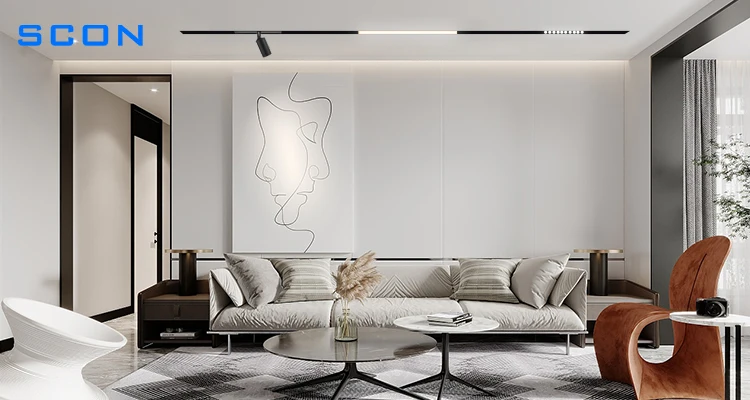

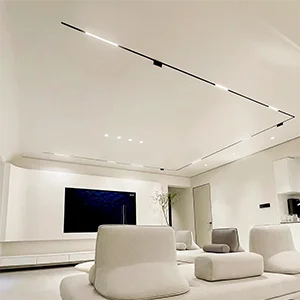

Application Cases
Steps of Installation
Step 1
1. Make a slot with 50mm (1.97inch) width and 60mm (2.36inch) depth for placing and securing the track.
2. Cut off the power.
3. Connect the rails with connectors, and then fasten them to the main runner.
4. Connect the driver and the tracks.
1. Make a slot with 50mm (1.97inch) width and 60mm (2.36inch) depth for placing and securing the track.
2. Cut off the power.
3. Connect the rails with connectors, and then fasten them to the main runner.
4. Connect the driver and the tracks.
Step 2
1. Power on.
2. Test if the track is working by track lighting heads. This step is very IMPORTANT, otherwise the gypsum board needs to be disassembled for inspecting and replacing tracks later.
1. Power on.
2. Test if the track is working by track lighting heads. This step is very IMPORTANT, otherwise the gypsum board needs to be disassembled for inspecting and replacing tracks later.
Step 3
1. Covering of both sides of the tracks.
Step 4
1. Install your favorite light heads.
2. A beautiful magnetic track light system appears.
2. A beautiful magnetic track light system appears.
