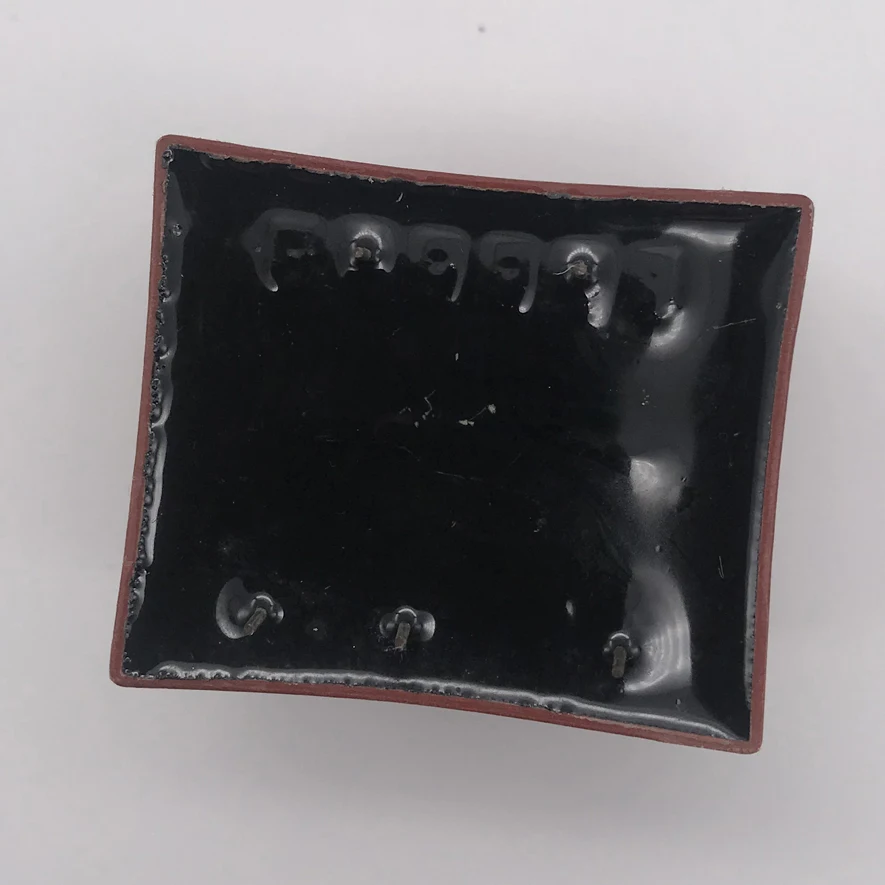

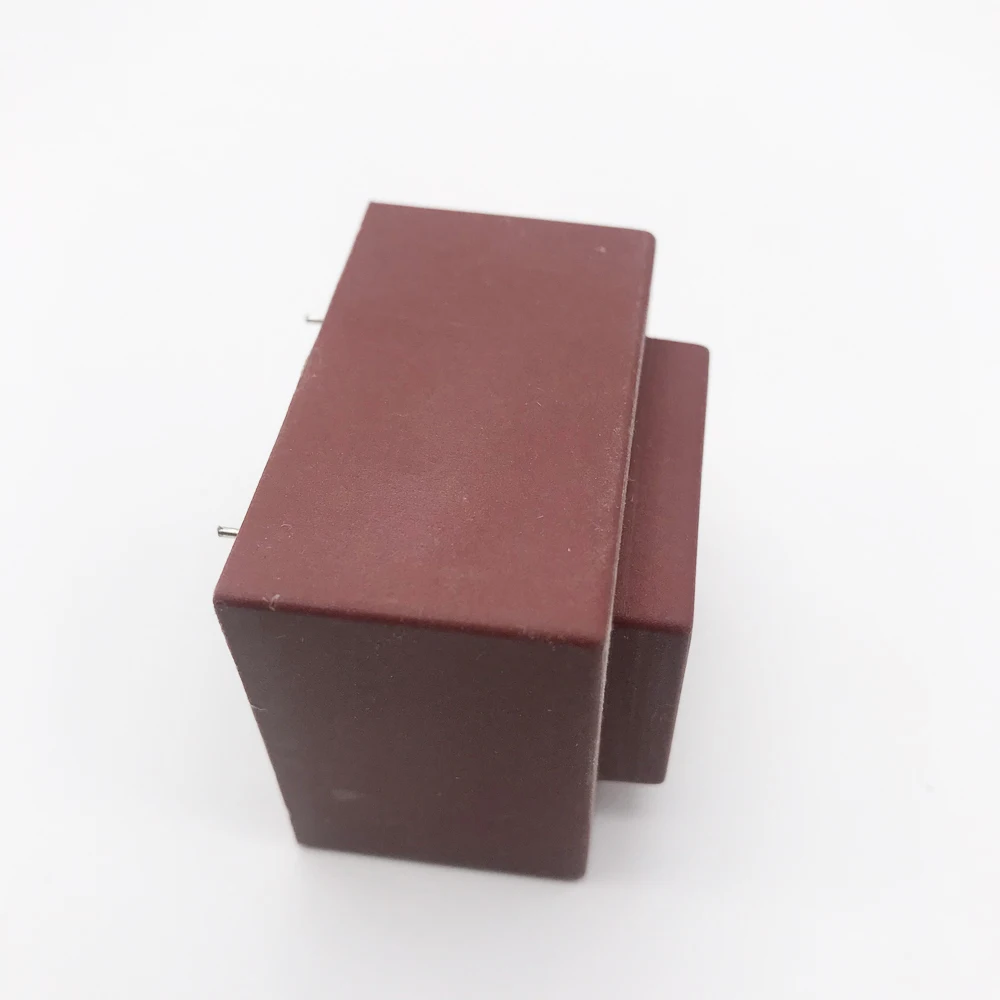

230v 12v ac EI42 trafos Mini small Power Transformer
230v 12v ac EI42 trafos Mini small Power Transformer
230v 12v ac EI42 trafos Mini small Power Transformer
230v 12v ac EI42 trafos Mini small Power Transformer
230v 12v ac EI42 trafos Mini small Power Transformer

230v 12v ac EI42 trafos Mini small Power Transformer

Share on (1600744112322):


Price:

Quantity:


Product Overview

Description



Products Description

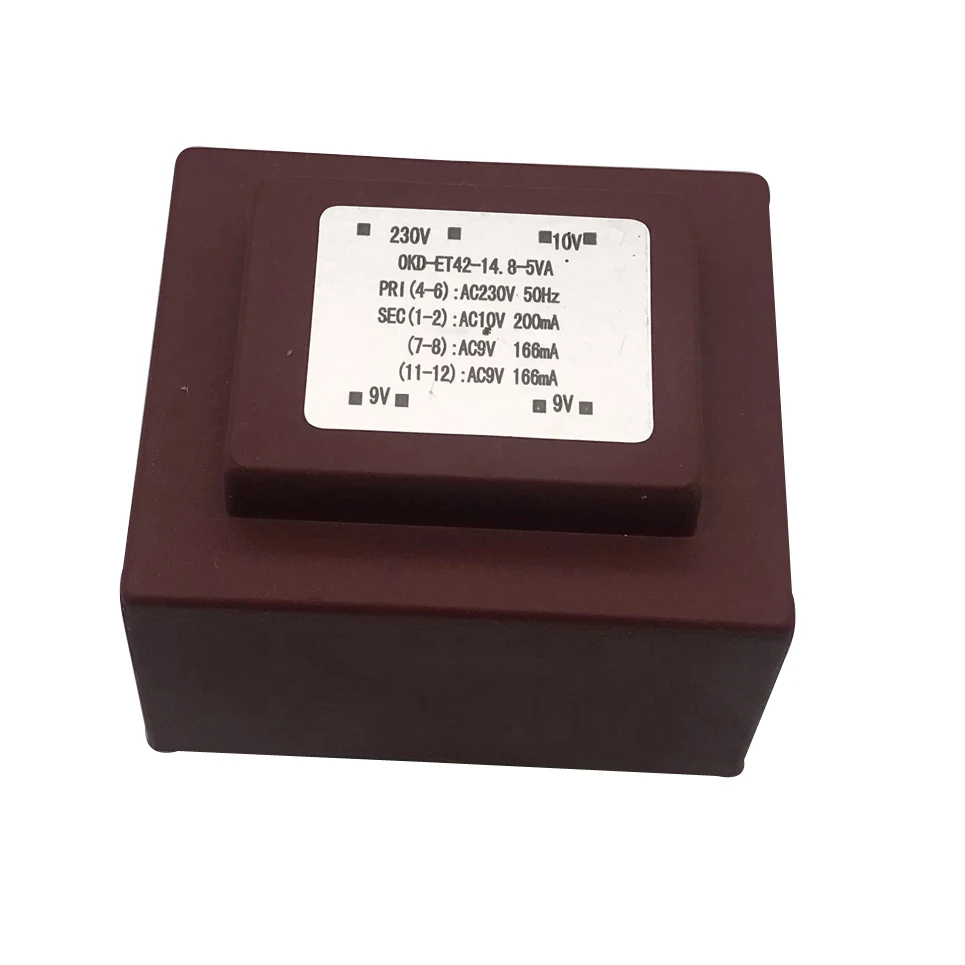

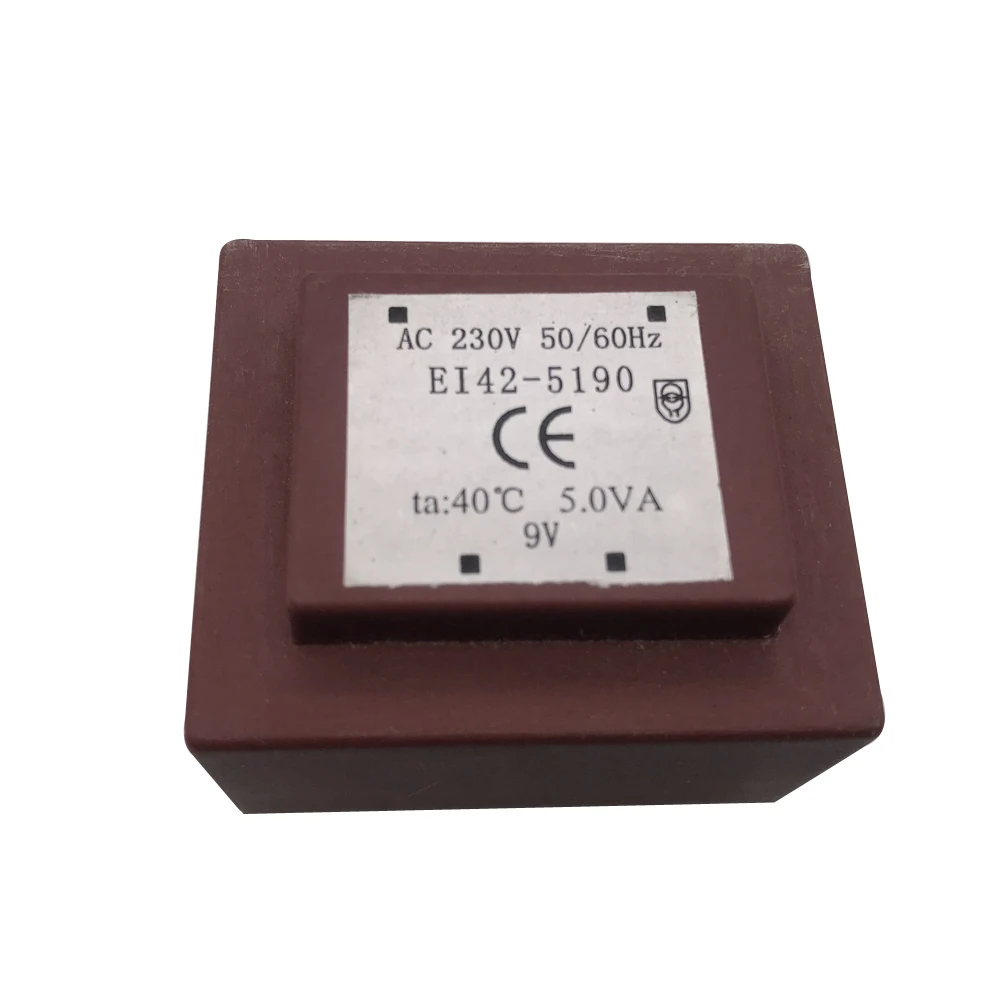

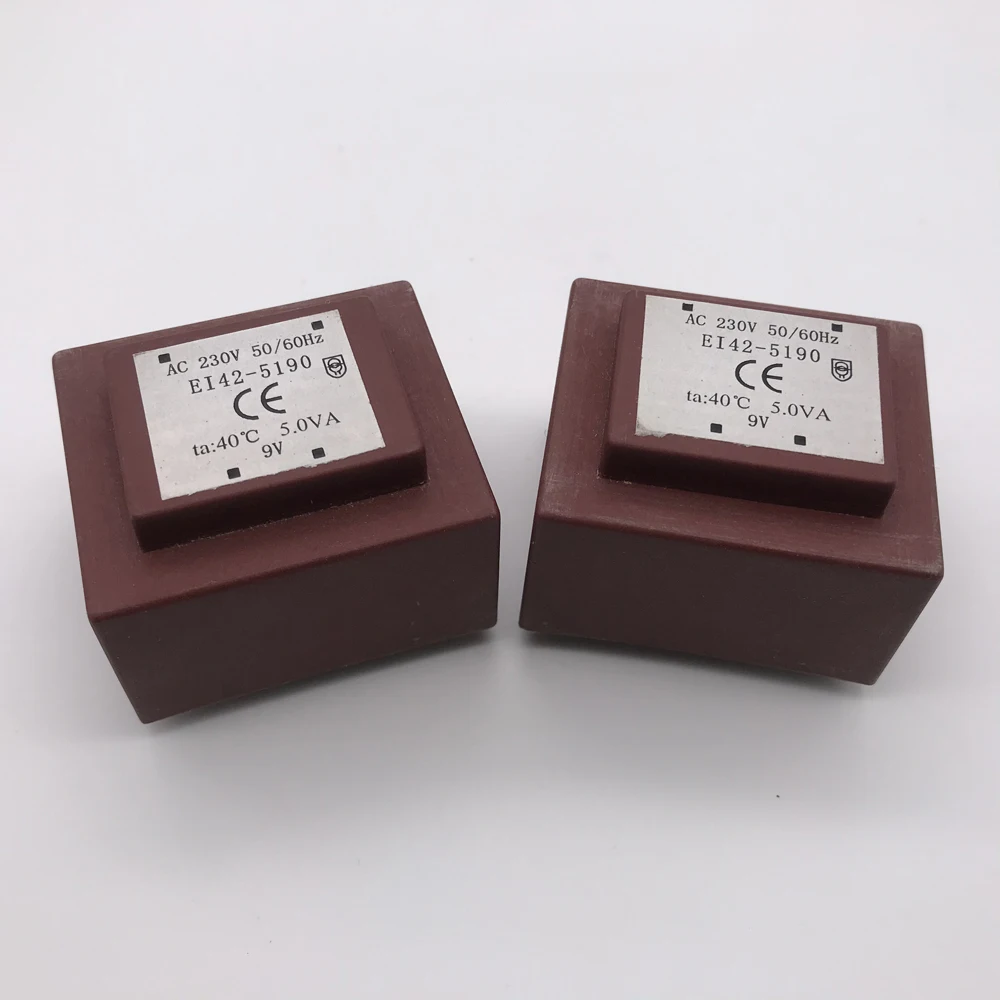

EI42/14.8 5VA Encapsulated Transformer, Insulated Transformer
Features:
* Frequency 50/60Hz
* Split-bobbin
* Temperature class ta 70℃/B
* Net Weight: 0.269kg
 * Core Size: EI42/14.8
* Primary Voltage (V): 230V or customized
* Single Secondary Voltage (V): 10V
* Double Secondary Voltage (V): 2x9V
* Power:5VA






Product Paramenters


Primary(V)
Secondary(V/mA)
No-Load Voltage(V)
Part Number
230
6/834
8.10
OKDEI42-5VA-01A
230
9/556
12.00
OKDEI42-5VA-02A
230
12/417
15.50
OKDEI42-5VA-03A
230
15/334
19.20
OKDEI42-5VA-04A
230
18/278
23.00
OKDEI42-5VA-05A
230
24/208
30.50
OKDEI42-5VA-06A
230
2× 6/417
2× 7.70
OKDEI42-5VA-07A
230
2× 9/278
2× 11.60
OKDEI42-5VA-08A
230
2× 12/208
2× 15.20
OKDEI42-5VA-09A
230
2× 15/167
2× 19.40
OKDEI42-5VA-10A
230
2× 18/139
2× 23.10
OKDEI42-5VA-11A
230
2× 24/104
2× 30.80
OKDEI42-5VA-12A
115
6/834
8.10
OKDEI42-5VA-13A
115
9/556
12.00
OKDEI42-5VA-14A
115
12/417
15.50
OKDEI42-5VA-15A
115
15/334
19.20
OKDEI42-5VA-16A
115
18/278
23.00
OKDEI42-5VA-17A
115
24/208
30.50
OKDEI42-5VA-18A
115
2× 6/417
2× 7.70
OKDEI42-5VA-19A
115
2× 9/278
2× 11.60
OKDEI42-5VA-20A
115
2× 12/208
2× 15.20
OKDEI42-5VA-21A
115
2× 15/167
2× 19.40
OKDEI42-5VA-22A
115
2× 18/139
2× 23.10
OKDEI42-5VA-23A
115
2× 24/104
2× 30.80
OKDEI42-5VA-24A
2× 115
6/834
8.10
OKDEI42-5VA-25A
2× 115
9/556
12.00
OKDEI42-5VA-26A
2× 115
12/417
15.50
OKDEI42-5VA-27A
2× 115
15/334
19.20
OKDEI42-5VA-28A
2× 115
18/278
23.00
OKDEI42-5VA-29A
2× 115
24/208
30.50
OKDEI42-5VA-30A
2× 115
2× 6/417
2× 7.70
OKDEI42-5VA-31A
2× 115
2× 9/278
2× 11.60
OKDEI42-5VA-32A
2× 115
2× 12/208
2× 15.20
OKDEI42-5VA-33A
2× 115
2× 15/167
2× 19.40
OKDEI42-5VA-34A
2× 115
2× 18/139
2× 23.10
OKDEI42-5VA-35A
2× 115
2× 24/104
2× 30.80
OKDEI42-5VA-36A

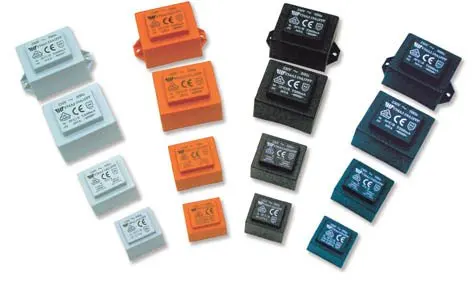

Related Products

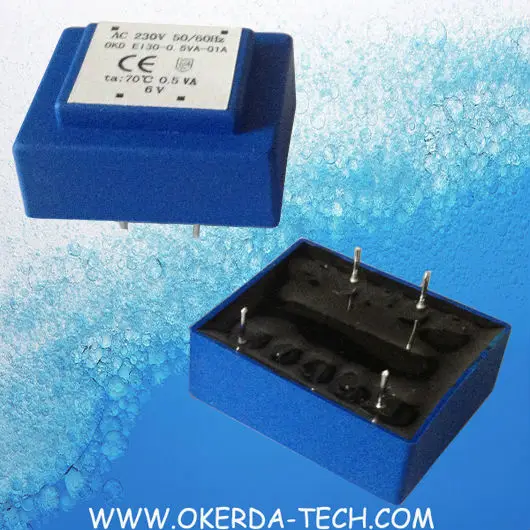

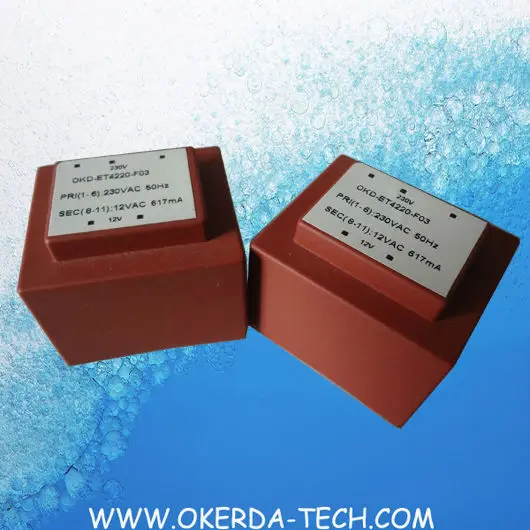

EI Encapsulated Transformer:
Dielectric Strength: 3750Vrms
High ambient operation temperature (+70 Celsius degree maximum)
Primary (115V 60Hz / 230V 50Hz; 110V 60Hz / 220V 50Hz)
Secondary: Single or Dual
Insulation Class: Class B (130 Celsius degree)
Rated Power: from 0.25VA to 60VA

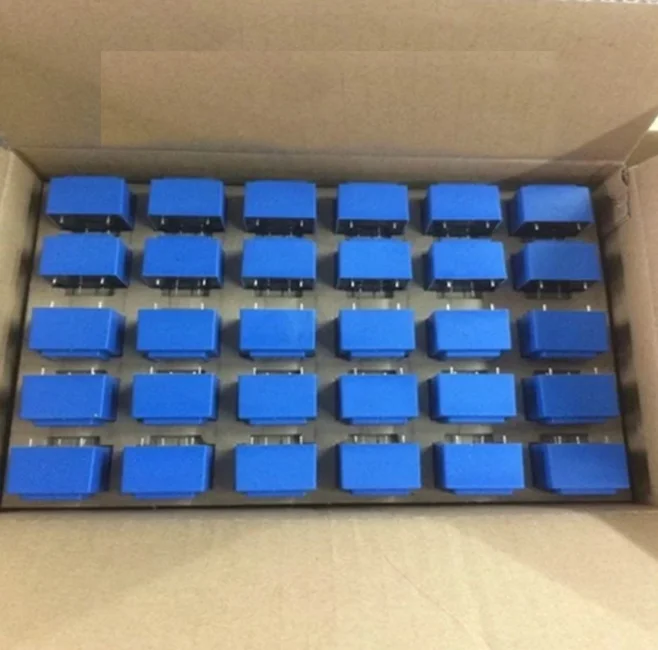

Packing&Shipping






Certifications






Why Choose Us


1. 20 years experience in transformer and inductor manufacturing
2. Scientific management system, strong technical team, and strict quality control system
3. RoHS,CE,TUV and UL Standard
4. OEM & ODM
5. Competitive price,in time delivery and perfect after-service online.

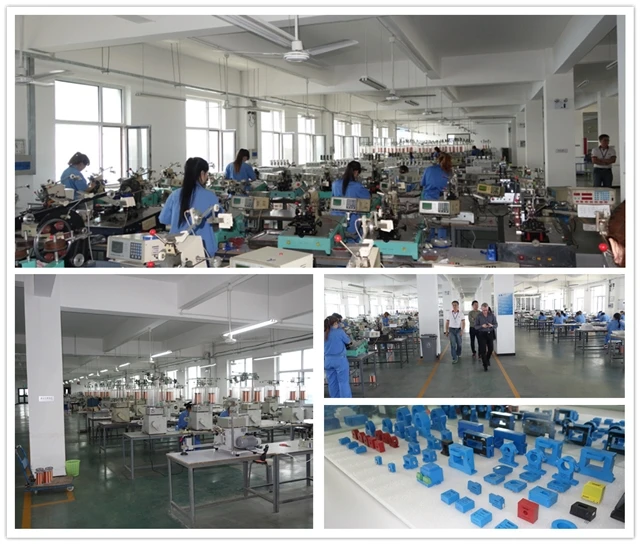

Company Profile




FAQ


Q1. Are you manufacturer in China?
Yes, we have over 20 years experience in supplying transformers and inductors.

Q2. What is your MOQ?
Our usual MOQ is 1000pcs.

Q3. Can I place a sample order?
Yes, please kindly contact us for more details.

Q4. What's the delivery time for samples?
Usually 3 - 10 working days.

Q5. What's the lead time for mass production?
Normally 15-30 working days, based on your order quantity.

Q6. What's the payment term?
We accept T/T, L/C, Western Union and Paypal etc.

Q7. Can you make customized products?
Yes, of course. We will do as per customer’s design.

Q8. Is OEM accepted?
Yes, welcome OEM project.

Q9. Is it ok to print my logo on the label?
No problem, we can make it as per your requirements.

Q10. Can your factory print our brand on the product?
Yes, we can add customer's logo/brand on the product with the authorization from customers.
