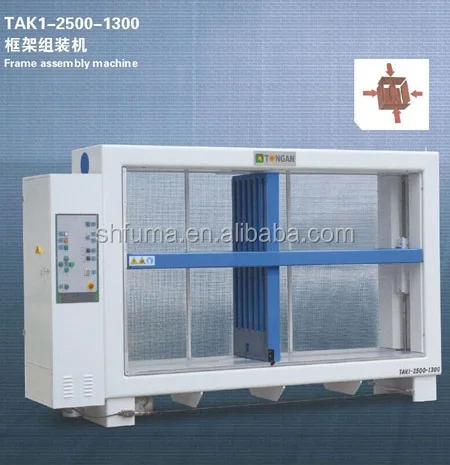

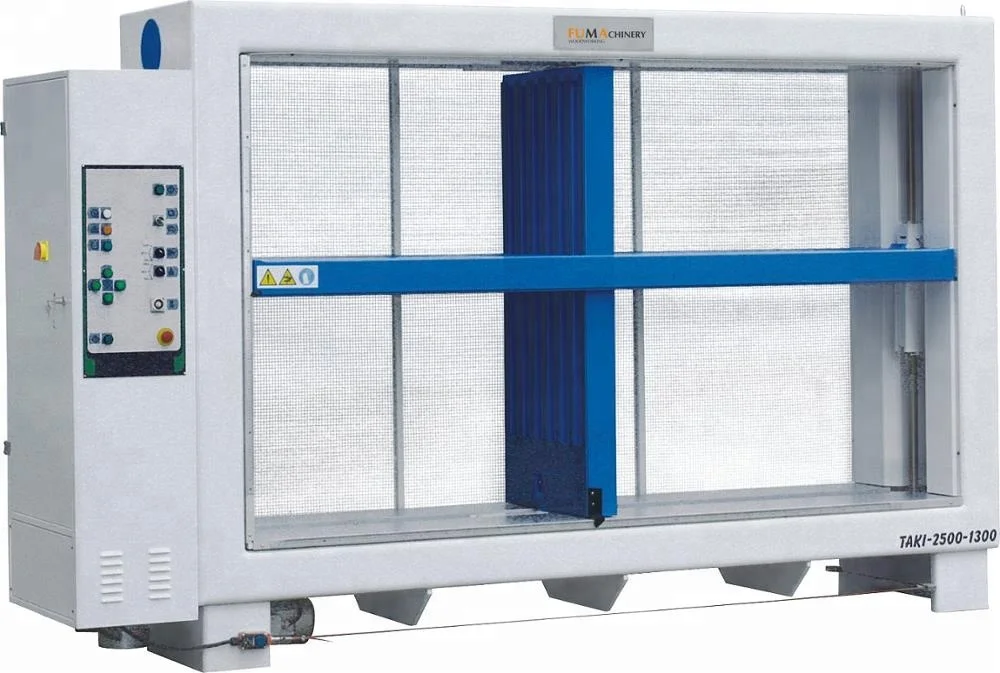

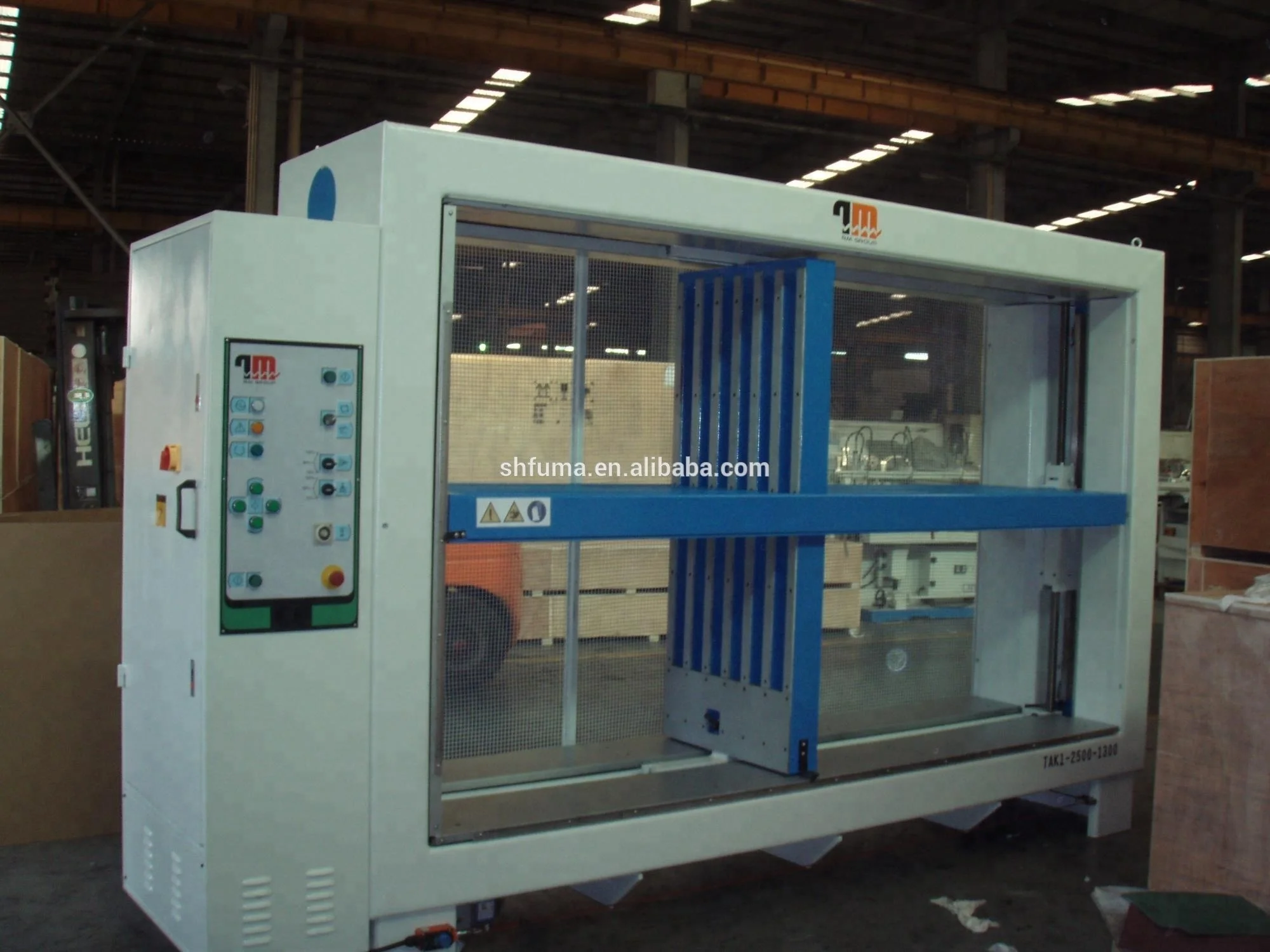

China Kitchen Drawer Cabinet Composer Assembly Machine Wood Frame Press Dovetail Drawer Machine

Product Overview

Description

China Kitchen Drawer Cabinet Composer Assembly Machine Wood Frame Press Dovetail Drawer Machinee

I,Main using and Feature

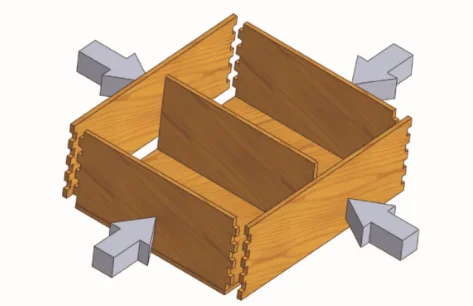

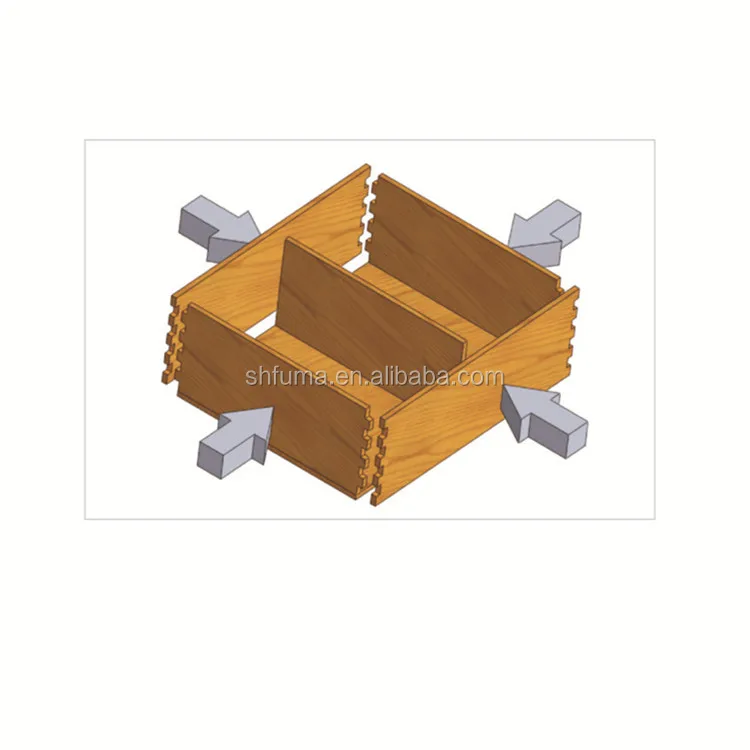

The machine is used to gluing, pressing and clamping, shaping for the rectangle furniture, high quantity for clamping board, rapidly speed, high efficient, it can be widely used to producing the furniture and other plate material.



II,Main structure

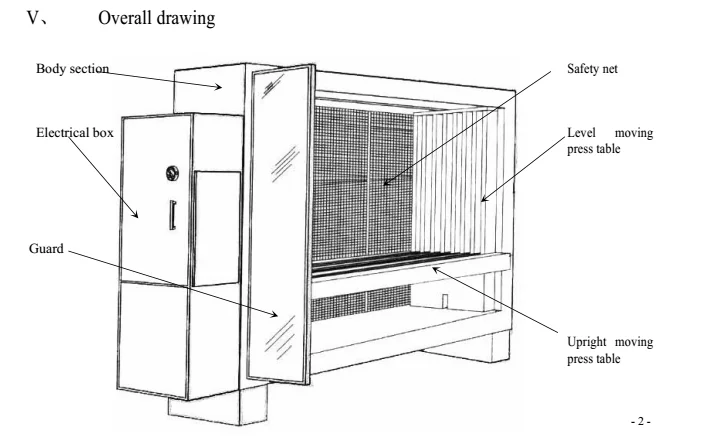

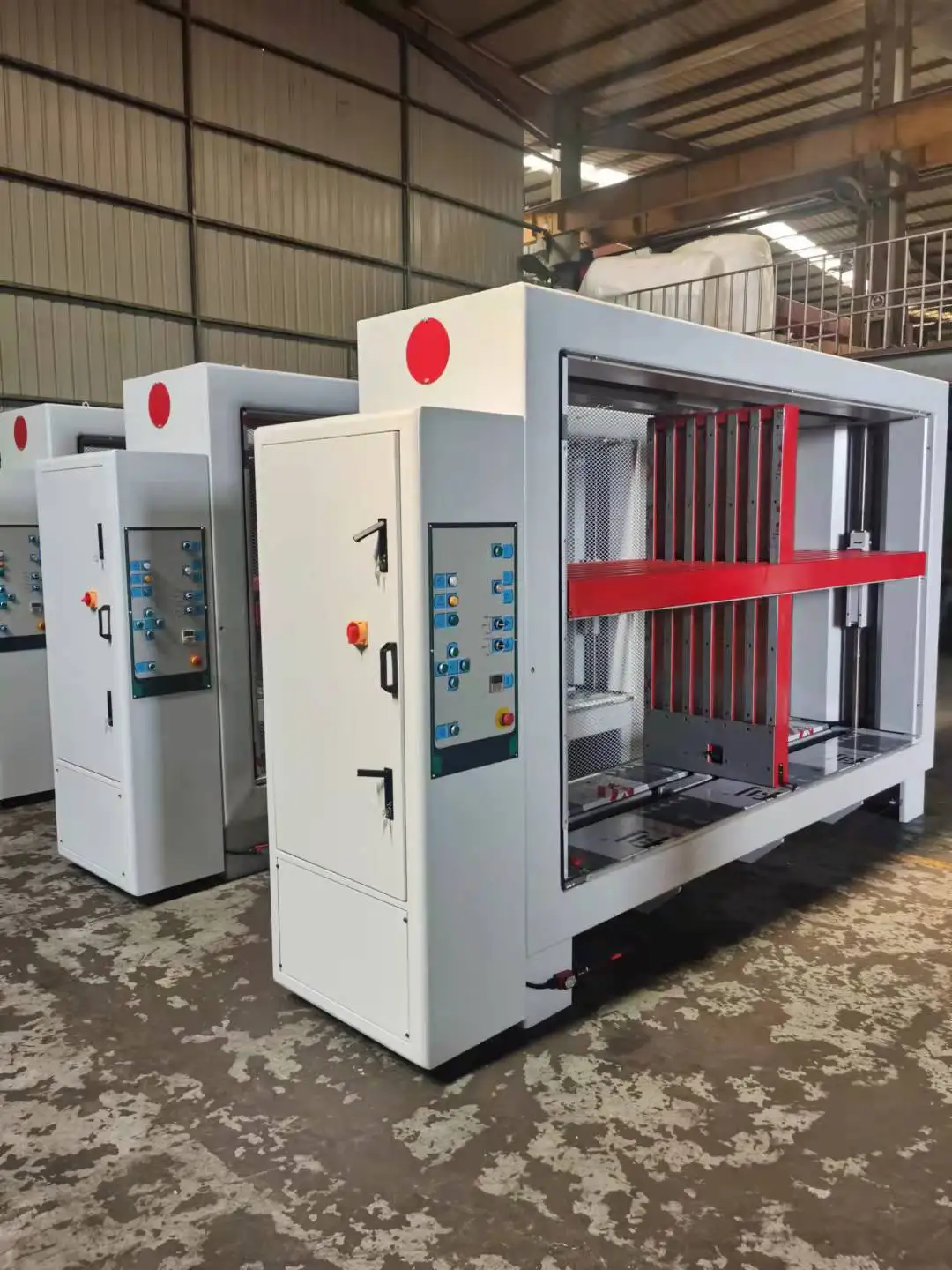

The machine is made up of the frame, faceplate, side faceplate, pressing table, up and down moving pole, left and right moving pole, left and right moving guide rail and electrical   controlling system.

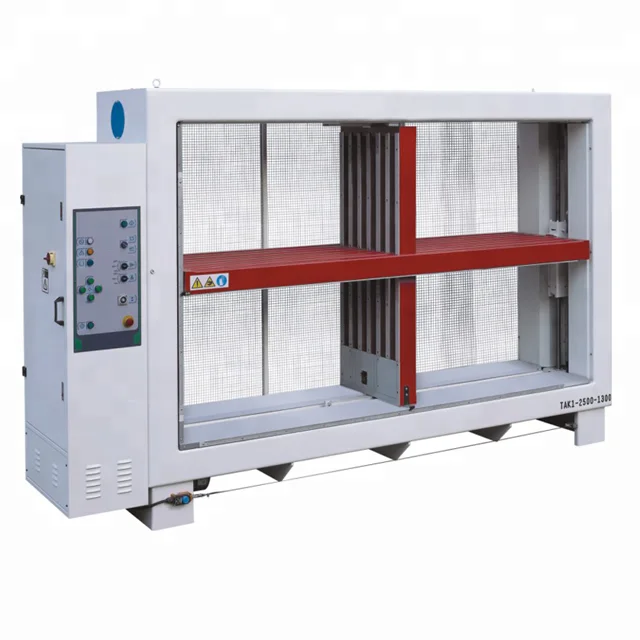

Model	TAK1-2500-1300
Max.assembly length	2500mm
Max assembly height	1300mm
Max assembly width	700mm
Min assembly length	380mm
Min assembly height	380mm
Installed power	1.5kwx2
Over dimension	3800x900x2200mm
Net dimension	1900kg
