Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
- Category: >>>
- Supplier: Baoji Dynamic Trading Co. Ltd
Share on (1600744119006):
Product Overview
Description
Product Overview

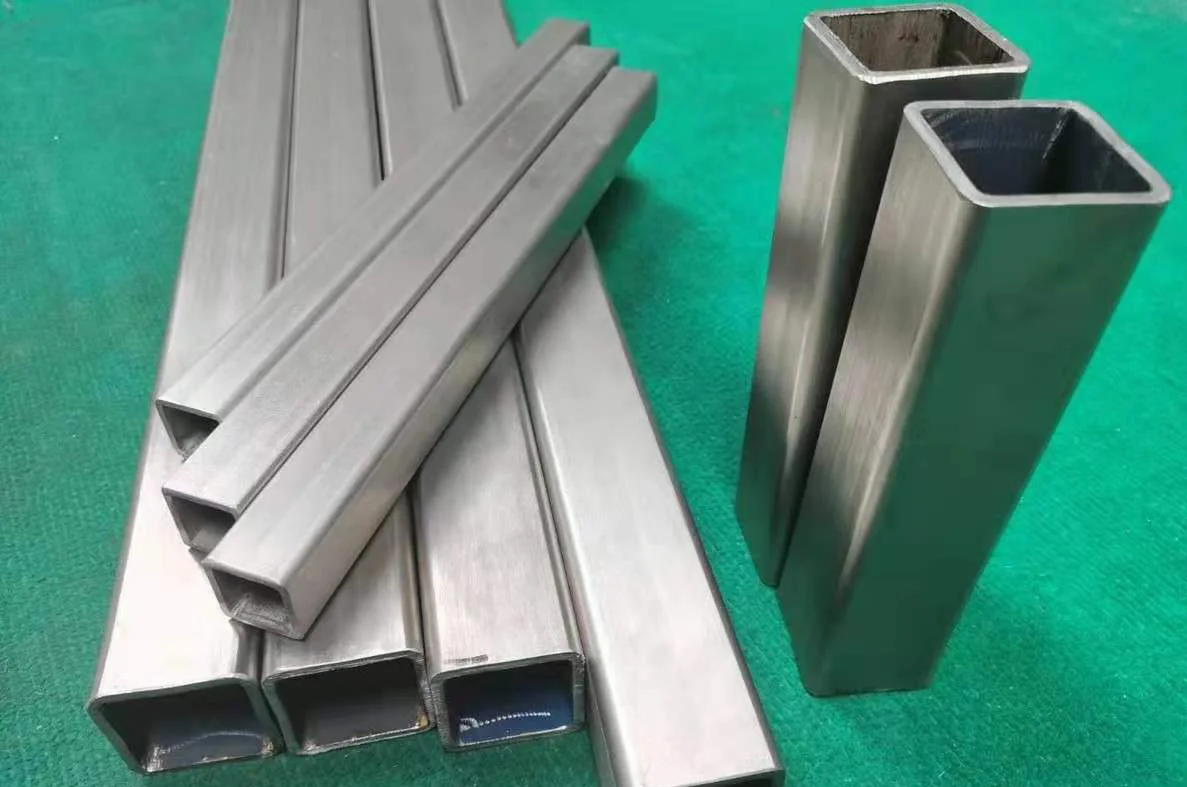

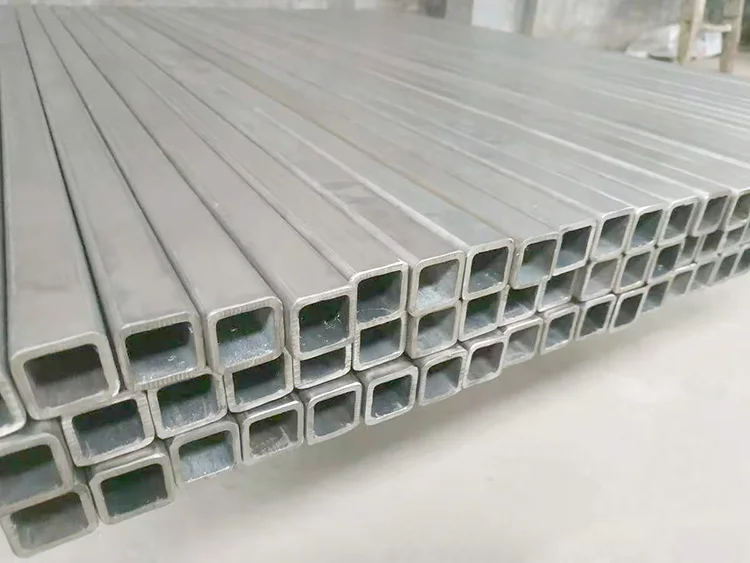

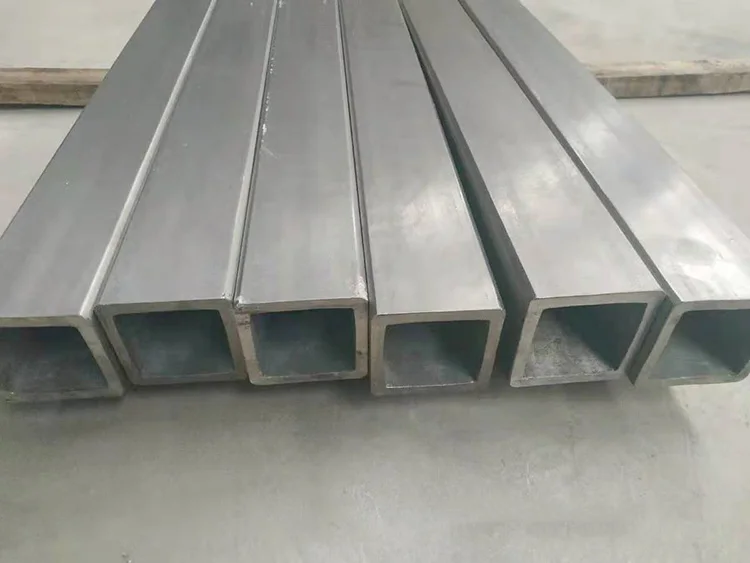

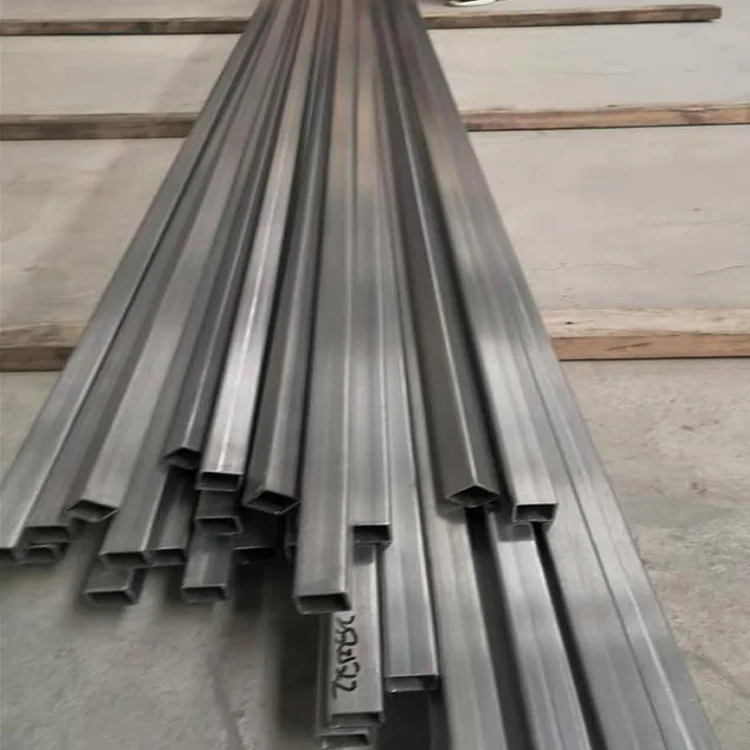

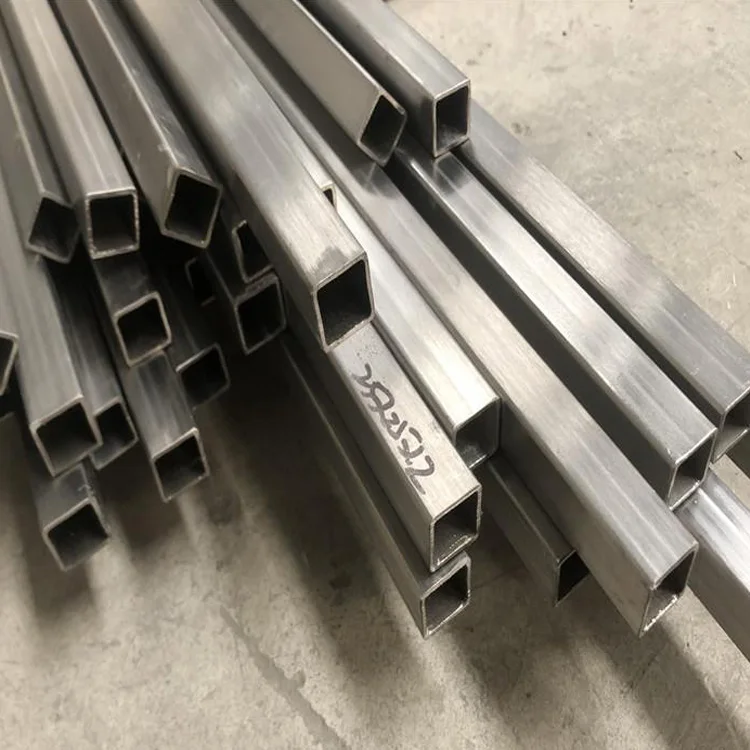

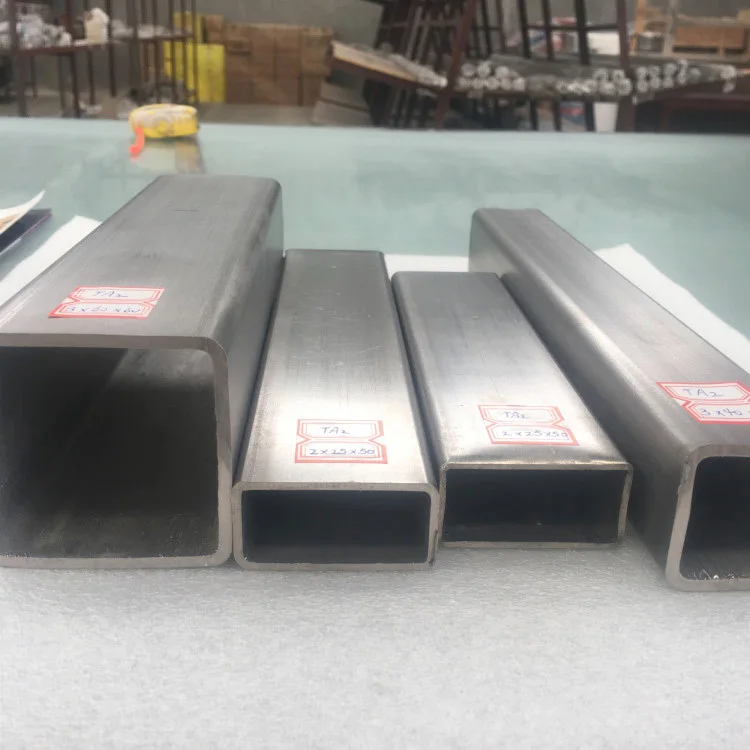

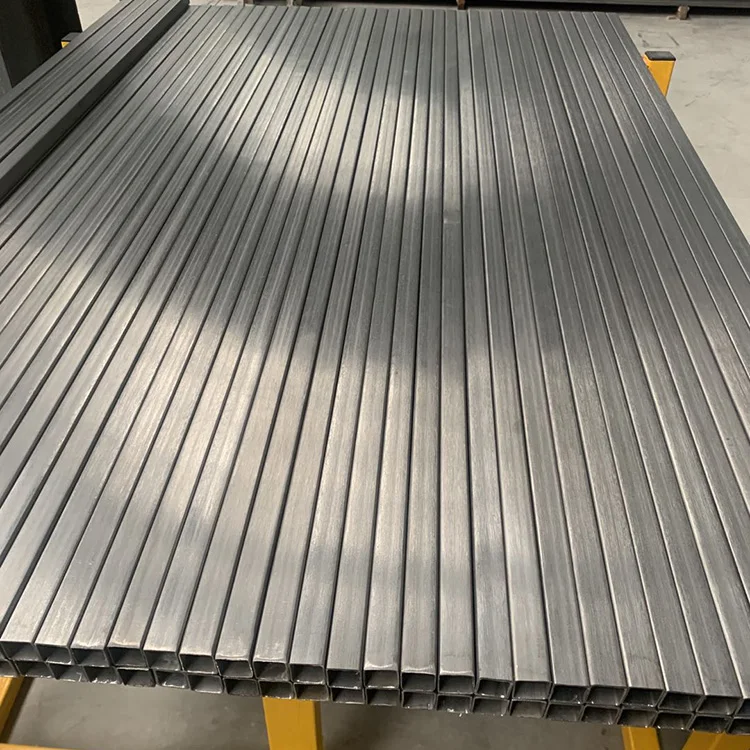

Titanium square tube
What is Titanium square pipe?
Titanium square pipe, is a name for square pipe and rectangular pipe, that is, the side length is equal and not equal titanium pipe.It is made of titanium through technological processing.In general, titanium is unpacked, flattened, crimped, welded into a round tube, which is rolled into a square tube and then cut to the required length.Square tubes can be made into straight seam square tubes and seamless square tubes. When the temperature is not higher than 540℃, the oxide film of the titanium square tube will not become thick. However, at higher heat treatment temperature, the oxidation rate of the oxide film will accelerate, and the inner diffusion layer of the oxide film will become a layer of pollution.Oxygen contamination layer has a higher brittleness ratio, which leads to cracks and damage on the surface of parts.Removal of oxygen pollution layer includes mechanical processing, pickling, chemical grinding and other methods.During heat treatment, the heating time should be shortened as far as possible under the premise of protective heat treatment.It can also be carried out in vacuum furnaces or inert gas furnaces. Pollution caused by heating of titanium square pipe fittings in air furnaces should be avoided or appropriately reduced.
Titanium square pipe, is a name for square pipe and rectangular pipe, that is, the side length is equal and not equal titanium pipe.It is made of titanium through technological processing.In general, titanium is unpacked, flattened, crimped, welded into a round tube, which is rolled into a square tube and then cut to the required length.Square tubes can be made into straight seam square tubes and seamless square tubes. When the temperature is not higher than 540℃, the oxide film of the titanium square tube will not become thick. However, at higher heat treatment temperature, the oxidation rate of the oxide film will accelerate, and the inner diffusion layer of the oxide film will become a layer of pollution.Oxygen contamination layer has a higher brittleness ratio, which leads to cracks and damage on the surface of parts.Removal of oxygen pollution layer includes mechanical processing, pickling, chemical grinding and other methods.During heat treatment, the heating time should be shortened as far as possible under the premise of protective heat treatment.It can also be carried out in vacuum furnaces or inert gas furnaces. Pollution caused by heating of titanium square pipe fittings in air furnaces should be avoided or appropriately reduced.

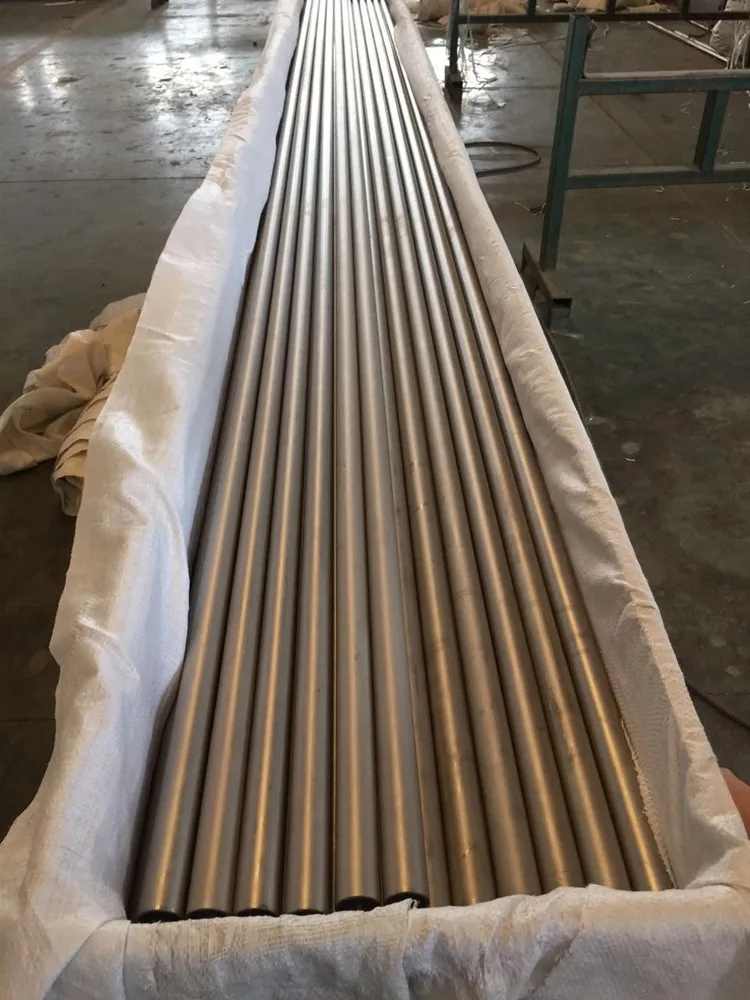

Titanium Tubes / Titanium Pipes.
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.

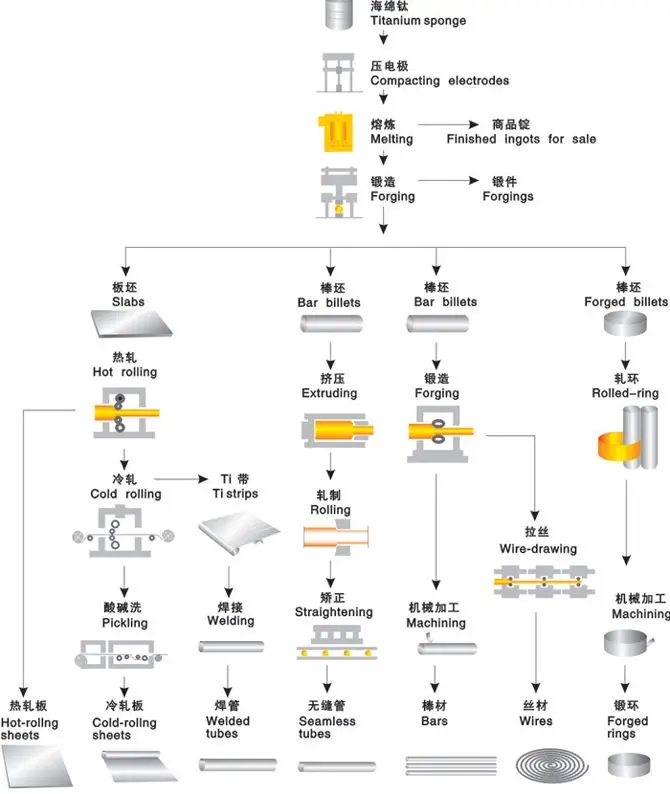

Seamless titanium tube process :
Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube
Welded titanium tube process:
Titanium sponge—Compacting electrodes—melting—Forge—Plate billets—Hot rolled—Cold rolled—Titanium scrap—Welded—Welded tube
Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube
Welded titanium tube process:
Titanium sponge—Compacting electrodes—melting—Forge—Plate billets—Hot rolled—Cold rolled—Titanium scrap—Welded—Welded tube
Product name | Titanium square pipe | ||||||
Standard | ASTM B861，ASTM B338,ASME SB861，ASME SB338 | ||||||
Material | Pure titanium/Titanium alloy | ||||||
Grade | Gr1，Gr2，Gr5，Gr7，Gr9，Gr10，Gr12 | ||||||
Feature | Fine Corrosion Resistance/Light | ||||||
Application | Industrial, Heating Exchanging, Condenser, Medical, Chemical, Aerospace, Oil, Sports, Bike etc. | ||||||
Surface | Pickling，Polished | ||||||
Packaging | Ply-wooden case, carton box | ||||||
Shape | Round/Square/Rectangle | ||||||
Supply Ability | 500 Ton/Tons per Month | ||||||

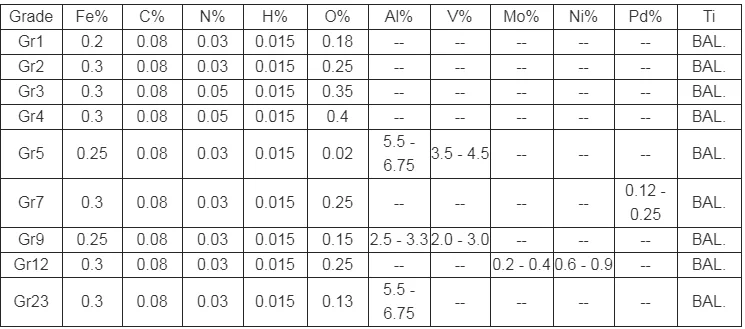

Titanium pipe /titanium tube Chemical composition

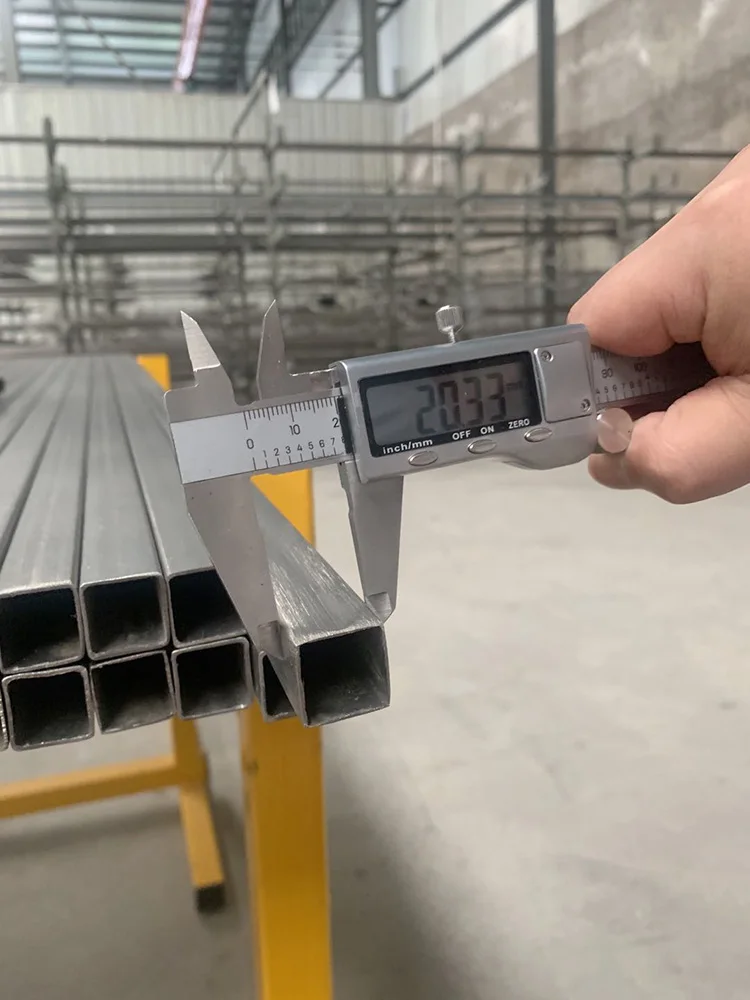

Dimension and Tolerance of titanium tube:
Outside diameter, in.(mm) | Diameter tolerance, in.(mm) | Permissible variations , wall thinckness, t, % in.(mm) | ||||
<1 (25.4) | ±0.004( ± 0.012) | ±10 | ||||
1-1½(25.4-38.1) | ±0.005( ±0.127 ) | ±10 | ||||
1½-2(38.1-50.8) | ±0.006( ± 0.152) | ±10 | ||||
2-2½(50.8-63.5) | ±0.007( ± 0.178) | ±10 | ||||
2½-3½(63.5-88.9) | ±0.010( ± 0.254) | ±10 | ||||

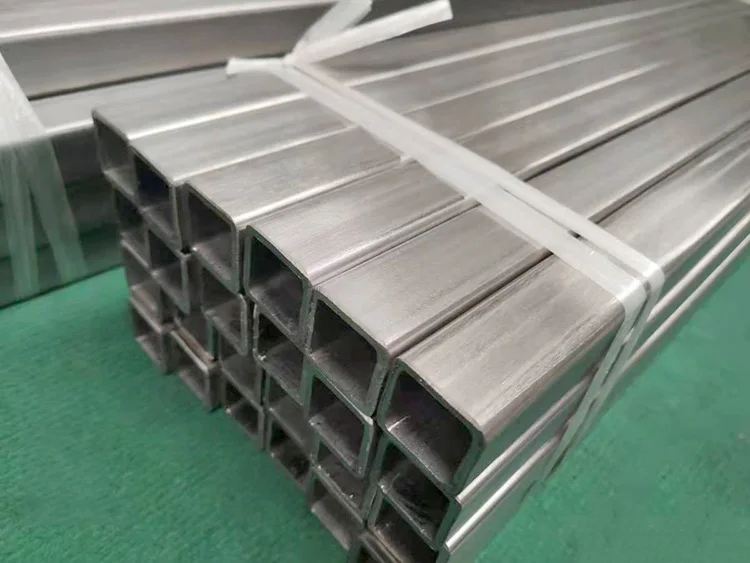

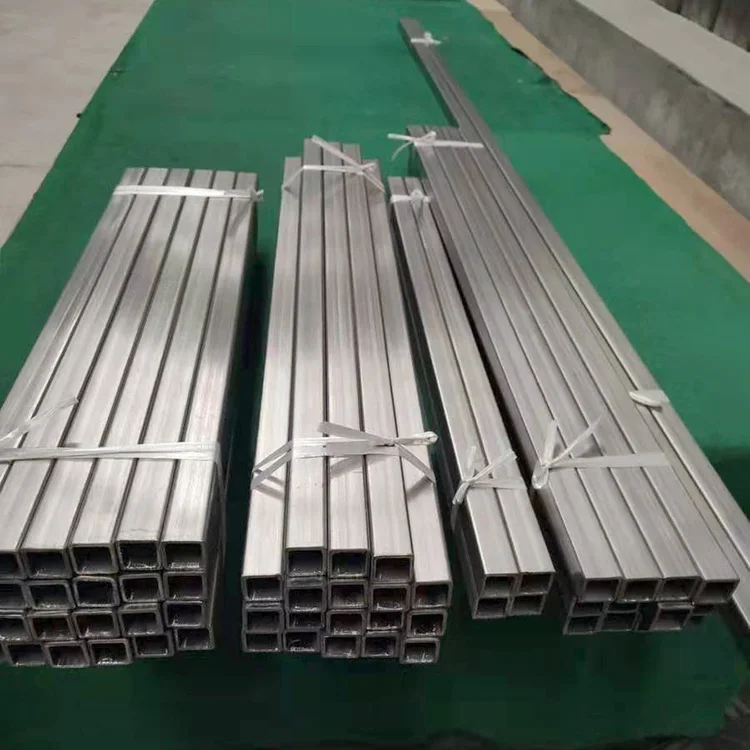

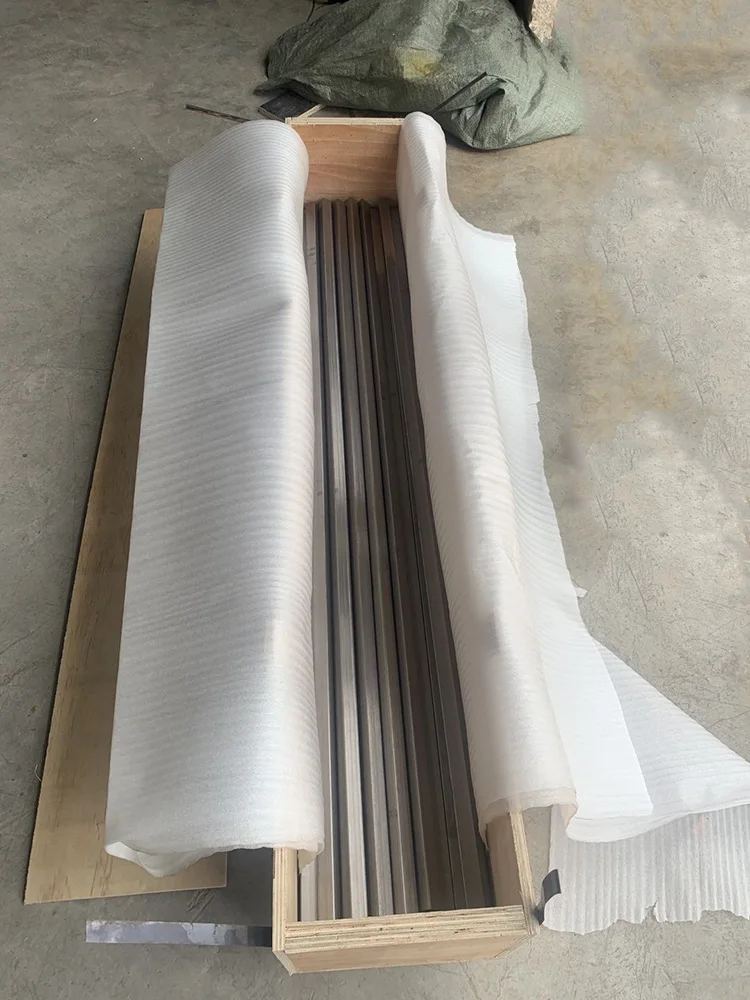

Product packaging
SIMILAR PRODUCTS
Company Profile
BaoJi Dynamic Trading Co., LTD. Professional titanium rod manufacturers, titanium screw manufacturers, titanium tube manufacturers, the production of high-quality titanium alloy screws, titanium non-standard parts, titanium standard parts, titanium screws and other products. Is a research and development, production, manufacturing, sales as one of the organization,products are widely used in oxidation, electroplating, unmanned aerial vehicle, ship, ultrasonic, machinery manufacturing, solar energy, electroplating, petroleum, chemical, medical, environmental protection, seafood, communications,construction and other high-tech fields.
Exhibition photos
Certifications

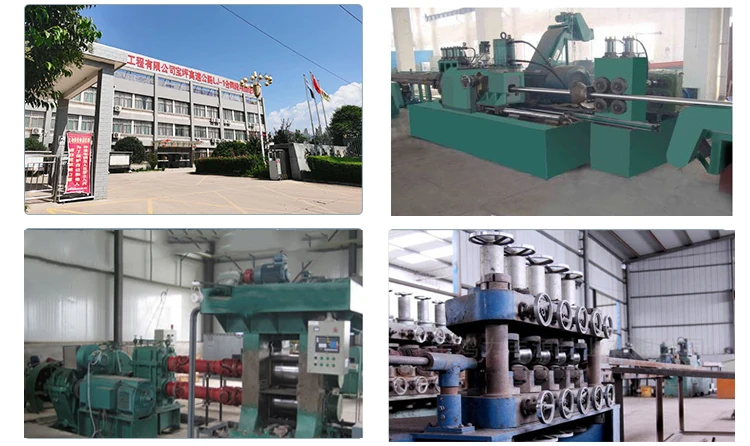

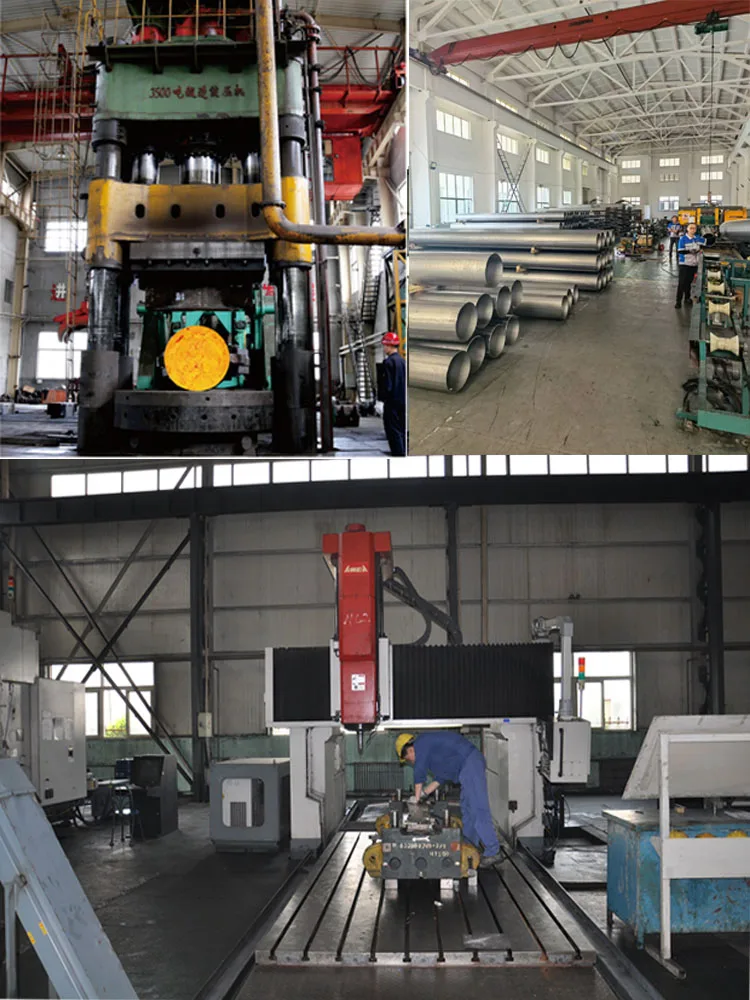

Production Process
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are a factory, and also a company for trading.
Q2: How long is your delivery time?
A2: If the goods are available, it is usually 3-5 days. If the goods are out of stock, then 7-10 days.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can provide samples for free but you will afford the shipping cost.
Q4: How do you insure the quality?
A4:We send mill cert for the products with delivery.And we also can do TPI(Third party inspection)on the products if neccessary.
Q5:What is your payment terms?
Payment ≤1000USD, 100% in advance. Payment >1000USD, 30% T / T in advance, the balance before delivery.
A1: We are a factory, and also a company for trading.
Q2: How long is your delivery time?
A2: If the goods are available, it is usually 3-5 days. If the goods are out of stock, then 7-10 days.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can provide samples for free but you will afford the shipping cost.
Q4: How do you insure the quality?
A4:We send mill cert for the products with delivery.And we also can do TPI(Third party inspection)on the products if neccessary.
Q5:What is your payment terms?
Payment ≤1000USD, 100% in advance. Payment >1000USD, 30% T / T in advance, the balance before delivery.
To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
