Oil Tanker Truck Camera System Kit 24 Volt Reverse Camera System Waterproof IP69K Camera
- Category: >>>
- Supplier: Dongguan Lintech Electronic Limited
Share on (1600744133371):
Product Overview
Description
Product Description
Highly recommend, installed this to keep an eye on a smaller utility trailer behind our 5th wheel. Comes with everything you need and backed up by great customer support!
The camera had a range that is wild. You can see clearly approximately 100 yards behind your RV

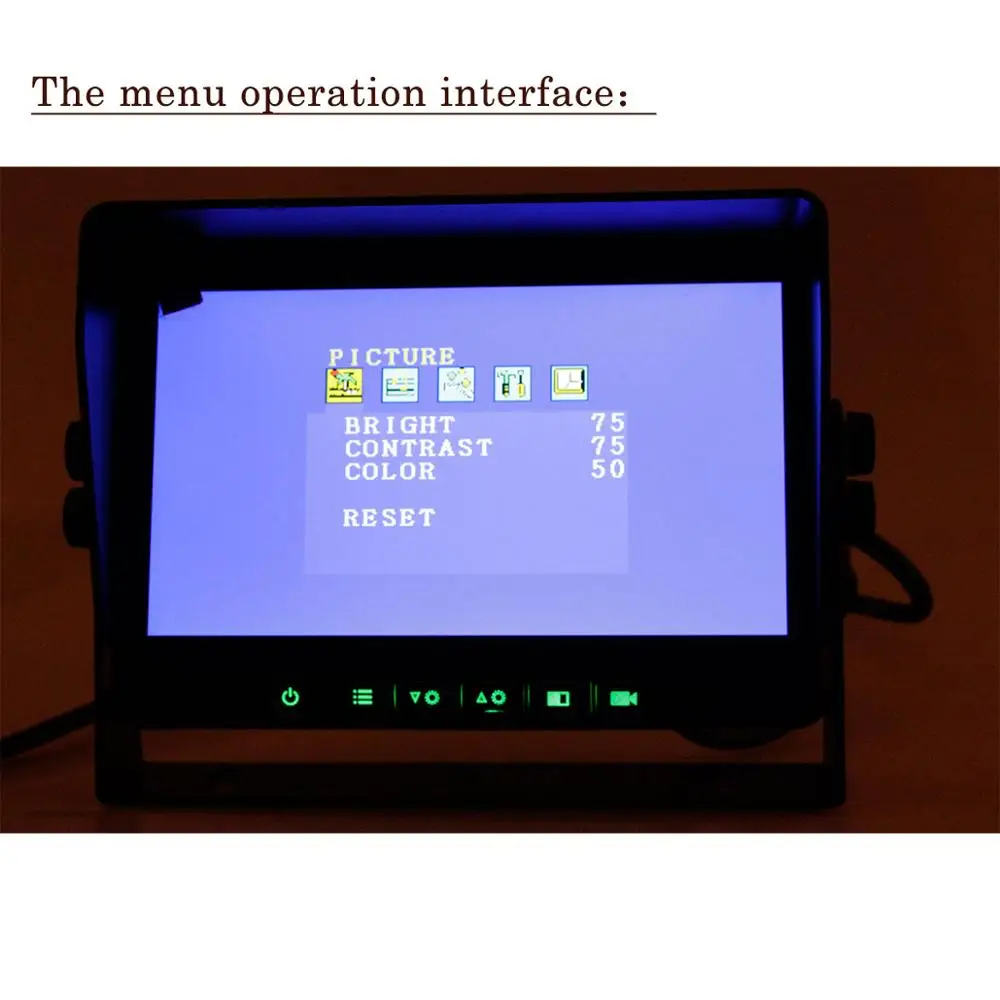

1. | Power ON / OFF |
2. | Menu |
3. | Decrease / Down button --Operation monitor's Bright, Contrast,Color ect. |
4. | Decrease / Down button --Operation monitor's Bright, Contrast, Color ect. |
5. | Screen brightness adjustment selection |
6. | V1 / V2 Switching |

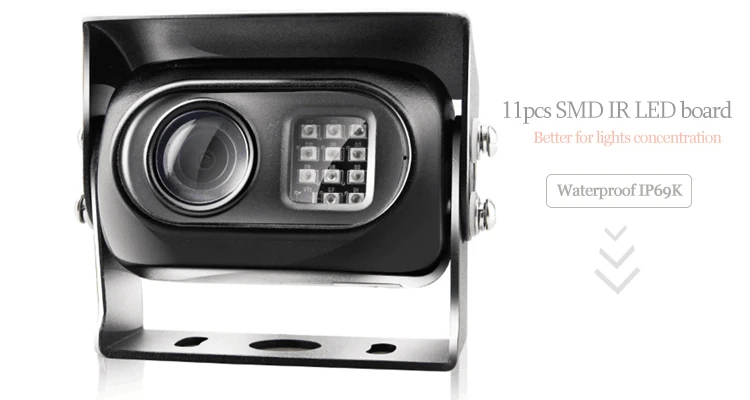

IP69K Rear View Camera:

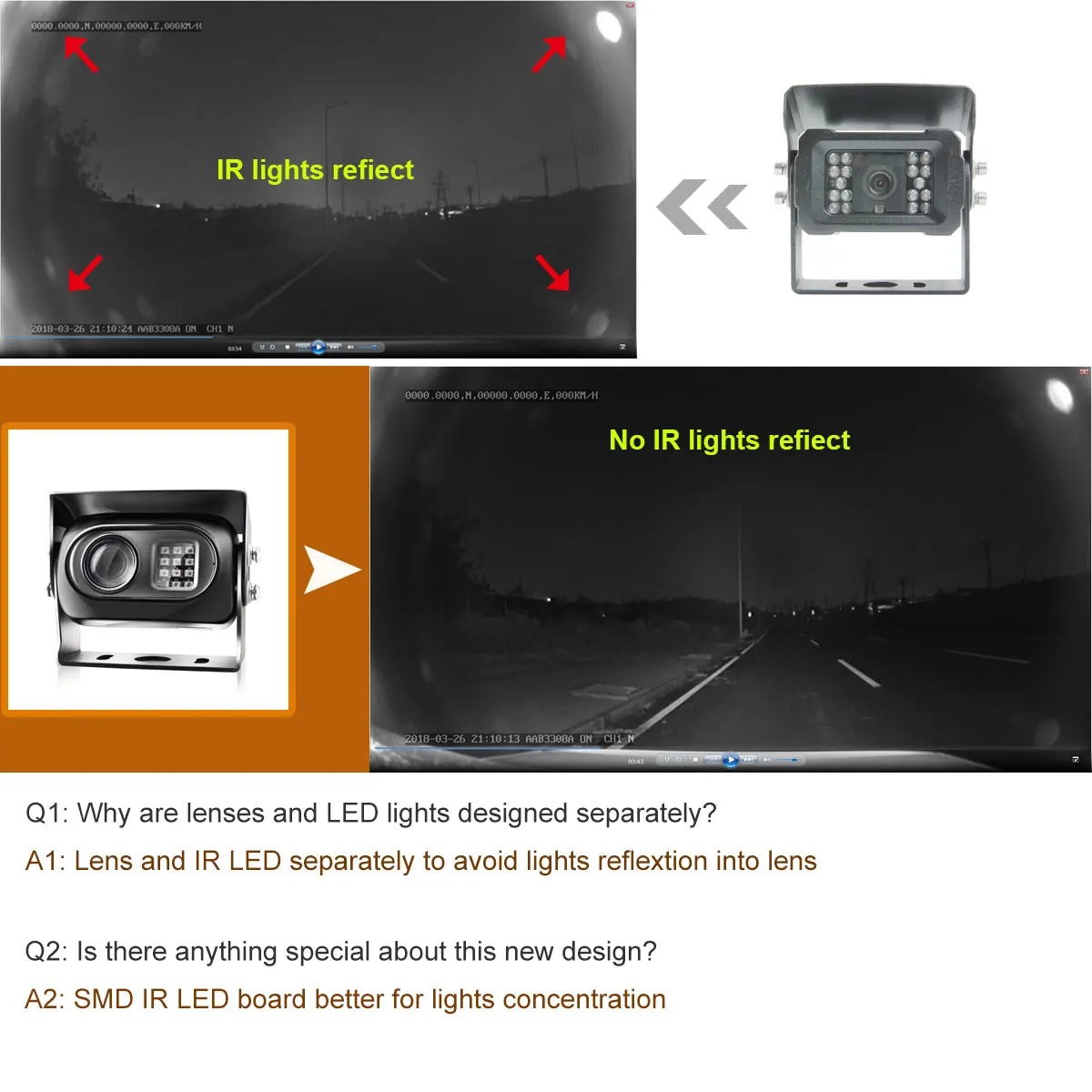

***Lens and IR LED separately to avoid lights reflextion into lens
Night vision: 11pcs SMD Type New IR LED for used at night.
Aluminum alloy housing
Optional built-in Microphone
Optional Heating function for extremely cold condition
Main Features:
--Camera IP69K heavy duty
--AHD 1080P high resolution chipset

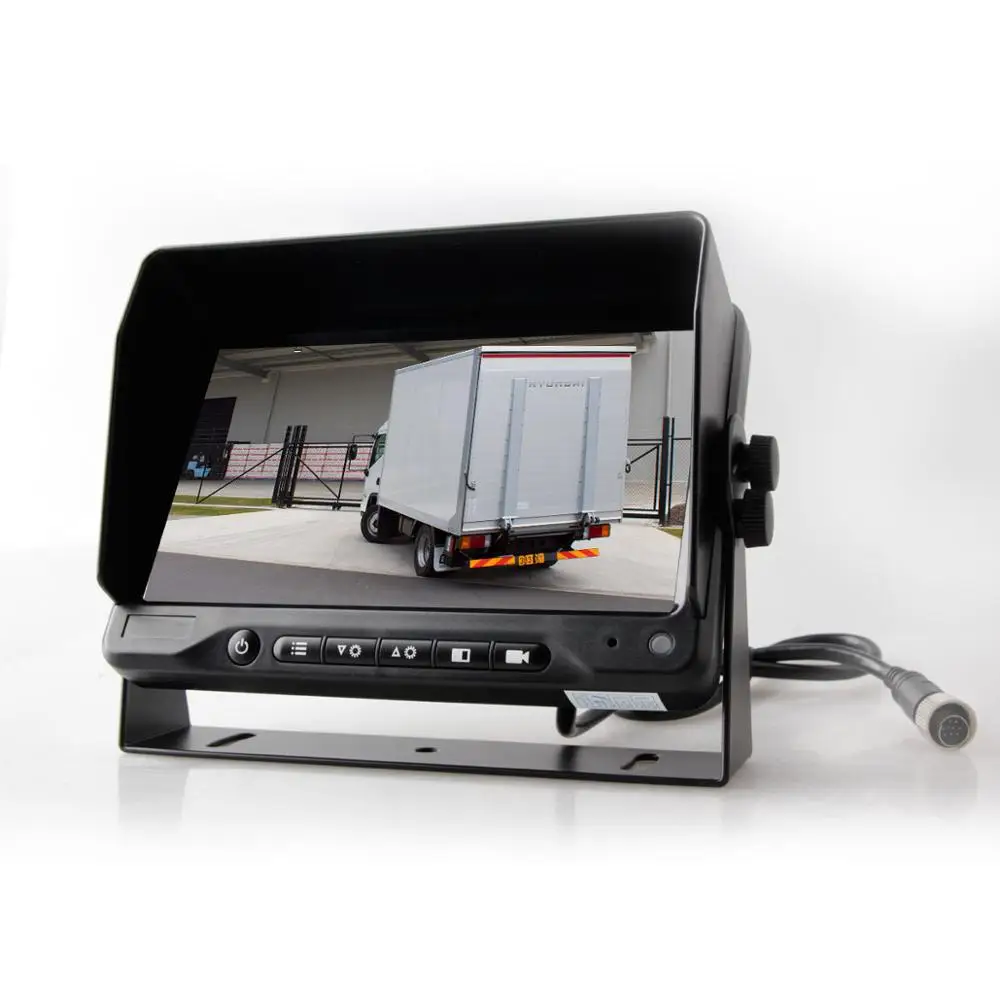

--7" LCD Monitor 800 x 480 RGB
--Camera Optional Heating function for extremely cold condition (Automatic heating when below -5°C.)
--Camera and monitor arrived quickly and easy to intall.To install on truck vehicle.The day time view is great,and the night time is excellent.
-- A U-type mounting bracket that the monitor has, it is very convenient because it gives you the option to install on different surfaces. The image quality of the camera and monitor are very good. Overall this is a great camera system for commercial,industrial, and heavy equipment.
Model #: | LC-010C (Reverse Camera) | LM-070D2 (7 Inch Monitor) |
Sensor | 1080P 1/3" APTINA CMOS/ Sharp/Sony CCD optional | -Heavy duty ABS housing |
Resolution | AHD:1920*1080 (2.0M Pixels) Sharp CCD(420TVL):N:510×492 pixels P: 500×582 pixels Sony CCD(580TVL):N:752×494 pixels P: 752×582 pixels Sony CCD(700TVL):N:976×494 pixels P: 1020×508 pixels | - 800 xR.G.B x 480 digital panel -Language support:English, French, Spanish, Portuguese, Dutch, Italy action-sheet. -Image Up/down, Left/right turn functions. |
Lens | 2.8mm (120°/ 90°) | - High brightness LCD panel |
IR LED | 11pcs (SMD IR LED) | - 2CHs / 4CHs version optional |
Waterproof | IP69K | -Non-waterproof |
Voltage | 12V DC (±10%) | -Power supply 12~32V DC |
Work Temp | -20℃ ~ +40℃ | -Back lights for buttons |
Packing & Delivery
Inner white box package include: | ||
Size | 20.5 (L) * 18.5(W) * 12.5 (D) | |
Weight | 2.2kg /set | |

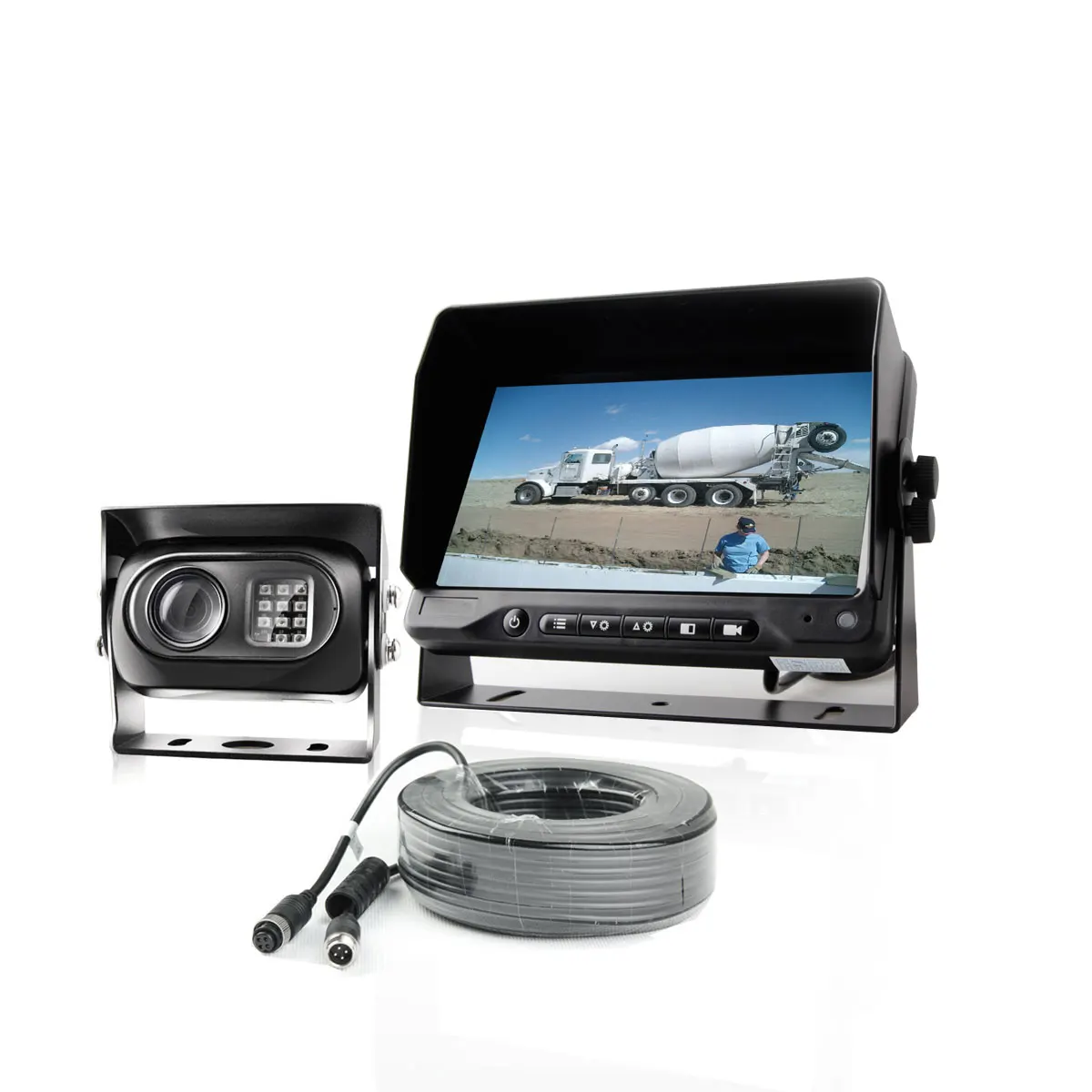

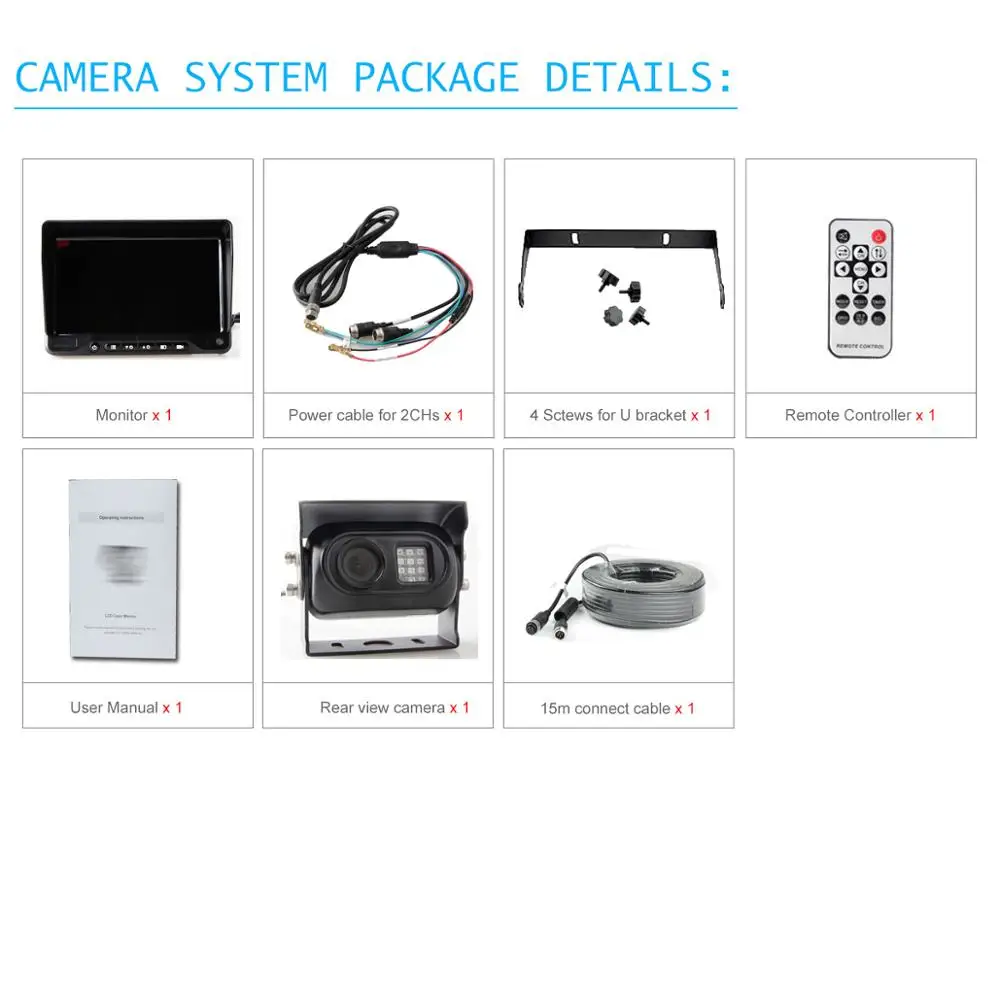

Items include: | -- 1x 7" LCD Monitor 2CHs -- 1x Remote control -- 1x Rear view cameras -- 1x Extension cable 15Meter -- 1 x User manual | |

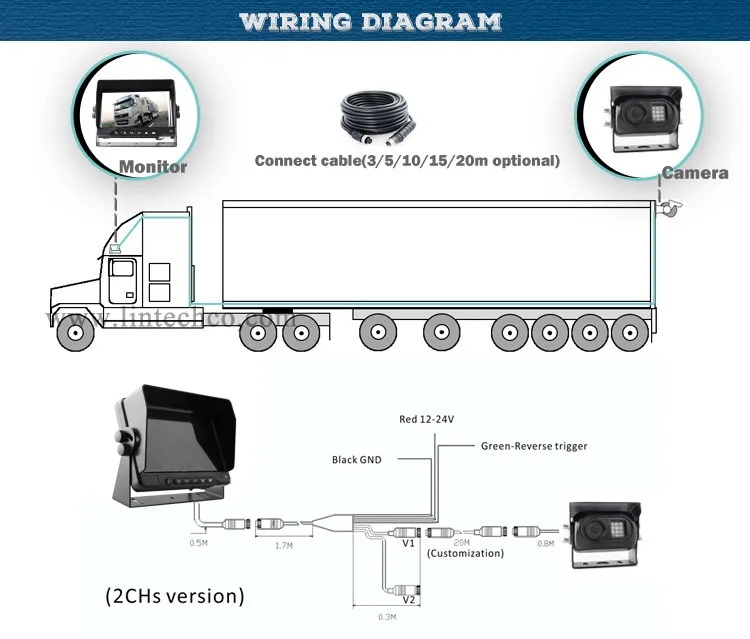

Q1:Does the camera just need power to connect to your monitor or is it hard wired from camera to monitor?
A1:The camera need to get power from monitor, so it need to conect to the monitor with the extended 4-pin cable.
Because this system is suitable for the long vehicle, the camera will be far away from the monitor, you need a cable to connect them.
Because this system is suitable for the long vehicle, the camera will be far away from the monitor, you need a cable to connect them.
Q2:What is diameter of the camera cable not including the connector?
A2:It includes a 50ft cable for camera. If you need one more cables, please contact us for it. We have 32 / 65ft optional.
Company Information:
* 11+ years Alibaba Golden Supplier
* Made-In-China Audited Supplier
* E-mark + CE + FCC Certifications
*Provide medium and high-end on-board camera display customized installation solution
Our products mainly include:
* Wired reversing & rear-view cctv systems;
* Wireless rear vision & backup systems;
* Visual reverse parking sensors;
* Automobile stand-alone and mirror clip on tft-lcd monitors;
* Color CMOS/CCD night vision waterproof surveillance cameras;
* Vehicle Side Camera;
* Vehicle DVR, car video recorder and other auto equips;
* Brake lights safety view backup camera for Fiat ducato / Citroen Relay / Peugeot Boxer vans.
