Customized Rear View Back Up Camera For Volkswagen VW Crafter

Product Overview

Description

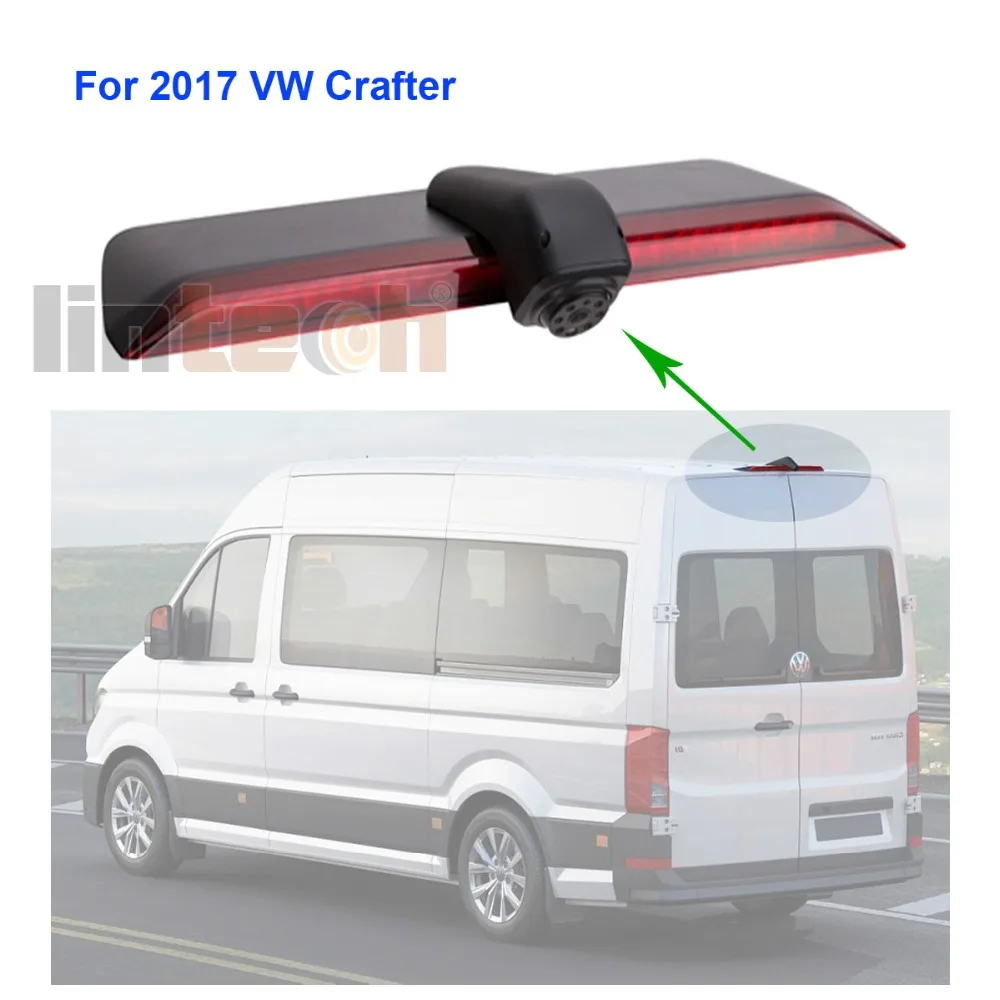

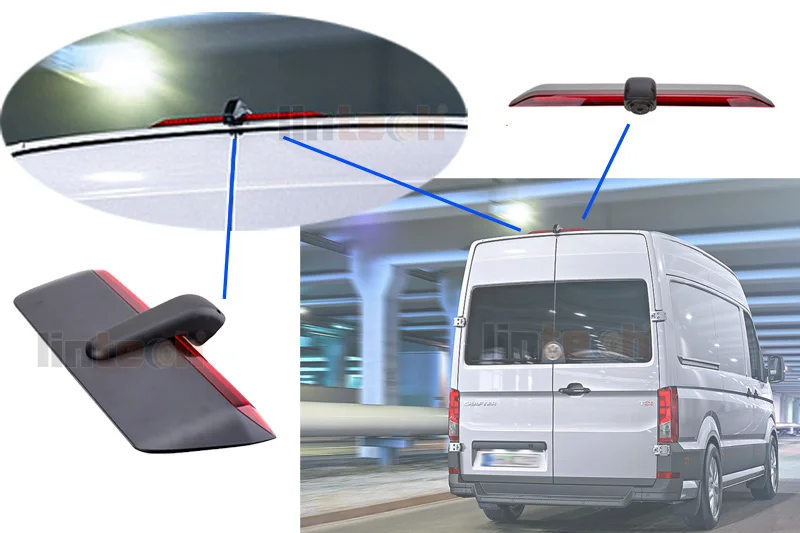

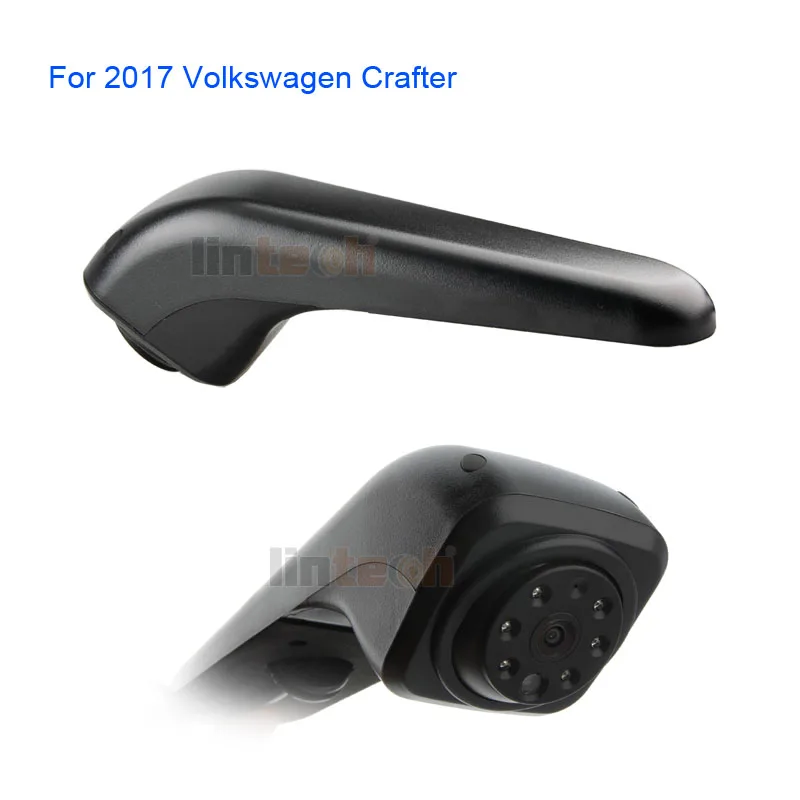

Customized Rear view Back up Camera for Volkswagen VW Crafter







Features:



-- 6pcs Built-in night vision IR LEDs

-- 160 degree viewing angle

-- 12V DC with 24Voptional

-- CE,FCC,RoHS,E-mark E9 Certification







Specifications of VW Crafter Camera:



Type	CRAFTER van brake light camera
Sensor	1/3 NVP SONY CCD		1/3 CMOS 3089
Resolution:	N:976×494 pixels    P: 976×596 pixels		720(H) x 480(V)
TV line	700		600
Lens:	2.6mm		2.6mm
Min illumination:	0Lux (LED ON)		0Lux (LED ON)
IR led:	6pcs		6pcs
Night Vision distance:	35ft		35ft
Waterproof	IP68		IP68
View angle:	160°		160°
Power voltage:	12V		12V
Operation Temp.:	-20℃~+70℃		-20℃~+70











Note:

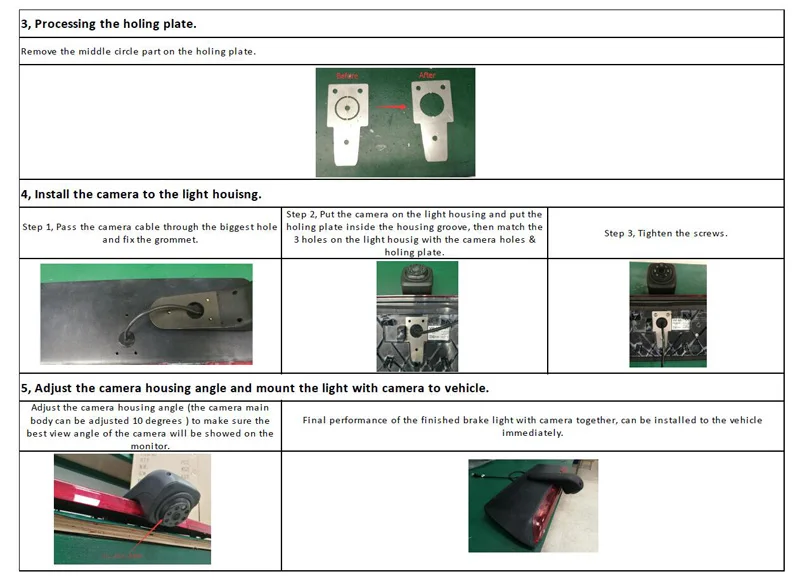

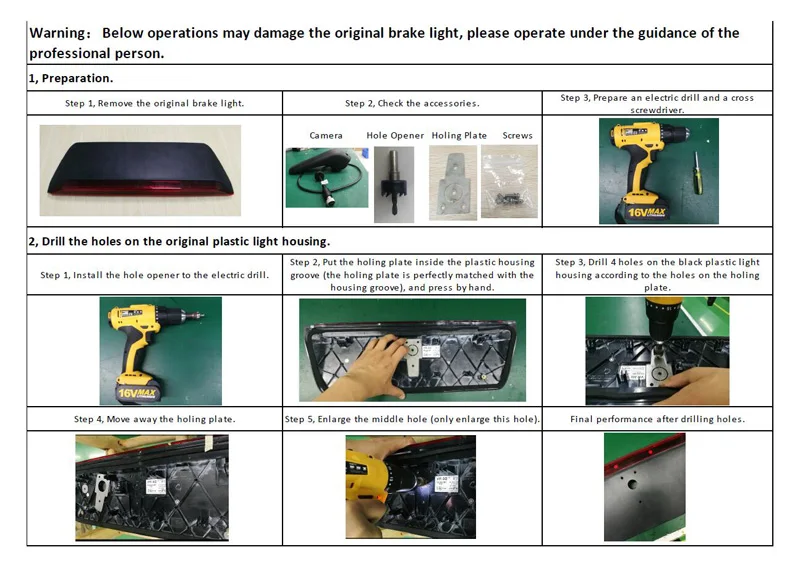

This camera special designed for VW Crafter brake lights housing (Black part) mounted, users need to take down the original brake lights housing, and use our drills (bracket tools) to install this camera part step by step according to the User guide.



Estimate takes 1~1.5 hour to mount this camera.

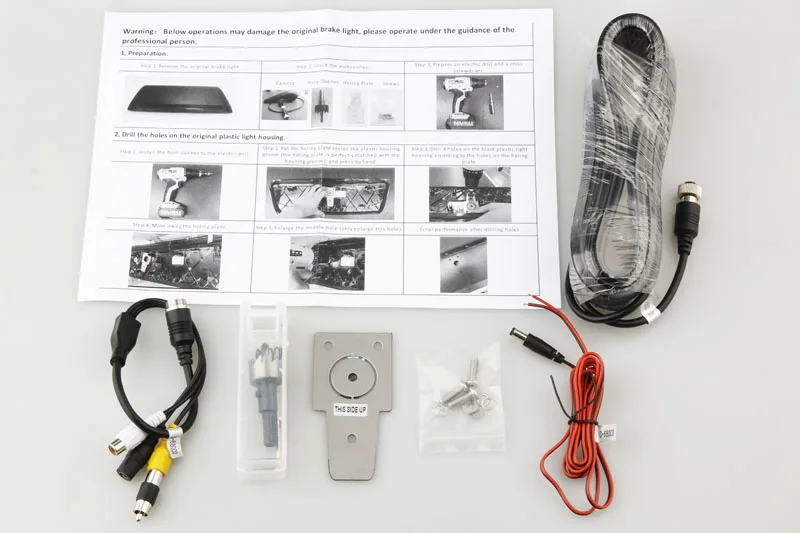

VW Crafter  Camera packing detail:



1x Camera for VW Crafter van;

1x Extension cable 10m;

1x RCA to 4-Pin connector cable;

1x Installation user guide manual;

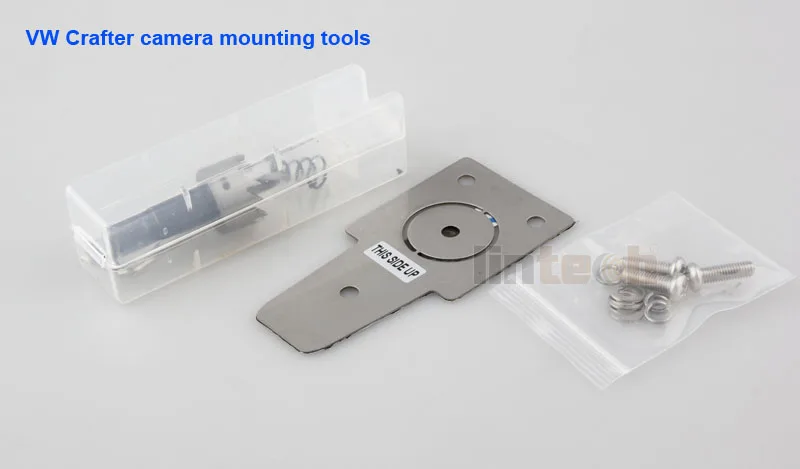

1x Drill  (boring crown);

1x Fixing screws;

1x Iron plate.
