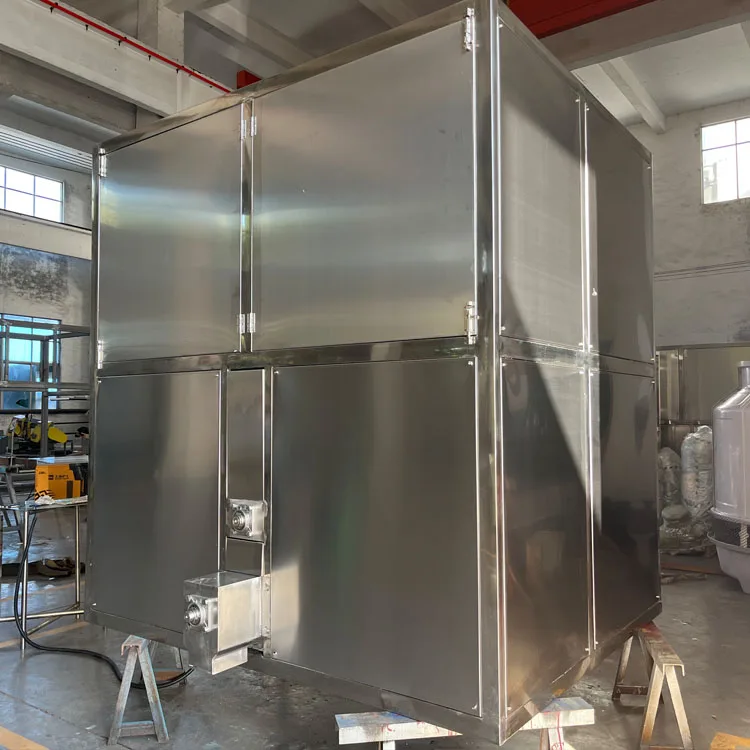

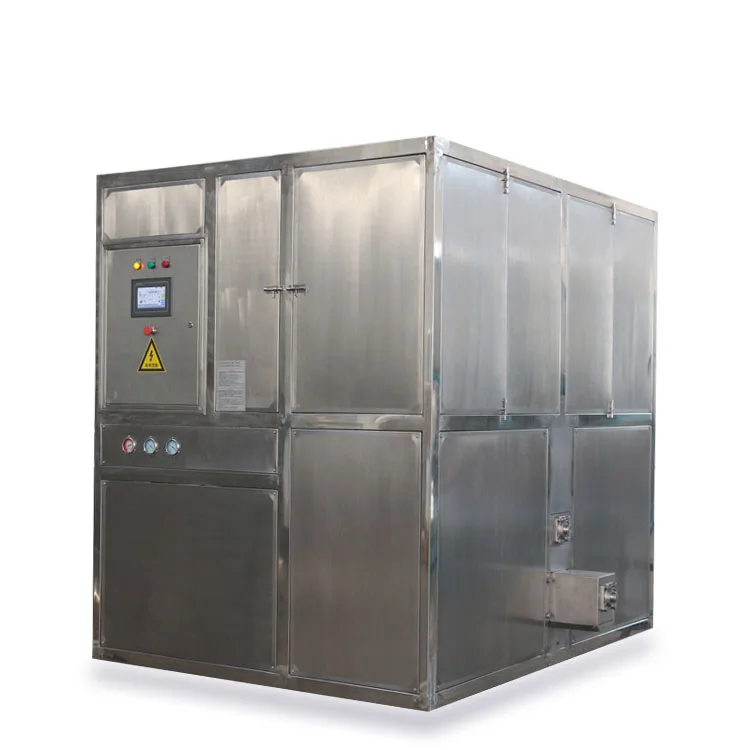

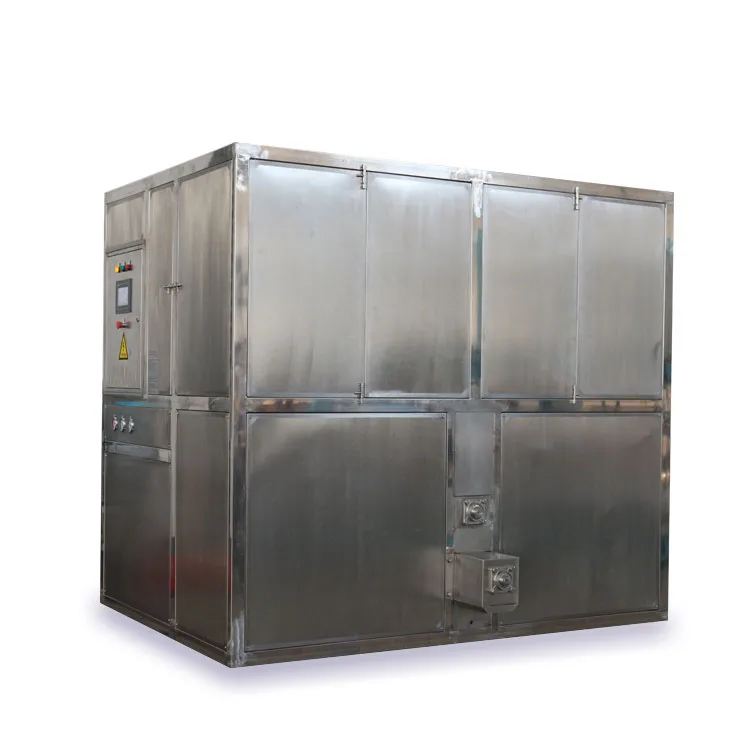

Commercial used high quality 2 Ton ice cube maker making machine for food shop
- Category: >>>
- Supplier: Jiangsu Eternity Import & Export Co. Ltd.
Share on (1600744177553):
Product Overview
Description
Products Description
Model:ETD-C20
Ice Production: 2000kg/24hIce Storage: customized
Net Weight:1300kg
Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Ice Size:
22*22*22mm or customized
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months
Features
1.Sufficient output, up to 100% or more of rated output2.Fully automatic control, the production process does not need to be on duty
3.The output can be customized at will, up to 10 tons
4.Non-standard voltages such as 220V/415V/460V3P can be customized

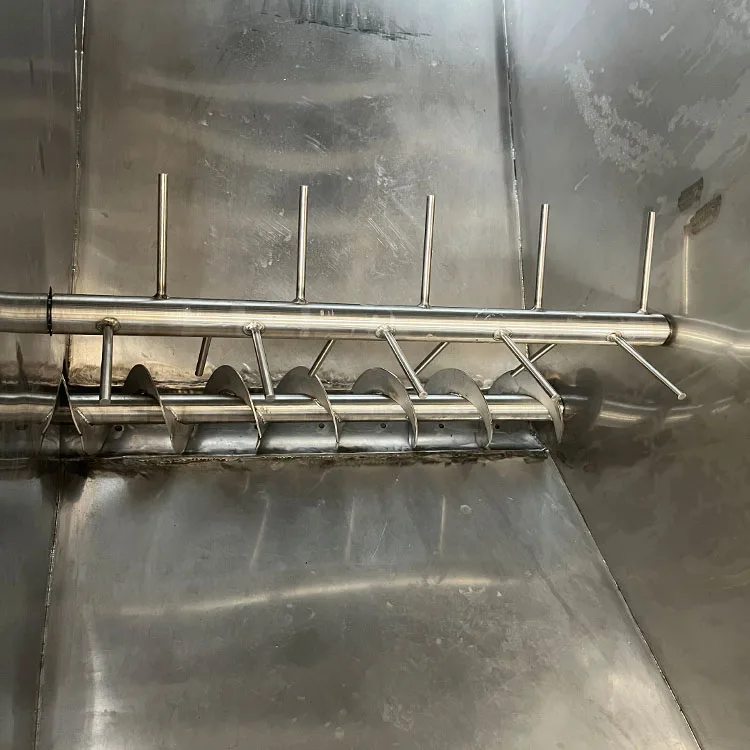

5.The machine has its own ice storage and ice delivery screw
6.Environmentally friendly R404a refrigerant
7.Air-cooled cooling can be customized, default water-cooled
Model | Output | Compressor Model | Ice Tray Number | Power supply | Machine Size (mm) | Machine Weight (kg) |
ETD-C20 | 2000kg/24h | 10P | 6 | 380V/3P/50Hz | L1500*W1400*H2000 | 1300kg |
ETD-C30 | 3000kg/24h | 15P | 10 | 380V/3P/50Hz | L2020×W1950×H2100 | 1400kg |
ETD-C40 | 4000kg/24h | 20P | 14 | 380V/3P/50Hz | L2320×W1950×H2100 | 1500kg |
ETD-C50 | 5000kg/24h | 28P | 18 | 380V/3P/50Hz | L2600*W2000*H2200 | 2000kg |

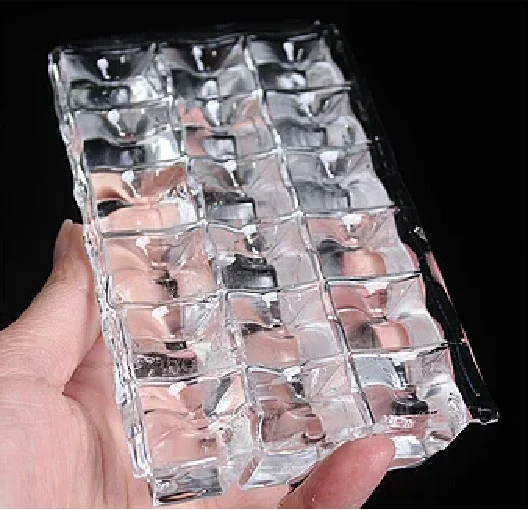

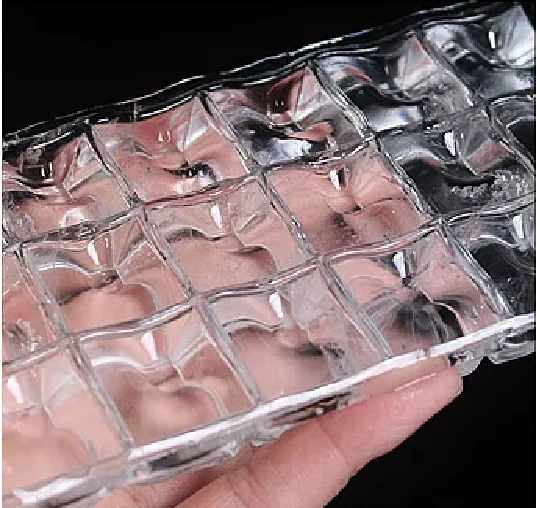

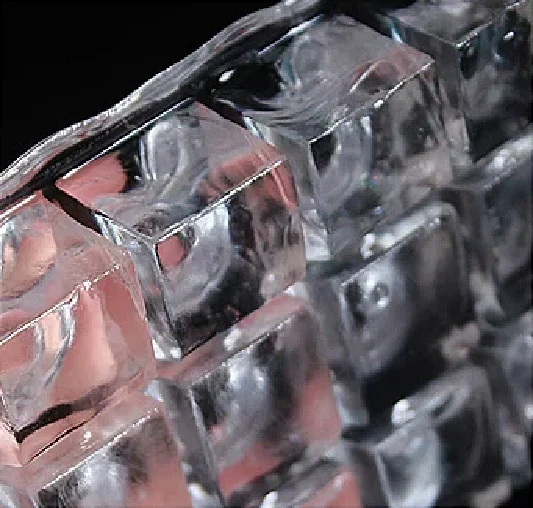

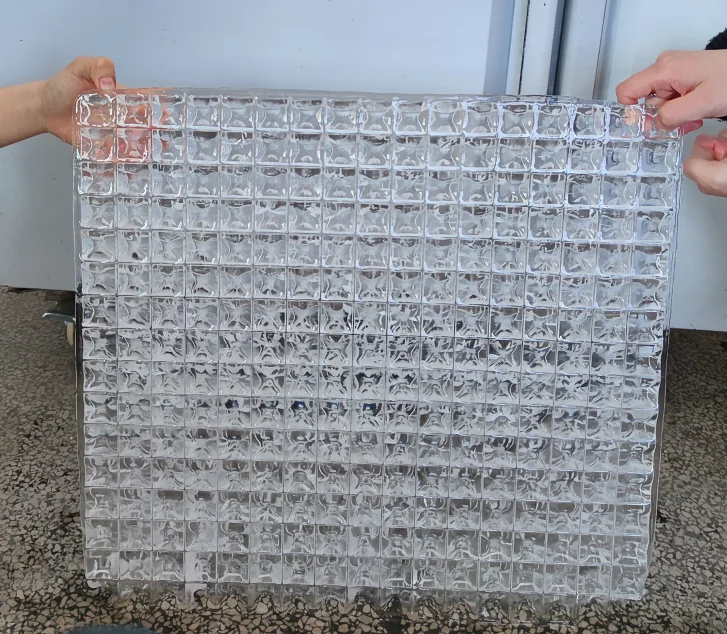

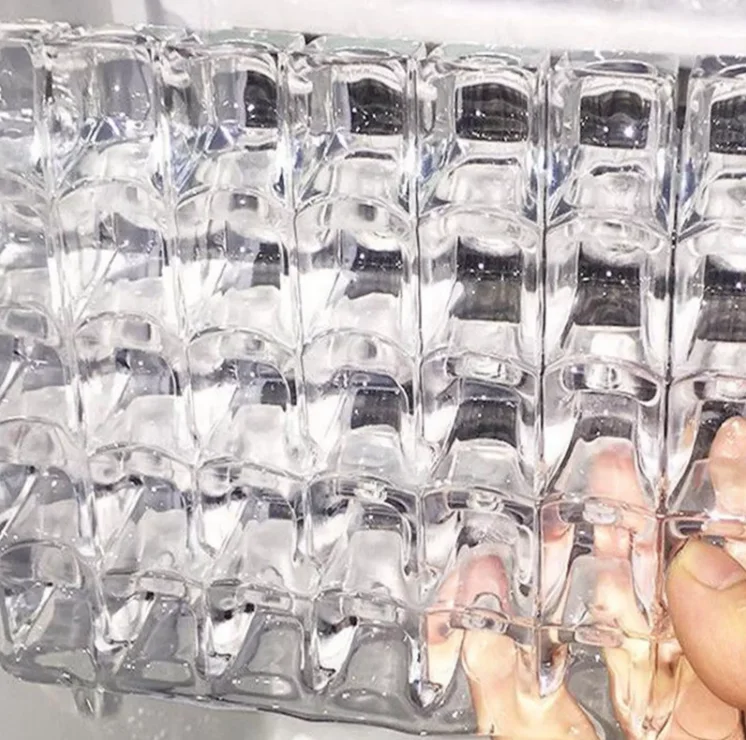

Ice Detail

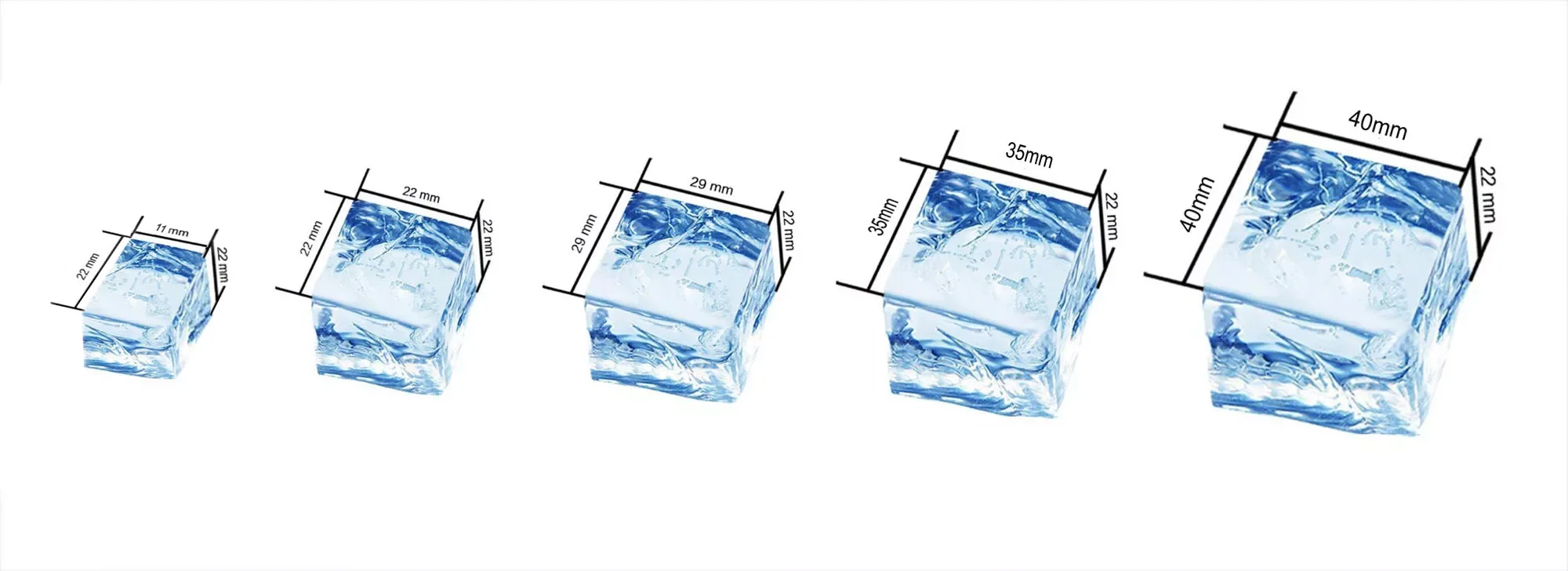

The following
specifications of ice can be customized
11x22x22mm
22x22x22mm
29x29x22mm
35x35x22mm
40x40x22mm
For other models,please consult with sales manager
You can choose any ice cube size you want
The Maximum Size is 45*45*22
Product acessories

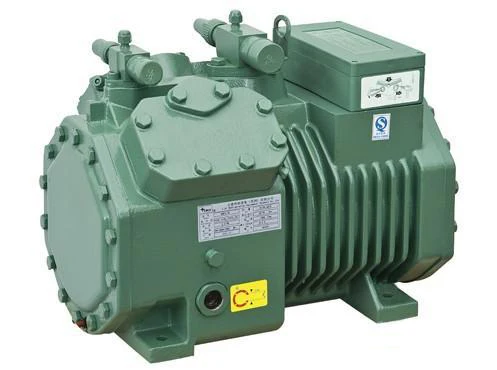

Bitzer/Refcomp/Frascold Compressor
1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;
2, the brand effect is good, the quality is more guaranteed;
3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

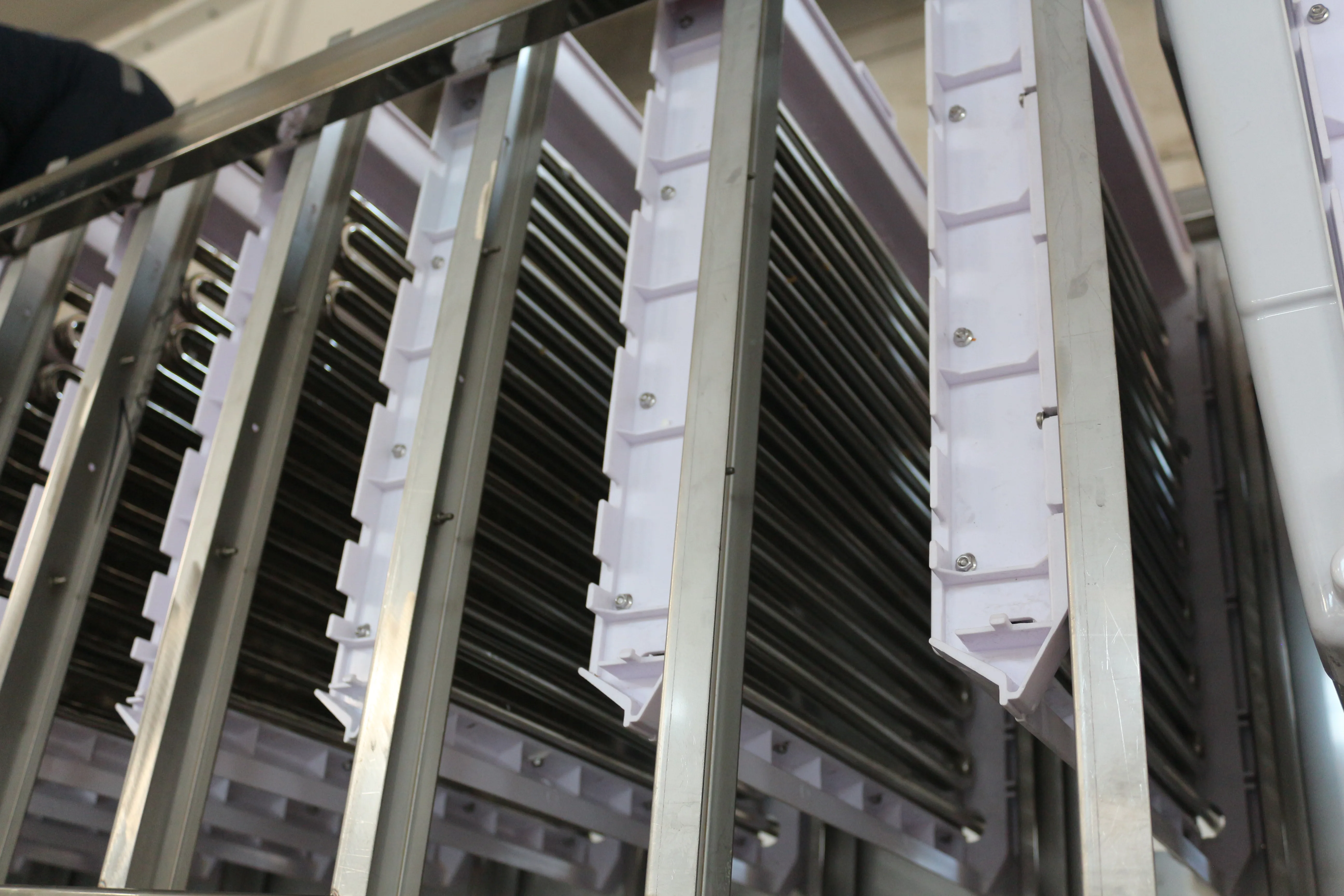

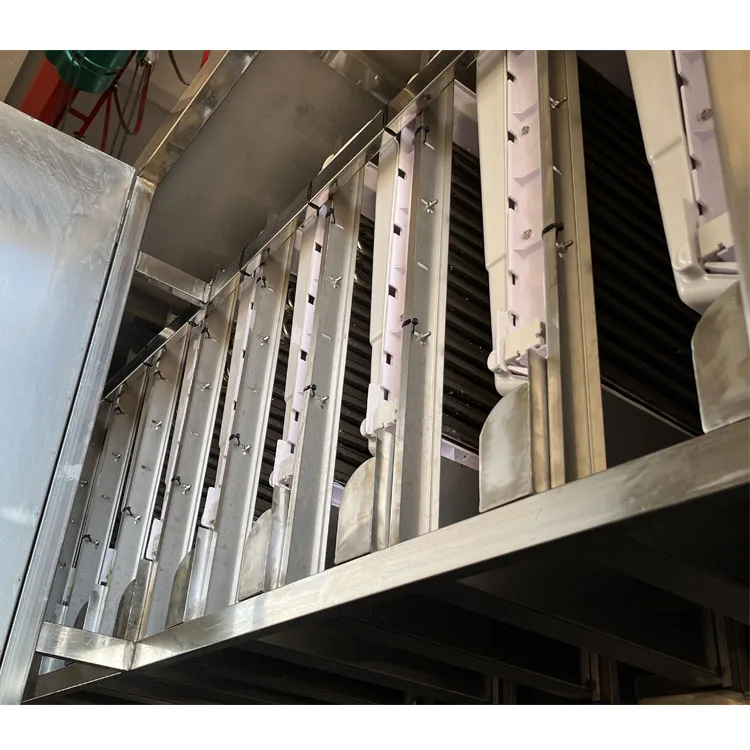

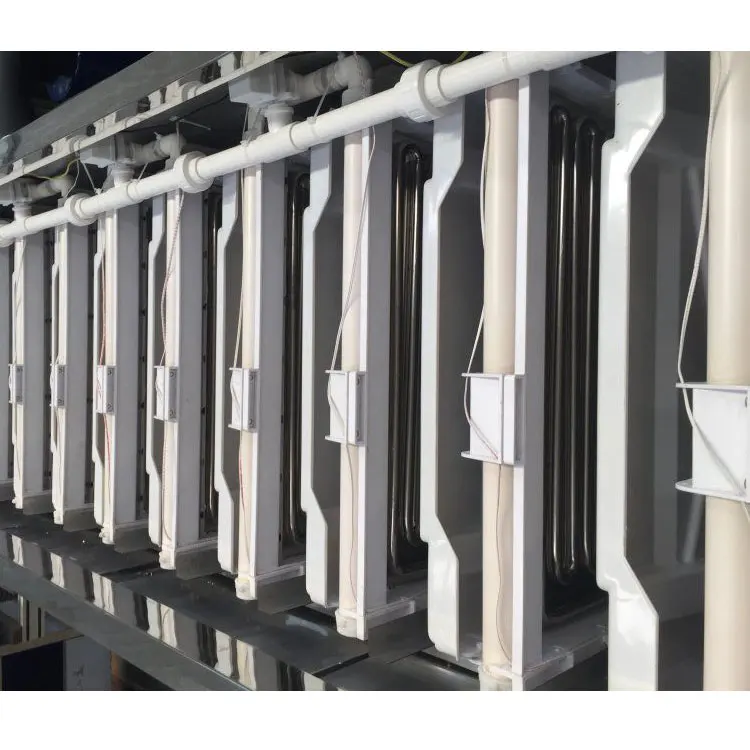

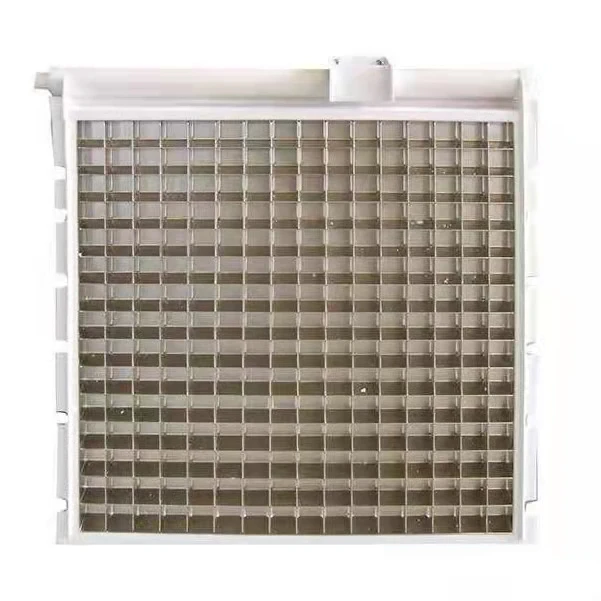

Food Grade Ice Tray
1.High-quality copper electroplating ice tray
2.Nickel plated is
2.Nickel plated is
storage/safe/hygienic
3.Strong corrosion resistance and good heat transfer effect
3.Strong corrosion resistance and good heat transfer effect

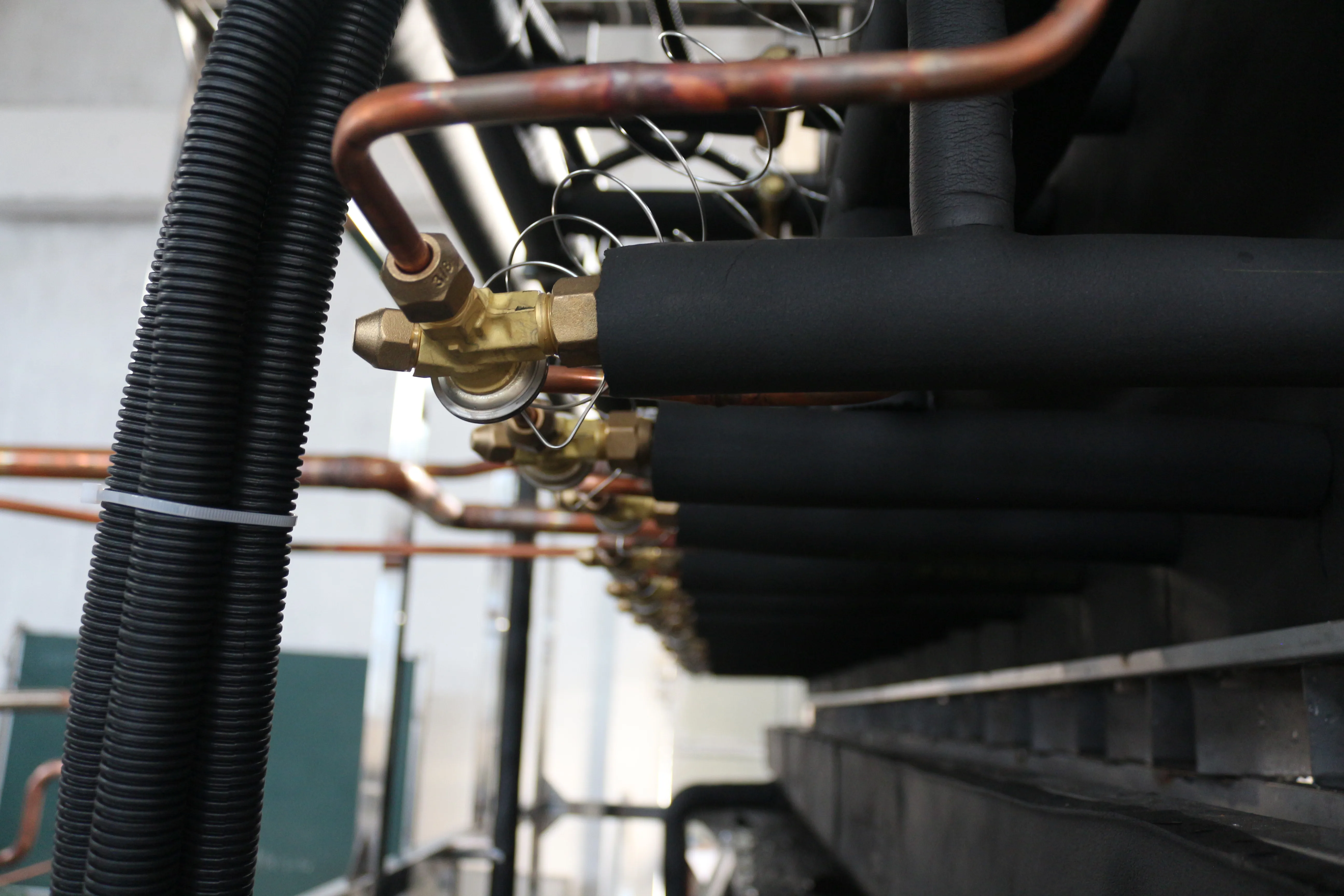

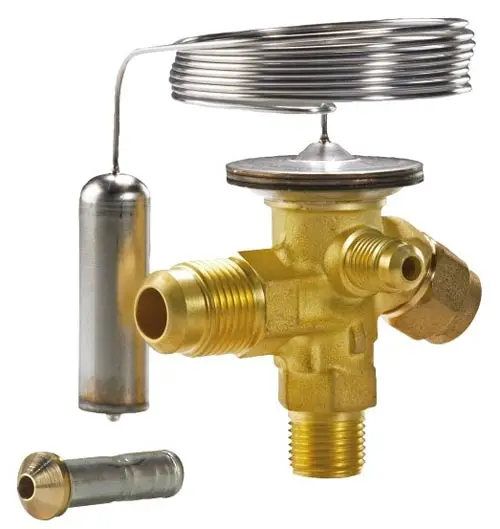

Danfoss Expansion valve
1.High-quality expansion valve in refrigeration industry, higher refrigeration efficiency and lower failure rate
2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer
3.Select internal balance expansion valve, more stable in small refrigeration system
Reliable Condenser
1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;
2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;
2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;

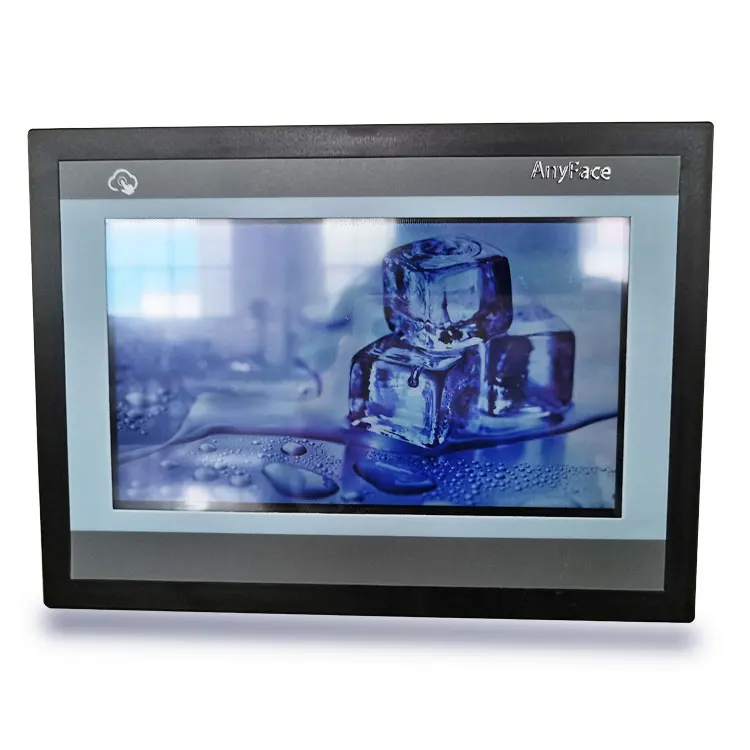

PLC+ Touch screen
1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
4.More status indications to facilitate machine maintenance
Cooling Tower(free)
Cooling Pump(free)
Generator(Optional)
RO water purifier
The Electromagnetic Valve
Return Air Filter
Application
Cube ice machines are located in hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice cubes are needed to meet every customer who needs ice pellets.
The cube ice produced by the cube ice machine is crystal clear, clean and hygienic; it is efficient, safe, energy-saving, durable and environmentally friendly, and is your first choice for ice making.
Collaboration Company
Company Profile
Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.
We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.

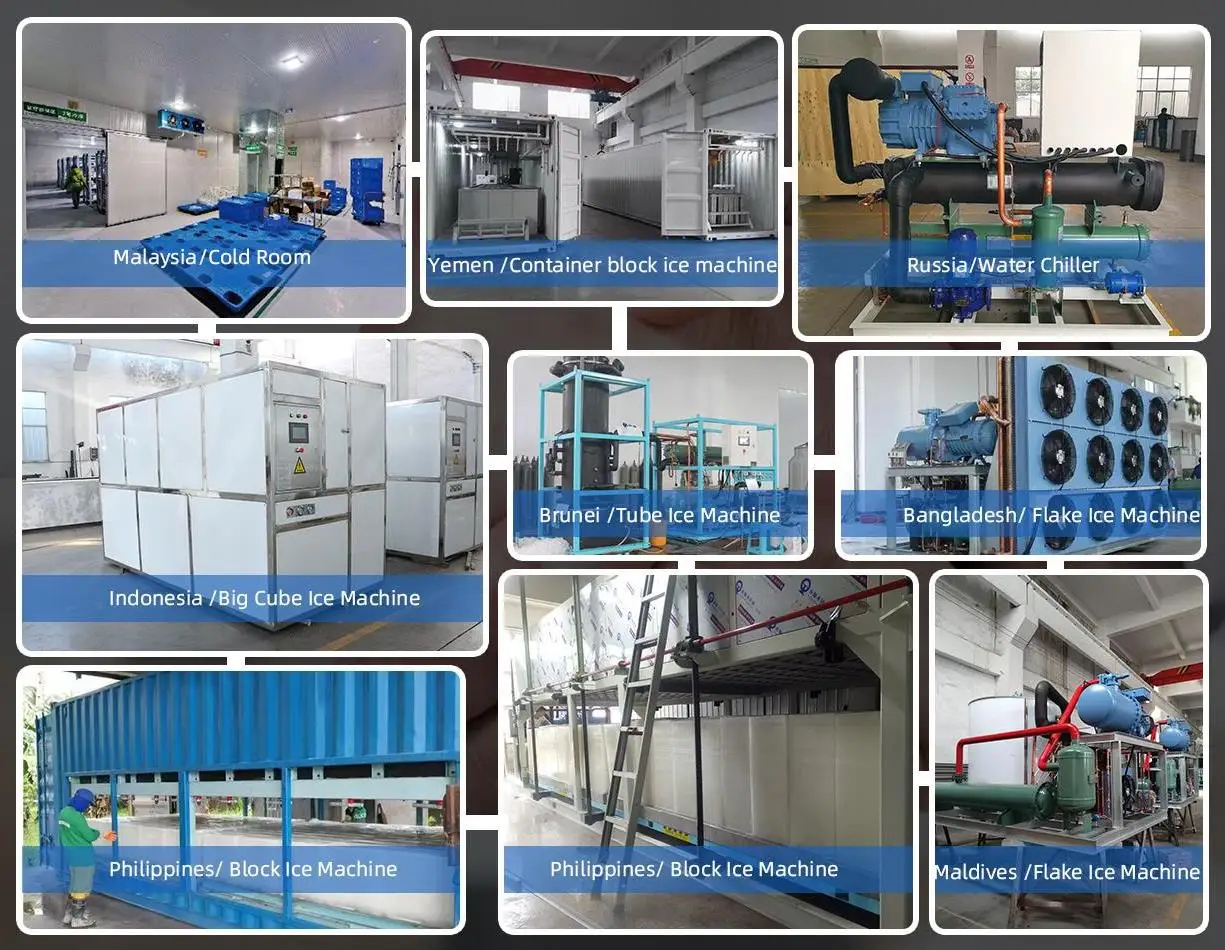

Client Partner
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Certificate
Eternity is a modern company with technical strength and innovation ability.

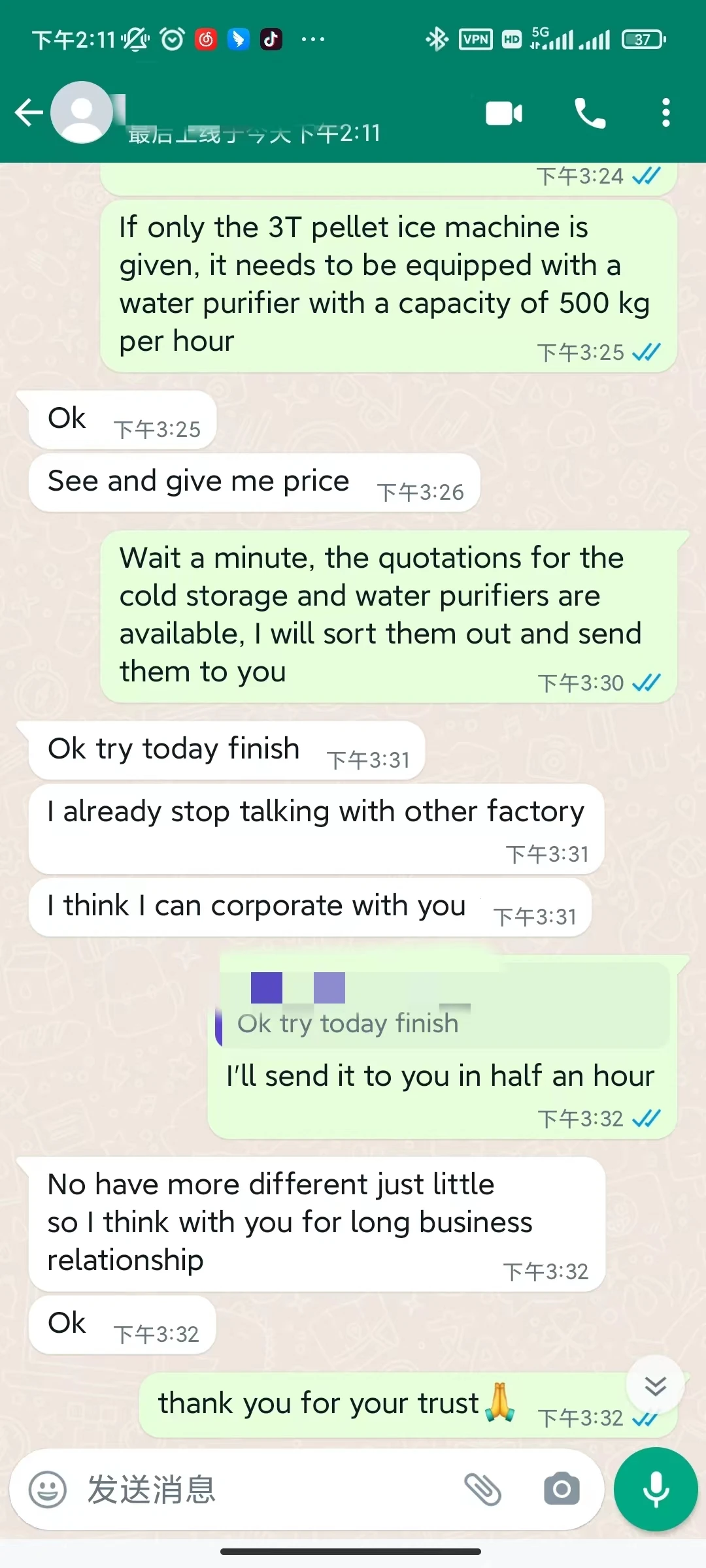

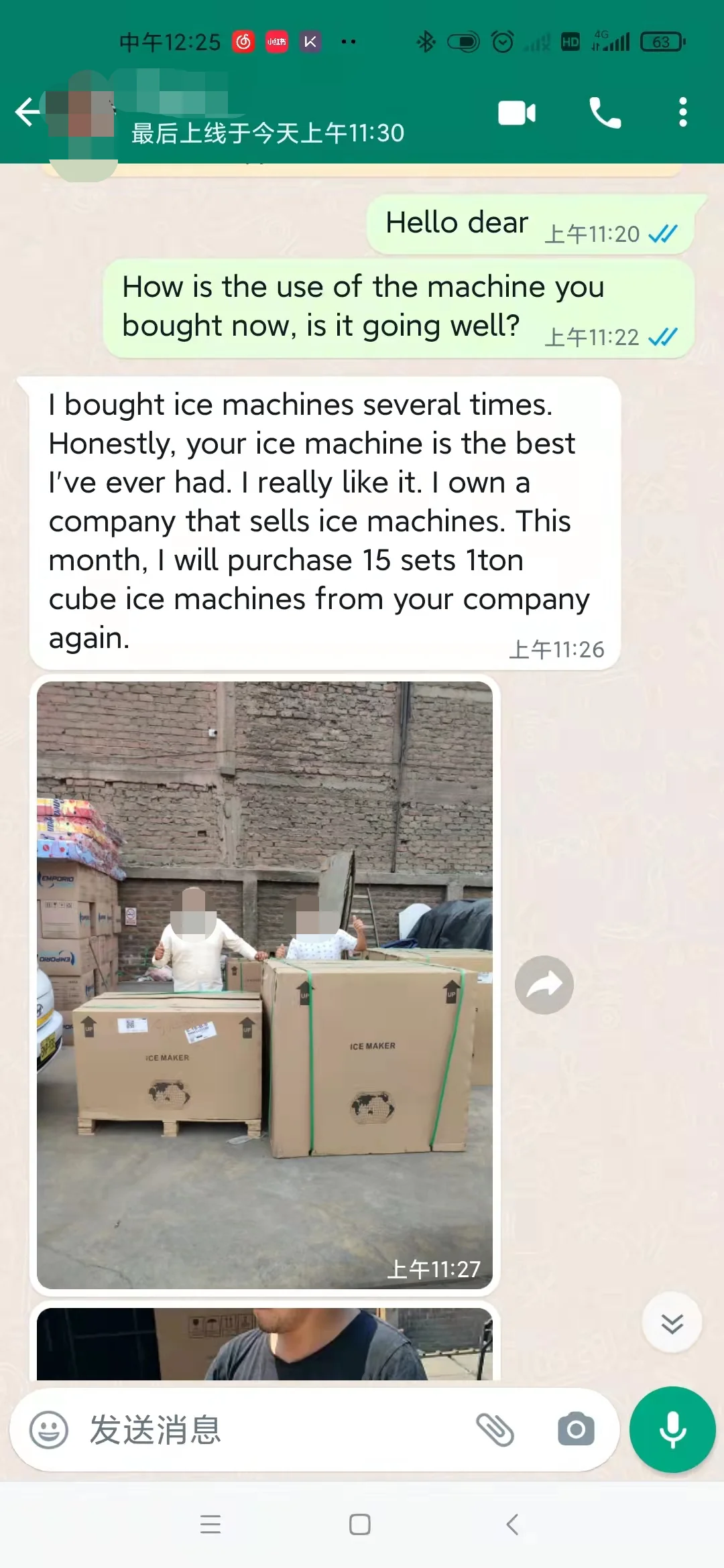

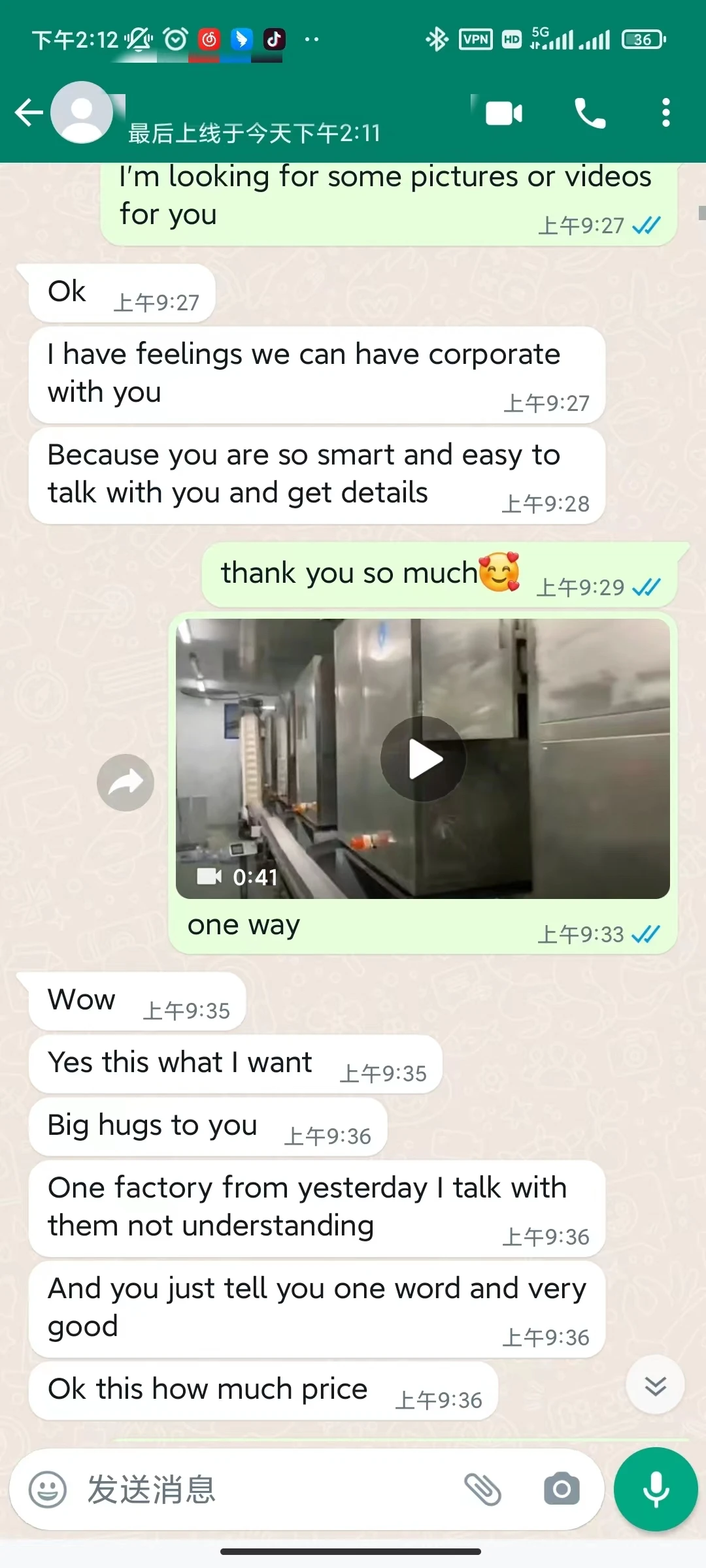

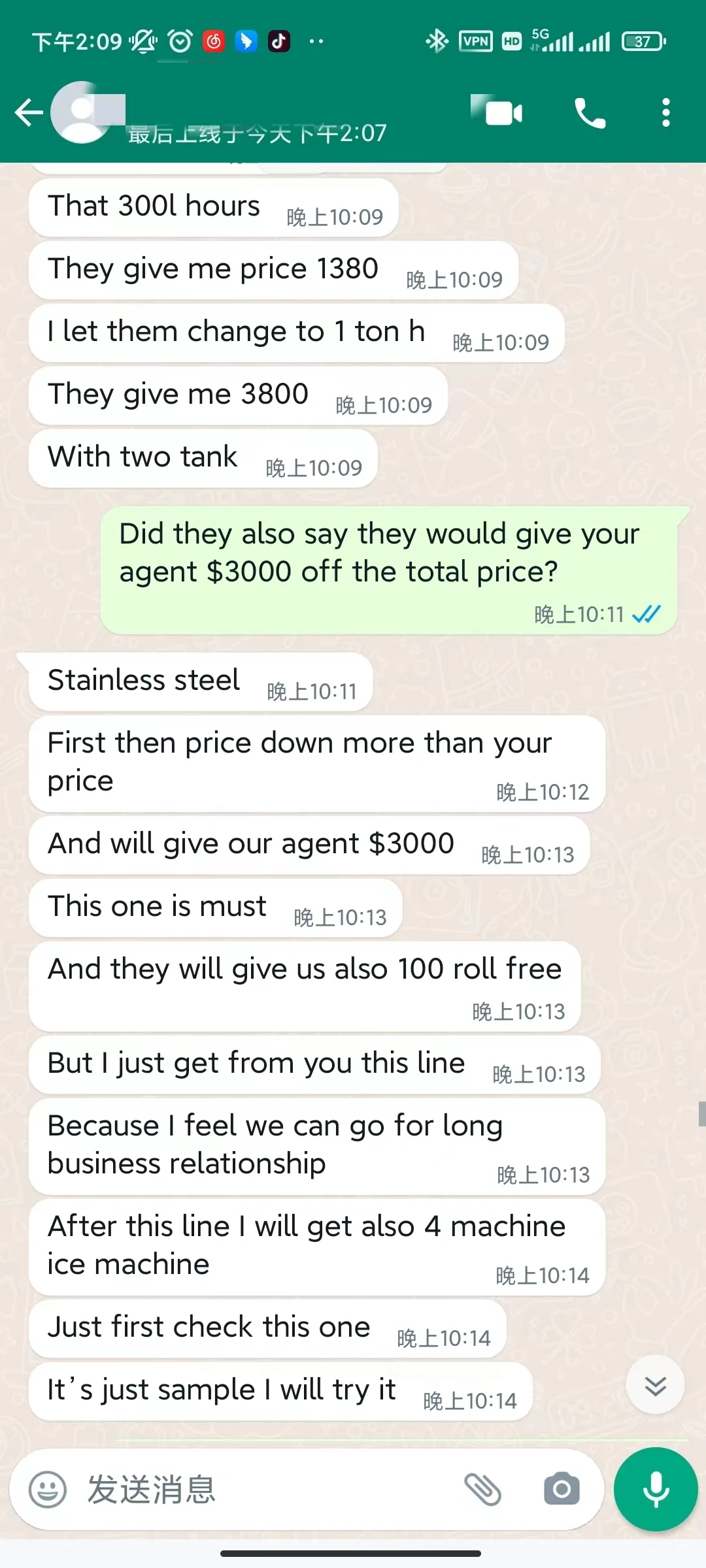

Customer Feedback
FAQ
Q1-What is the lifespan of the machine? | ||||||||
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine. | ||||||||
Q2-What is your payment method? | ||||||||
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you? | ||||||||
Q3-Which brands of compressors do you use? | ||||||||
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on. | ||||||||
Q4-What type of refrigerant are you using? | ||||||||
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22) | ||||||||
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received? | ||||||||
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use. | ||||||||
