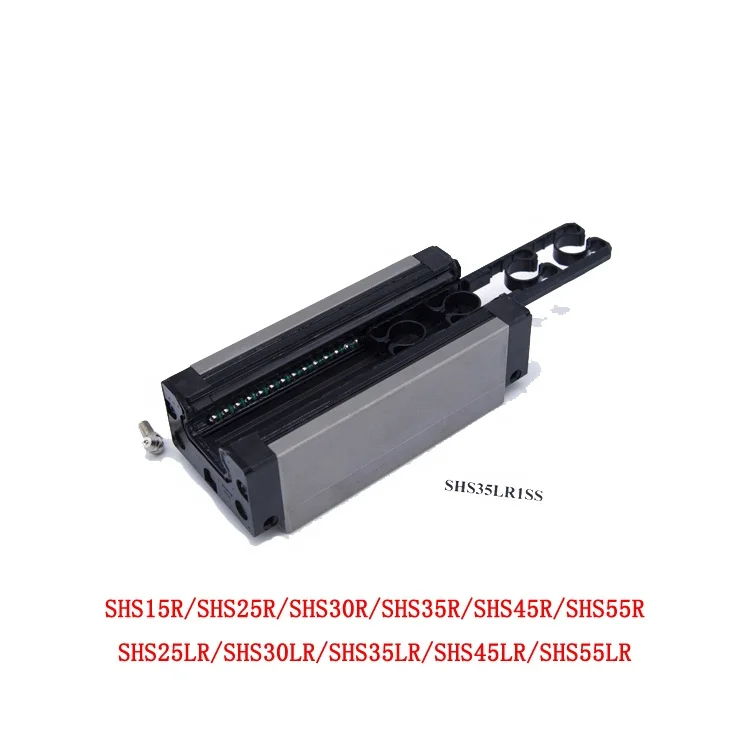

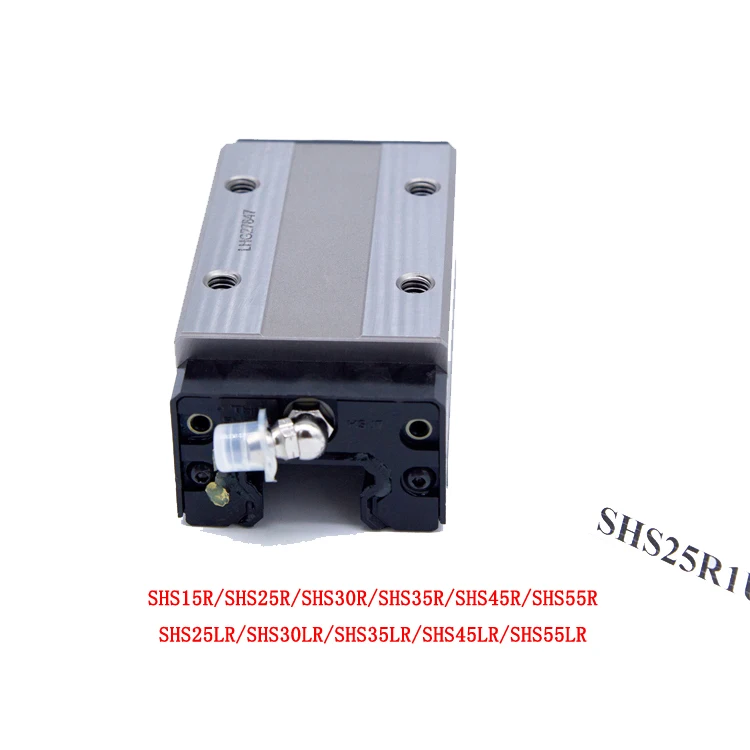

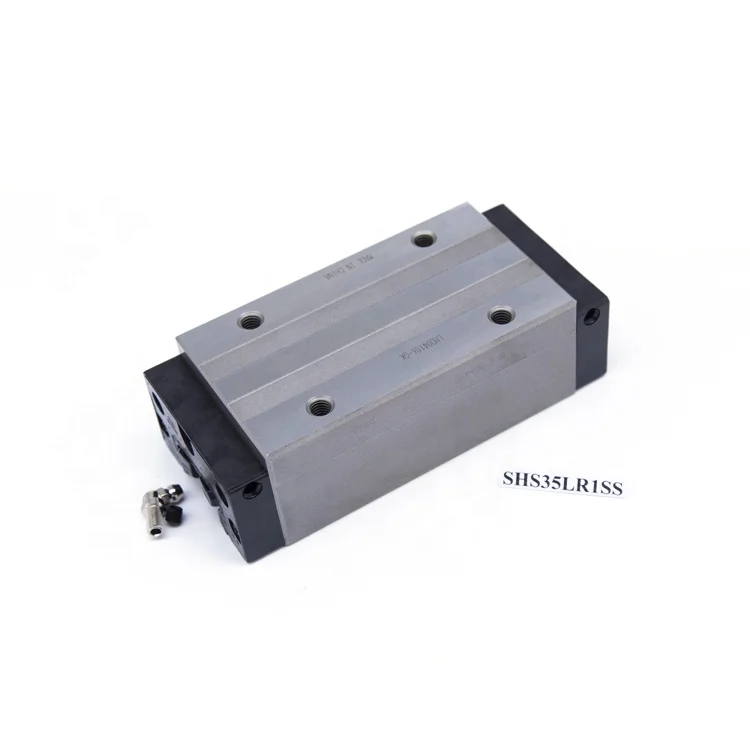

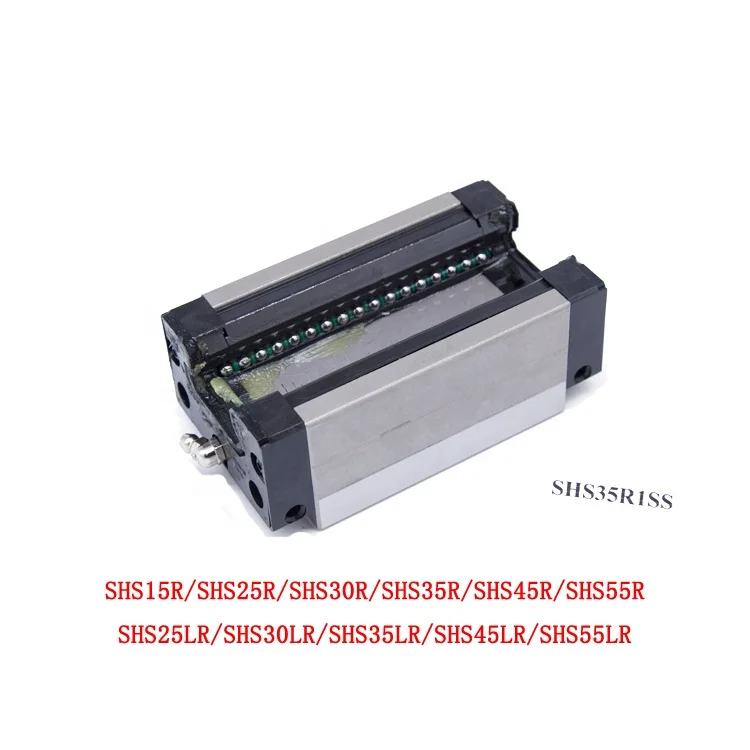

SHS R series Japan Linear Motion Slide Guide Block and Rail Bearing For CNC Machinery SHS15R/SHS25R/SHS30R/SHS35R/SHS45R/SHS55R
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (1600744198740):
Product Overview
Description
Linear Guide Description
Linear Guide Description
The Linear Motion Guide is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.Use of a ball cage eliminates friction between balls, and achieves low noise, acceptable running sound, long-term maintenance-free operation, and superbly high speed response.
Linear Guide Features
1.Long service life, long-term maintenance-free operation
2.Low dust generation, low noise, acceptable running sound
3.Superbly high speed
4.Smooth motion in all mounting orientations
5.Heavy load, high rigidity
6.Has dimensions almost the same as that of the full-ball type linear motion guide model HSR,
which is practically a global standard size
7.Superb capability of absorbing mounting error
Linear Guide Major Applications
1.Machining center
2.NC lathe
3.XYZ axes of heavy cutting machine tools
4.Grinding head feeding axis of grinding machines
5.Components requiring a heavy moment and high accuracy
5.Components requiring a heavy moment and high accuracy
6.NC milling machine
7.Horizontal milling machine
8.Gantry five axis milling machine
9.Z axis of electric discharge machines
10.Wire-cut electric discharge machine
11.Car elevator
12.Food-related machine
13.Testing machine
14.Vehicle doors
15.Printed circuit board drilling machine
16.ATC
17.Construction equipment
18.Shield machine

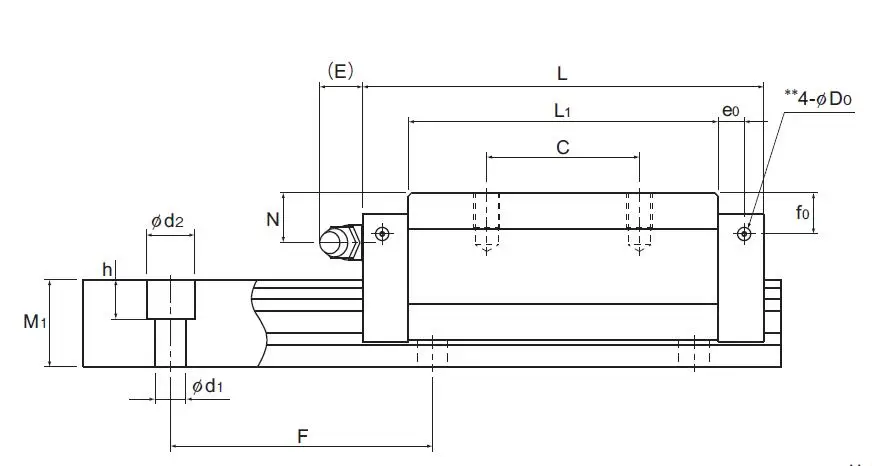

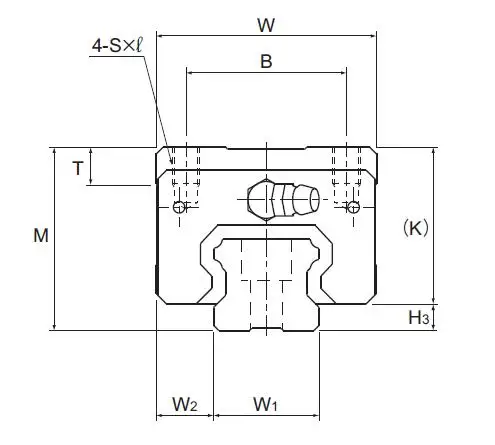

Linear Guide Data
Model code | Height | Width | Length | B | C | Rail Width | Pitch |
SHS15R | 28 | 34 | 64.4 | 26 | 26 | 15 | 60 |
SHS25R | 40 | 48 | 92 | 35 | 35 | 23 | 60 |
SHS30R | 45 | 60 | 106 | 40 | 40 | 28 | 80 |
SHS35R | 55 | 70 | 122 | 50 | 50 | 34 | 80 |
SHS45R | 70 | 86 | 140 | 60 | 60 | 45 | 105 |
SHS55R | 80 | 100 | 171 | 75 | 75 | 53 | 120 |
SHS25LR | 40 | 48 | 109 | 35 | 50 | 23 | 60 |
SHS30LR | 45 | 60 | 131 | 40 | 60 | 28 | 80 |
SHS35LR | 55 | 70 | 152 | 50 | 72 | 34 | 80 |
SHS45LR | 70 | 86 | 174 | 60 | 80 | 45 | 105 |
SHS55LR | 80 | 100 | 213 | 75 | 95 | 53 | 120 |
