Product Overview
Description

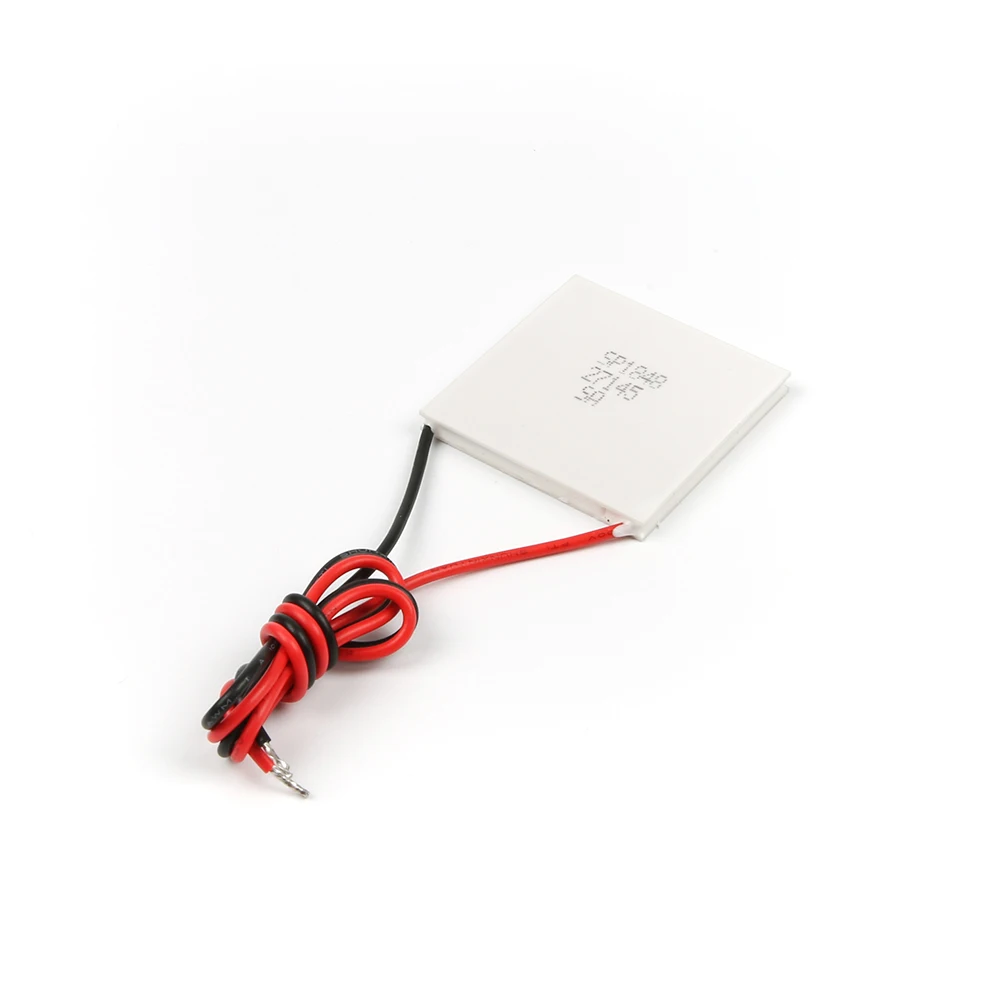

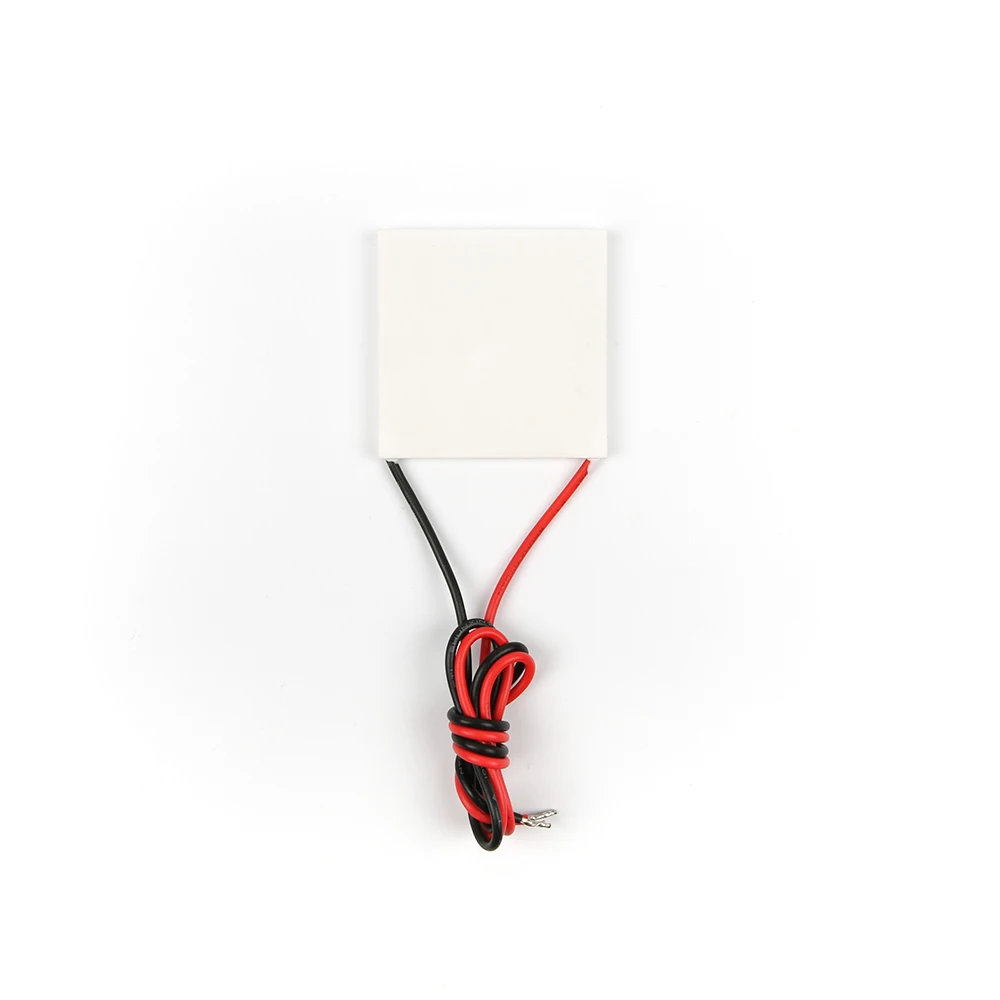

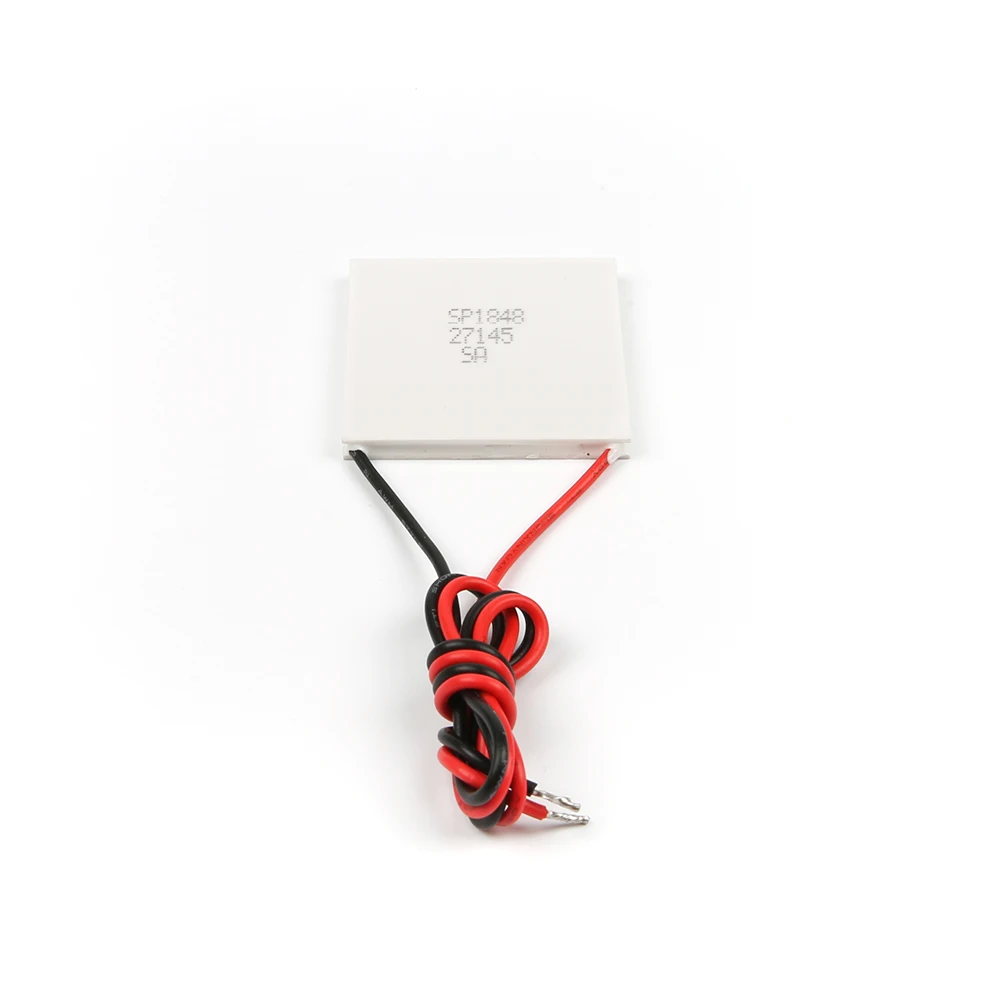

SP1848-27145 120 Temperature Resistant Semiconductor Thermoelectric Sheet Module
* High temperature 150°C, with NM static protection
* Red wire to positive, black wire to the negative, it generate electricity when the temperature difference happened
* Small and Light weight, long work life
* Red wire to positive, black wire to the negative, it generate electricity when the temperature difference happened
* Small and Light weight, long work life
High temperature | 120C |
Size | 40mm x 40mm x 3.4mm |
Lead length | 30cm |
Specifications:
Lead Length: about 300mm
Size: 40mm x 40mm x 3.4mm
20 Degree Temperature Difference: Open-circuit Voltage 0.97V,Generated Current: 225MA
40 Degree Temperature Difference: Open Circuit Voltage 1.8V, Generated Current: 368MA
60 Degree Temperature Difference: Open Circuit Voltage 2.4V, Generated Current: 469MA
80 Degree Temperature Difference: Open Circuit Voltage 3.6V, Generated Current: 558MA
100 Degree Temperature Difference: Open Circuit Voltage 4.8V, Generated Current: 669MA
The above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current.
Lead Length: about 300mm
Size: 40mm x 40mm x 3.4mm
20 Degree Temperature Difference: Open-circuit Voltage 0.97V,Generated Current: 225MA
40 Degree Temperature Difference: Open Circuit Voltage 1.8V, Generated Current: 368MA
60 Degree Temperature Difference: Open Circuit Voltage 2.4V, Generated Current: 469MA
80 Degree Temperature Difference: Open Circuit Voltage 3.6V, Generated Current: 558MA
100 Degree Temperature Difference: Open Circuit Voltage 4.8V, Generated Current: 669MA
The above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current.
