Product Overview
Description
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant
Product Description
With larger feed openings and bigger crushing strokes, the Jaw Crusher is suitable for crushing big sizelumps in large quantity.From the welded steel base to the rugged eccentric shaft, the jaw crusher is built withbrute strength with quality bearings. Stone jaw crusher is one of the main types of secondary crushers in amine or ore processing plant.
This series of jaw crusher ( jaw crusher) has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.
Application area
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type.
Structures
Working Principles:
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
Technical Parameters
| Model | Inlet Size (mm) | Feed Size (mm) | Adjustable Range(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
| PE-150*250 | 150*250 | 125 | 10-40 | 0.6-3 | 5.5 | 0.81 |
| PE-250*400 | 250*400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
| PE-400*600 | 400*600 | 340 | 40-100 | 10-34 | 30 | 6.5 |
| PE-500*750 | 500*750 | 425 | 50-100 | 20-52 | 55 | 10.3 |
| PF-600*750 | 600*750 | 500 | 150-200 | 50-100 | 55 | 12 |
| PE-600*900 | 600*900 | 500 | 65-160 | 30-75 | 55-75 | 15.5 |
| PE-750-1060 | 750-1060 | 630 | 80-140 | 72-130 | 110 | 30 |
| PE-800*1060 | 800*1060 | 640 | 100-200 | 85-143 | 110 | 30 |
| PE-900*1060 | 900*1060 | 685 | 230-290 | 100-250 | 110 | 31 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 87-164 | 110 | 50 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 197-214 | 110 | 51 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 250-500 | 160 | 100.9 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 5-16 | 15 | 3.5 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 8-22 | 22 | 4.9 |
| PEX-250*1000 | 250-1000 | 210 | 25-60 | 10-32 | 30-37 | 6.5 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 13-38 | 37 | 7.7 |
 | ||
 |  |  |
 |  |  |

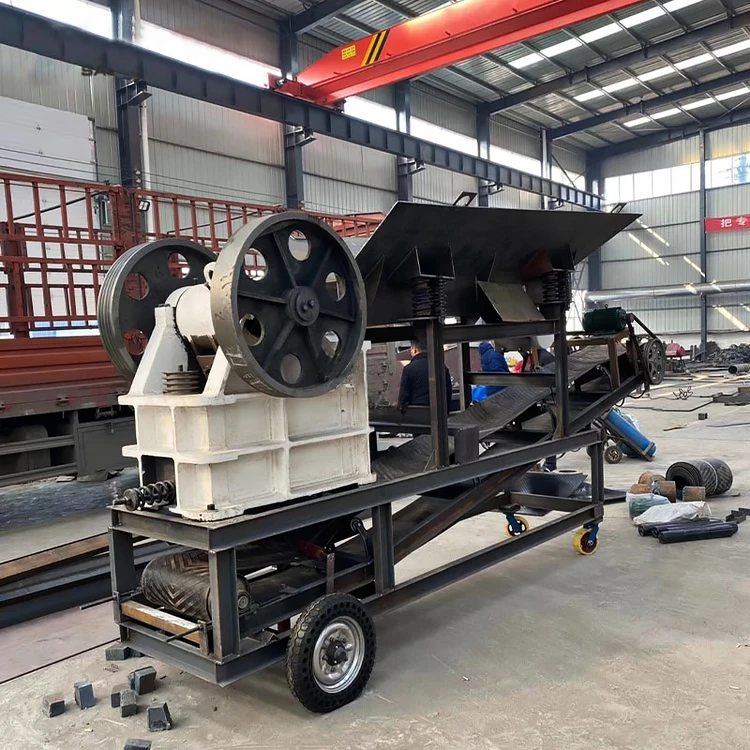

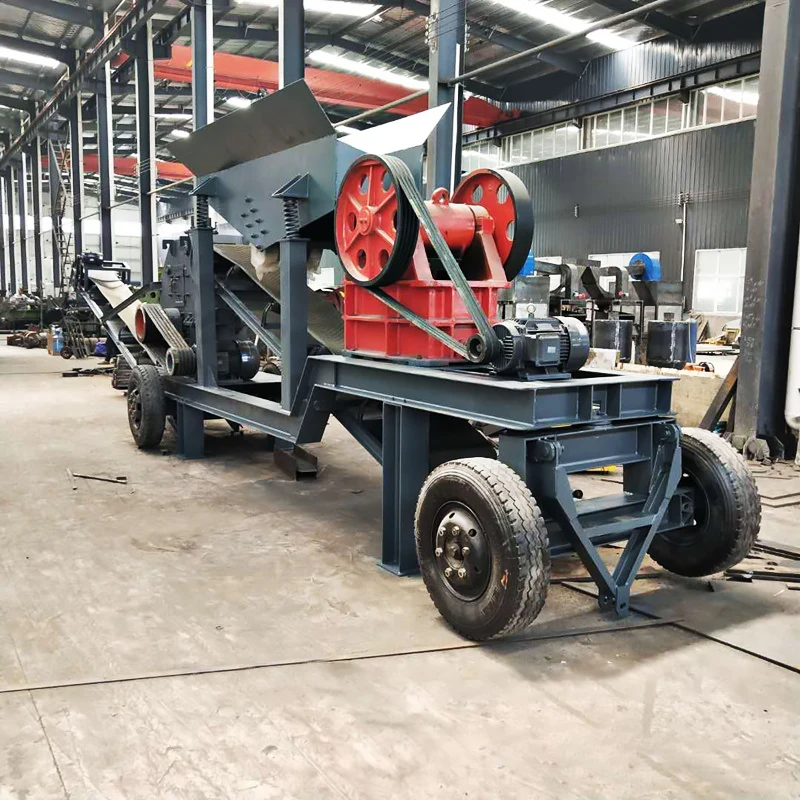

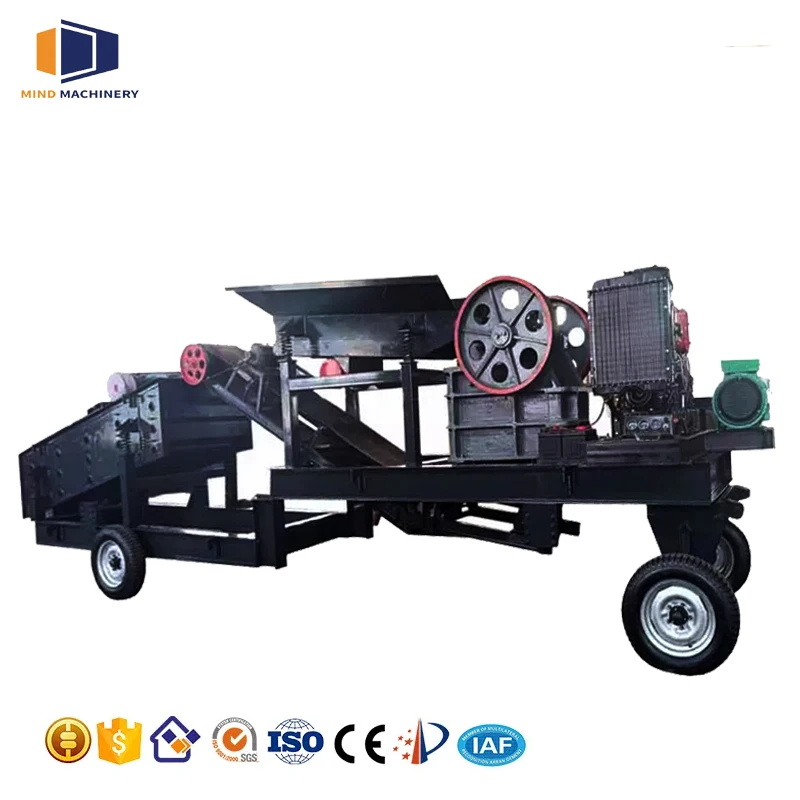

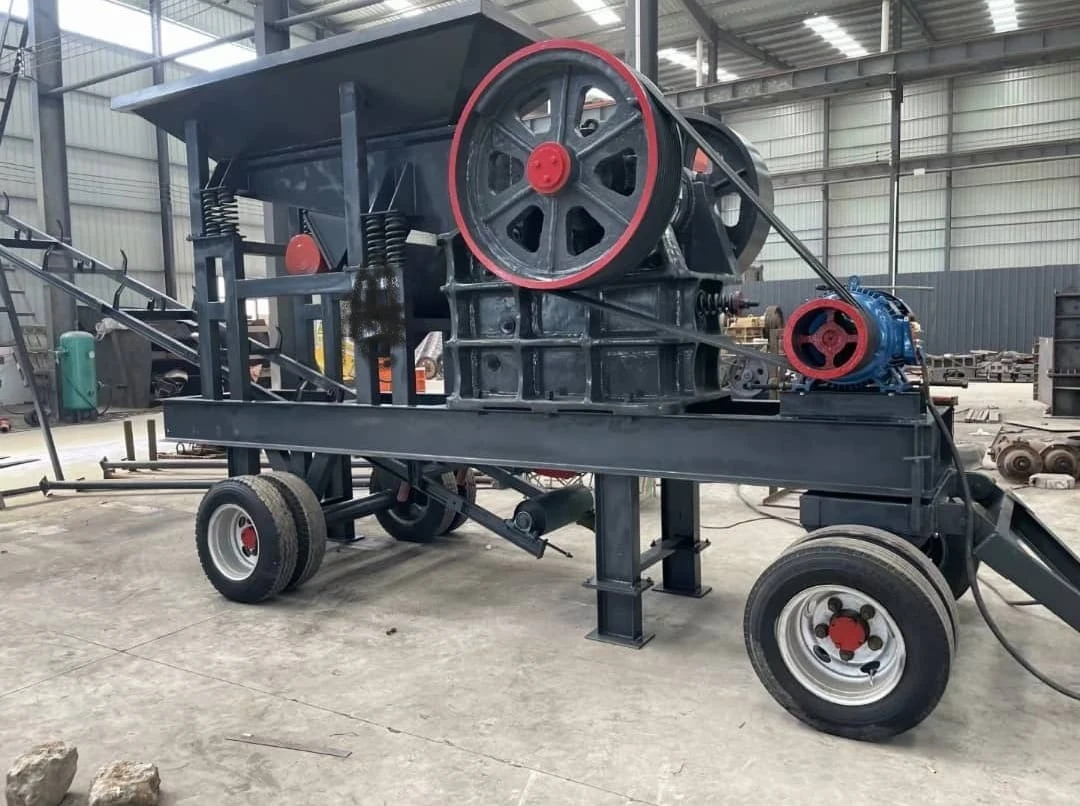

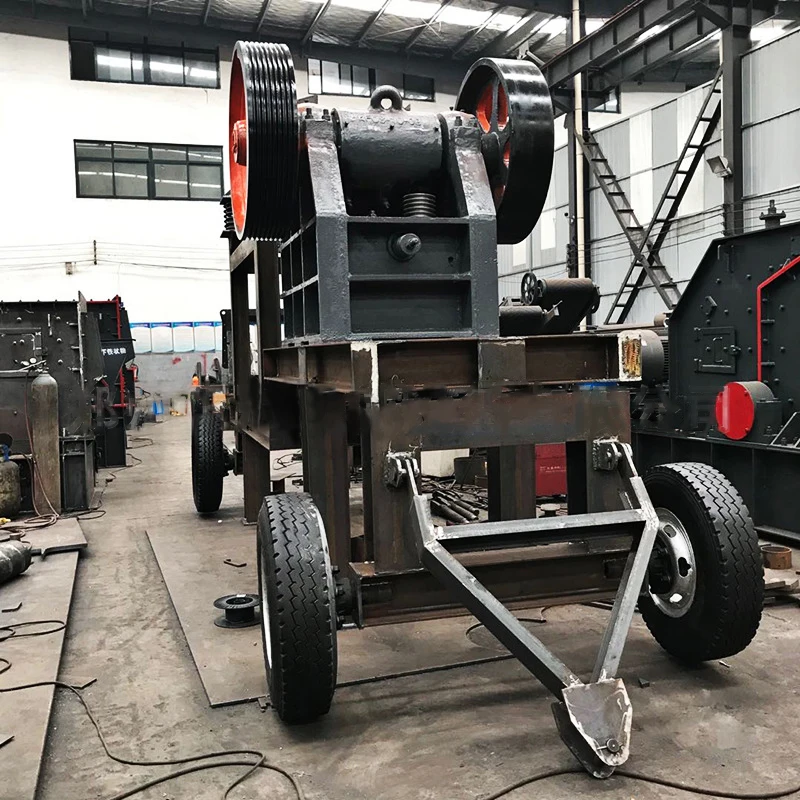

Detailed Images
field operation scene:
Packaging & Shipping
| Delivery time | Within 7-15 working days after receiving your payment; |
| Payment terms | T/T, L/C, Western Union, Trade Assurance; |
| Packing | a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea; b. The machines are put in standard export wooden case, lined with metal wire if necessary. |
| Quality Guarantee Terms | Quality guarantee term is for one year. Malfunctions caused by machine itself and quality will be responsible for our manufacturer. Other malfunctions caused by operation mistakes, man-made problem etc., we won't take responsible. |
FAQ
Q1: If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). You only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).What is the max size of the stone (mm/inch)?
3).What is the output size you need?
Q2:What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
Company Information
Henan Mind Machinery Equipment Co., Ltd. has been designing, developing, manufacturing and marketing Machinery for more than 12 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service system. So choose us, equaling to choose the competitive price and stable quality both.
