FPD463Z one way bearing FPD453Z one way clutch bearing FPD
- Category: >>>
- Supplier: Changzhou Dingsen Transmission Technology Co. Ltd.
Share on (1600744229219):
Product Overview
Description
Product Description
FPD463Z one way bearing FPD453Z one way clutch bearing FPD
Complete Freewheel Clutch Unit FPD
Components
Freewheel clutchinsert element* FE 400 M (meander spring) FE 400 Z (tension spring)
+ Raceways Bearing steel, hardened and ground inner ring Press fit outer ring Press fit
+ Ball bearing Integrated
+ Roller bearing RL 400
+ Lubrication Lifetime oil lubrication
+ Seal WOK rubber seal
Characteristics
Width34 mm
Operating temperature
max. 100°
CLubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.

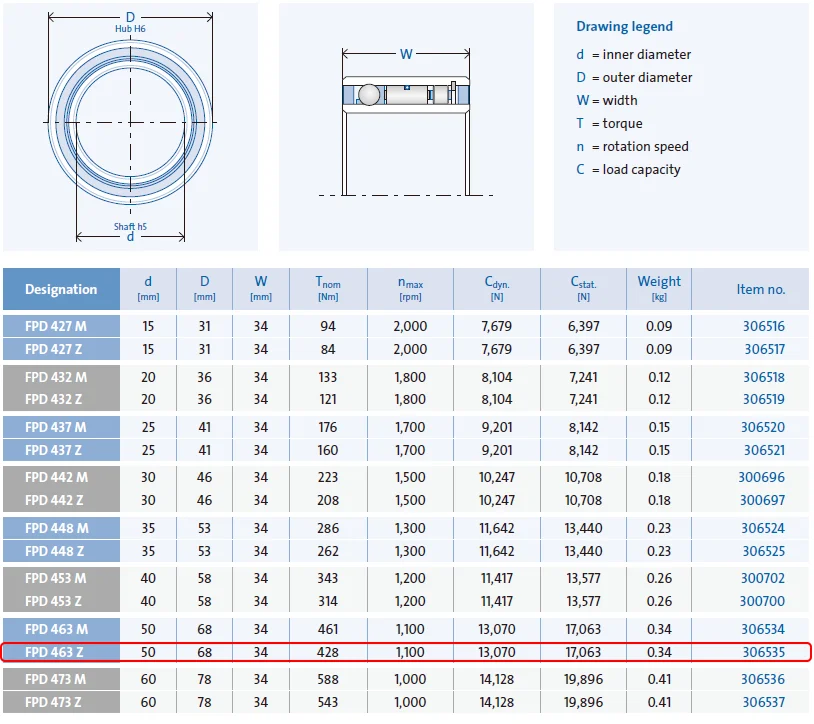

Structural drawing
FAQ
Q: Are you trading company or manufacturer ? |
| A: We are factory. |
Q: How long is your delivery time? |
| A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
Q: Do you provide samples ? is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
Q: What is your terms of payment ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. |
| If you have another question, pls feel free to contact us as below: |
