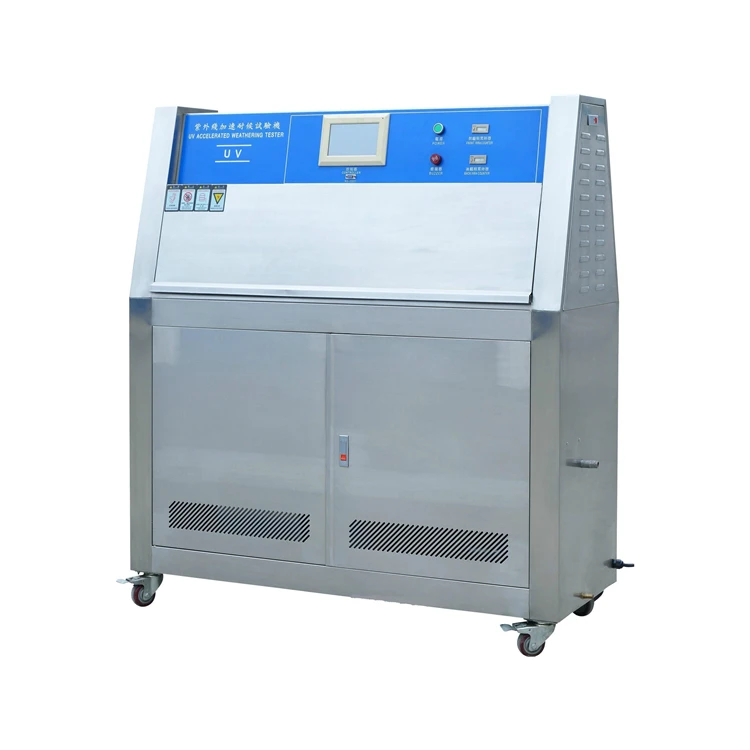

Climatic Chamber UV Accelerate Weathering Aging Test Chamber Ultraviolet Testing Machine for Rubber Resistance

    Accelerated aging test mainly refers to the thermal oxygen aging test for rubber, plastic products, electrical insulation materials and other materials; or the ventilation aging test for electronic parts and plastic products. The aging test is divided into temperature aging, sunlight aging, loading aging and so on. These accelerated aging test methods mean reproducing, artificially and in a limited time, what would happen in months or even years. Generally, we use accelerated aging test chamber to do the test.

    UV aging test chamber can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation, and darkness in natural climate. By recreating these conditions, they are combined into one cycle, and it is automatically executed to complete multiple cycles.

    UV aging test chamber is suitable for accelerated weathering tests of paint, ink, chemical, rubber, paint, adhesive, etc.

Standard
ASTM D4329  Standard Practice of Fluorescent Ultraviolet (UV) Lamp Apparatus of Plastics
ISO 4892-3  Plastics – Methods of exposure to laboratory light sources Part 3 : Fluorescent UV lamps
ISO 11507  Paints and varnishes – Exposure of coatings to artificial weathering – Exposure to fluorescent UV lamps and water
SAE J2020  Accelerated Exposure of Automotive Exterior Materials Using a Fluorescent UV and Condensation Apparatus

Product Parameters
1. Working room size : 450×1170×500 mm;
    Dimensions : 550 ×1400×1380 mm;
2. Temperature range : RT+10~70℃;
3. Temperature uniformity : 2℃;
4. Temperature fluctuation : ±0.5℃;
5. Humidity range : 20-98%RH;
6. Humidity fluctuation : ±3%R.H;
7. Fluorescent lamp model: UV-A, UV-B (280~400nm) Please specify when ordering;
8. Number of tubes: 8;
9. Center distance between lamps: 70 mm;
10. The parallel distance between the sample and the tube surface: the distance can be adjusted up and down according to the actual test requirements;
11. Test time: 0~999H adjustable;
12. Blackboard temperature: 40℃~65℃;
13. Sprinkler head: 6;
14. Blackboard thermometer: aluminum plate;
15. Spraying device: the spraying cycle can be adjusted;
16. Exposure mode: light and condensation can be independent and alternating cycle control;
      Standard definition:
    A fluorescent ultraviolet lamp that emits below 300nm and whose light energy is less than 2% of the total output light energy, usually called a UV-A lamp; a fluorescent ultraviolet lamp that emits below 300nm and whose light energy is greater than 10% of the total output light energy , Usually called UV-B lamp;
    The UV-A wavelength range is 315-400nm, and the UV-B wavelength range is 280-315nm;
17. Light source:
    The light source adopts 8 imported ultraviolet fluorescent lamps with a rated power of 40W as the light source. Ultraviolet fluorescent tubes are distributed in the middle of the machine.
    UVB-313 light source configuration; UV-B wavelength range is 280-315nm, the luminous spectrum energy of the tube is mainly concentrated at the wavelength of 313 nm;
    Since the energy output of the ultraviolet light will gradually decay over time, in order to reduce the impact of the test caused by the attenuation of light energy, the service life of every 1/4 of the eight lamps in this test box is: 1600H.

Structure introduction
1. The box body is made of CNC equipment, with advanced technology, smooth lines and beautiful appearance;
2. The inner box is made of SUS304 high-grade stainless steel wire drawing plate; the outer box is made of high-quality cold-rolled steel plate, which is electrostatic sprayed after special surface treatment;
3. Install 4 UV tubes on both sides of the studio;
4. The heating method is tank heating in the inner tank, with fast heating and uniform temperature distribution;
5. The water level of the inner tank automatically replenishes water to prevent the heating tube from being damaged by empty burning;
6. The sample holder is made of stainless steel (the buyer provides the largest sample size);
7. The bottom of the test box adopts high-quality fixed PU movable wheels;
8. The drainage system uses vortex and U-shaped sedimentation devices to drain;
9. Automatic sprinklers are installed inside the spray type equipment, and the water pressure is adjustable;

Control System
1. Programmable temperature and humidity control instrument, dry and wet ball control temperature and humidity, self-contained converter, temperature and humidity fluctuations are extremely small. The display and control interface is intuitive and clear, the button-type selection menu is simple and easy to use, and the performance is stable and reliable.
    Large-screen LCD display (intelligent)
    (Fixed value/programming) two control methods;
    PT100 sensor; PID control output;
    (4-20mA) analog output;
    4-channel switch signal auxiliary output ON/OFF relay output;
    Temperature measurement range (-90.00℃--200.00℃, error ±0.2℃);
    Humidity measurement range (1.0--100%RH, error <1%RH);
    Communication interface (RS232C/RS485);
    Program editing (10 programs can be edited, 100 segments shared);
2. Temperature sensor: PT100 platinum resistance temperature and humidity tester;
3. Control method: heat balance temperature adjustment method;
4. Main electrical control components: "Schneider" and "Omron" components are used;

Humidification/Condensation System
1. The principle of temperature measurement: the dry and wet bulb principle (dry bulb temperature and wet bulb temperature) is used to detect the dry bulb and wet bulb measurements through the sensor, and the relevant data is transmitted to the meter. The meter calculates the humidity based on the difference between the dry bulb and the wet bulb temperature. , Automatically and directly displayed on the instrument.
2. Humidification: The water level control in the humidification system uses an electronic liquid level controller to control the water pump. It is equipped with a built-in fixed water tank, and the water depth is not more than 25mm.
3. Condensation: The test sample and its bracket constitute the inner wall of the box, and its back is exposed to the cooling air in the room. Due to the temperature difference between the inside of the test room and the room, the surface of the sample has a stable condensation condition. The test box has a reason The natural convection air flow generated by the lower part through the outer wall of the box and the passage of the test sample.

Safety Protection System
1. The overall equipment is over-temperature
2. Overall equipment timing
3. The overall equipment is overloaded
4. There are other protections such as leakage, running instructions, and automatic shutdown after alarming.

Power
1. Rated power: 4.5KW
2. Power supply: AC220V±10%, 50HZ
Machine noise: ≤70db
Weight: 160kg

1. How long is the delivery time?
Normally goods will be shipped out within 3 - 7 days after payment.

2. Is it possible to make our own brand/logo on your product?
Yes, but depends on MOQ.

3. What's your MOQ?
This depends on different types of products. If it is a large machine, the MOQ is usually 1 set.

4. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.

5. How to install and use the product?
The product is shipped with an operating instructions of English version. We also can provide installation video with English subtitles.
