factory price mini sand making machine 5tph rock stone hammer crusher with conveyor belt
- Category: >>>
- Supplier: Henan Baixu Machinery Equipment Co. Ltd.
Share on (1600744249498):
Product Overview
Description
Product Description
Hammer crusher is also called stone crusher, hammer sand machine. The material is broken mainly by impact. Materials enter the hammer crusher through the feeding device, the high-speed rotating hammer head and falling material collision surface crushing materials. Widely used in building materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining,chemical and other industries for medium and fine crushed materials.
The grate clearance can be adjusted according to user's requirement and the grate size can be changed to meet the different needs of different users.

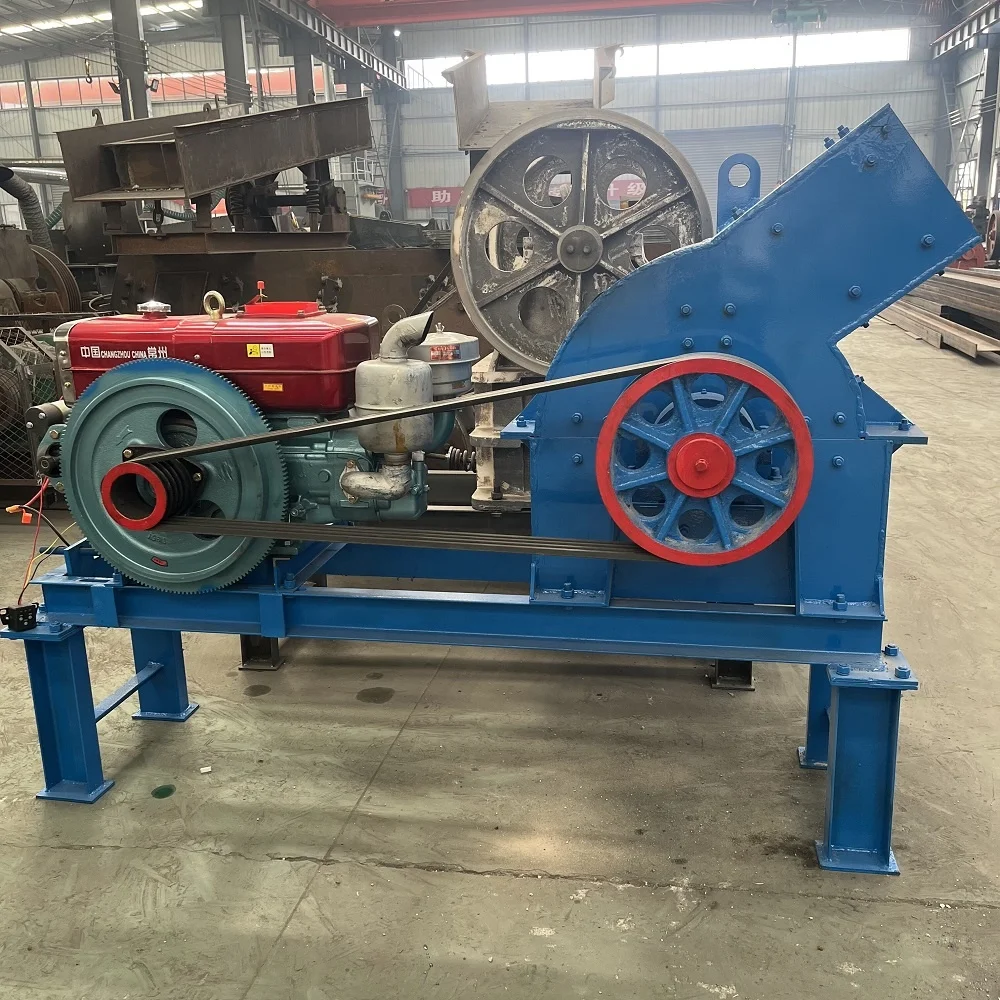

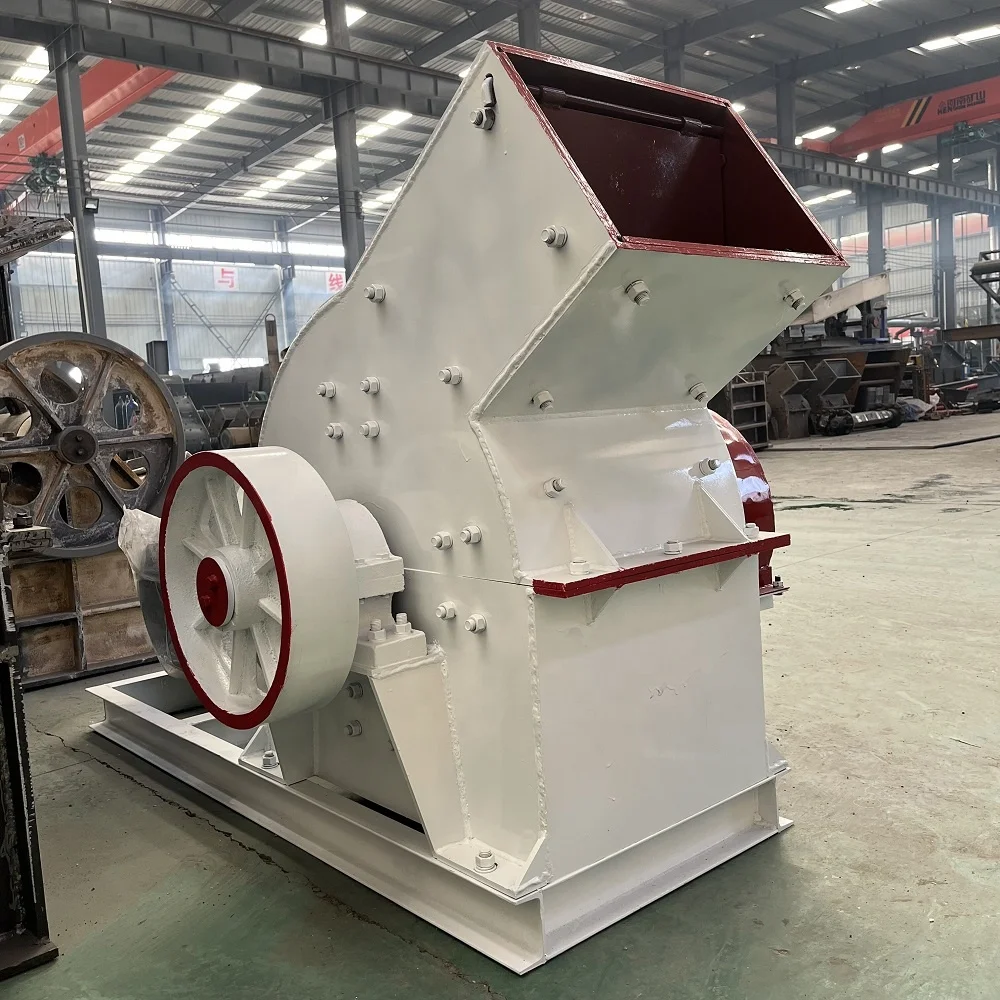

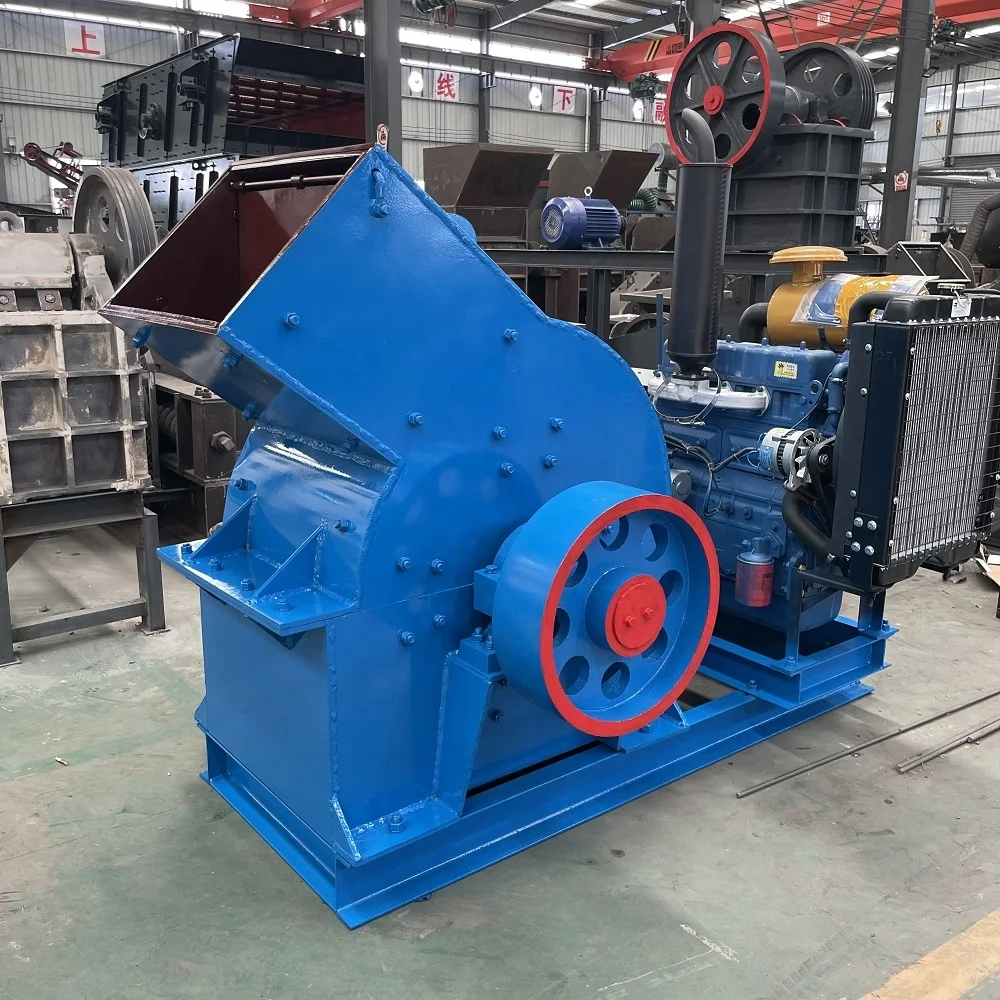

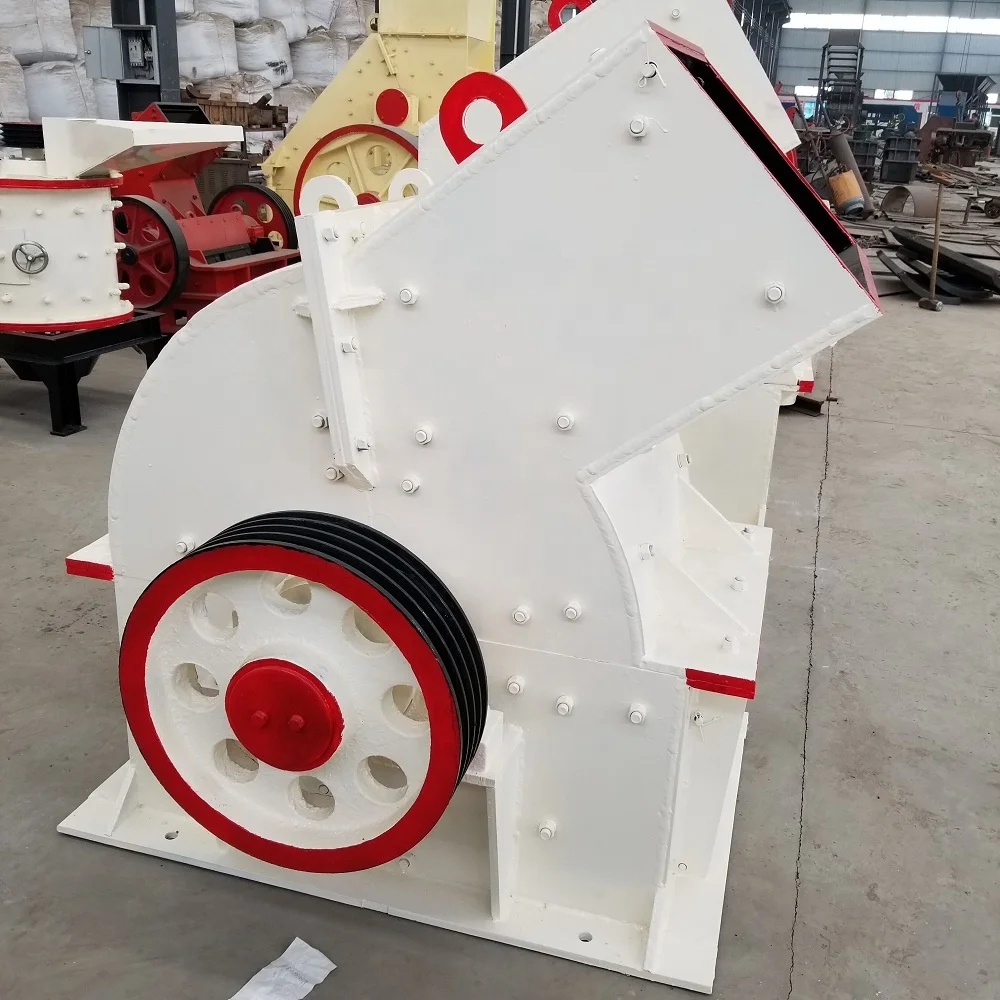

Product display
Style configuration can be customized according to requirements：
Crushing chamber
Hammer head
Screen bottom
Hammer and screen is the most easy to wear, Baixu mechanical parts with high manganese steel material, more wear-resistant, increase the service life
Technical parameter
Model number | Maximum feed size (mm) | Discharge port adjustment range (mm)（adjustable） | yield（t/h) | Motor power (kw) | weight(t) | Dimension (Length x width x height)(mm) |
PC-180*350 | ≤200 | 3-35 | 1-3 | 5.5 | 0.4 | 600*560*650 |
PC-300*400 | ≤250 | 3-35 | 2-5 | 7.5 | 0.5 | 900*670*860 |
PC-310*520 | ≤250 | 3-35 | 3-8 | 11 | 0.8 | 900*840*1000 |
PC-400*600 | ≤350 | 3-35 | 5-15 | 22 | 1 | 1160*1400*1200 |
PC-600*600 | ≤350 | 3-35 | 10-25 | 30 | 1.8 | 1160*1400*1200 |
PC-600*800 | ≤400 | 3-35 | 20-50 | 45 | 2.4 | 1300*1400*1800 |
PC-800*800 | ≤450 | 3-35 | 40-60 | 55 | 2.8 | 1450*1550*1800 |
PC-800*1000 | ≤500 | 3-35 | 60-80 | 75 | 3.5 | 1800*1590*1775 |
Product advantage

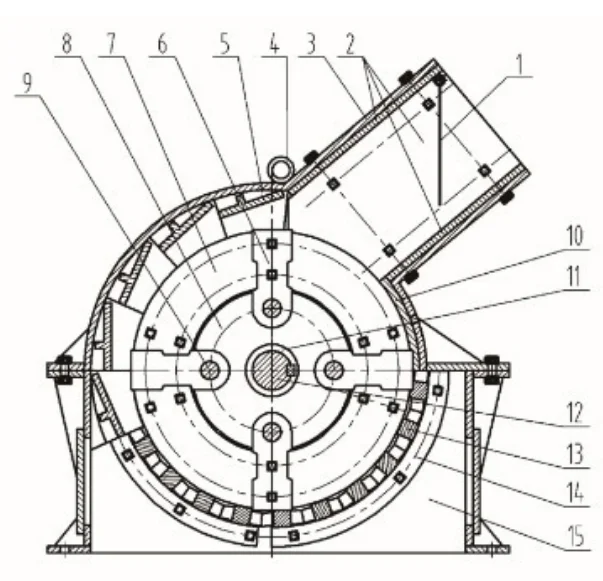

Structure diagram of stone Hammer crusher
1: Baffle
2. Mouth guard plate
3. Casing
4. Hanging rings
5. Counterattack board
6. Hammer head
7. Side guard plate
8. Rotor disk
9. Rotor shaft
10. Front guard plate
11. Spacer sleeve
12. Drive shaft
13. Sieve strips
14. Supporting sieve plate
15. Check the door
2. Mouth guard plate
3. Casing
4. Hanging rings
5. Counterattack board
6. Hammer head
7. Side guard plate
8. Rotor disk
9. Rotor shaft
10. Front guard plate
11. Spacer sleeve
12. Drive shaft
13. Sieve strips
14. Supporting sieve plate
15. Check the door
Company introduction
Henan Baixu Machinery Equipment Co., Ltd. has become and mining equipment, cement machinery, building materials equipment production, research and development, sales in one of the enterprises. The main production of jaw crusher, hammer crusher, impact crusher, crusher production lines, engineering building materials machinery and other products. It is widely recognized in stone crushing, construction sand, mineral processing equipment and other business fields. Business and service agencies all over the country, and exported to Eastern Europe, Central Asia and other countries.

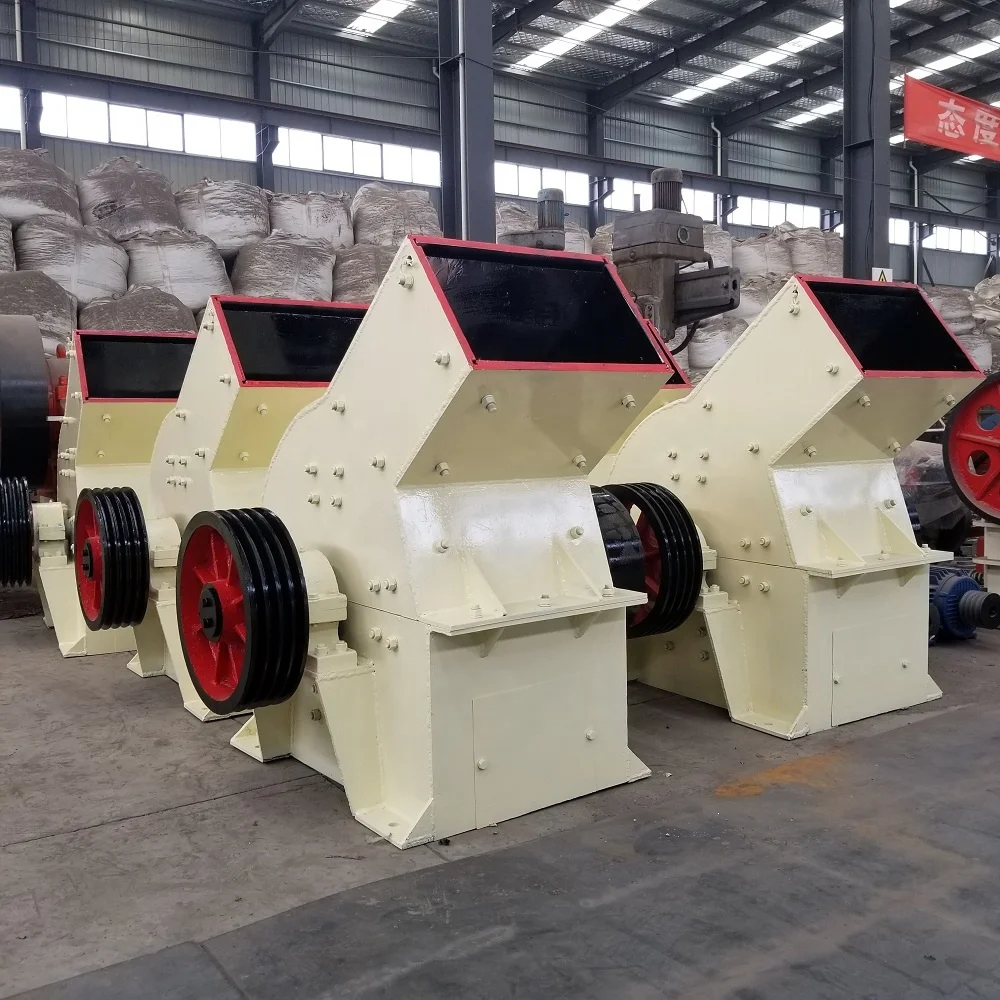

Workshop, exhibition hall, well equipped：
Customer feedback：
Factory delivery routine
FAQ
Q:Are you a factory or a trading company?
A:We are a manufacturing plant
A: Hammer crusher can break pebbles, granite, cement block and a series of hard materials.The material can be broken into small pieces, the size is optional.
Q: How can I see the crushing effect I want?
A: You can tell me the material you want to be broken. I will find it and shoot a trial video for you in the factory
Q: Are the wearing parts of the crushing equipment durable?
A: First of all, the wearing parts need to be replaced within a certain period of time. I can let you sell the wearing parts at factory price
Q: Is it easy to replace the wearing parts of crushing equipment?
A: Yes, we can provide you with video guides if you need them
Q: How do I help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instructions will be provided if required
