Hot Heat Transfer 0.13mm Brown PTFE Fiberglass Adhesive Tefloning Tape
US $54000-$180000
PTFE turcite b Slideway Soft Belt turcite B with glue
- Category: PTFE >>>
- Supplier: Hengshui,Aohong,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Turcite B Sheet
Turcite is a thermoplastic resin used in industrial applications that require reduction of friction on bearings and moving parts.
Turcite is PTFE (polytetrafluoroethylene) resins with added fillers such as bronze, that are extruded into solid billets as opposed to compression molding. Billets are then skived to a nominal thickness in 24" wide rolls, with lengths varying depending on thickness. One side or both sides are etched depending on application to accept the adhesive.
Turcite is a polytetrafluoroethylene (PTFE) based bearing material with low friction for machine tool industry linear bearing applications.
Turcite is PTFE (polytetrafluoroethylene) resins with added fillers such as bronze, that are extruded into solid billets as opposed to compression molding. Billets are then skived to a nominal thickness in 24" wide rolls, with lengths varying depending on thickness. One side or both sides are etched depending on application to accept the adhesive.
Turcite is a polytetrafluoroethylene (PTFE) based bearing material with low friction for machine tool industry linear bearing applications.
Glue A and B for turcite sheet
A+B is 1.1KG/set
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.

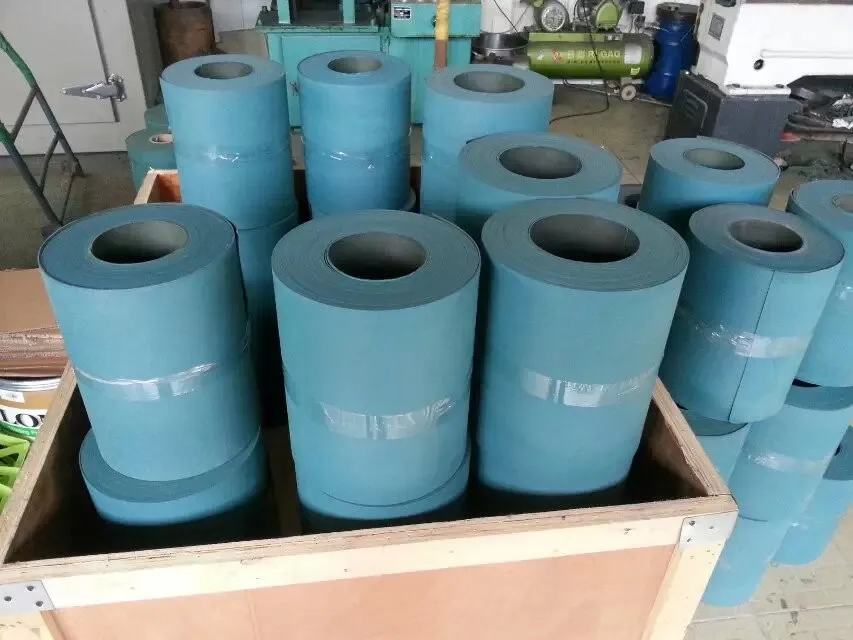

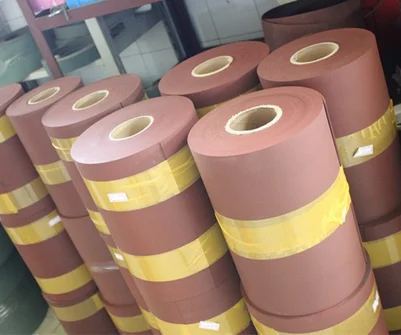

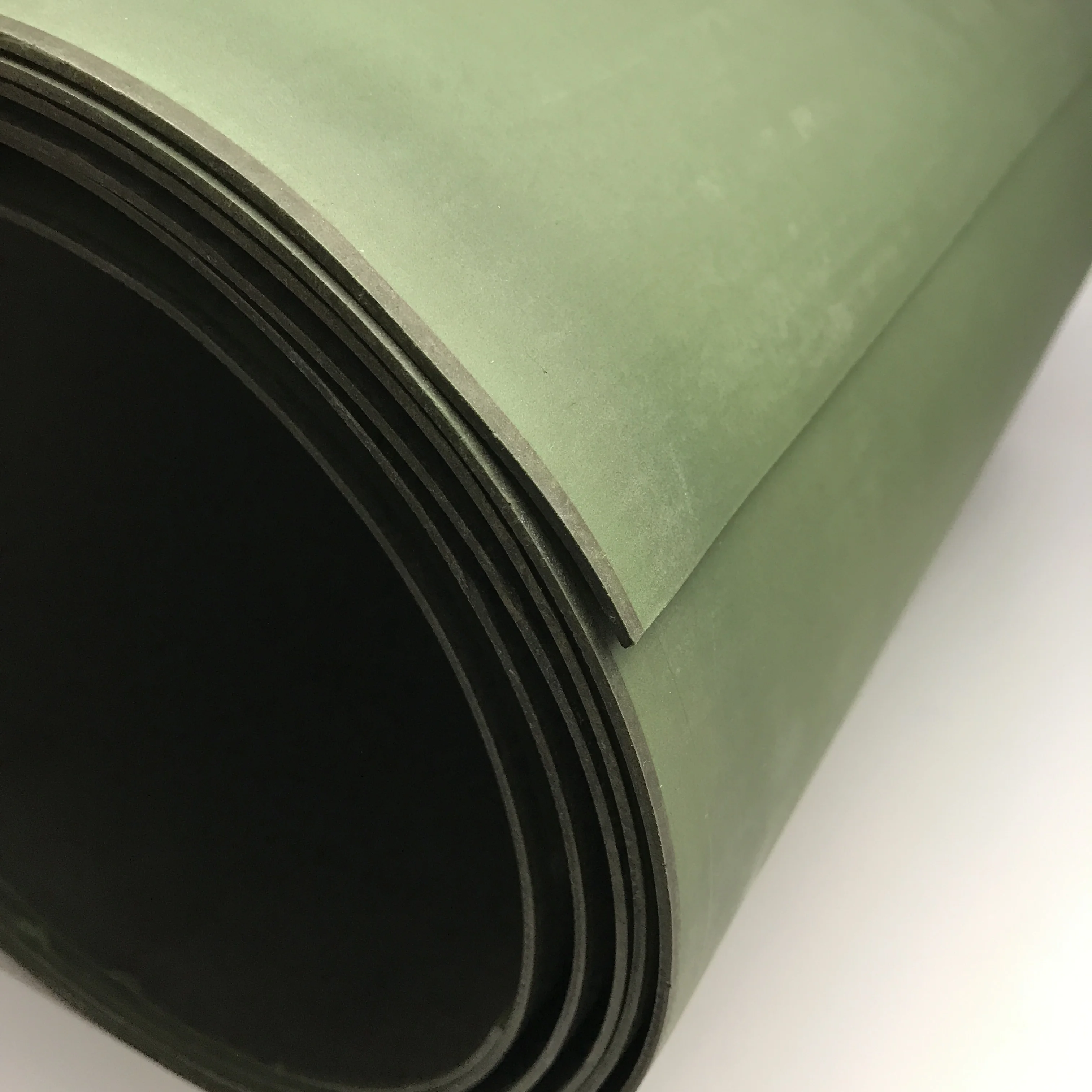

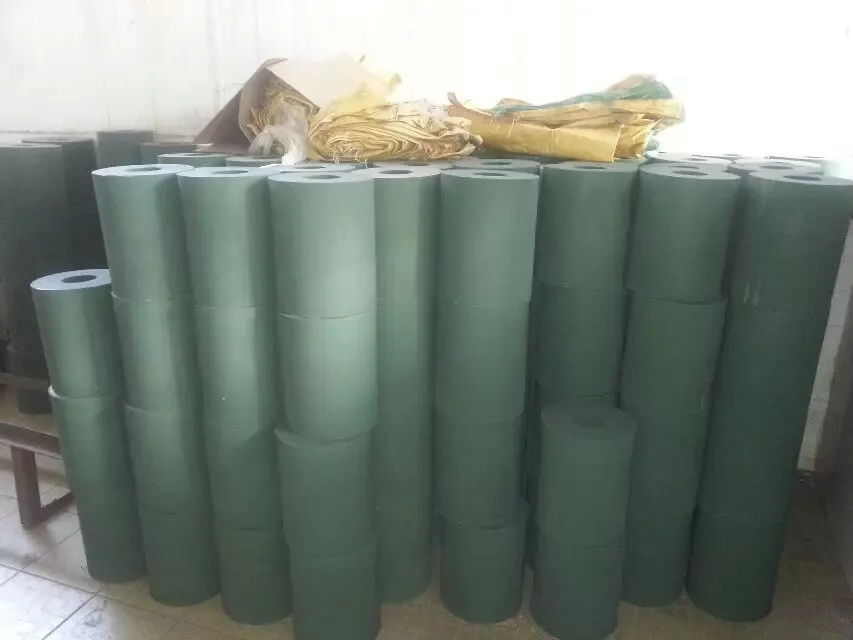

Detailed Images
Material | PTFE+bronze | ||||
Colour | Blue | Red | Green | ||
Density (g/cm3) | 3.4 | 3.3 | 3.2 | ||
Coefficient of linear expansion (40-120°C) | 7.7 | 7.62 | 7.5 | ||
Tensile strength (Mpa) | 17 | 16 | 14 | ||
Elongation (%) | 180 | 170 | 150 | ||
Compressive strength (Mpa) | 33--42 | 30--40 | 28---38 | ||
Bending strength (Mpa) | 25-30 | 25-30 | 23--29 | ||
Non-notched impact strength (KJ/m2) | >16 | >15 | >14 | ||
Wear(PV=0.7N/mm2.m/s) | 0.010-0.020 | 0.010-0.020 | 0.010-0.020 | ||
Friction loss performance (dry friction) Friction coefficient (μ) | 0.13--0.20 | 0.15-0.21 | 0.16-0.23 | ||
Our Service
*We are a high-tech enterprise with more than 20 years' experience,a company intergrating industry and trade.
*We are equipped with the most advanced production equipment and the most complete testing instruments.
*Outstanding Technical guidance.
*Professional service teams,24 hours of rapid response.
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei
Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
