Automatic 1kg ice sugar cotton hard small jelly candy packaging machine gummy sugar candy packaging machine
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (1600744286653):
Product Overview
Description
Specification
Packing line Application | use to form fill seal and pack the dog food, cat food, sugar, pasta, chips, snacks, rice, corn, beans, nuts, candy, powder, small parts, plastic components in to the plastic bag. |
Lifting way | by PP or ABS buckets |
Lifting height | Standard discharging height 310-320cm Maded according to customer’s need |
Elevator Speed | Max 90 buckets/min, controlled by inverter, so speed adjustable |
Feeder hopper | 70L or 150L (Different price) |
Elevator Bucket size | 1.8L or4L (different price) |
Machine size | made according to customer’s need |
Elevator Power | 220V, 50HZ, 750W |
Machine frame | 304 stainless steel |
Assembling | Easy |
Warrantee | 1 year |
weighing Machine size | 100X100X130cm |
Product Description
Lift height | standard 360cm complete height, discharge height 310cm |
Bucket | 1L/2L/4L/6L plastic buckets we also do 304 stainless steel buckets |
Speed | max 90 buckets/min, adjustable |
Inverter | Speed controlled by inverter |
Material hopper | Combined type vibration feeder hopper is 70L, we can also make other size separate hopper |
Power | 750W, 110V/220V or 380V, |
Machine frame | 304 stainless steel or carbon steel |
Z type bucket elevator:
It is made by 304 stainless steel frame and food class plastic ABS buckets.
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry,etc.
For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block
material. It has advantages of large lifting quantity and highness.
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry,etc.
For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block
material. It has advantages of large lifting quantity and highness.
Working platform
StandardSize: 180X180X180CM or made according to real need
* Material: 304 stainless steel main frame, aluminum table and ladder feet steps (also can make 304SUS table and ladders, but in
different price)
* Safearm: 110cm height
* Supportingleg: 11X11CM, 2MM thickness 304 stainless steel
Can also add the feet protection edge on the table
* Material: 304 stainless steel main frame, aluminum table and ladder feet steps (also can make 304SUS table and ladders, but in
different price)
* Safearm: 110cm height
* Supportingleg: 11X11CM, 2MM thickness 304 stainless steel
Can also add the feet protection edge on the table

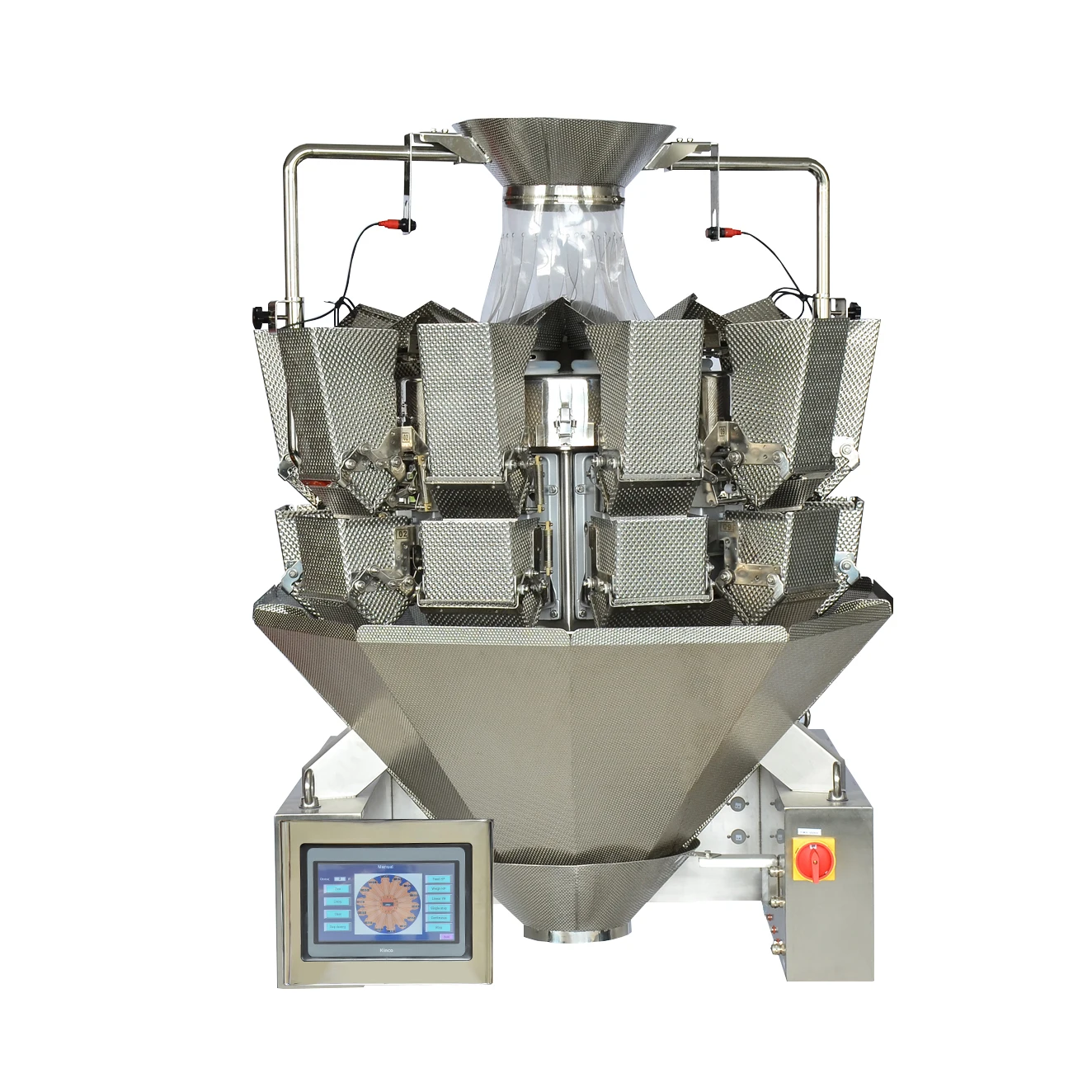

XLT-10DD -2500 multihead weigher
1.7inch color touch screen, nice to look at and easy to
operate, can add client information inside to high-light the
company image.
2.10pcs 2.5L weighing buckets, double door open.
3.Can preset 50 kinds of different products information, easy to pick out to use next time.
4.Can connect to the computer or printer, easy to know the working data of the machines.
5.Can combined with the elevator or the packing machine to be a full automatic packing line.
6.Can set the material to be discharge one by one, so that to avoid the easy break products to hit each other and break.
7.If products are almost the same in size and weight, we can use the calculating function instead of the weighing, so that each bag can be the same number in piece.
8.Adopt the import parts for the machine, so that stable and fee malfunction, long use life.
9.Each vibration feeder can be individial to control.
10.Adopts latest CAN BUS electronics and DSP technology,
each head unit with modular system control
With CE certificate.
operate, can add client information inside to high-light the
company image.
2.10pcs 2.5L weighing buckets, double door open.
3.Can preset 50 kinds of different products information, easy to pick out to use next time.
4.Can connect to the computer or printer, easy to know the working data of the machines.
5.Can combined with the elevator or the packing machine to be a full automatic packing line.
6.Can set the material to be discharge one by one, so that to avoid the easy break products to hit each other and break.
7.If products are almost the same in size and weight, we can use the calculating function instead of the weighing, so that each bag can be the same number in piece.
8.Adopt the import parts for the machine, so that stable and fee malfunction, long use life.
9.Each vibration feeder can be individial to control.
10.Adopts latest CAN BUS electronics and DSP technology,
each head unit with modular system control
With CE certificate.
Use range:
Food: sticky gummy candy, gummy bear candy, cheese slices, oil fish, fresh meat....
Weight range: 3g-3000g/dump
Max Speed: 60bags/min
Weighing accuracy:±1-3g
Weighing error: 0.1g-1g
Hopper: 10PCS X 2.5L weighing buckets
Languages: English, Polish, France, Spanish, Hungary, Germany, Finland…
Drive: By step motor
Power: 1500W
Voltage: 110V, 220V, 50/60HZ
Net weight/gross weight: 300kg/350kg
Food: sticky gummy candy, gummy bear candy, cheese slices, oil fish, fresh meat....
Weight range: 3g-3000g/dump
Max Speed: 60bags/min
Weighing accuracy:±1-3g
Weighing error: 0.1g-1g
Hopper: 10PCS X 2.5L weighing buckets
Languages: English, Polish, France, Spanish, Hungary, Germany, Finland…
Drive: By step motor
Power: 1500W
Voltage: 110V, 220V, 50/60HZ
Net weight/gross weight: 300kg/350kg
We have more different models for choose:
like the 10 heads 1.6L buckets weigher; 3L buckets weigher
14 heads 1.6L bucket weigher; 14 heads 2.5L buckets weigher
14 heads 3L buckets weigher
14 heads 5L buckets weigher
420 Packing machine: * Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation; precise positioning with servo film transporting system; excellent complete machine performance and nice packing; * Minimize the loss with complete automatic warn protection function; * Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making; | ||
Items | Content | |
Packing speed | 5-100 bag/min | |
Bag size | (L)50-300mm (W)60-200mm | |
Bag making mode | Pillow-type bag, standing bag, punch | |
Range of measuring | 150-1300ml | |
The maximum width of packing film | 420mm | |
Thickness of film | 0.04-0.08mm | |
Air consumption | 200L/min 0.7×105Pa | |
Main power/voltage | 2.2KW/220V 50-60Hz | |
Dimension | 1400×970×1600mm | |
Gross weight | 400kg | |
What we can do for the bags:
We can print the date on the bags, filling the bag with gas, linking bag, easy tear bag, make holes on the bags.
The type of back seal we can do:
Please tell us the type of back seal you want to do when place order.
More machines you can choose:

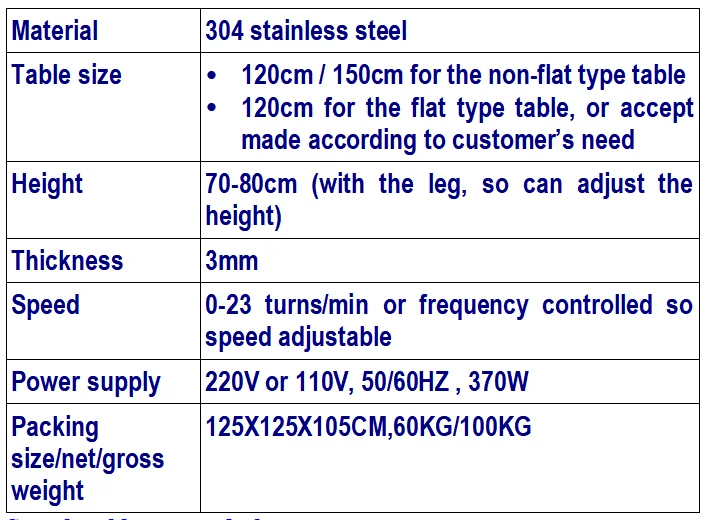

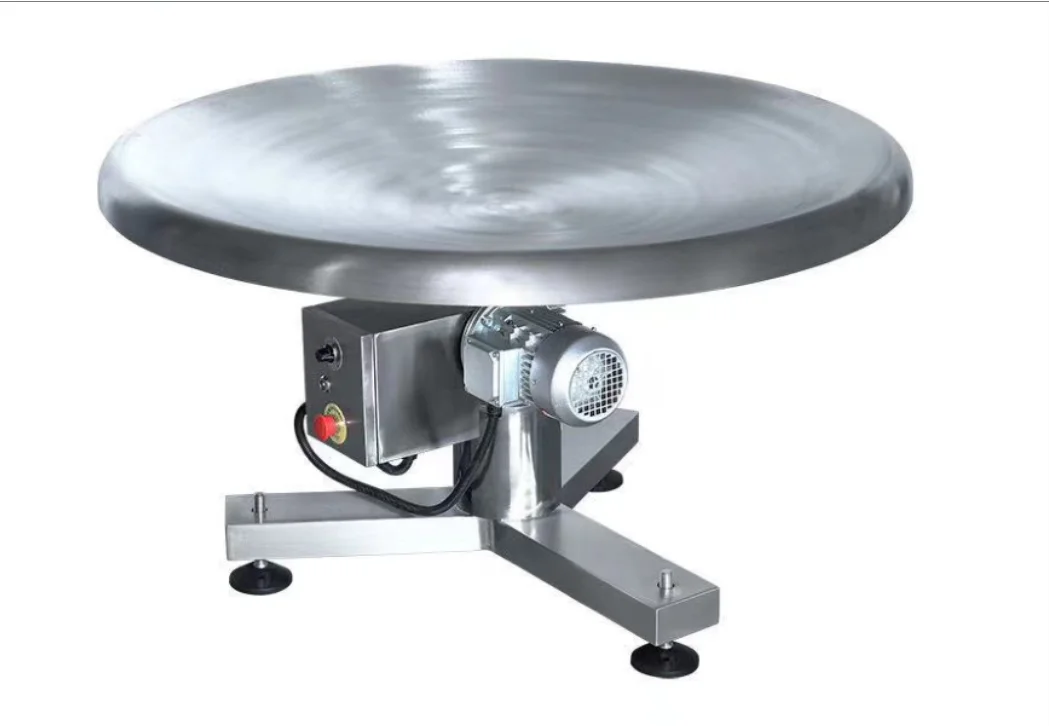

We have discharge conveyor, rotary packing table, vertical packing machine and so on.
