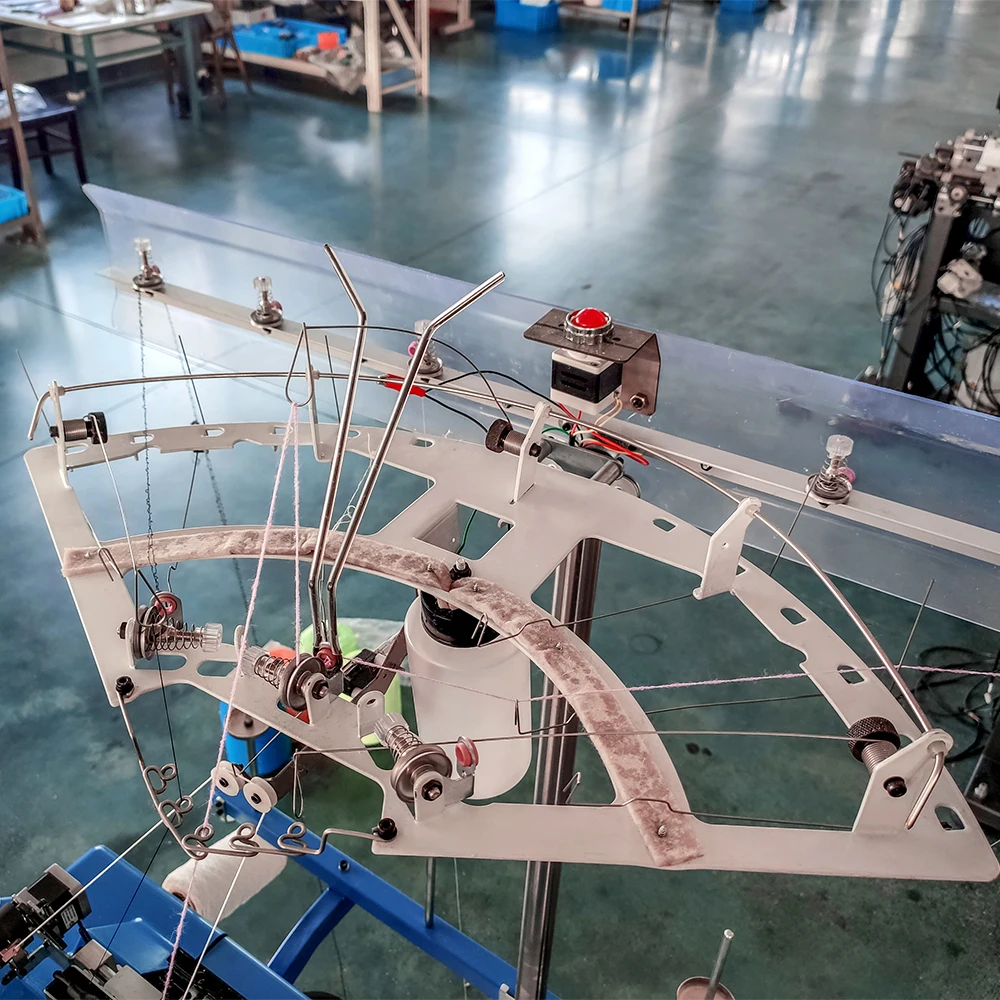

Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves
Factory Price Fully full automatic high speed glove knitting machine manufacture gloves

Factory Price Fully full automatic high speed glove knitting machine manufacture gloves

Share on (1600744328308):


Price:$2,200.00 - $2,300.00

Quantity:


Product Overview

Description

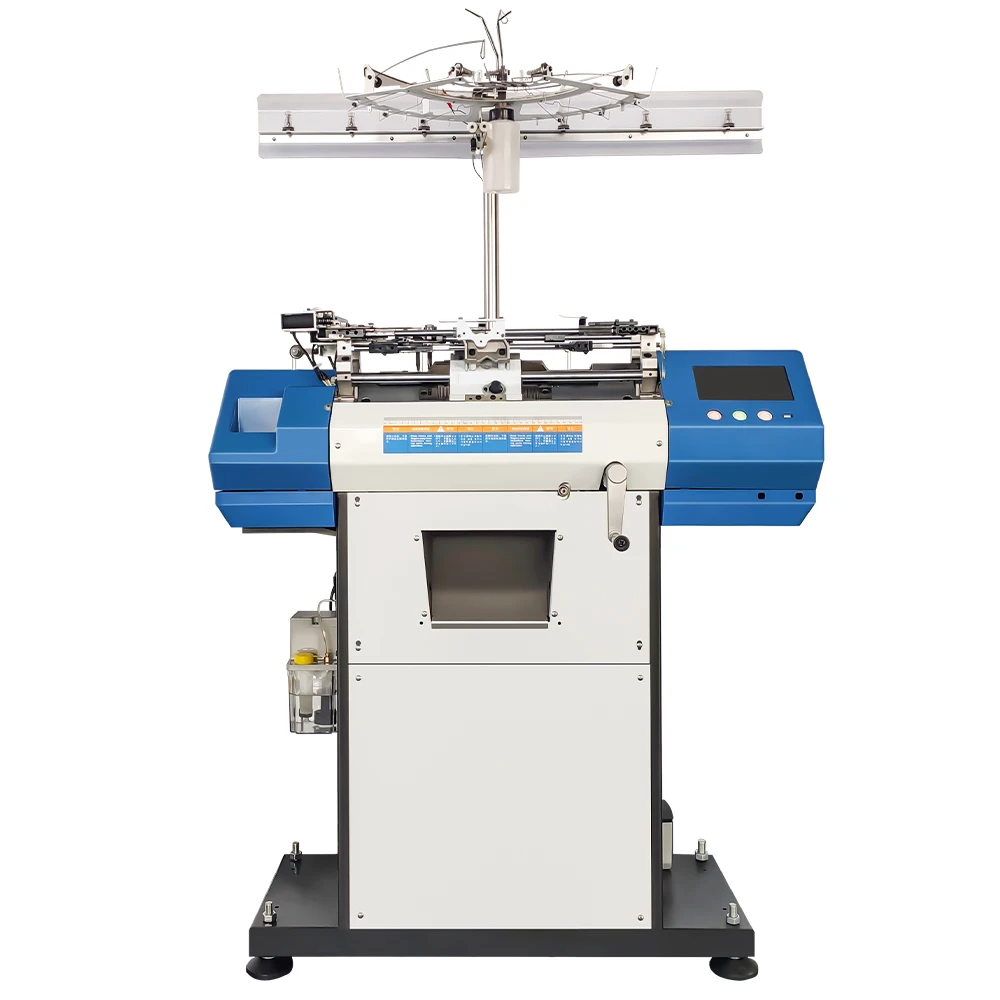

2021 High-speed automatic Glove Making Machines
* The operation panel adopts large-screen high-definition LCD full-screen touch, U disk copy output,simple and convenient；
* Servo motor synchronous belt drive, arbitrarily change the head stroke, efficient and stable;

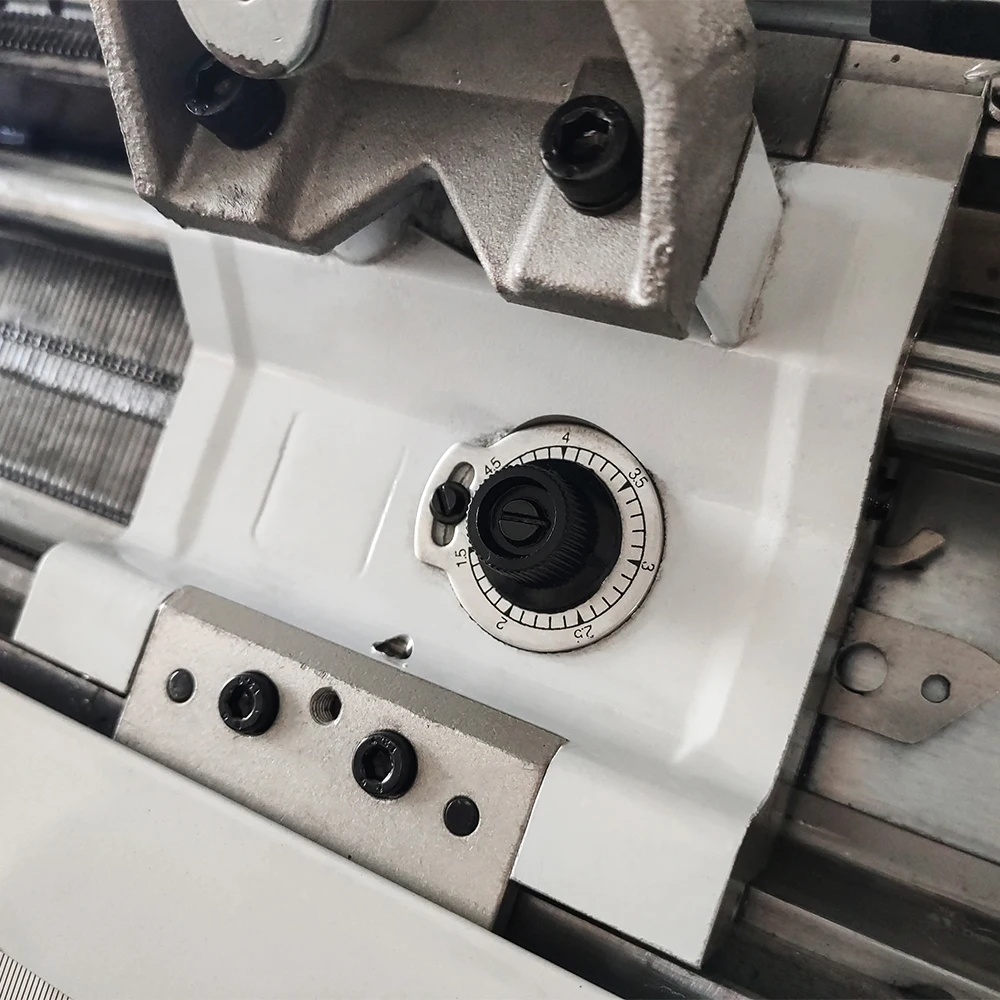

* Stepper motor density control system to achieve different weaving density for each part of each line;
* Stepper motor scissors control system, hook yarn, yarn cutting and yarn laying at any position;

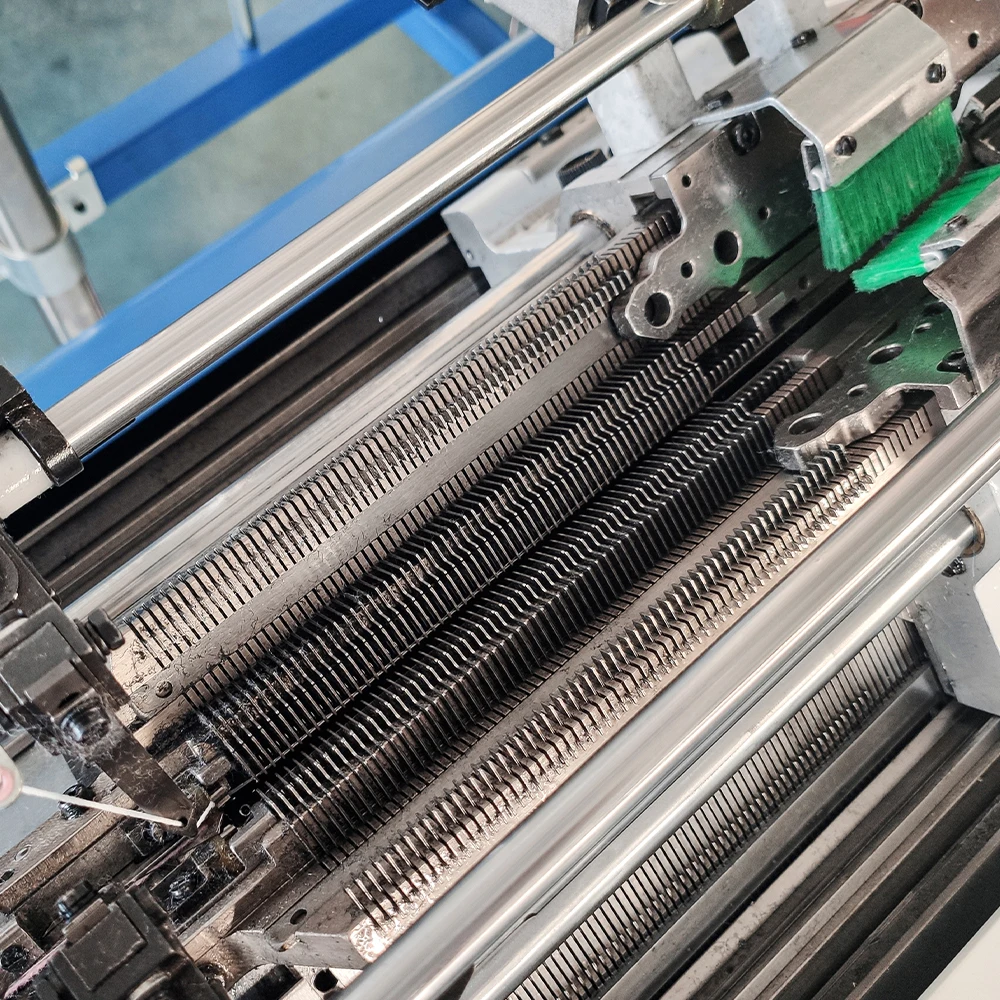

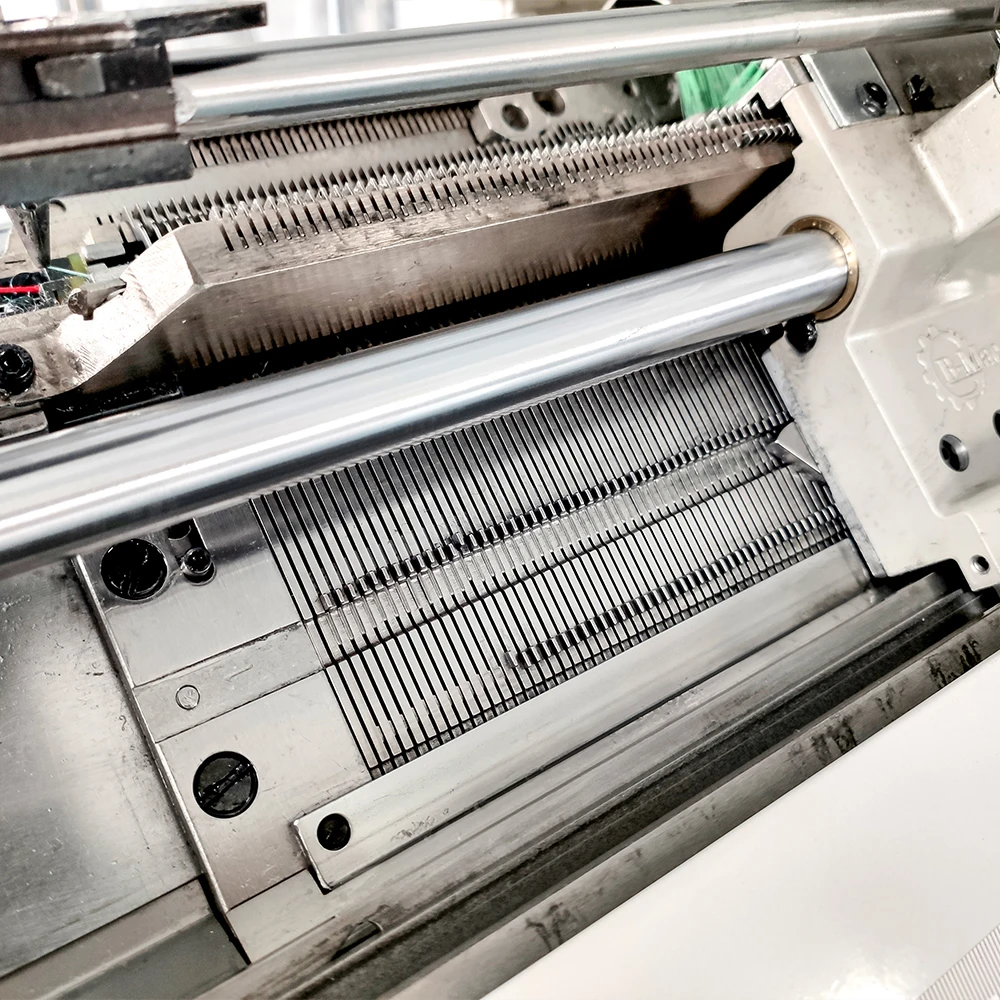

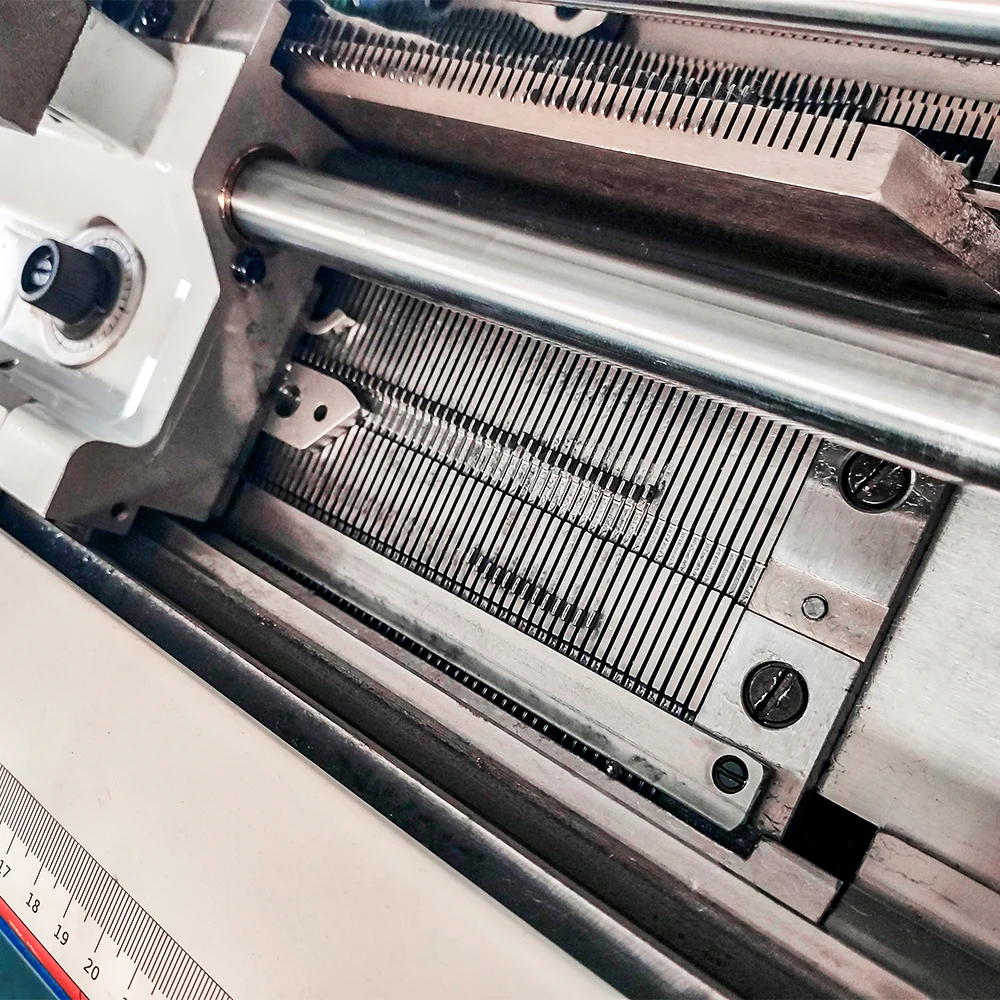

* The needle selection roller adopts the screw linkage to ensure the position of the front and rear syringes;
* Stepper motor elastic thread feeding system, computer control the size of the mouth, evenly feeding the yarn;
* Intelligent oil supply system, implementing lubrication friction parts;
* Broken finger weaving system to reduce raw material loss.

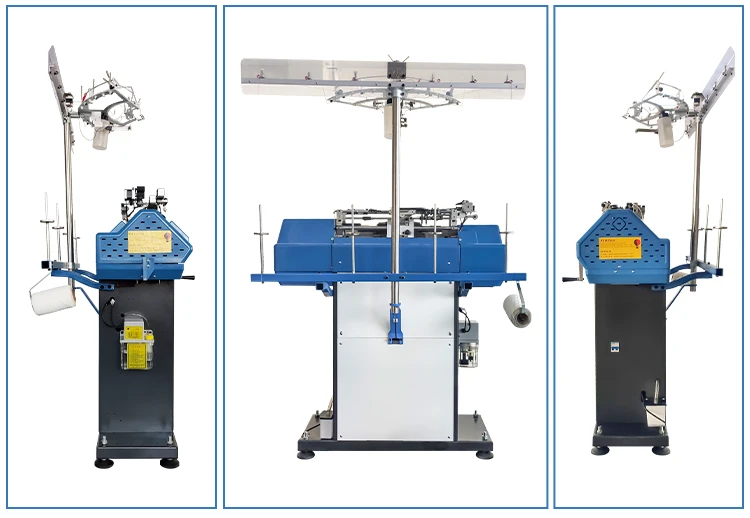

Products show






Pattern preparation:The pattern edited by the plate-making system is operated on the file management interface and input into the computer memory, and then the required size is switched according to the actual situation. After reading the pattern or changing the size, enter the running interface to reset and take effect.

Parameter setting:System parameters Each glove machine has a customized set of parameters determined by its own machinery, such as needle zero position, needle plate length, etc., which have been debugged before leaving the factory, and users generally do not need to modify them. If they need to be modified, they must be professional Personnel.Working parameters The parameters used by the computer according to the needs of the work, such as the upper limit of the main
motor high speed, the turning distance of the head, etc.A series of parameters closely related to the knitting pattern.
(Note: The knitting parameters are automatically saved when returning to the main interface, and can be saved to the U disk along with the pattern.)

Work confirmation:The final confirmation of the pattern program, various parameters, and normal operation of the mechanism to be knitted.

Machine operation:After the above work is completed, use the start button to start the glove machine for knitting.


Contacts
7G
10g
13g
size
L3:58/L2:52/L:46/M:42/S:37
L3:73/L2:68/L:63/M:58/S:53
L3:98/L2:93/L:88/M:83/S:78/XS:73
Average yield
18 pairs/hour
15 pairs/hour
9 pairs/hour
Container capacity
48 units/20’FT; 96 units/40’HQ
power supply
Single-phase power supply，220V，140W
Fuel supply method
Automatic oil supply
Weave density
Stepper motor control
control and display system
Computer control, 7-inch touch screen display, USB data transmission
Transmission system
Belt drive, AC servo motor
Nose
Belt drive, AC servo motor
size
990mm(L)*600mm(W)*1700mm(H)
