Hot Sale Paper Plant Machinery Parts Combination Roll Copy A4 Exercise Paper Making Machine
- Category: >>>
- Supplier: Qinyang No.1 Paper Machinery Co. Ltd.
Share on (1600744335918):
Product Overview
Description
Paper Making Machinery Spare Parts Combination Roller Paper Making Process Remove Moisture
Product introduction

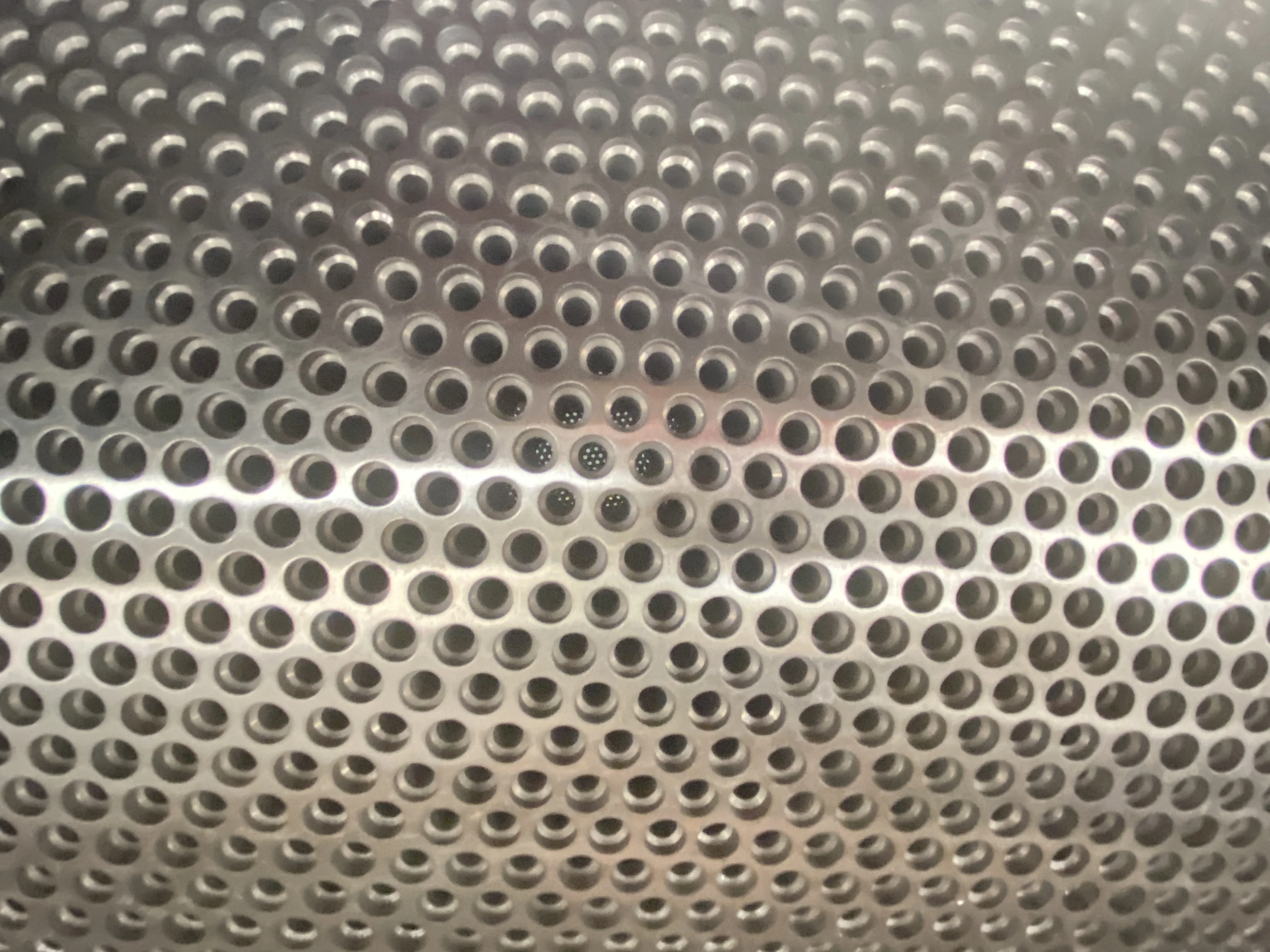

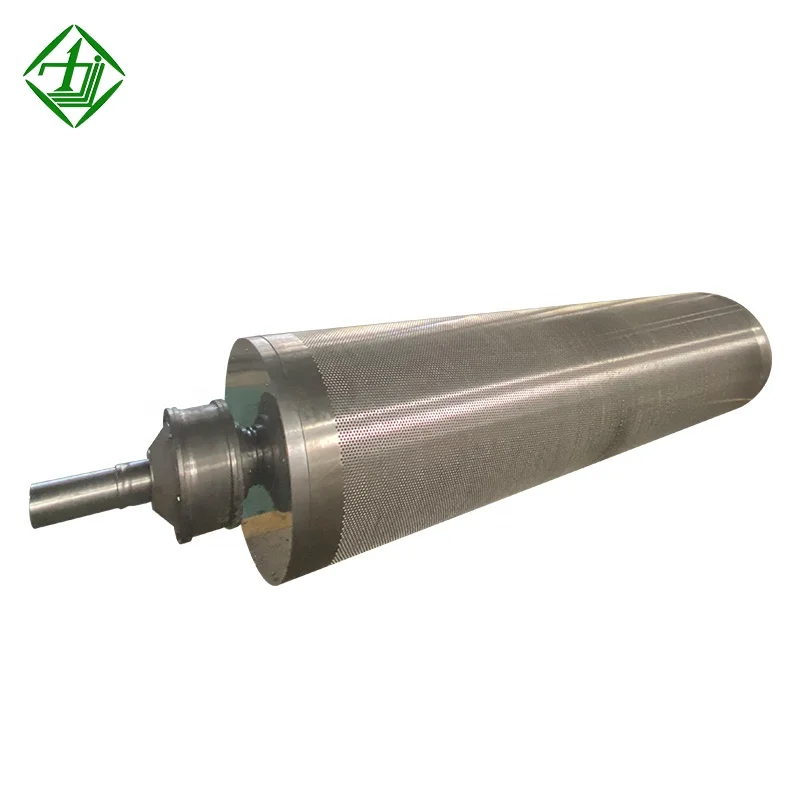

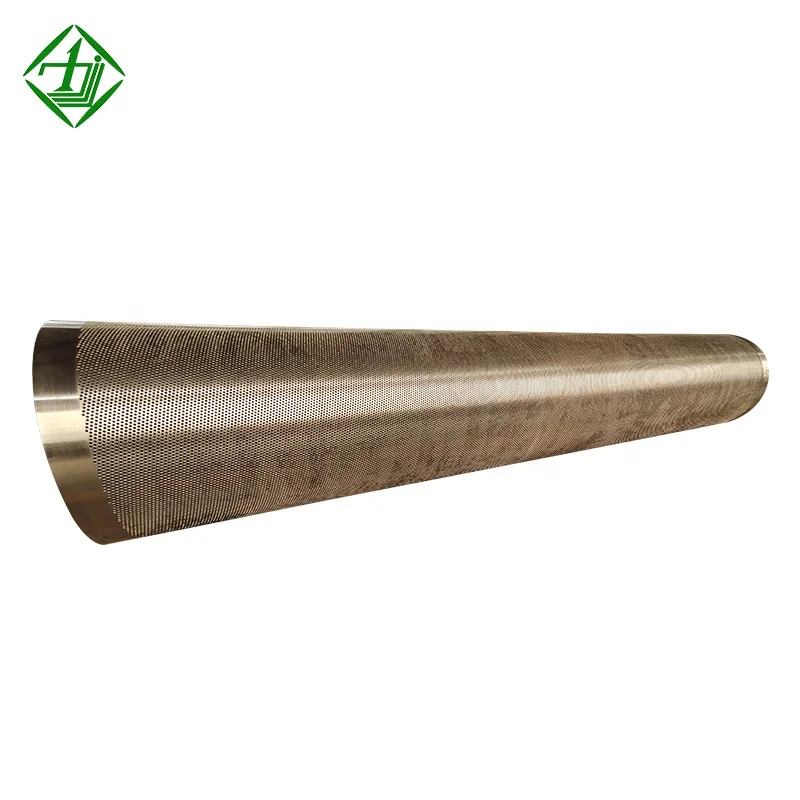

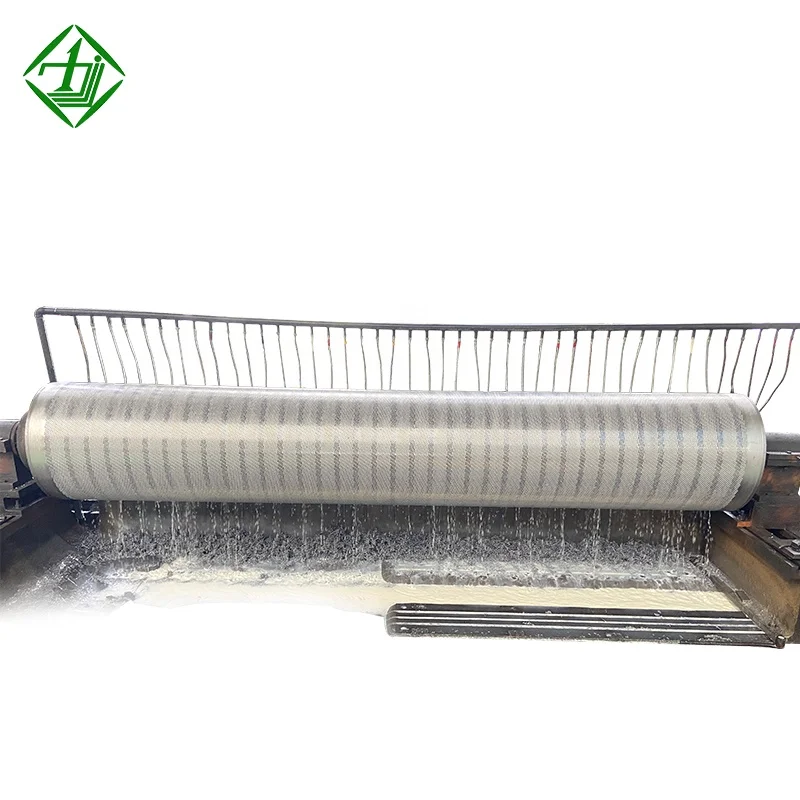

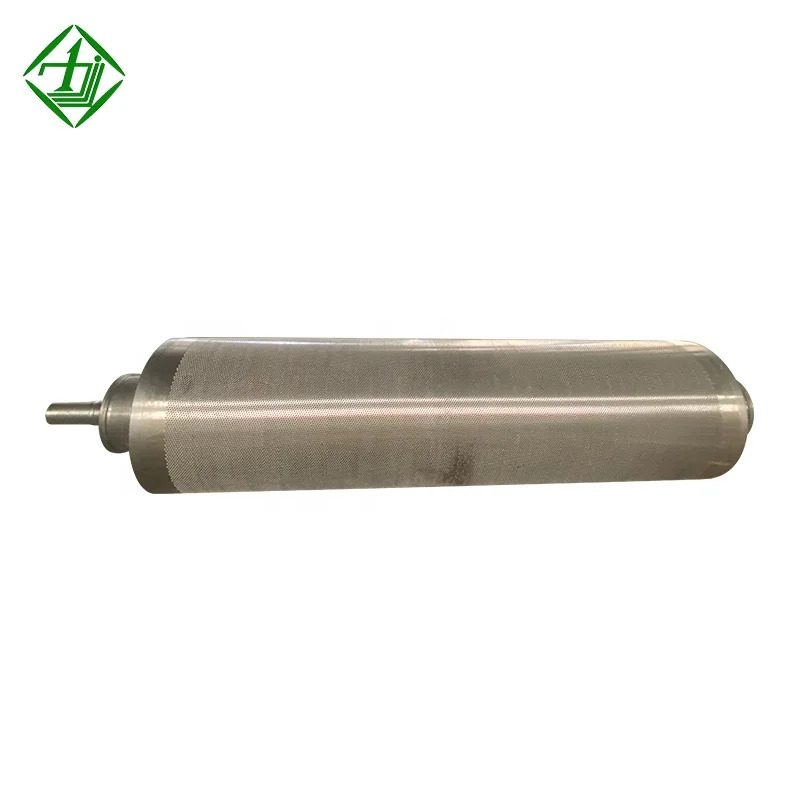

After the pulp is uniformly treated in the paper making process, because the pulp contains a large amount of water, it needs to be pressed to discharge the water during the forming process of the paper product. The combination roll is a commonly use dehydration part on the paper machine, and a large amount of water is evenly arranged on the surface. Hole, in the process of paper processing and production, it is necessary to use a combination roll to remove the moisture in the pulp. By opening a water absorption hole on the surface of the roll body, a large amount of water contained in the pulp can be absorbed during the paper making process. At the same time, the water absorption hole has an inverted trapezoidal structure with a wide upper and a narrow bottom, which can improve the dehydration efficiency. The connection between the roll body and the connecting shaft The operating side shaft head and plastic sealing plate are arranged at the place to ensure that the impurity in the pulp will not affect the transmission efficiency of the connecting shaft during the rotation of the roller body.
Product technical parameter
Product Name | Combination roller |
Working face | 1600-6200mm |
Diameter | 650-1000mm |
Center distance | 1650-7000mm |
Working speed | Customized according to customer requirements |
Dynamic balance speed | Set according to customer working speed |
Shell material | 0Cr17 or 304SS |
Hole size | 5.5mm-9mm |
Hot-sale
We have the expertise and technology to understand your production-specific papermaking process, from furnish preparation to paper and baseboard making, sizing, coating, coating drying, calendering, reeling, winding and wrapping needs. Our experienced and skilled people support you all the way from initial planning to the project phase, through commissioning and start-up to continuous production – throughout the entire lifecycle of the paper machine line.
Our customers
Qinyang No.1 Machinery is top professional all kinds paper making machine manufacturer.Paper making machines are sold throughout the country over 20 provinces and areas, and exported to Vietnam, Burma,Uzbekistan,Russia ,Kyrgyzstan, Nigeria,Ukraine, Botswana, Libya, Algeria, El Salvador , Lebanon, Moldova, Bolivia, Egypt, South Africa and other countries.The trust and praise by the user.
Company introduction
Qinyang No.1 Paper Making Machinery Co.Ltd
Qinyang No. 1 Paper Making Machinery Co.,Ltd. was founded in 1960, is the world's leading developer and supplier of pulping and paper making machinery. Our exporting department has been in operation for 10 years. In 2018, in order to facilitate export and develop overseas markets, we established No1 machinery co., LTD.Our factory has a history of about 65 years. there are 300 workers in our workshop who manufacture products. we take every detail of production seriously to ensure the quality of the products. after the product is manufactured, we will test different products to ensure that they are delivered to customers with high quality products.
Certifications
All products comply with GB and ISO standards.the enterpries passed the ISO9001 international quality system certification in 2000.
Our service
1.Perfect service
(1)To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality.
(2)Always online to answer technical questions.
(3)The customer arrives China, accompanied this translation facility until send customers back.
(4)Send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine.
(5)Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service.
2.Design ,installation and training workers
(1)After client confirm machine model , we will make design completely according to client's technical requirement and land condition.
(2)After shipment , we will send engineer to make installation and test machine.
(3)After installation , we will keep 1-2 engineers working for client , these engineer will teach worker how to operate,maintain machine.
(1)To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality.
(2)Always online to answer technical questions.
(3)The customer arrives China, accompanied this translation facility until send customers back.
(4)Send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine.
(5)Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service.
2.Design ,installation and training workers
(1)After client confirm machine model , we will make design completely according to client's technical requirement and land condition.
(2)After shipment , we will send engineer to make installation and test machine.
(3)After installation , we will keep 1-2 engineers working for client , these engineer will teach worker how to operate,maintain machine.
Packing & Shipping
1.The normal package is wooden box(Size: L*W*H). If export to european
countries,the wooden box will be fumigated.If container is too tighter,we will use film for packing or pack it according to customers special request.
2.Different products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
countries,the wooden box will be fumigated.If container is too tighter,we will use film for packing or pack it according to customers special request.
2.Different products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
FAQ
1.Q:How long it will take to get the quotation?
A:we usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call me or tell us by email,then we can reply you as the first priority.
2.Q:Can you make paper mill design for us?
A:Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.Q:How about your machine quality?we are worry about the quality.
A:Cailun is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on alibaba already 4 years.
4.Q:What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.
5.Q:Your machine price is high, is there any discount?
A:we always provide high quality paper machines,we are paying more attention on oversea market, because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
6.Q:How we visit your factory and what will be the procedure?
A:Our company located in Shangnian Zone, Qinyang city, zhengzhou city, henan province. we will pick you up from airport as well as the train station in Zhengzhou city.we will take you to see our machine running in our Chinese clients' paper mill.welcome you and your team to visit us at any time!
7.Q:Could your engineer teach and train our worker and stay in our factory for long time?
A:Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
A:we usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call me or tell us by email,then we can reply you as the first priority.
2.Q:Can you make paper mill design for us?
A:Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.Q:How about your machine quality?we are worry about the quality.
A:Cailun is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on alibaba already 4 years.
4.Q:What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.
5.Q:Your machine price is high, is there any discount?
A:we always provide high quality paper machines,we are paying more attention on oversea market, because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
6.Q:How we visit your factory and what will be the procedure?
A:Our company located in Shangnian Zone, Qinyang city, zhengzhou city, henan province. we will pick you up from airport as well as the train station in Zhengzhou city.we will take you to see our machine running in our Chinese clients' paper mill.welcome you and your team to visit us at any time!
7.Q:Could your engineer teach and train our worker and stay in our factory for long time?
A:Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
Any questions, please do not hesitate to contact me. Thankyou!
Contact us
We are pleased to invite your to visit our factory for business negotiation and, we sincerely hope that the coming visit will make a deep impression on you about our factory.We shall make all necessary arrangement for your visit and, in the same times, Our company will allow customers to enter the factory for a visit. We will also lead customers to see the production workshop to ensure that our products meet the requirements of customers.We are looking forward to meeting you in the near future.
