JINOU/OEM Bluetooth CAN/RS485/RS232 BLE 5.0 Bolt Adapter 100M Class 1 for Long Range Wireless Data Transfer DB9 female male port
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (1600744370696):
Product Overview
Description
Product Description

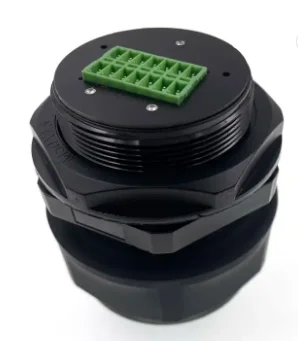

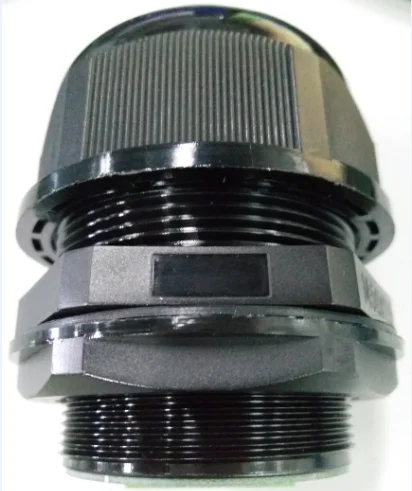

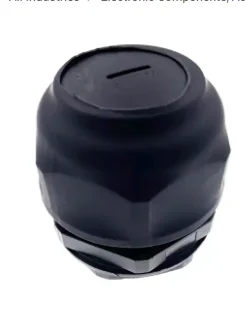

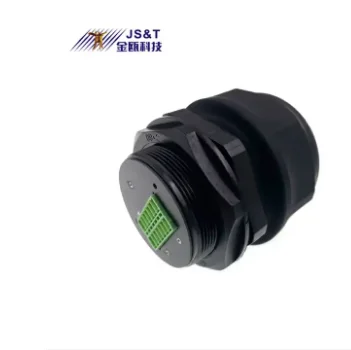

Bluetooth BLE Bolt Adapter 100M Class 1 for Long Range Wireles Data Transfer
Ble bolt adapter is a bridge product that converts industrial fieldbus can / RS485 / RS232 to Bluetooth wireless network. As a cable replacement scheme, it can directly forward bus data to Bluetooth wireless network, and vice versa. Any ble wireless device can be connected to the bus through a bolt adapter to interact with the devices in the bus.

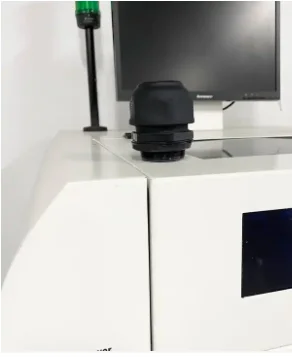

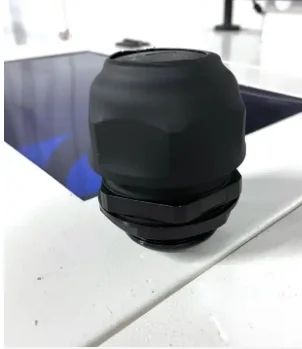

In some occasions where it is inconvenient to approach the machine for direct operation, such as limited space, the cabinet door cannot be opened, or there are safety hazards, the equipment operator can access and control the machine from a long distance through the bolt adapter, which effectively avoids such problems.
Bluetooth Version | BLE 5.0 |
Working Frequency | ISM 2.402~2.483GHz |
RF output power | Class 1 |
Antenna | internal antenna |
Effective Distance | 100m |
Profiles | LL,SMP,L2CAP,ATT,GAP,GATT |
Baud rate | 1.2K~230.4Kbps |
Interface | CAN / RS485 / RS232 |
Connector | DB9 socket |
Signal pin | RXD, TXD, RTS, CTS, GND |
Working Temperature | -20℃~+70℃ |
Size | 3.9(L)*1.4(W)*0.7(H) |
Power Consumption | 3.1mA-21mA |
Max transmission rate | 20Kbytes/Sec |
Applications
Used in PDA, POS, Smartphone.
Used in Receipt printer.
Used in Bar code reader, RFID reader, IC card reader. MSR card reader.
Used in PLC, CNC machine.
Used in Robot, UAV.
Used in SCADA, data collector.
Used in Receipt printer.
Used in Bar code reader, RFID reader, IC card reader. MSR card reader.
Used in PLC, CNC machine.
Used in Robot, UAV.
Used in SCADA, data collector.
