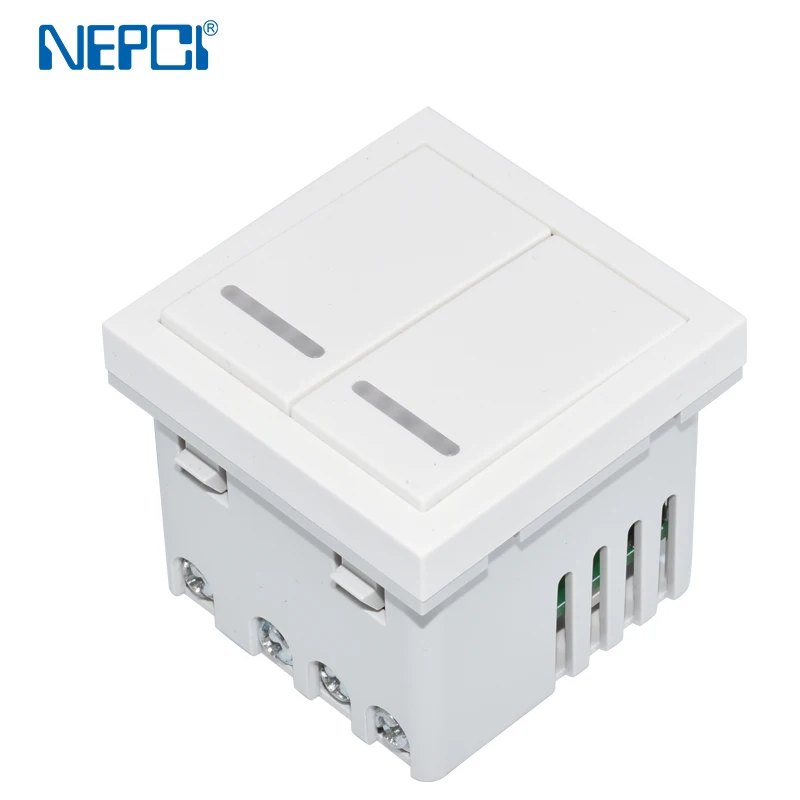

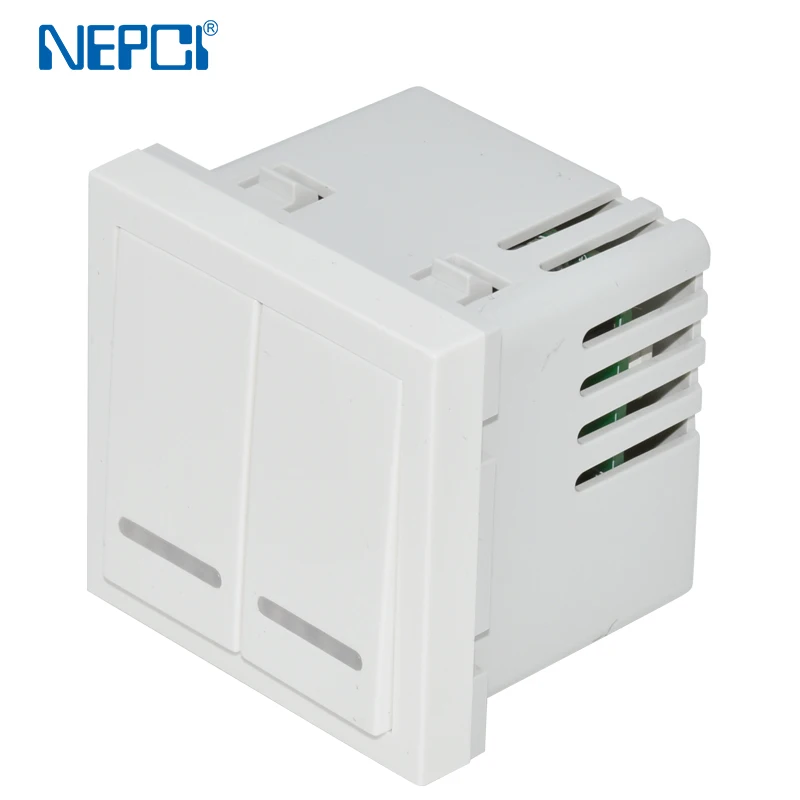

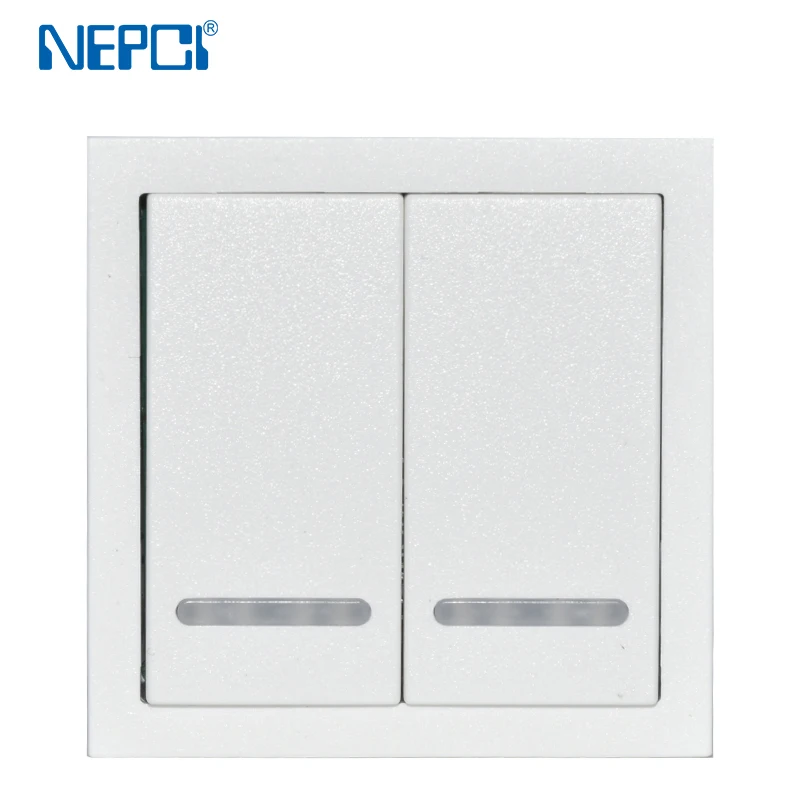

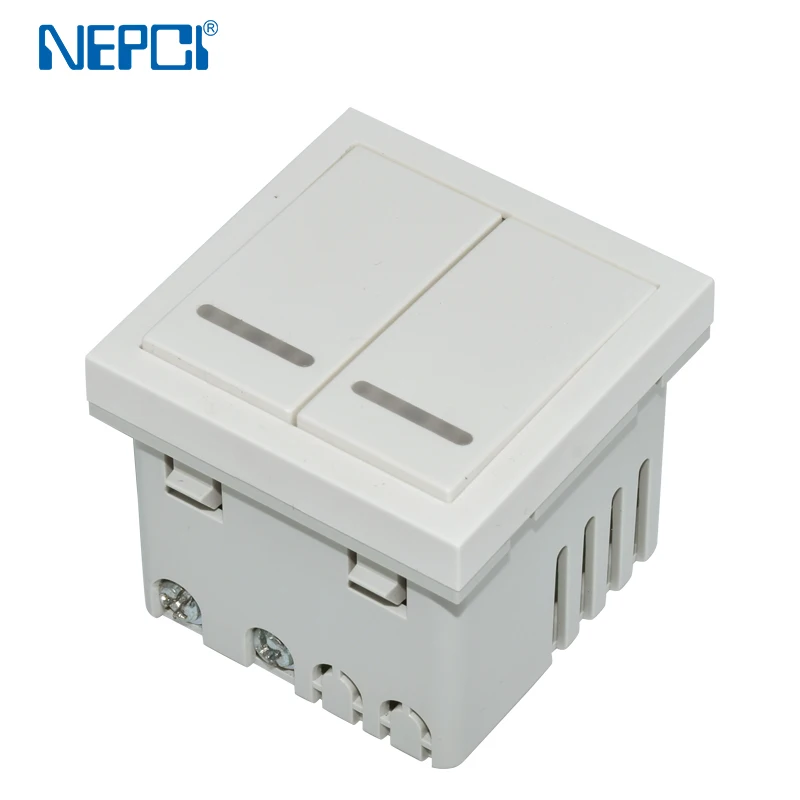

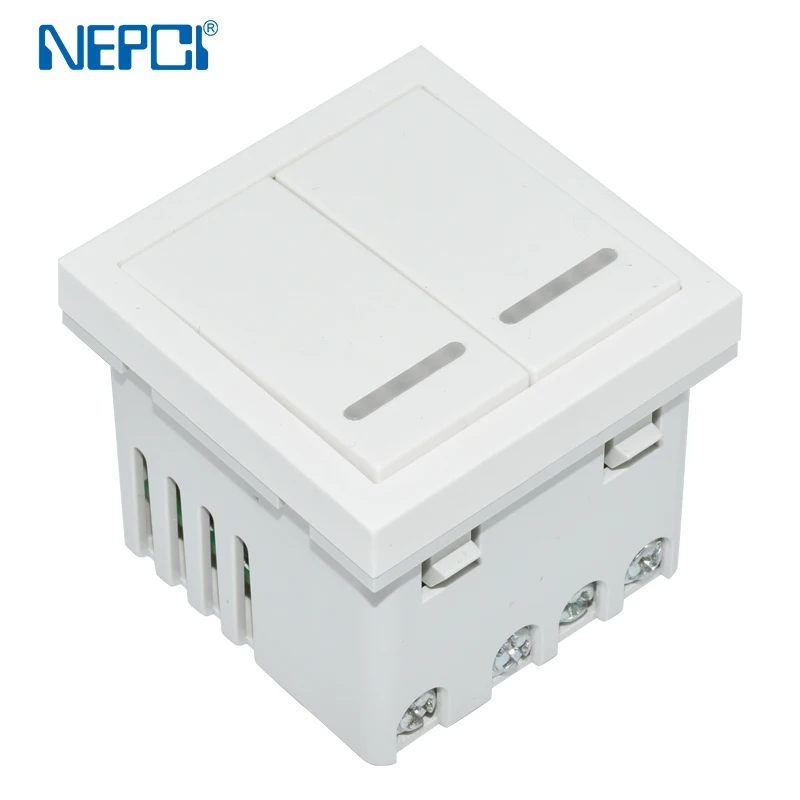

NEPCI 100 20VAC wall mounted receiver switch module 45x45mm XJY QB 71 2R 2 gang smart remote Control Switch
- Category: >>>
- Supplier: Zhejiang New Epoch Communication Industry Co. Ltd.
Share on (1600744376877):
Product Overview
Description
Product Description
Brand | NEPCI |
Product Name | 2 Gang Remote Control Switch |
Model for Transmitter | XJY-QB-71-2L |
Model for Receiver | XJY-QB-71-2R |
Input | AC100-240V 50/60HZ, 0.5A |
Working Frequency | 433MHz |
Load Power | Each line ≤200W |
Working Temperature | -20°C - 50°C |
Relative Humidity | 10%~90% |
Size | 45x45x40.8mm |
Color | White, Black or Customized |
Remarks | 1.One transmitter can be paired with 20 receivers 2. One receiver can be paired with 8 transmitters |
Pairing Mode and Method
1. Long press the receiving switch for 3 seconds at any line after power-on, and wait for pairing after the horn sounds.
2. Press the transmitter switch for the corresponding line and the receiver horn rings three times to indicate successful pairing
3. Repeat the matching operation on other lines to complete the pairing
4. Long press the receiving switch for 15 seconds after a long “bleep” sound to delete the pairing
5. Button triggering mode (it takes about 1 second to press down, continuous interval more than 1 second）
8.The unblocked distance between the transmitter and the receiver is 30±5M. The specific distance is subject to the actual environment
2. Press the transmitter switch for the corresponding line and the receiver horn rings three times to indicate successful pairing
3. Repeat the matching operation on other lines to complete the pairing
4. Long press the receiving switch for 15 seconds after a long “bleep” sound to delete the pairing
5. Button triggering mode (it takes about 1 second to press down, continuous interval more than 1 second）
8.The unblocked distance between the transmitter and the receiver is 30±5M. The specific distance is subject to the actual environment
1 Gang Remote Control Switch
Model for Transmitter: XJY-QB-71-1L
Model for Receiver: XJY-QB-71-2R
2 Gang Remote Control Switch
Model for Transmitter: XJY-QB-71-1L
Model for Receiver: XJY-QB-71-2R
Back picture of 1 Gang Remote Control Switch
XJY-QB-71-1L
Transmitter
Back picture of 1 Gang Remote Control Switch
XJY-QB-71-1R
Receiver
Receiver
Back picture of 2 Gang Remote Control Switch
XJY-QB-71-2L
Transmitter
Transmitter

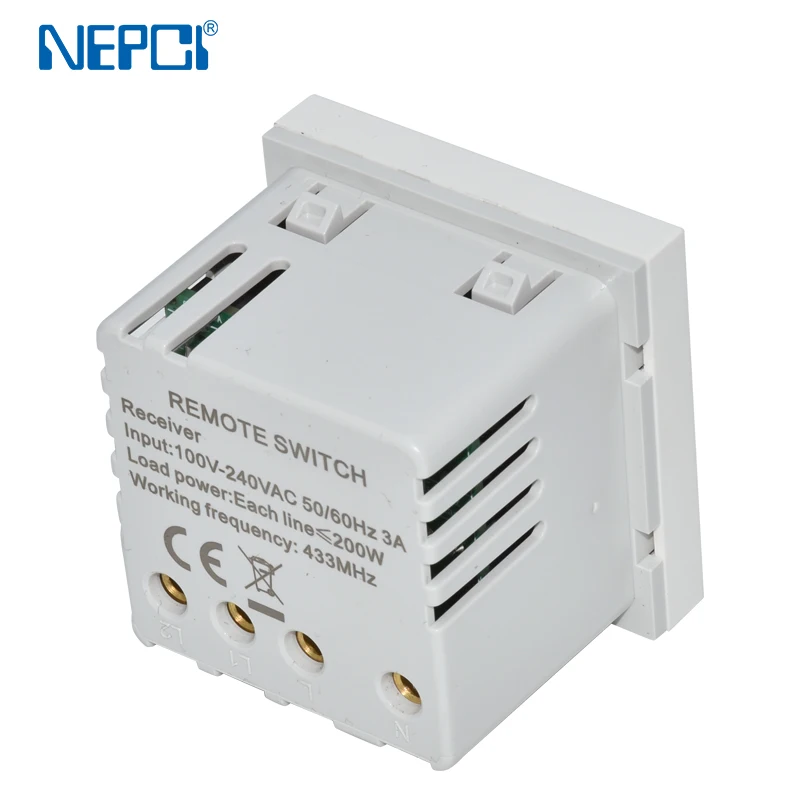

Back picture of 2 Gang Remote Control Switch
XJY-QB-71-2R
Receiver
Attention
1. To avoid fire accident or electric shock, please make sure the power supply is disconnected and the main power switch is shut off before installing the product.
2. Please consult a qualified electrician if you do not know or are unsure about installation
3. Wire terminal: 1.5-2.5mm2 solid cable, Stripped length: 8mm
4. Please do not install in a humid environment.
5. Please do not overload used.
6. The load power of energy saving lamp or LED lamps is ＜ 200W
2. Please consult a qualified electrician if you do not know or are unsure about installation
3. Wire terminal: 1.5-2.5mm2 solid cable, Stripped length: 8mm
4. Please do not install in a humid environment.
5. Please do not overload used.
6. The load power of energy saving lamp or LED lamps is ＜ 200W
7. The switch can only be connected to lights, not other electrical appliances
Products Features
1). Passed CE UL TUV certificates.
2). Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.
3). Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6- 0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
4). Based on Surge design, Lightning strike, Over-Voltage and over Current Protection.
5). Built-In high Performance intelligent IC charging module, which has Over Current/Voltage and short circuit Protection. USB Ports can auto identify the Loading. So as to ensure the charging quality & Extend the Battery life.
6). Over 8 Hrs Burning Testing and USB Passed 3000V Safety Testing to Ensure the product quality.
Our Company
ZHEJIANG NEW-EPOCH INDUSTRY CO.,LTD, established in 1999, is a proffesional manufacturer committed to accessories of telecom and network , covering a large range of 400 products, such as plug and soket, wall plate, adapting and coupling modular, parts of intelligent signal box , auto connector and so on. Our products are so popular abroad that they are winning a large market in countries like Germany, France, UK, Sweden , America, Taiwan, Middle East, Southeast Asia and so on . At the same time, sales-offices are setted nationwidely.
Certifications
Packing & Delivery
Packing
Packaging Details:\t1 pcs /standard inner box ,and 50 pcs/ carton ; also the package can be customized .
Delivery
Delivery Detail:\t3-5 days
FAQ
1. Q: What is the MOQ for USB wall socket ?
A: The MOQ is 500pcs, but small quantity is ok if the stock is available.
2. Q: Can you send a sample to us?
A: Yes, we can send a free sample to you for test, but we hope freight collect would be acceptable at the first time. After you placing the order, the freight of sample will be deducted from the payment of goods.
3. Q: What's your products quality standard?
A: our products have got CE, UL, TUV approval.
4. Q: Could you please print our company logo on socket?
A: Yes, company logo printing is available. Just send us the logo file!
5. Q: Can we use our packing options?
A: Yes, you can, OEM packing is available.
6. Q:What color do you have ?
A: We have different colors for your choosing, you can provide the color code and we OEM for you.
7. Q: What is your payment terms ?
A: TT, Paypal, West Union.
8. Q: Are your wall socket safe?
A: Yes, of course.Our USB wall socket made by PC fire retardant material, and we have fuse in our adapter to ensure the safety.
9. Q: How long will it take a sample with our Logo?
A: 3 working days will be ok after we confirm the logo artwork.
10. Q: Can your wall socket charge Samsung tablet and note?
A: Yes, our USB wall socket can charge Samsung tablet, note, Ipad,Iphone ect
11. Q: Is your wall socket grounded?
A: Our USB wall socket is standard grounding .
