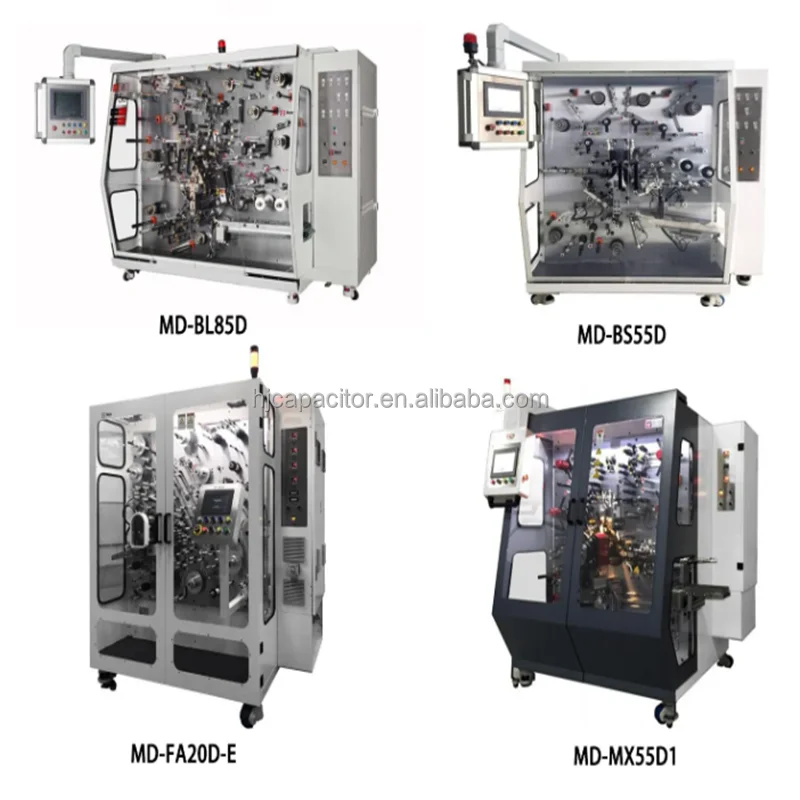

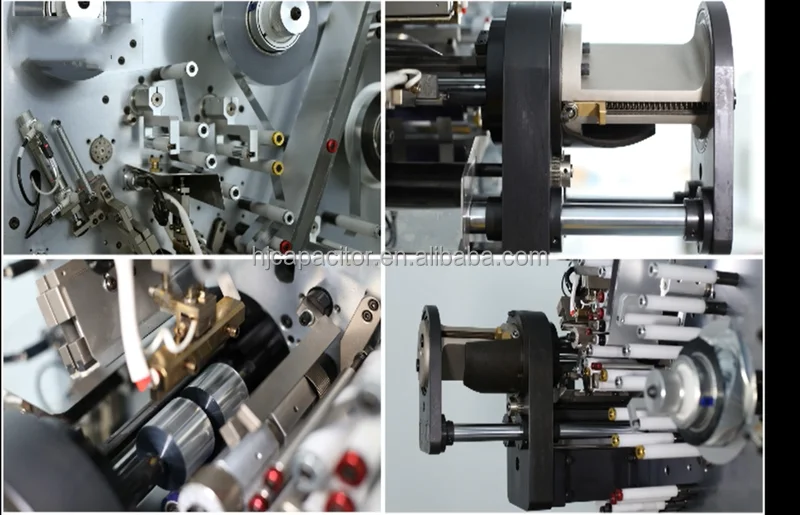

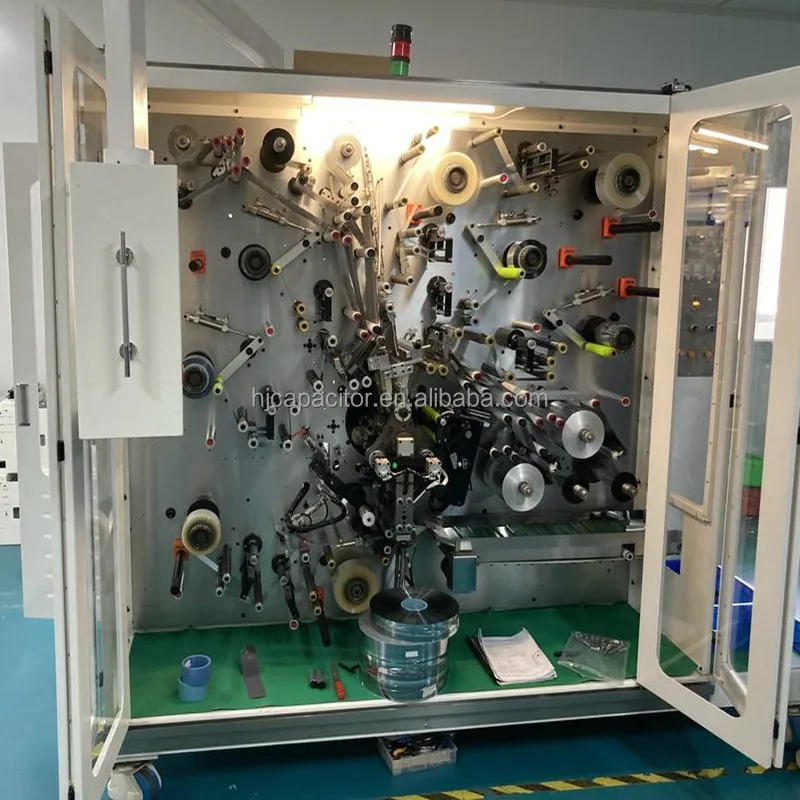

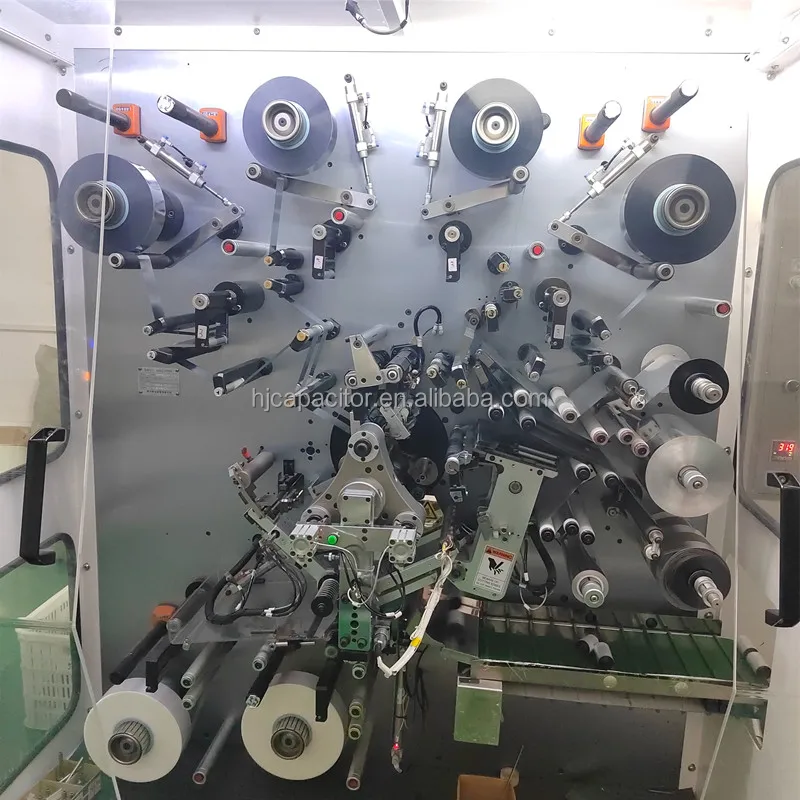

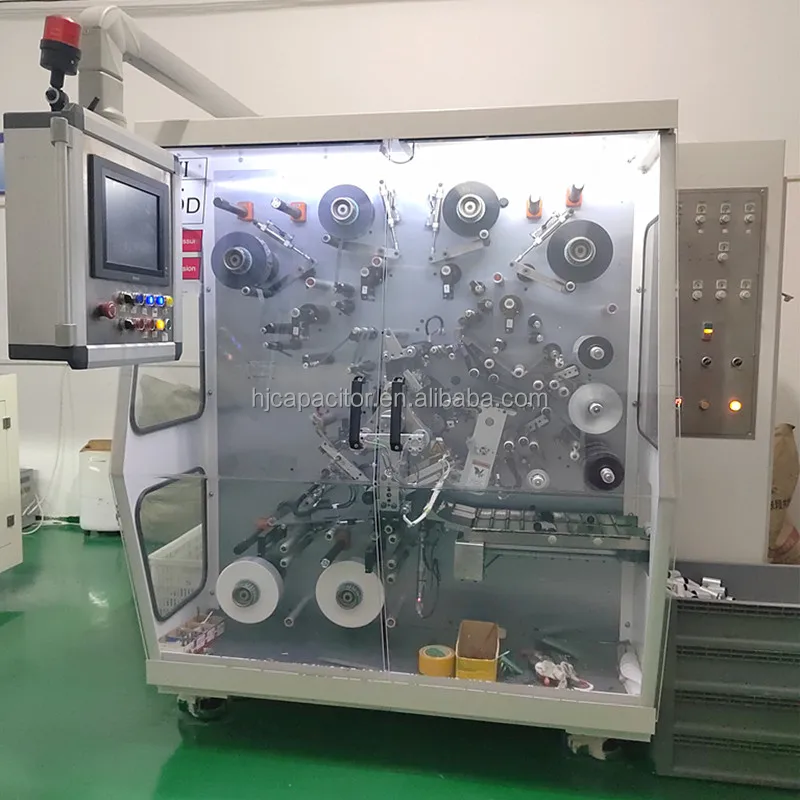

Automatic winding machine for A.C. capacitors Metal film winding machine

1.High speed winding
* Adopting Schneider 238PLC and 7”touching screen, which substantially increases the computing capability of CPU in comparison
with the previous generation of machine.
* Winding is based on the linear speed control. The variation of film speed per unit time may maintain the same. This mode allows
higher winding speed and better smoothness of winding speed.
* Software supports to winding the last turn in the period of head rotation. Means 0.2 sec. time can be saved.
* Actual output is 2,400pcs/hour for the capacitor 100 turns.
2. Saving more material than the previous generation
Through software the length of initial burn off can be adjusted instead of fixed length as the previous generation.
3. Data saving function
More than 200 winding receipt may be saved. The function may easy machine management and operation.
4. AC servo for main winding
AC servo motor for main winding, precise positioning, fast response.
5. Easy to operate
* Based on the data of material and desire capacitance, Machine control system will automatically calculate the requested winding
turns, tension, pressing force, and final overall dimensions.
* Administrator may limit the max, winding speed and acceleration.
6.More Configuration possibility
* Series A/G are available for the winding of small size capacitor. As G Type machine has small footprint and compact structure,
it is the best choice to wind miniature capacitor in double winding mode.
* Electrical tension control is available for some models of machine.
* For having more precise winding and better film alignment, Air guide is available for some models of machine.
* As optional, Burn off voltage can be 0 – 50 V.
