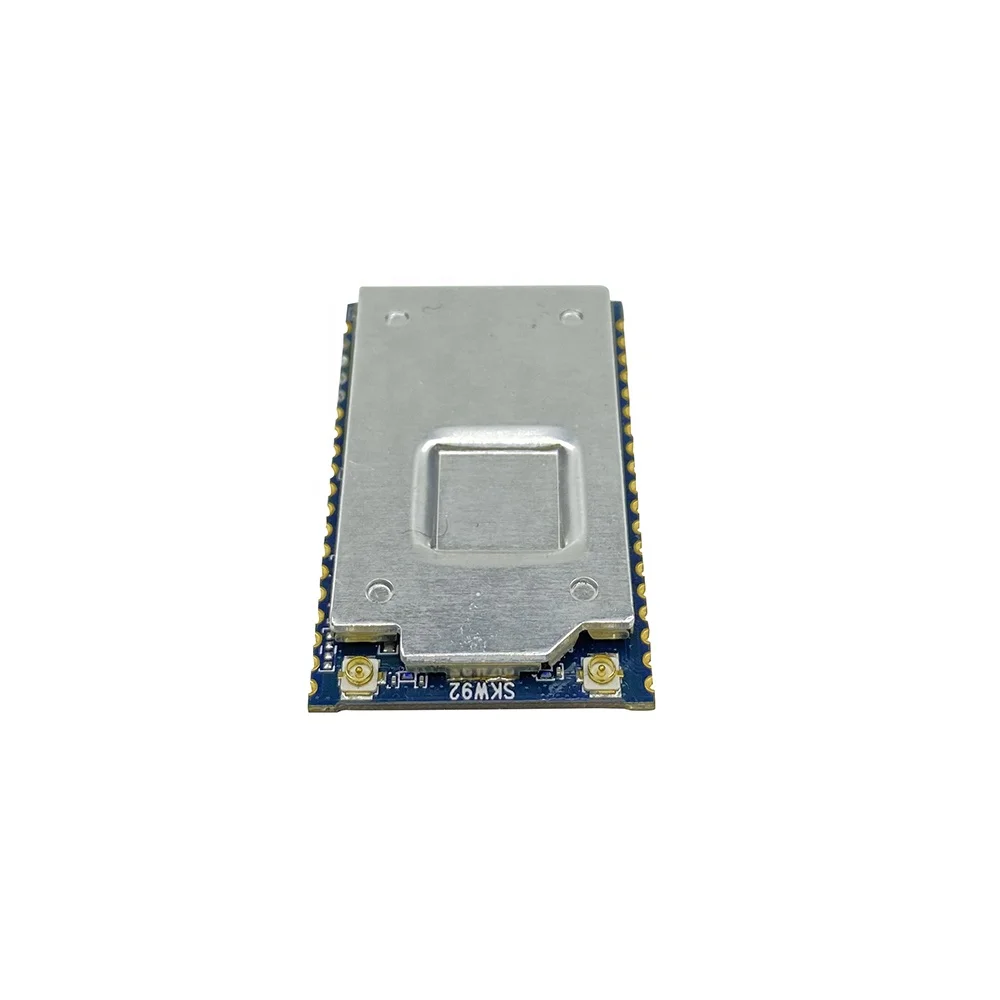

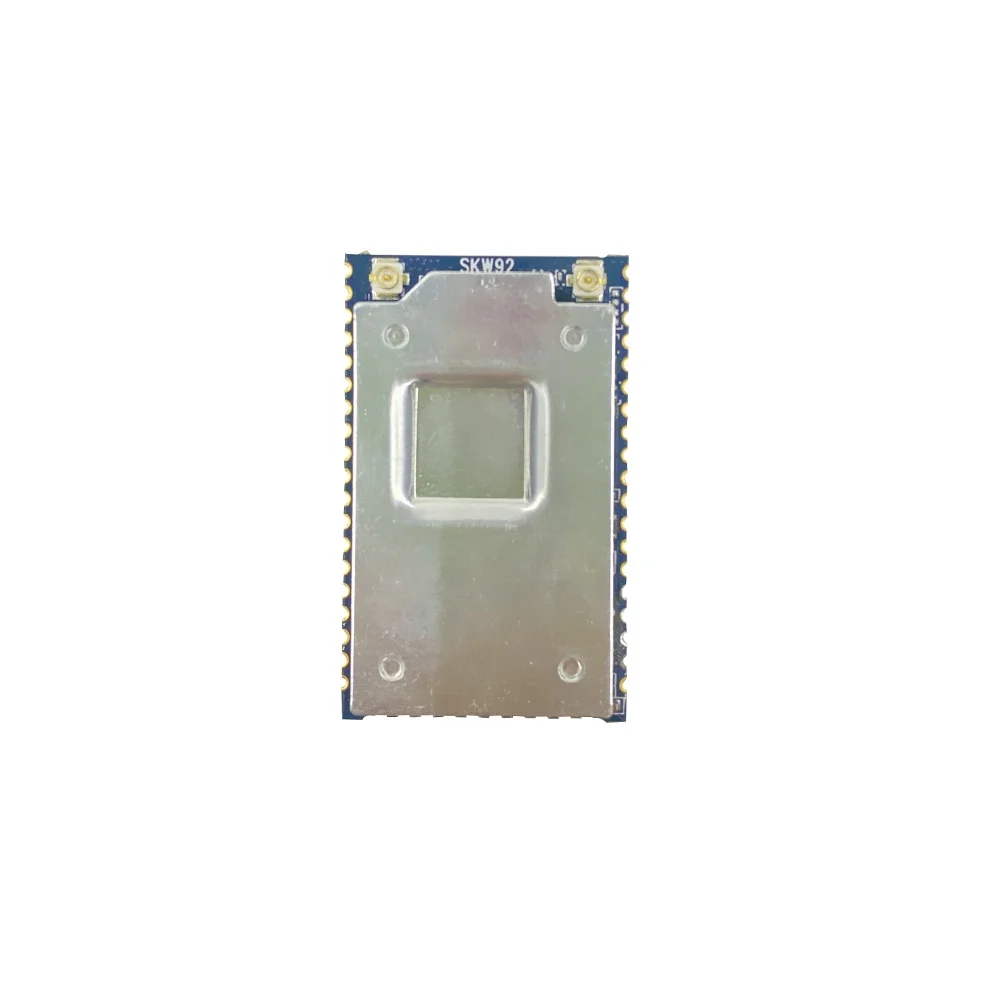

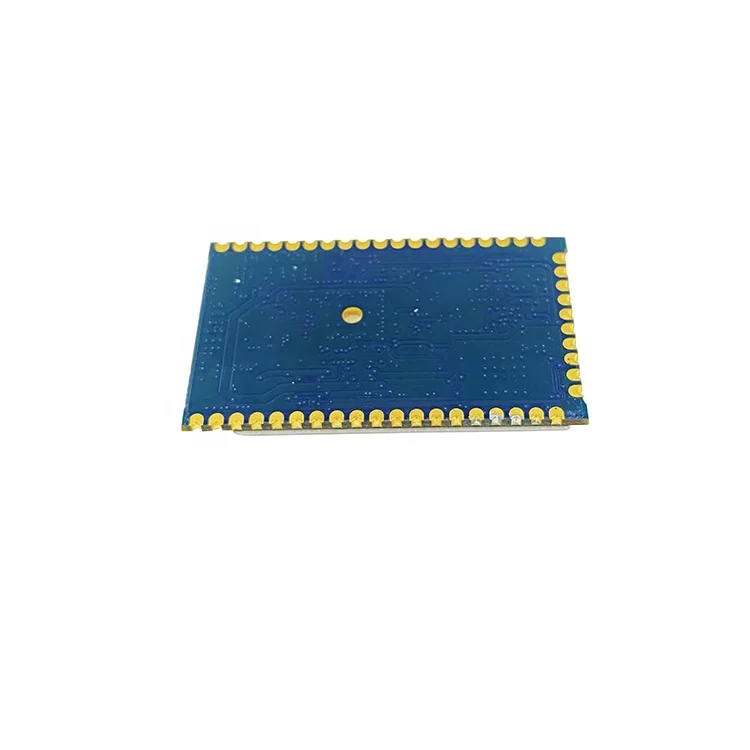

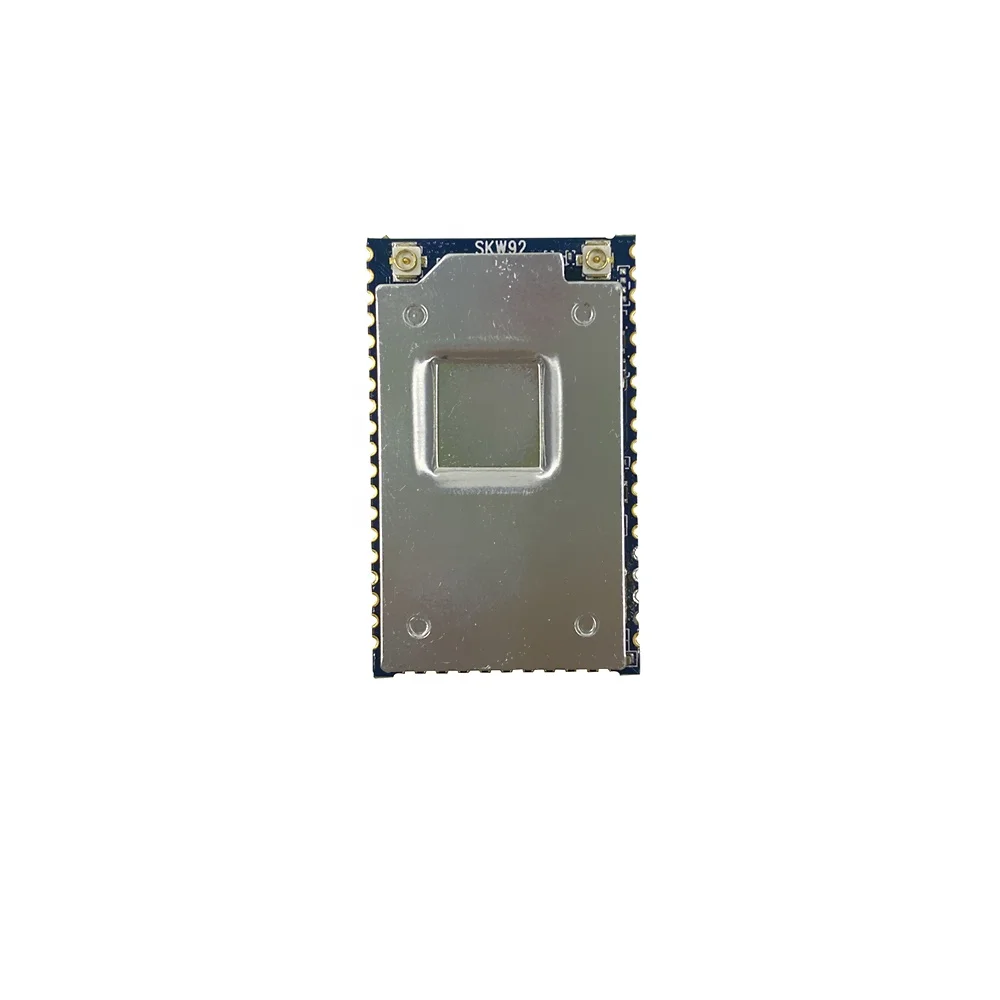

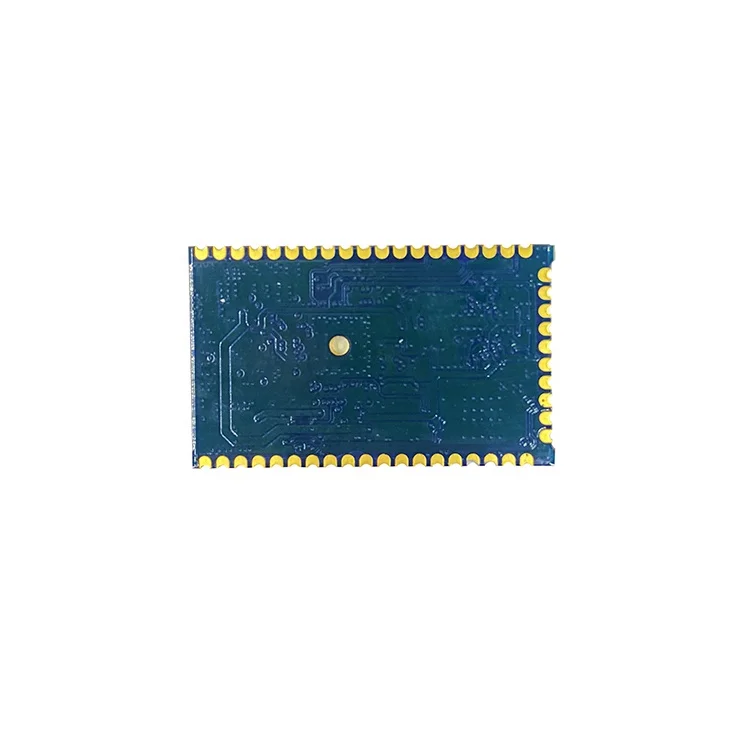

Iot Hardware Wireless Router Board,Linux Soc Mt7628N Wlan Module
- Category: >>>
- Supplier: HoneyComm IoT Technology (Shenzhen) Co. Ltd.
Share on (1600744531827):
Product Overview
Description
Wireless Standards | IEEE 802.11b/g/n |
Frequency Range | 2.412GHz---2.484 GHz |
IEEE 802.11b : 1,2,5.5,11Mbps | |
IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps | |
IEEE 802.11n : MCS0--MCS7 @ HT20 | |
MCS0--MCS7 @ HT40 | |
HT40 MCS7 : -70dBm@10% PER(MCS7) | |
HT20 MCS7 : -73dBm@10% PER(MCS7) | |
54M: -77dBm@10% PER | |
11M: -89dBm@ 8% PER | |
Modulation Technique | DSSS (DBPSK, DQPSK, CCK) |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
Wireless Security | WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI |
IEEE 802.11n: 15±2dBm @HT20/40 MCS7 | |
IEEE 802.11g: 16±2dBm @54MHz | |
IEEE 802.11b: 18±2dBm @11MHz | |
Work Mode | Bridge/Gateway/AP Client |
Operating Temperature: -20℃~55℃ | |
Storage Temperature: -40℃~125℃ | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
>> How to get samples?
1. You can find the product you want and place an order which is ready to ship.
2. Contact us about qty,model and shipping method
3. We are ok to receive sample payment via paypal or Alibaba platform.
4. Sample order generally spend 1-2 workdays to ship because flashing firmware and 100% inspection before delivery.
5. Sample packgaing use very small bag with electrostatic protection and small paper hard box.
6. Generally,using DHL.FEDX,UPS,TNT/EMS or post air mail for international express delivery.
2. Contact us about qty,model and shipping method
3. We are ok to receive sample payment via paypal or Alibaba platform.
4. Sample order generally spend 1-2 workdays to ship because flashing firmware and 100% inspection before delivery.
5. Sample packgaing use very small bag with electrostatic protection and small paper hard box.
6. Generally,using DHL.FEDX,UPS,TNT/EMS or post air mail for international express delivery.
>> How do I gain technical support?
1. Contact us via Email, Skype,Whatsapp and Alibaba TM, even Wechat to get a help.
2. Once customer buying samples from us, we will keep supporting them till the project finished.
3. We have good resource and technical support from chipset original factory.
2. Once customer buying samples from us, we will keep supporting them till the project finished.
3. We have good resource and technical support from chipset original factory.
>> Customize HW,FW and OEM board are available?
1. If our standard module do not meet your demands, we will evaluate and help to customize. MOQ 1Kpcs and 5pcs free samples.
2. If you do not have power engineering team, we will be your partner with chariging a bit fee.
3. If our module has been adopted on your board, we also can help on manufacturing your board and our modules together.
2. If you do not have power engineering team, we will be your partner with chariging a bit fee.
3. If our module has been adopted on your board, we also can help on manufacturing your board and our modules together.
>> Why HoneyComm?
1. 7*24 Hours Quick Response
2. Professional,Continuous and Patience Technical Support
3. Driver,SDK and Development kits Available
4. 20+yrs RF-design experience in HW and FW
5. 6 Production Lines in SMT/EMS
6. 3 out of 1000 defective rate, help customers save costs
7. Efficient production capacity helps customers seize market opportunities in a timely manner
8. Second source supply-chain to avoid delivery delay
9. 100% Inspection before delivery
10. Flashing firmware without any extra fee
11. Rich OEM/ODM experience with strong engineering team
12. Low MOQ and samples are available
13. Digital Enterprise Manages Customer Projects and Orders
14. Incoming raw materials must be sampled
15. Regular maintenance and update of fixed assets
16. Strict electrostatic protection requirements for dust-free warehouses and production lines
2. Professional,Continuous and Patience Technical Support
3. Driver,SDK and Development kits Available
4. 20+yrs RF-design experience in HW and FW
5. 6 Production Lines in SMT/EMS
6. 3 out of 1000 defective rate, help customers save costs
7. Efficient production capacity helps customers seize market opportunities in a timely manner
8. Second source supply-chain to avoid delivery delay
9. 100% Inspection before delivery
10. Flashing firmware without any extra fee
11. Rich OEM/ODM experience with strong engineering team
12. Low MOQ and samples are available
13. Digital Enterprise Manages Customer Projects and Orders
14. Incoming raw materials must be sampled
15. Regular maintenance and update of fixed assets
16. Strict electrostatic protection requirements for dust-free warehouses and production lines
